Description
Three piece model rocket
- 42cm total length
- 3cm diameter
- Uses an Estes C6-3 motor
- Estimated Apogee: 144m
- Estimated Max Velocity: 51m/s
Print Settings
Printer Brand:
Prusa
Printer:
Rafts:
No
Supports:
Yes
Resolution:
0.15 layer height
Filament:
Overture PETGBlack
Notes:
- Nozzle Temp:
* First layer: 255°C
* Second layer: 260°C
Bed Temp:
- First layer: 85°C
- Second layer: 90°C

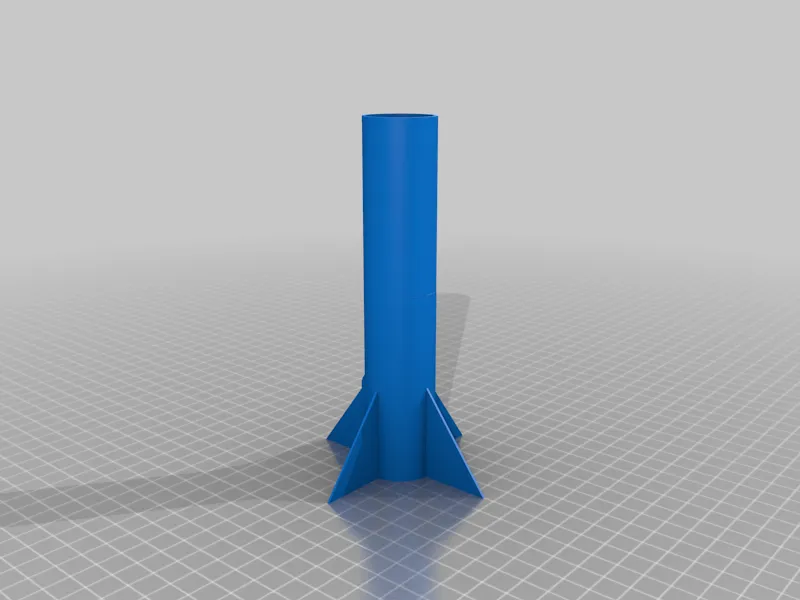

Fin Can infill: 40% Nose and Body infill: 0%
Post-Printing
Non-printed parts
The recovery system was taken from a Estes model rocket kit. The rubber shock cord was tied between the fin can and the nosecone, going through the body tube. The parachute was tied to the middle of the of the shock cord.

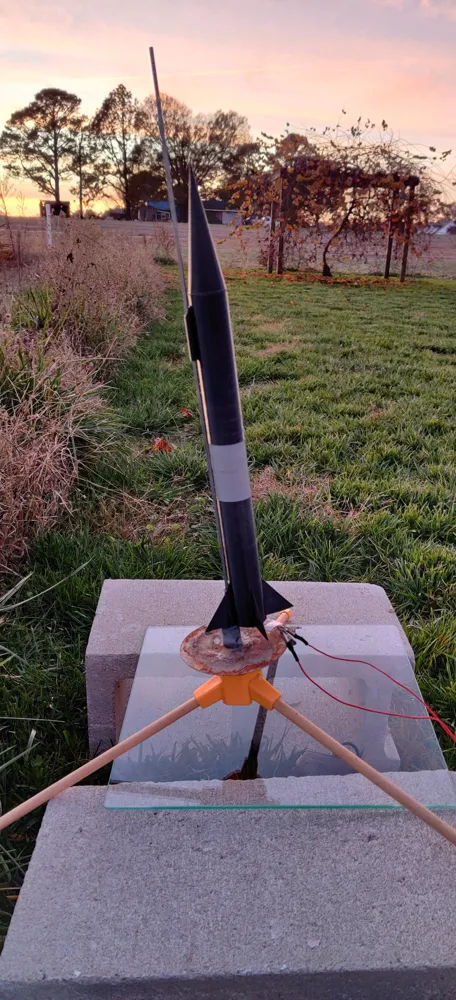

Rocket on the launch pad. Tape in the middle to ensure it separates correctly.
How I Designed This

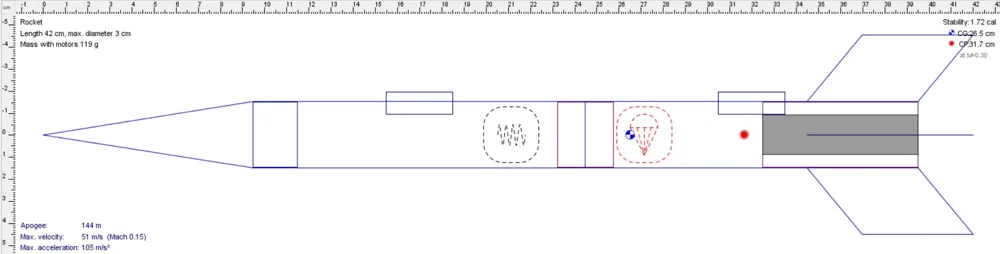

OpenRocket design

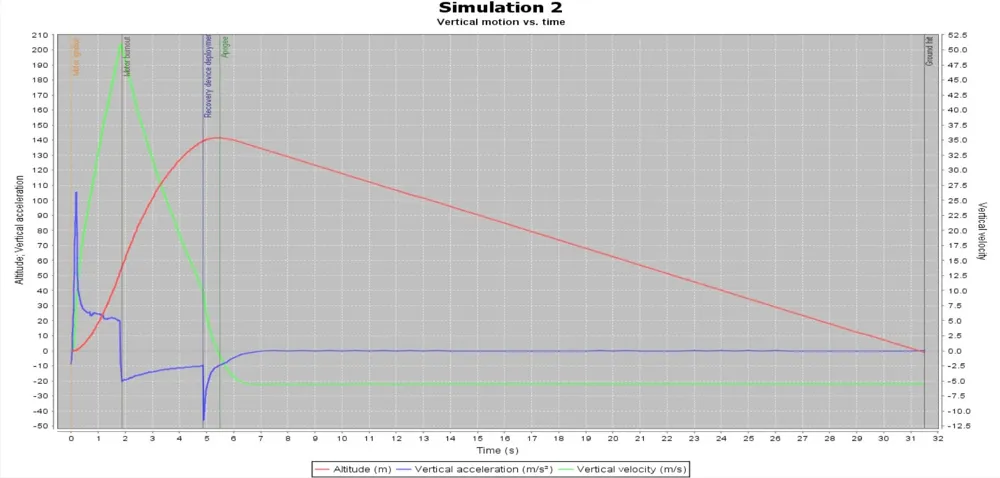

OpenRocket simulation
