Description
Summary
I designed this hinge specifically to hold an acrylic door that I designed for my 3D printer. The hinge fit and movement worked out very well. In fact better than I expected, so I am very pleased with the result.

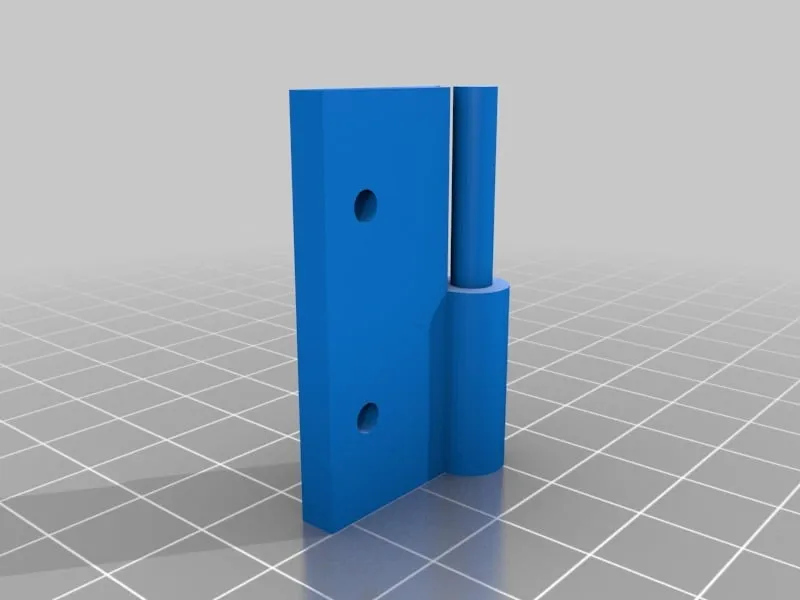

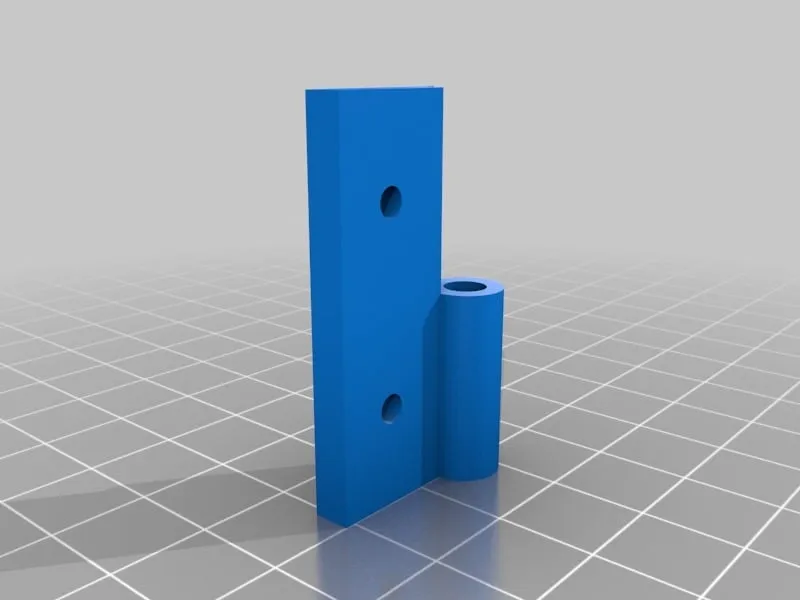

I have included the STL files for the final design which rely on the pin side being the support on the bottom so you can remove the door at will. If you want the hinges to lock so the door will not be removable simply orient the pin side of the hinges opposite to each other.
Simply slice the supplied STLs with your favourite app and print.

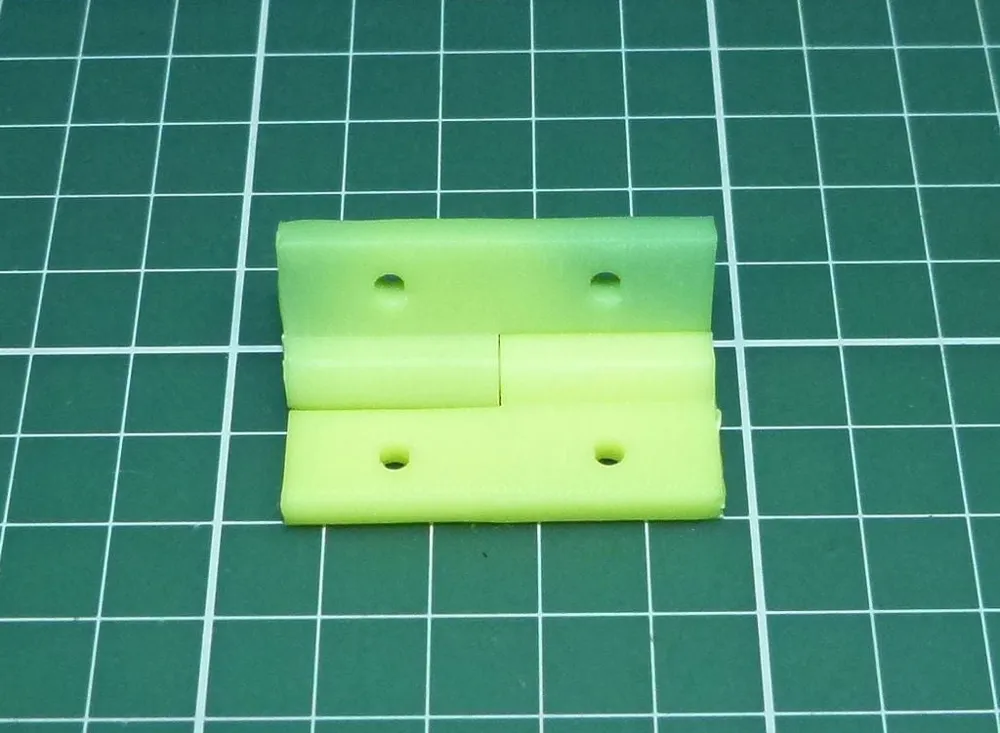

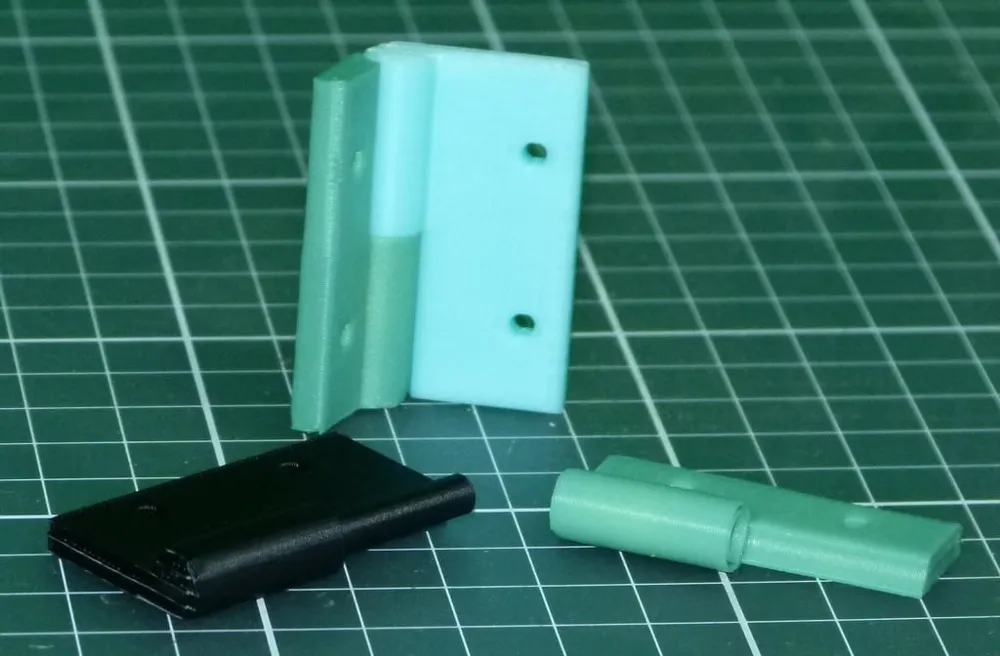

BTW - The default picture shows the hinge printed with some heat sensitive ABS which changes color from aqua green to greeny yellow when held.
