Strip-Light to 5mm LED
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 15% infill
Designer
1.8 h
4 plates
Open in Bambu Studio
Boost
12
37
0
0
24
5
Released
Description

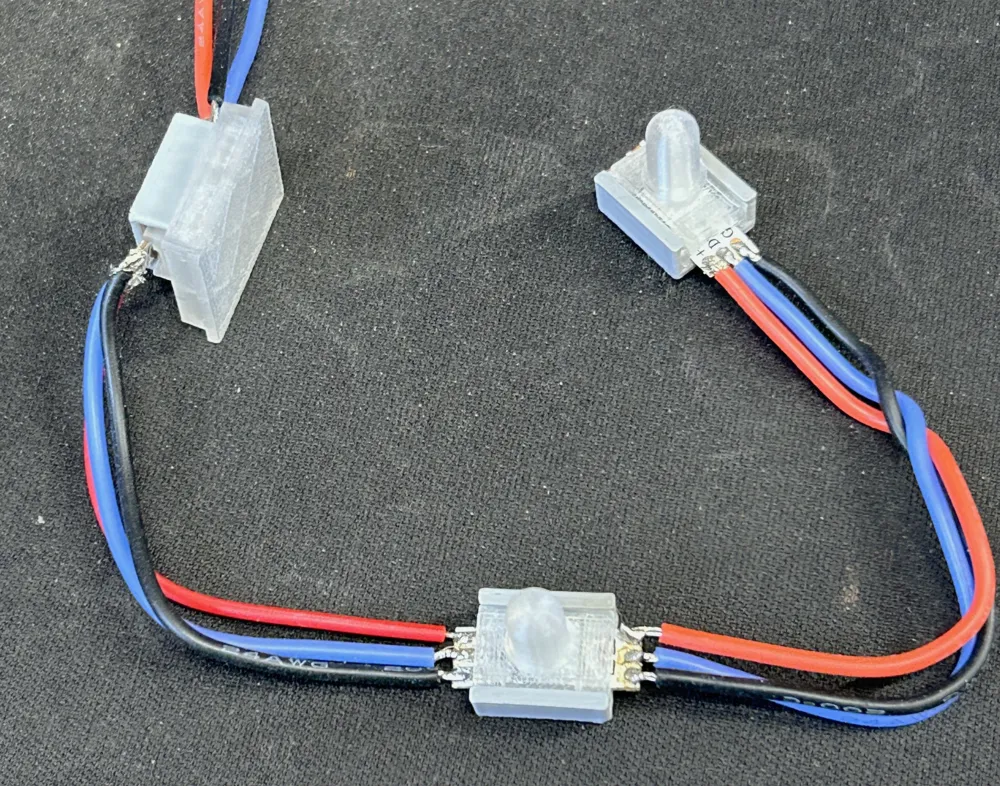

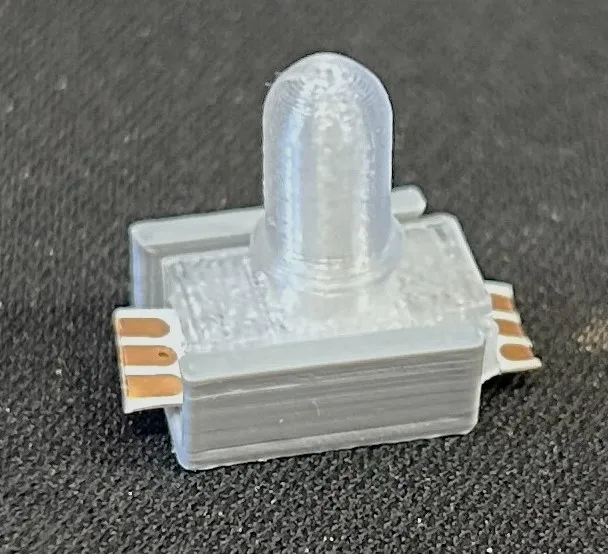

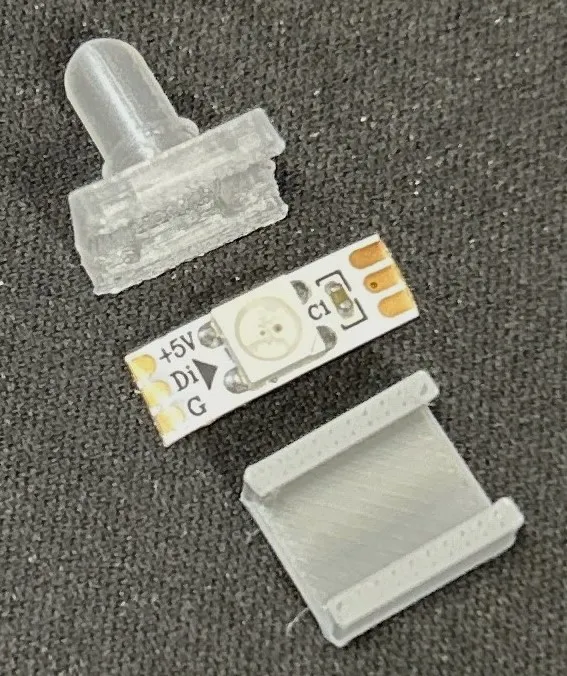

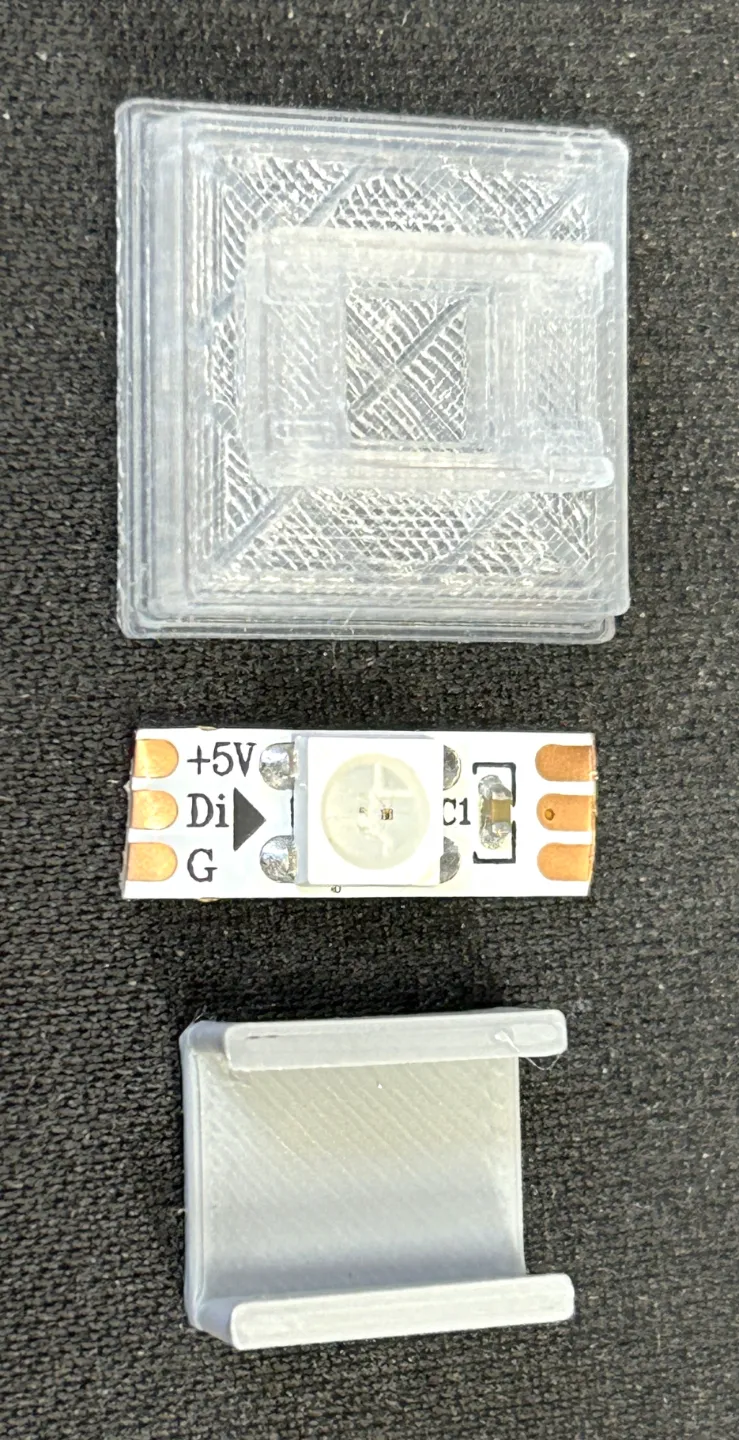

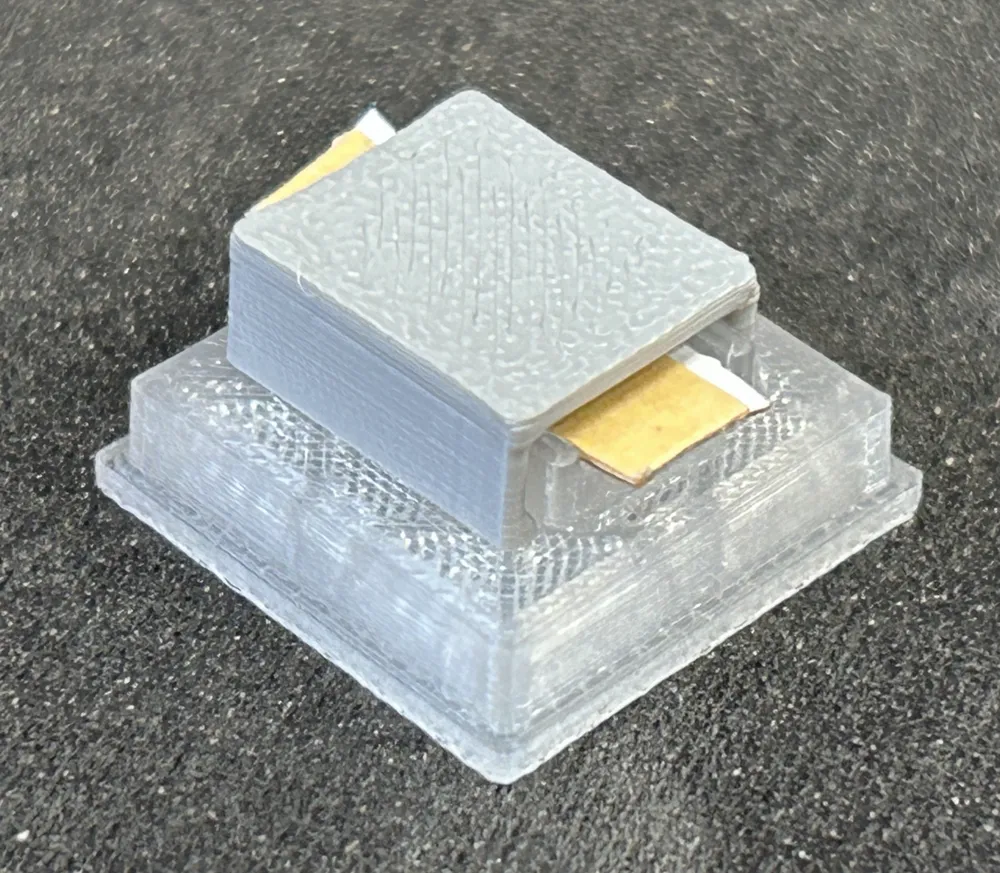

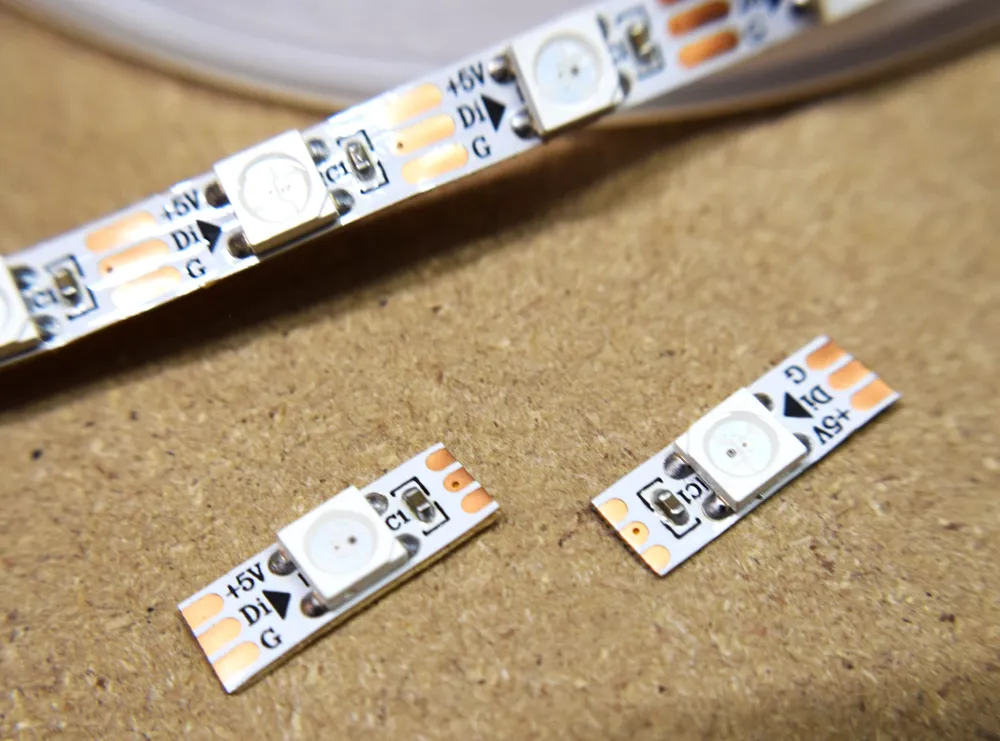

The files here are for an adapter to convert a single LED from a WS2813B LED striplight to standard 5mm LED dimensions. This adapted LED can then be used in standard mounting such as panels. Also included is a square 17mmx17mm panel mount LED adapter. These LED can be used to give a vast array of colors and brightnesses and are very easy to adjust.

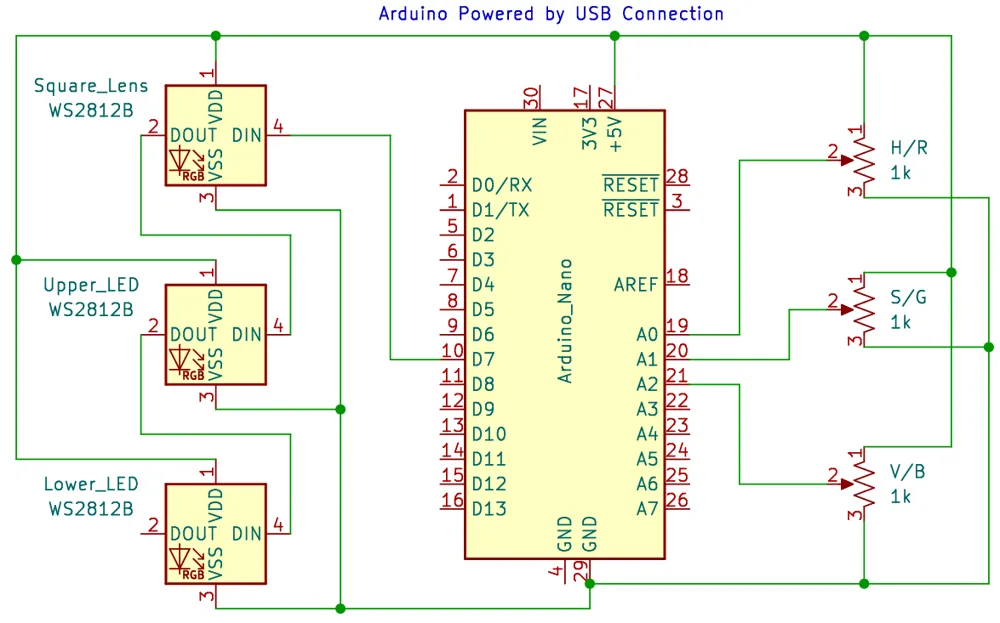

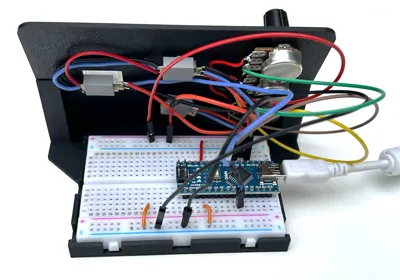

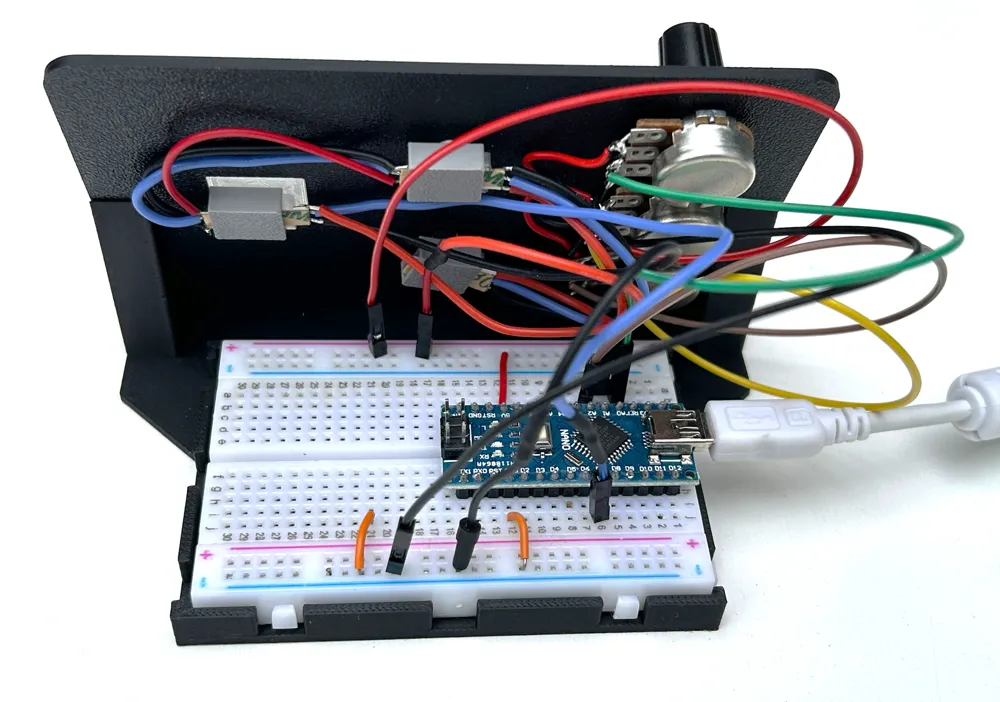

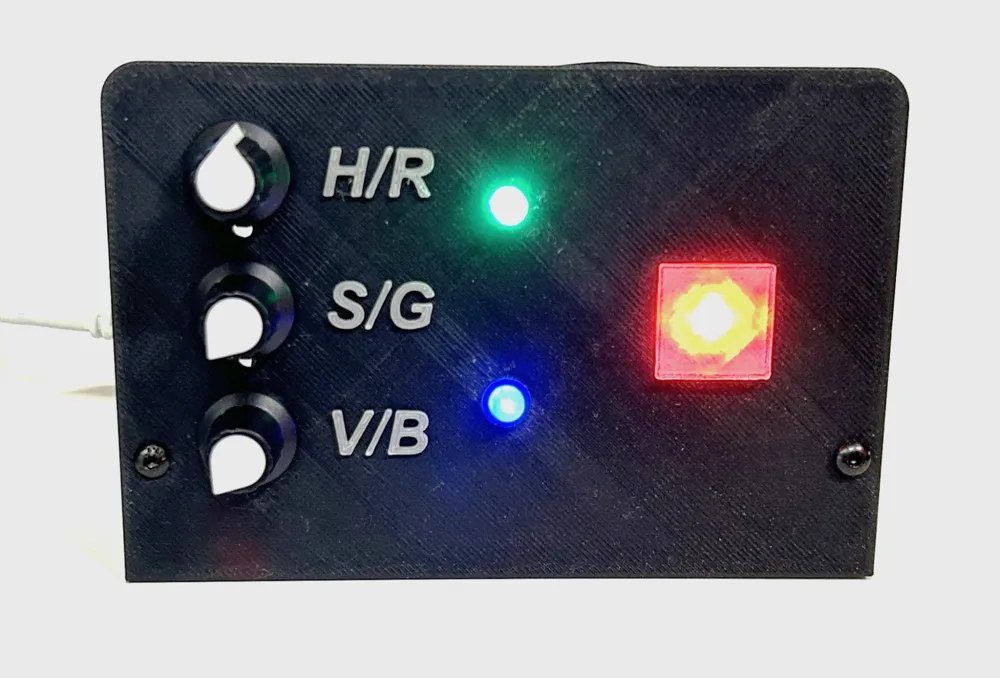

Also included in the model files is a test stand and details on how to use an Arduino to control 3 LEDs with potentiometer for RGB.
The download also contains more details, schematic, pictures, Arduino firmware, construction info, etc.
Also see the article describing this at EDN.com: https://www.edn.com/a-simple-full-color-upgrade-for-your-led-indicators/
