box with lock

Simple box with lock pin

int. dimension: 190 mm x 90 mm x 43 mm

For this model you will need:

• (3) m3 x 12 mm screws
• (4) m3 x 10 mm screws
• (1) m5 x 12 mm screw

Assembly guide:

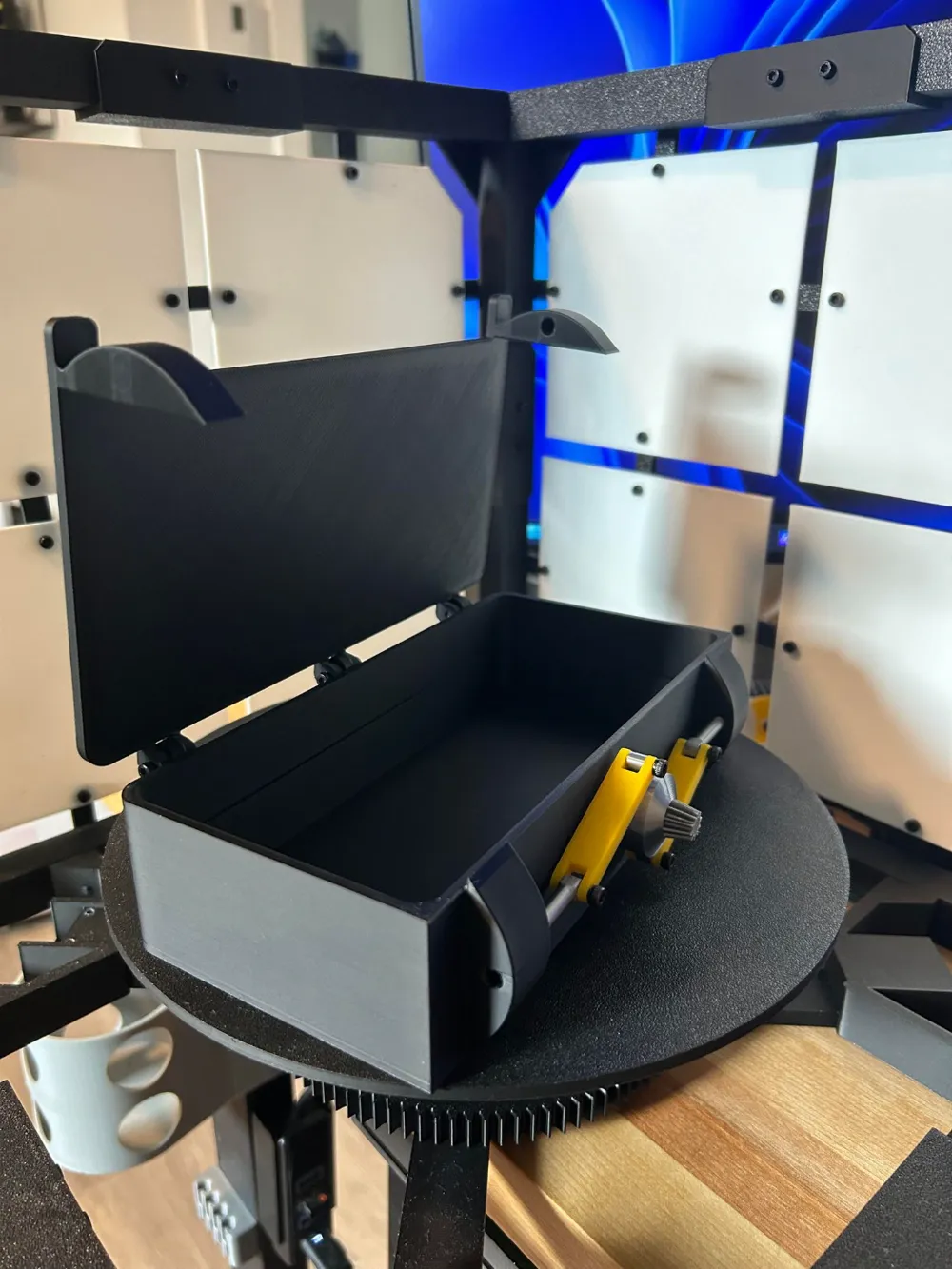

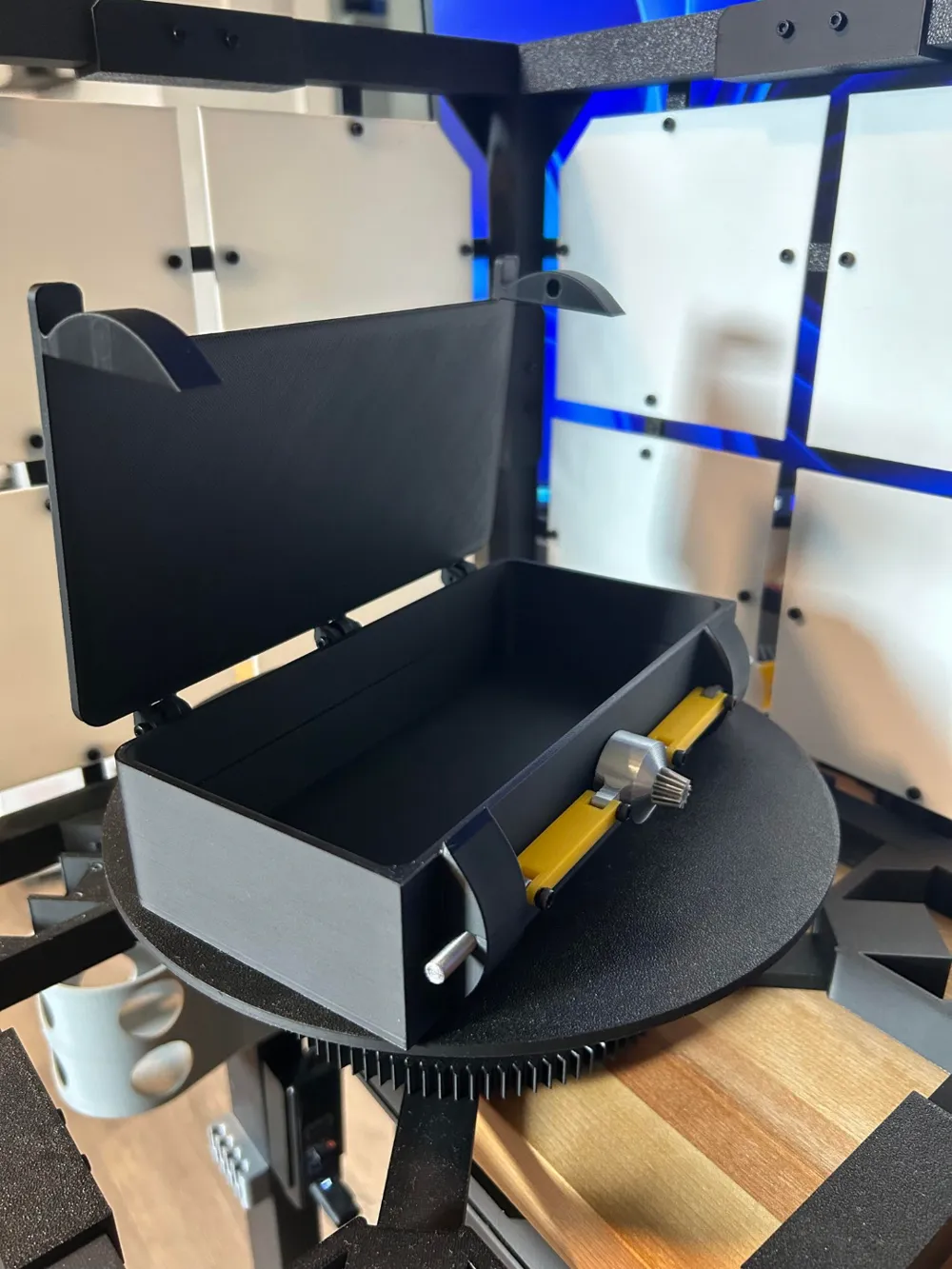

1. Put the center wheel in place and fix it with the m5 x 12 mm screw.

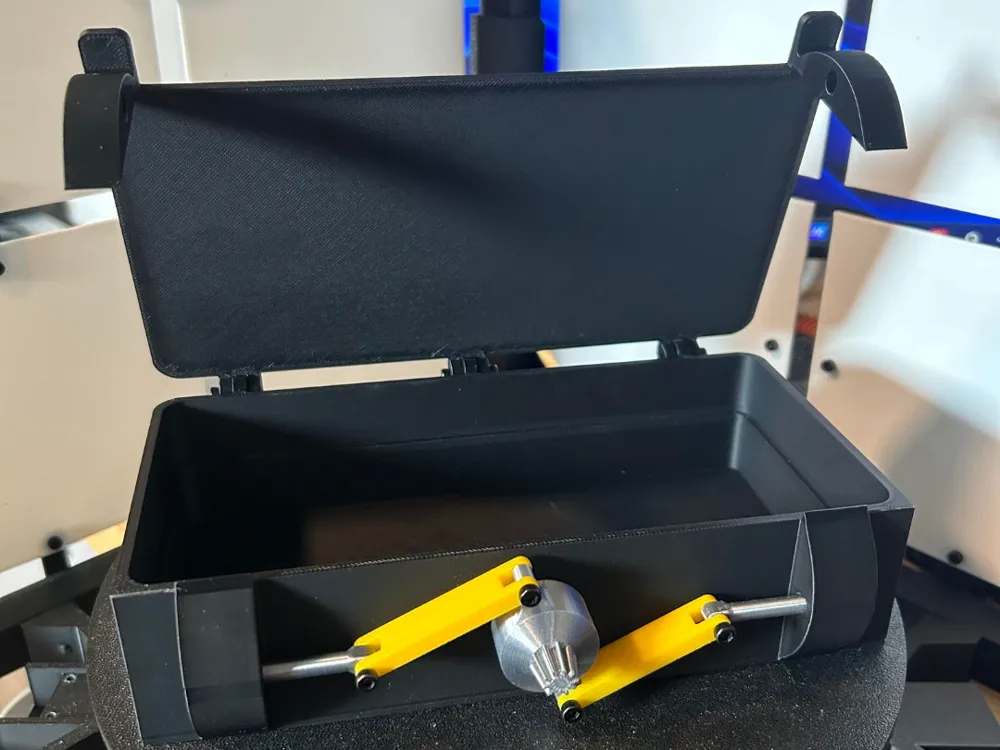

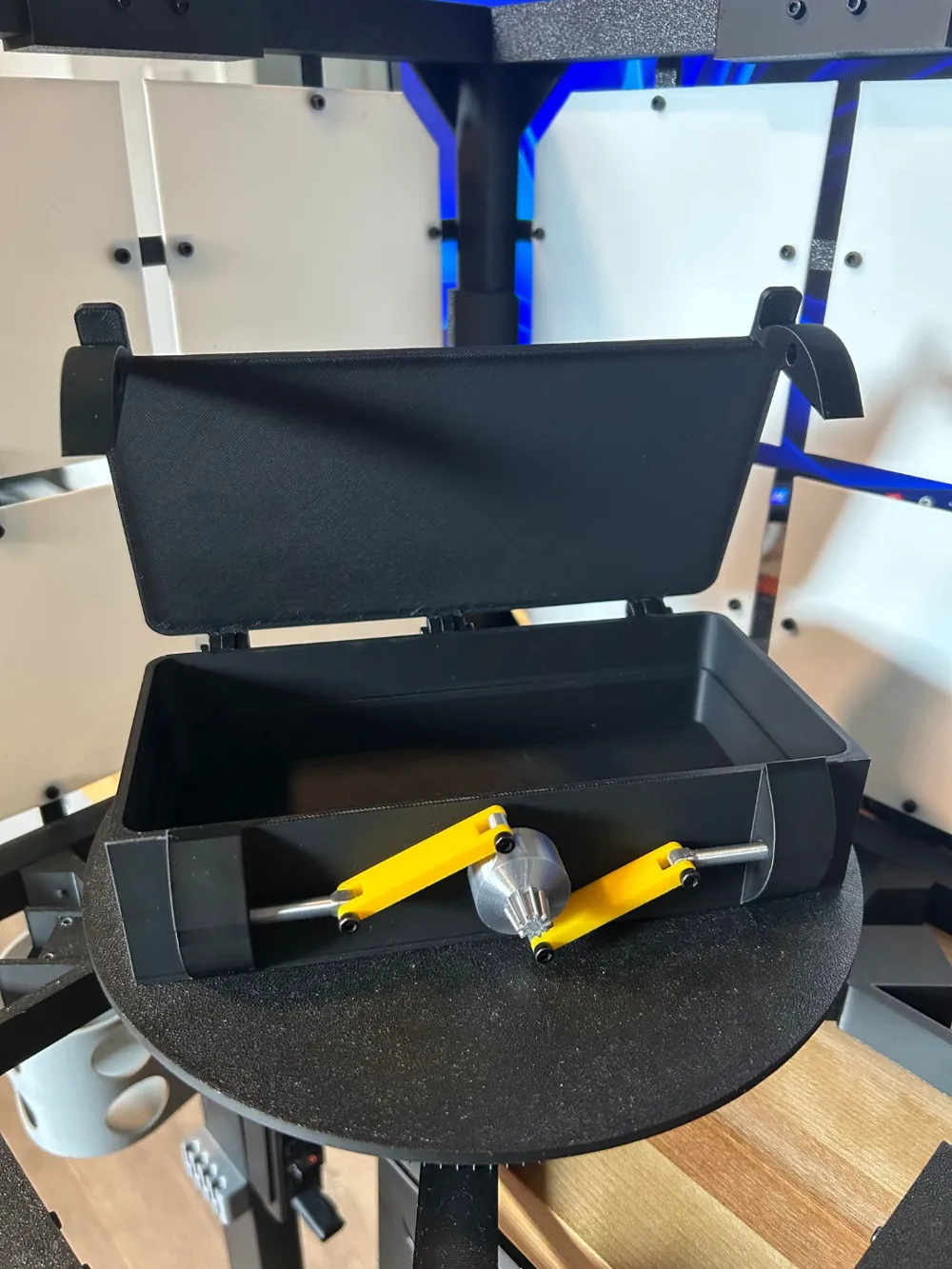

2. Take the center arm and screw them to the center wheel with the m3 x 10 mm.

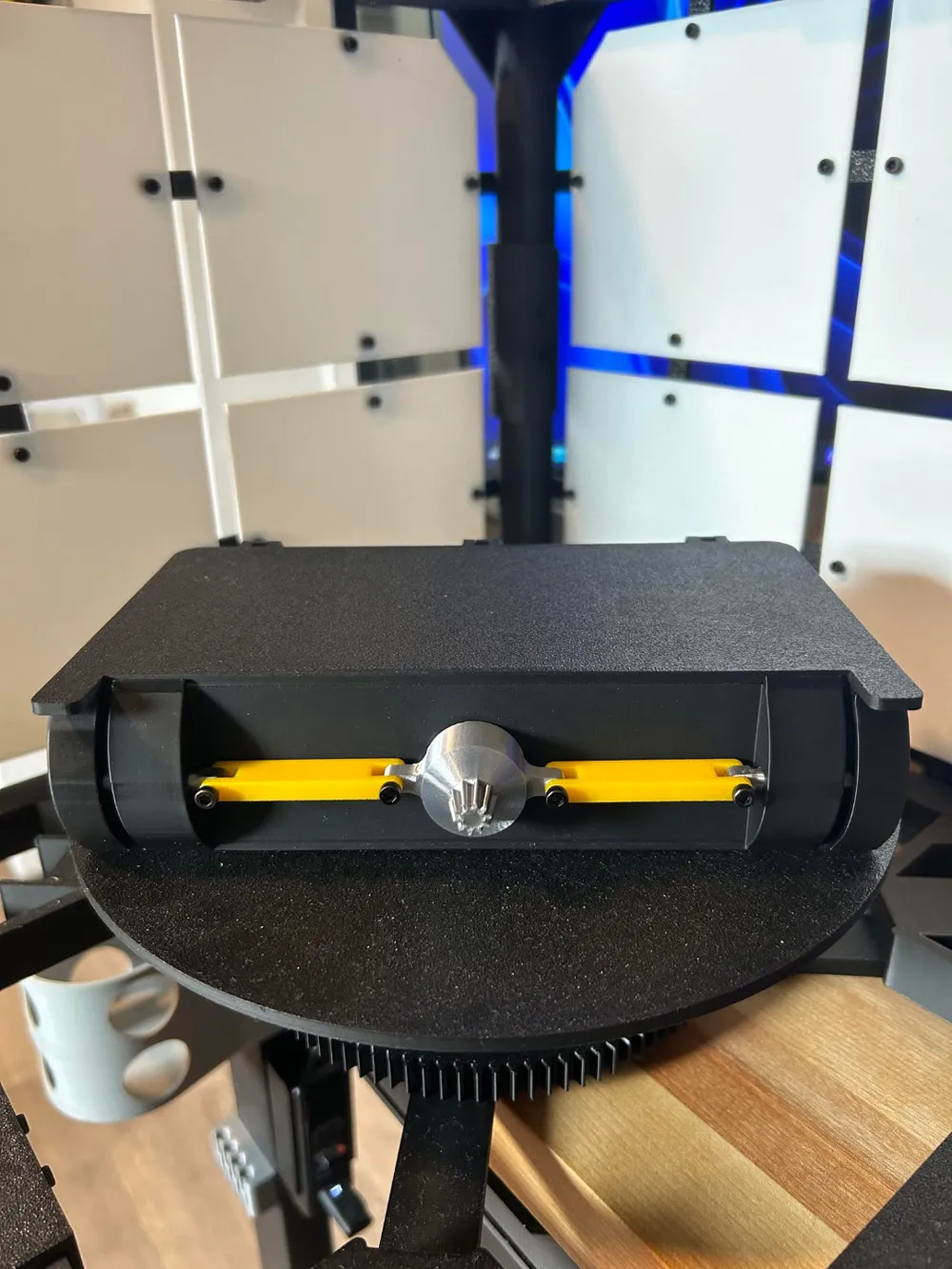

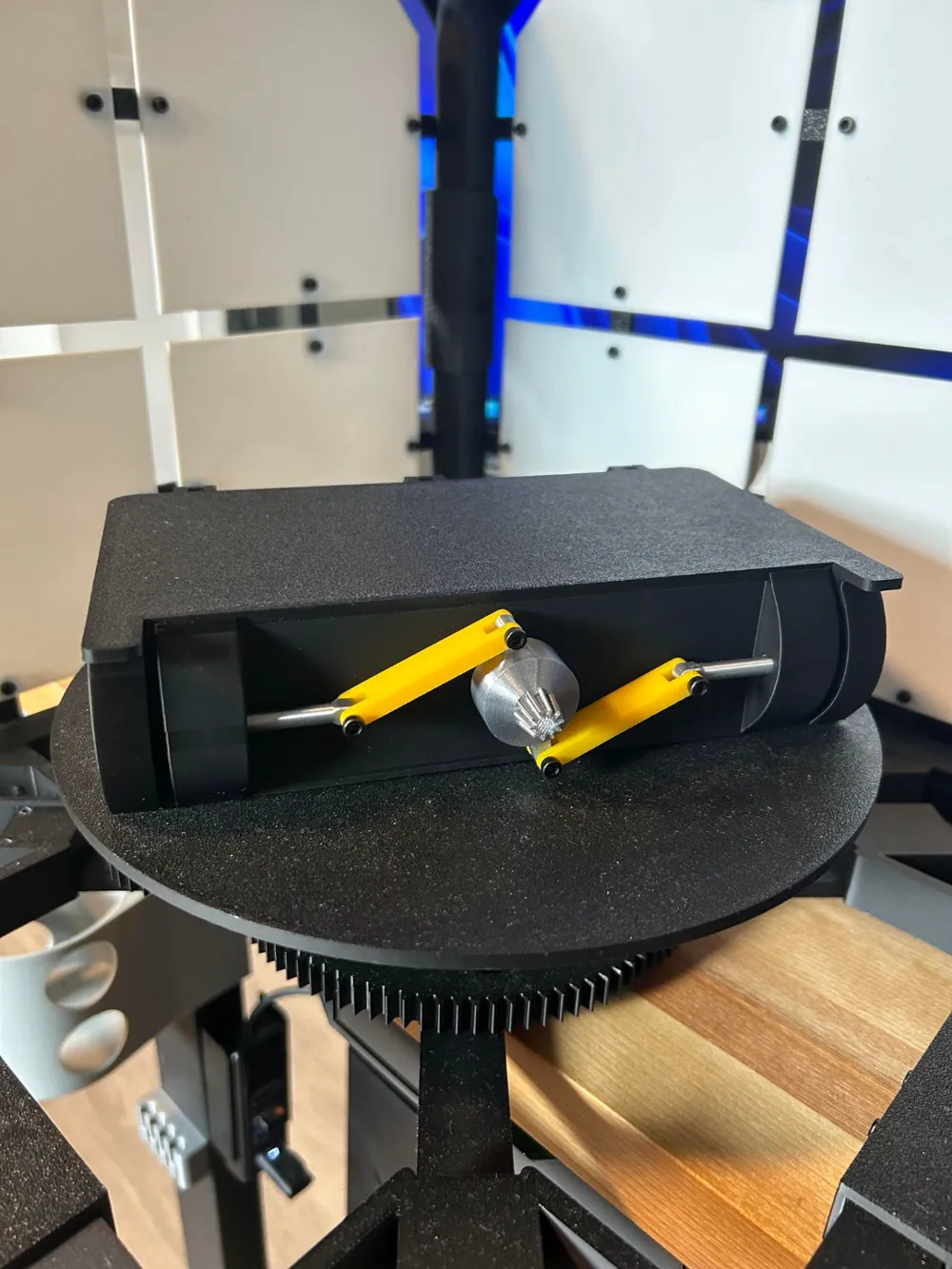

3. Slide the round pin in the guide in locking position and screw the center arm to the head of the round pin with the m3 x 10 mm (same for each side of the box)

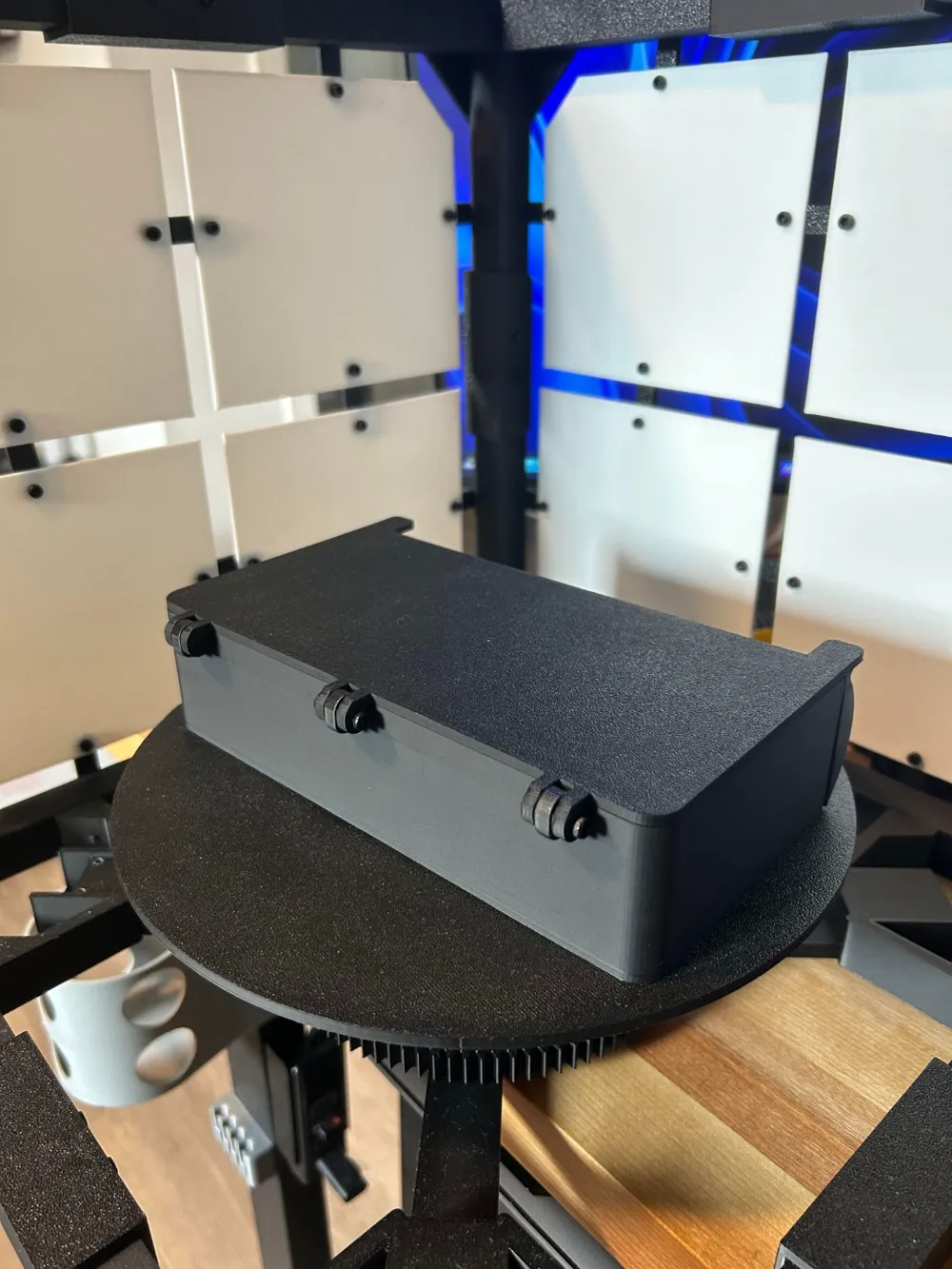

4. Take your m3 x 12 mm and screw them on the back of the box to complete the hinge.

Note: In this version I added a stop on the bottom of the box to prevent the center wheel to overturn causing the pin to bug a little bit. NOT SHOWING IN THE PHOTO BUT THE STL AND PRINT PROFILE HAVE BEEN UPDATED WITH THE GOOD VERSION.
