Utility Gravity Knife

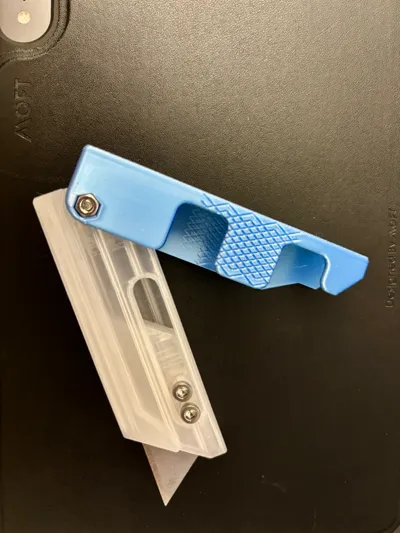

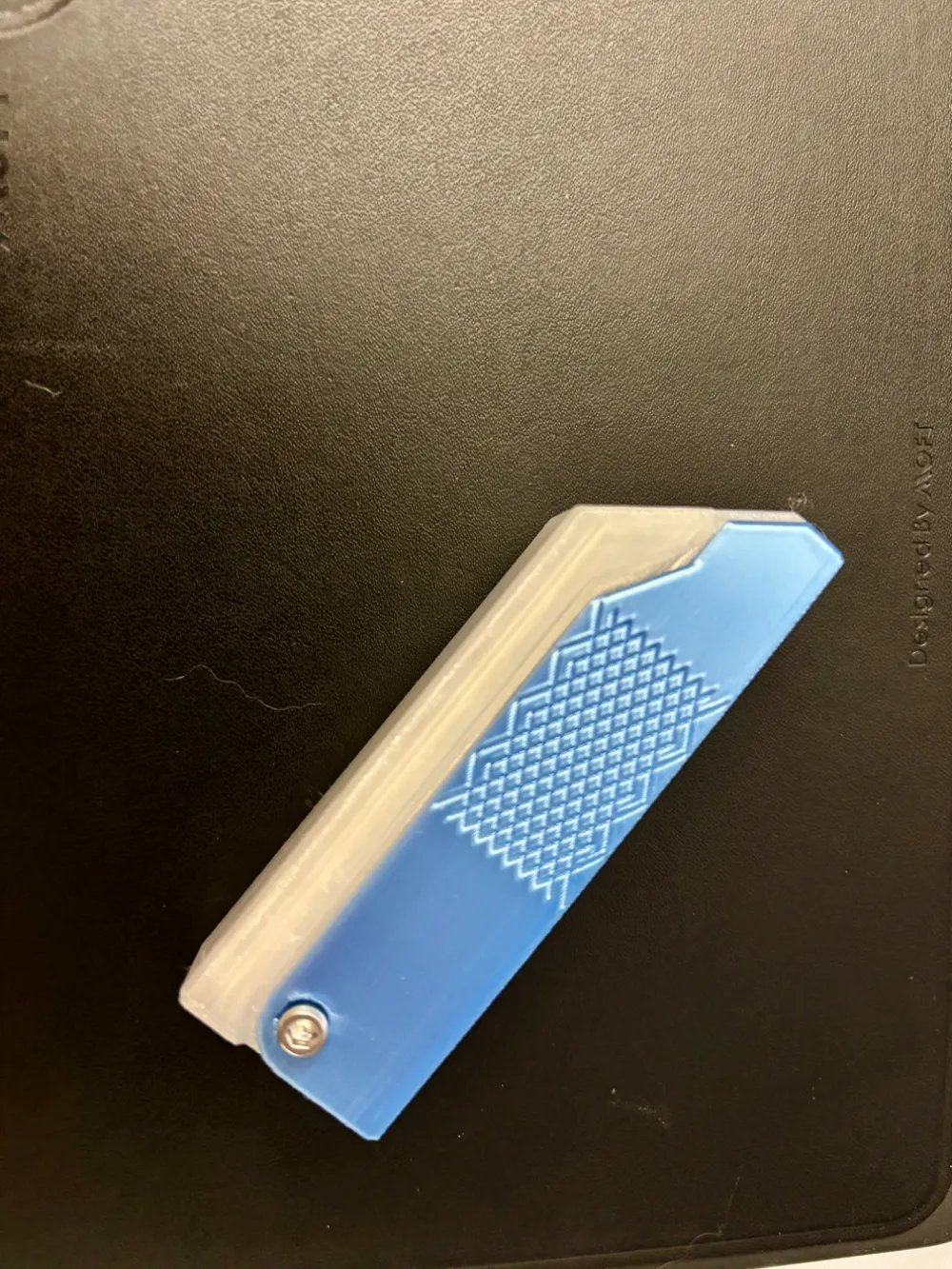

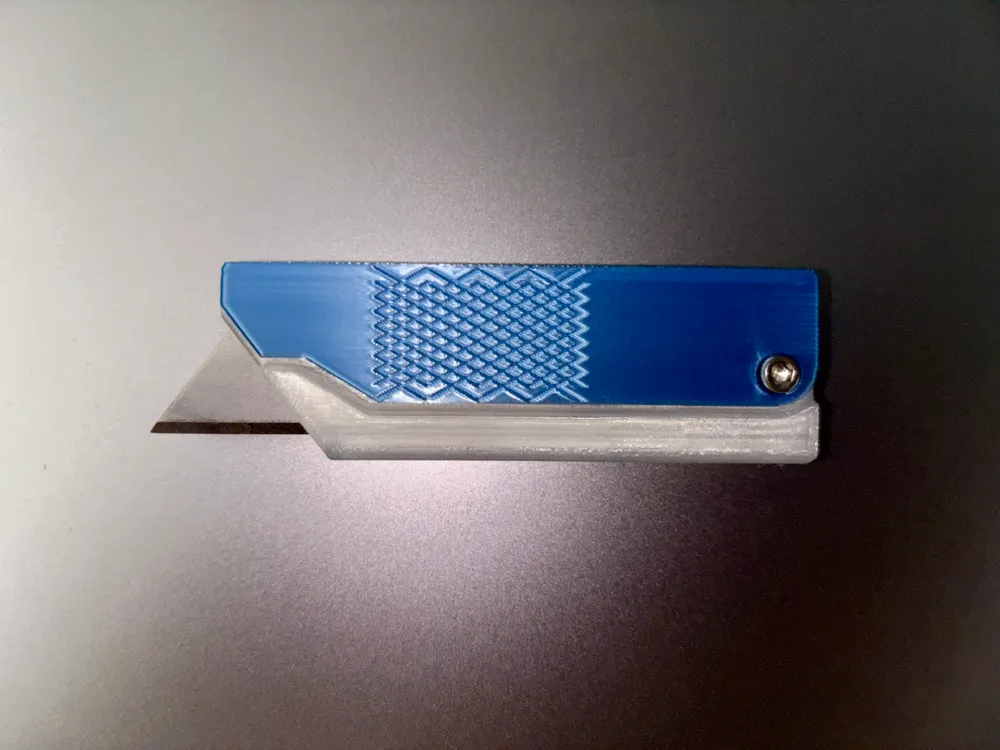

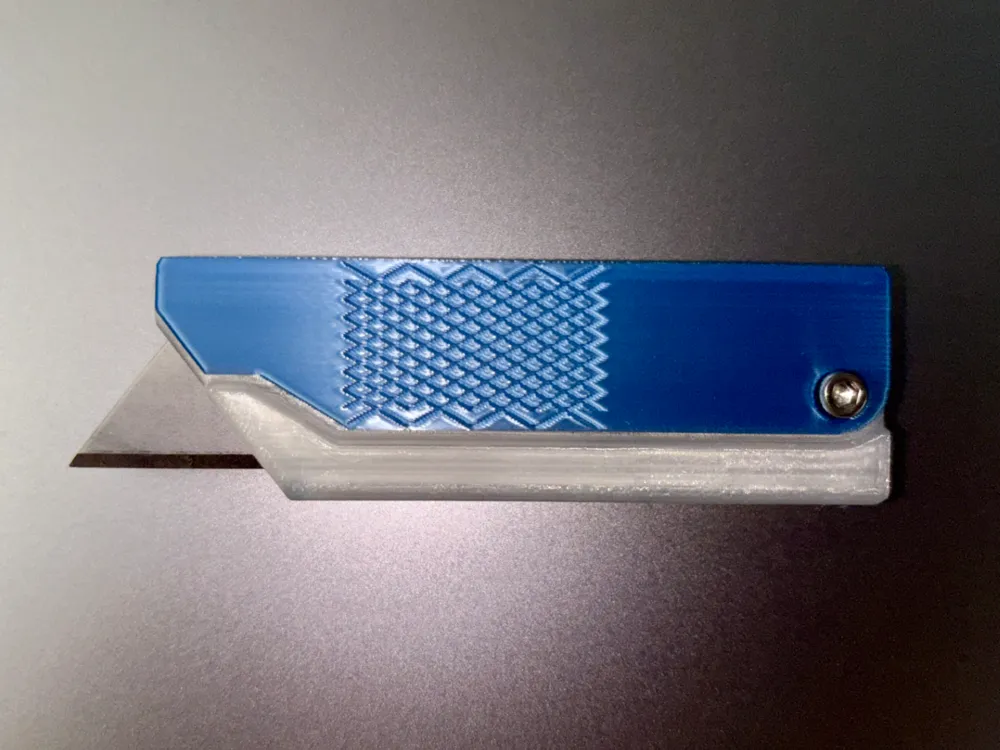

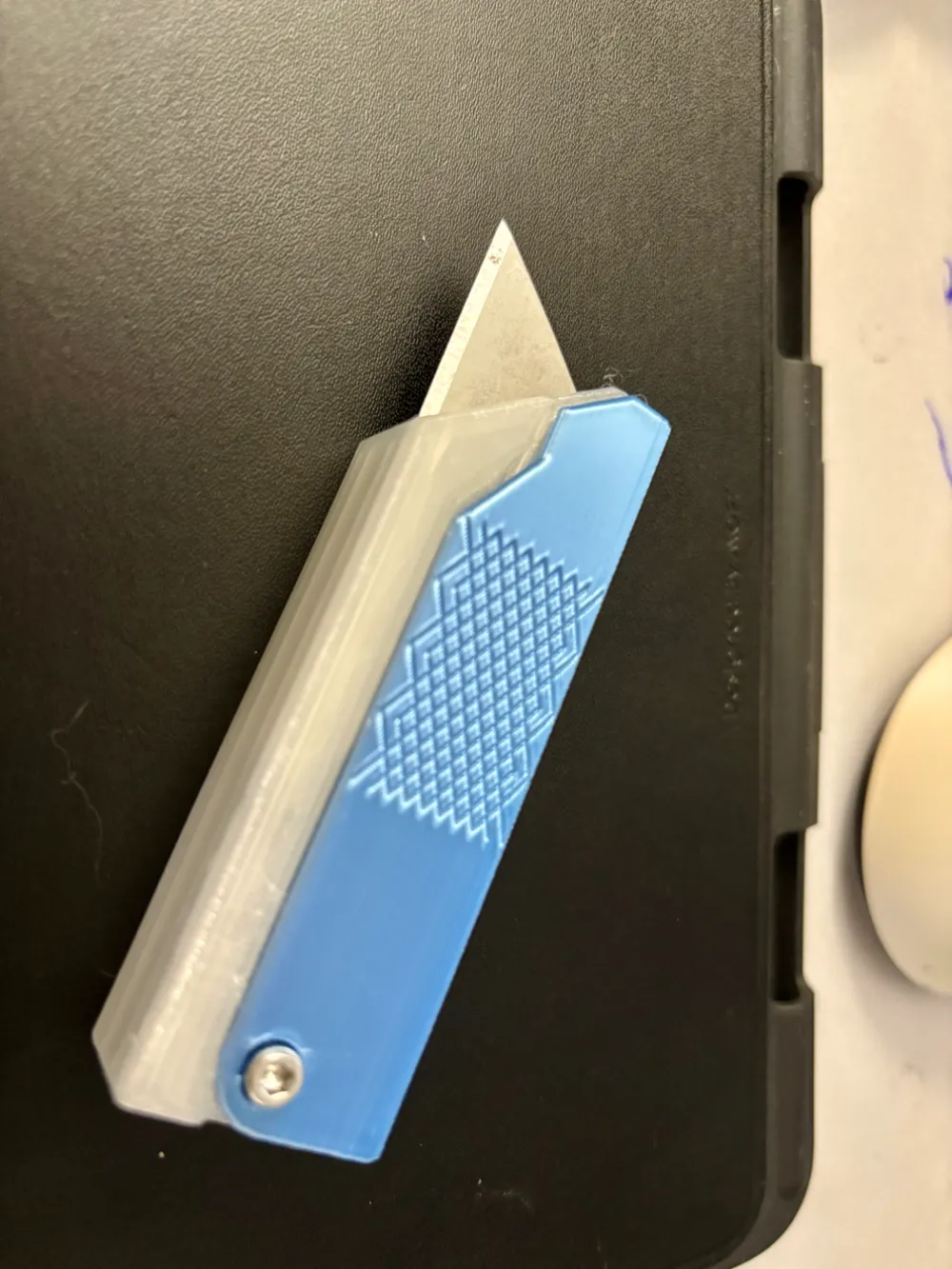

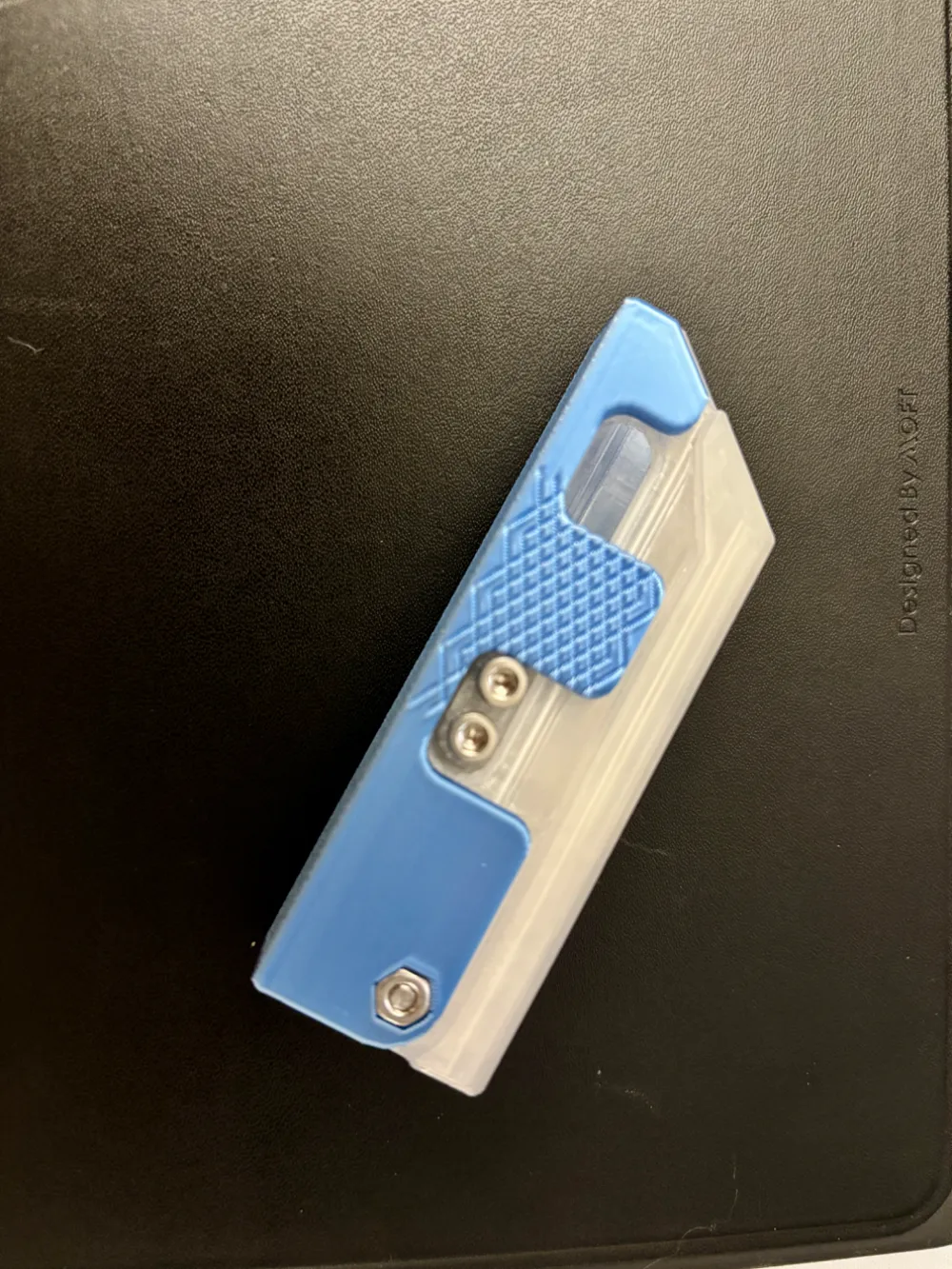

Gravity knife using utility blade.

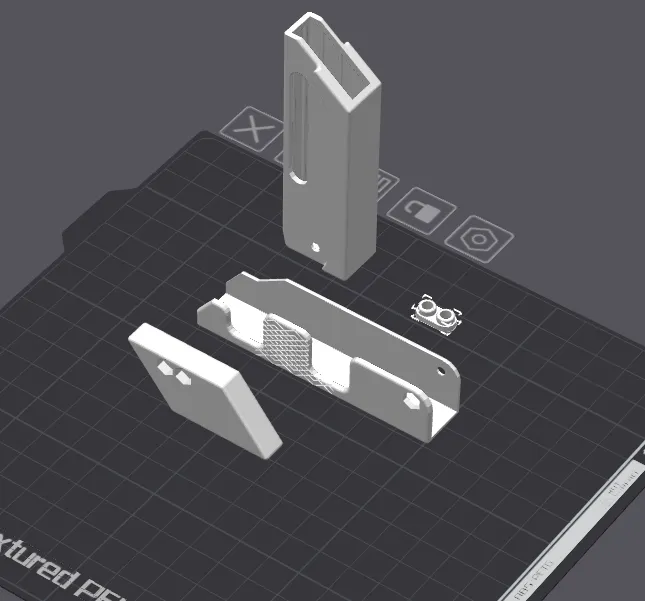

Parts:

• 1 x blade holder
• 1 x handle
• 1 x slide
• 1 x stop
• 2 x M3x10mm screws
• 1 x M3x16mm screw
• 3 x M3 nuts

Instructions:

Note:

• The blade holder has a tight grip on the blade at first, so you will need to use a plier to push it in.
• The hinge screw can be loosen if the knife does not swing smoothly.
• I used my screws and nuts from Amazon, it is from an assortment kit. You can try using the ones listed from Bambu Store, I have not tried them.

Plan of improvement:

• Reduce footprint
• Make use of 3d printed screws instead
• Locking mechanism
