Description

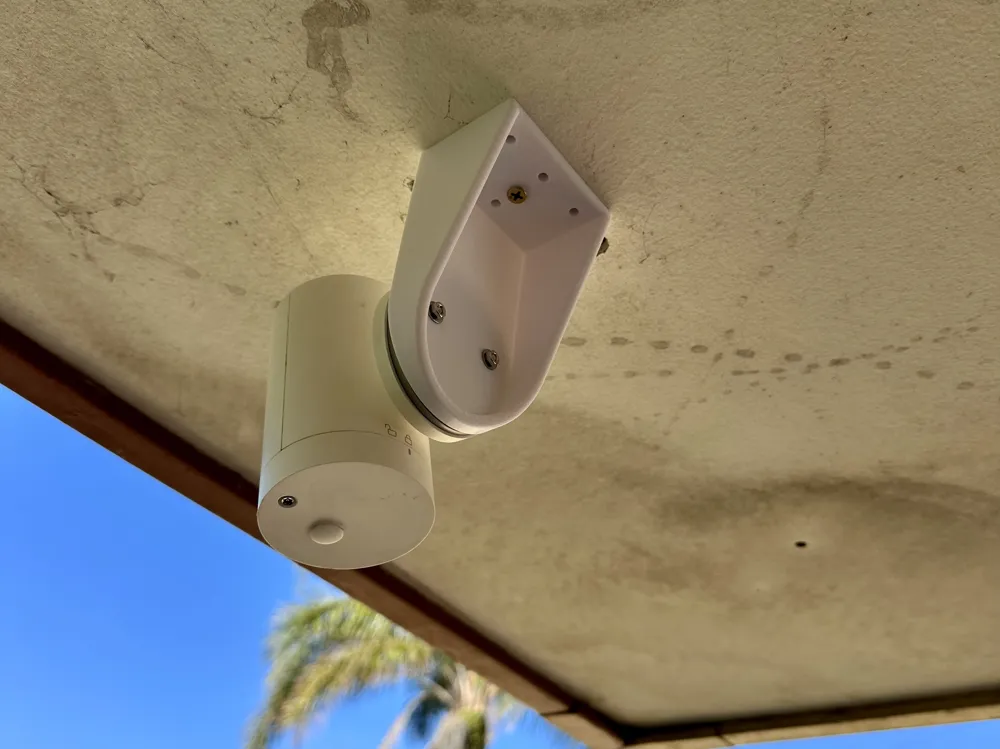

I found a couple of ceiling mount brackets for the Ring Stick Up Cam, but they were very flimsy outdoors and shook the image in the wind.

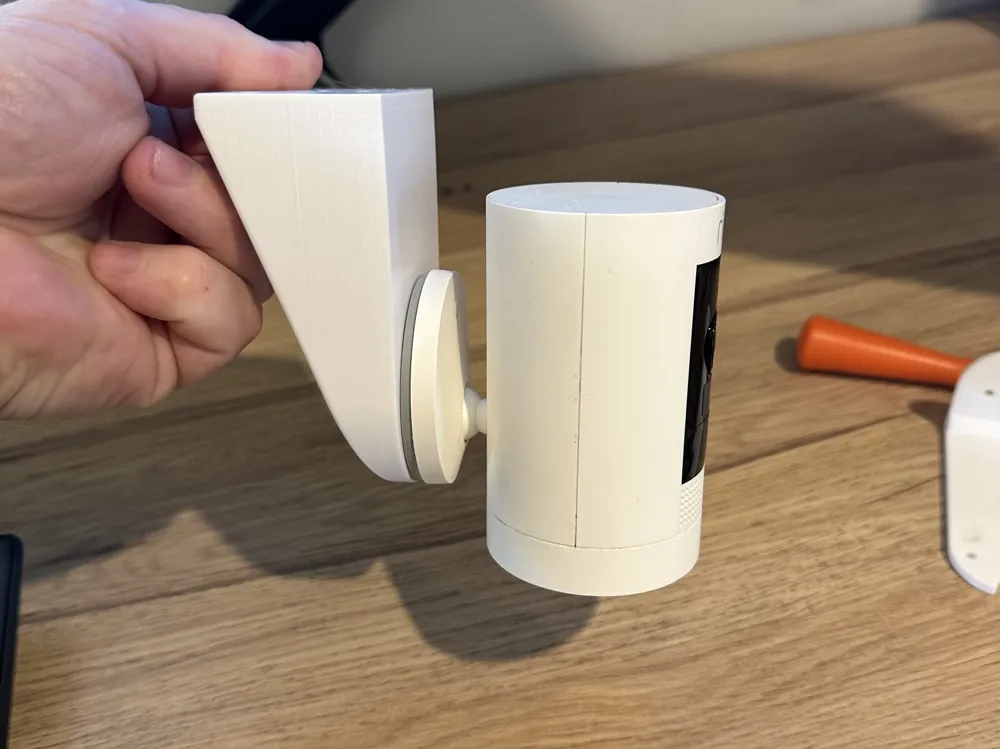

  • Re-designed for strength and rigidity

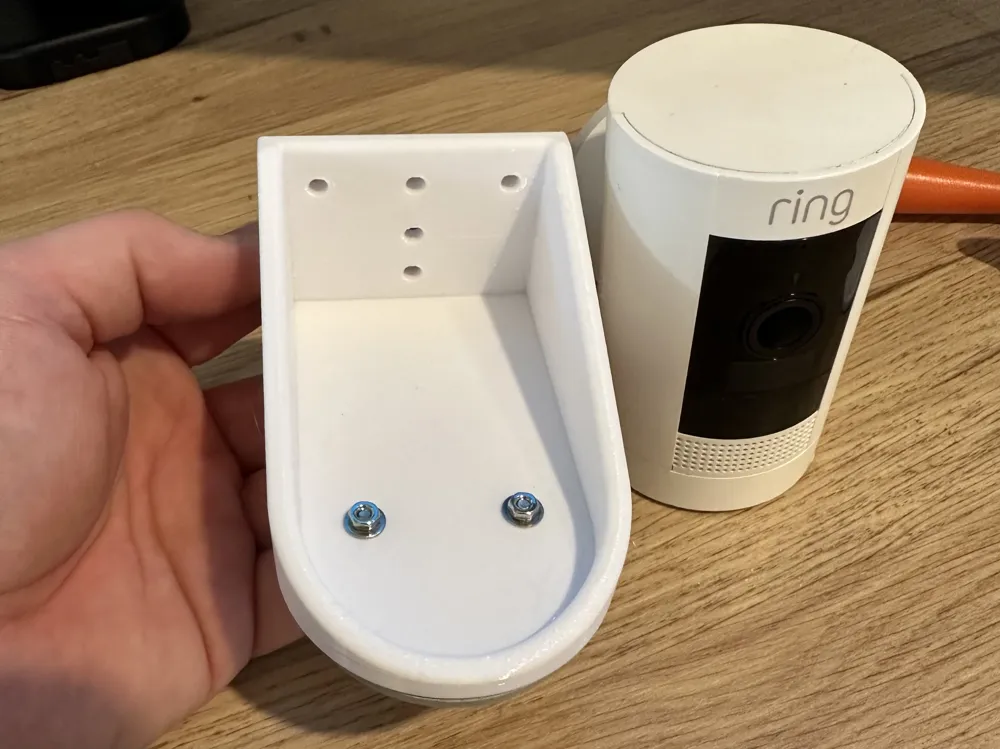

  • Included a few mounting hole options, I just use the one single middle hole for ease. But you may prefer to use the extra ones for more strength.
  • All holes are M4, including the camera mounting clip holes

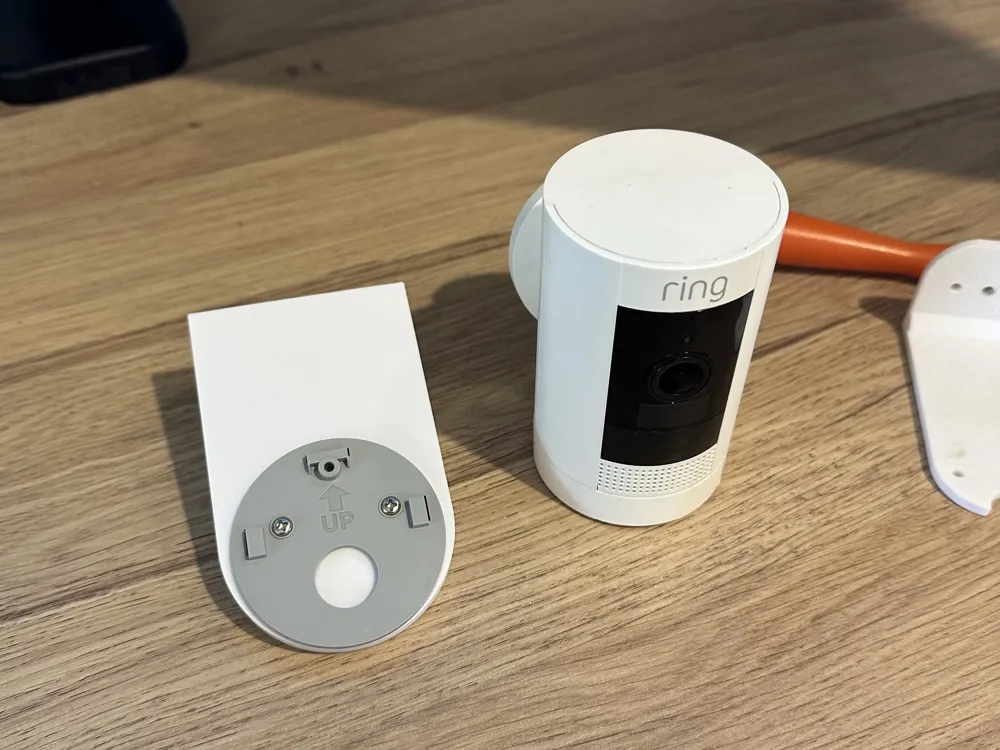

  • Recommend a stainless M4x10 or M4x12 bolt with a washer for the grey camera mounting clip.

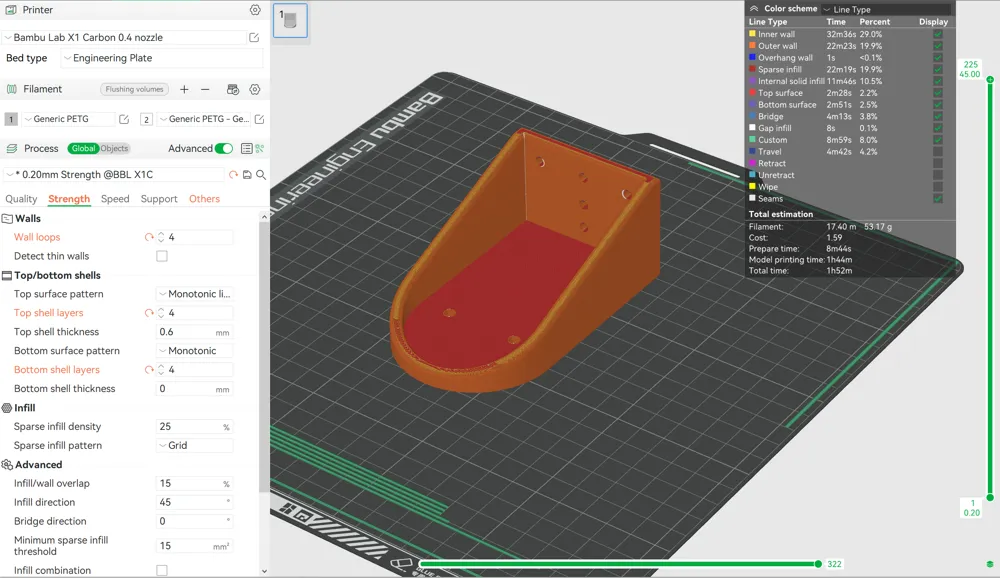

My print settings:

  • PETG for outdoor resistance
  • 4 perimeters
  • 4 top and bottom layers
  • 25% infill
  • 0.4mm nozzle 0.2mm layer height
  • No supports or brim

STEP file included so please feel free to modify to suit your needs :)
