Offroad truck halfaxle suspension for brick models

Print Profile(5)

All
P1S
H2D Pro
H2D
X1 Carbon
H2S
H2C
X1
X1E
P1P
P2S
A1
X2D
A2L
A1 mini

All parts Long version, 0.2mm layer, 3 walls, 25% infill
All parts Long version, 0.2mm layer, 3 walls, 25% infill
Designer
4.3 h
1 plate
4.8(6)

MR105ZZ bearings replacement 0.2mm layer
MR105ZZ bearings replacement 0.2mm layer
Designer
11 min
1 plate
5.0(1)

All parts, short version 0.2mm layer, 3 walls, 25% infill
All parts, short version 0.2mm layer, 3 walls, 25% infill
Designer
4 h
1 plate

Tube and rings 0.2mm layer, 3 walls, 25% infill
Tube and rings 0.2mm layer, 3 walls, 25% infill
Designer
1.6 h
1 plate
Click to see more

Open in Bambu Studio
Boost
798
1569
17
10
479
82
Released

Description

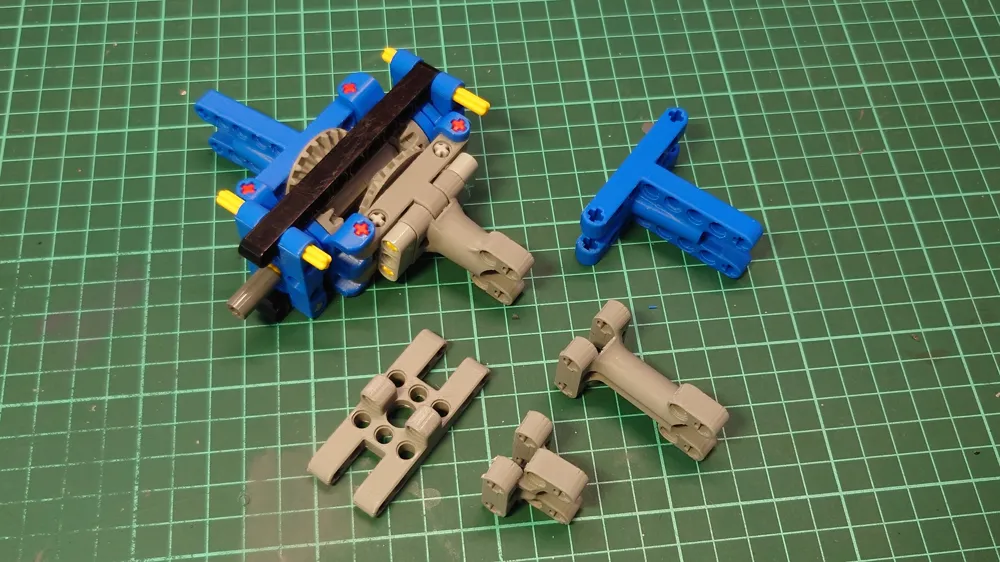

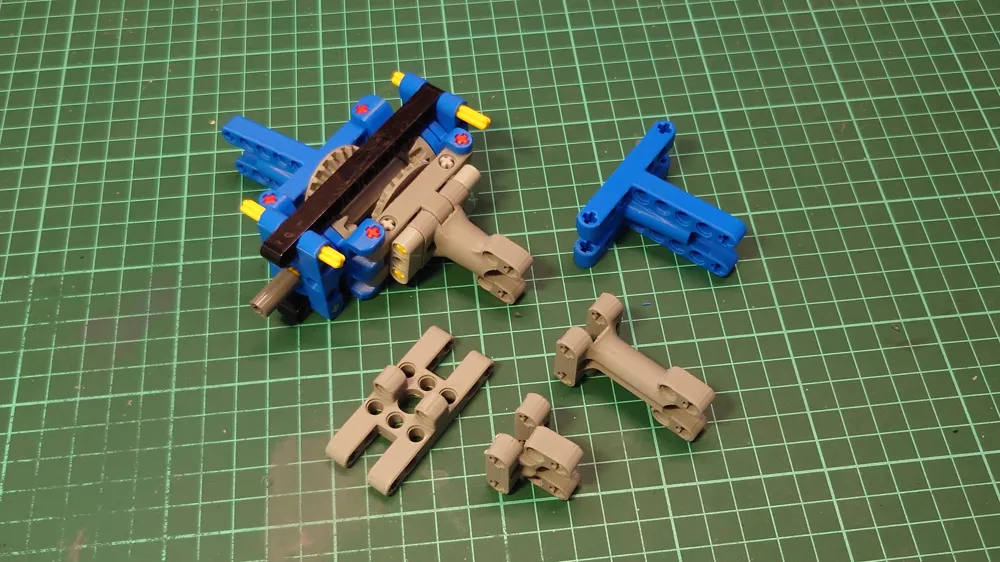

Well, here it is, the long wait has ended. I present to you the TATRA suspension kit for your L€6O or brick compatible MOC.

You can choose whether you would like to print long (wide, good for front axle on the truck when using defender rims) or short (2 studs narrower) version of the suspension.

I suggest using the ball bearings (MR105ZZ), but you can print replacements (5x10x4mm, file included here) in case you do not have them, for low power applications.

I also suggest using module 2 gears. Link to print them (on my profile):
https://makerworld.com/en/models/460507#profileId-368994



Or in case you preffer to print only reduction and use original ones:
https://makerworld.com/en/models/454044#profileId-361536

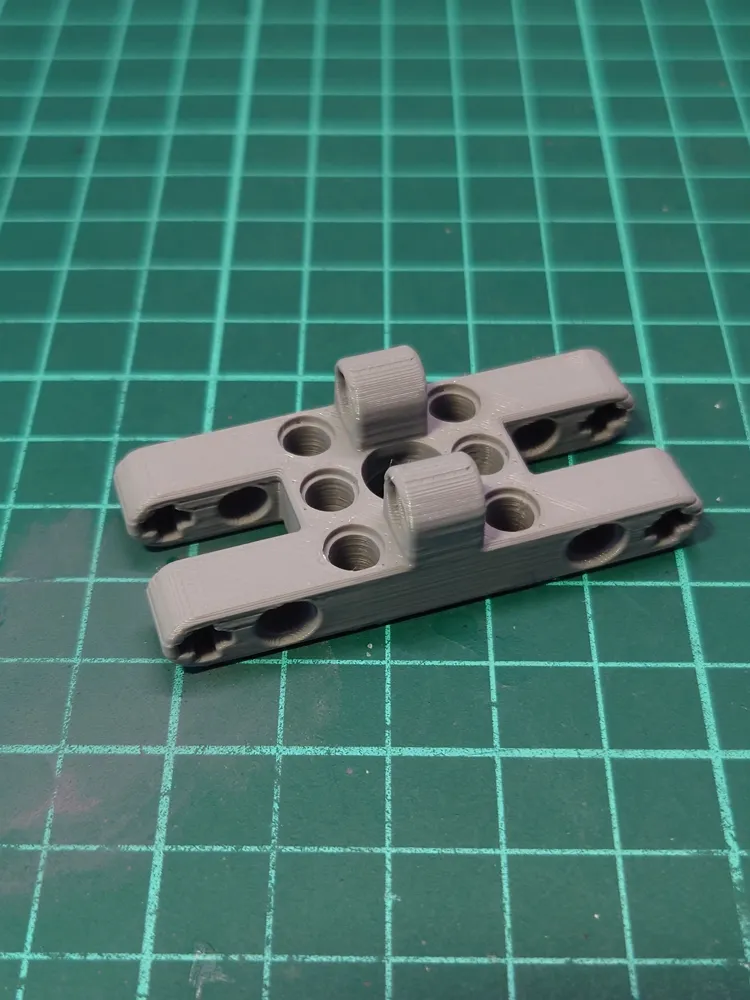

In Raw files there are more versions of the half axle part. I suggest you to use “ver2”, because it is stronger.
VER 2 can be used with this connector to attach planetary wheel hub: https://makerworld.com/en/models/413715#profileId-315719
or similar part that is made by the Technic brick company in case you would like to use other HUBs.
VER1 is supposed to be used with these ball connectors: https://makerworld.com/en/models/86753#profileId-100218

More ground clearance, but the half-axle part is really fragile.

What other uses other than Tatra suspension can you come up with the parts?



EDIT: Added adaptor for axle extenders to raw parts and as separate model - now you can use my axle extenders with this Tatra suspension to make your MOC even more realistic, or with caster angle on wheels.

Axle extenders:
https://makerworld.com/en/models/536158-live-axle-extenders-straight-and-with-caster#profileId-453071



Adaptor:
https://makerworld.com/en/models/2323846-swingarm-suspension-halfaxle-adaptor#profileId-2538172
