Octo Compass
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
7
24
0
1
16
1
Released
Description

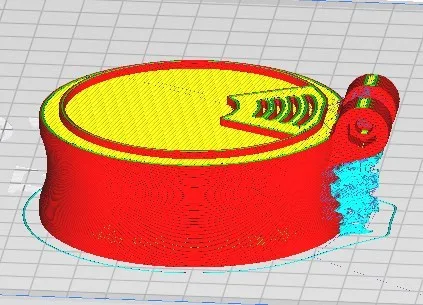

Octo compass bottom - 0.16 layer height, 12% infill, supported. Yellow.

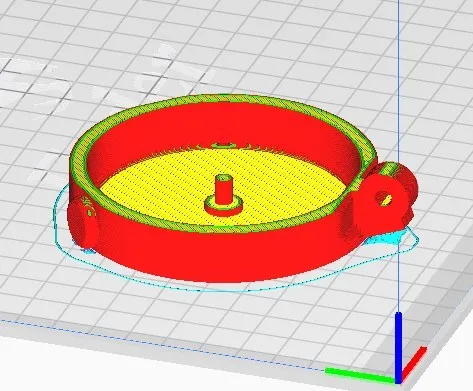

Octo compass top - printed upside down, 0.16 layer height, 12% infill, supported. Yellow.
Octo compass needle - 0.2 layer height, 12% infill, 0-6mm Yellow, 6-6.4 White, 6.4-6.8 Red.

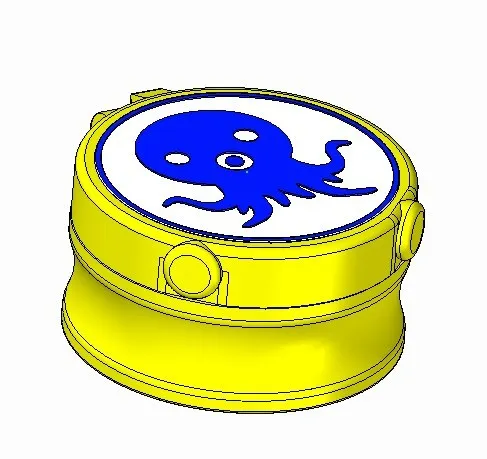

Octo compass logo - 0.2 layer height, 12% infill, 0-1mm White, 1-1.4 Blue
Not printed parts:
M4x20 Bolt Socket Head Cap - 1 off
M4 nut with nylon

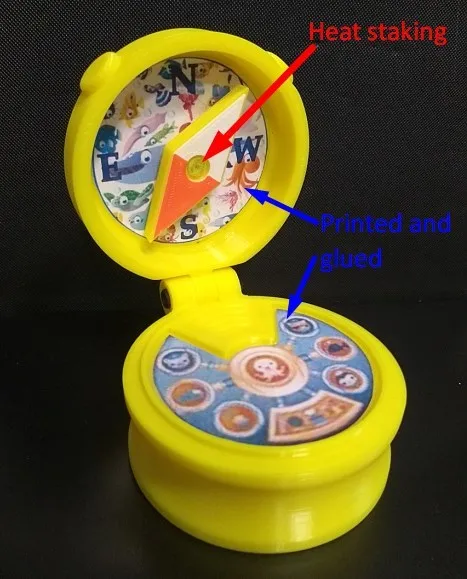

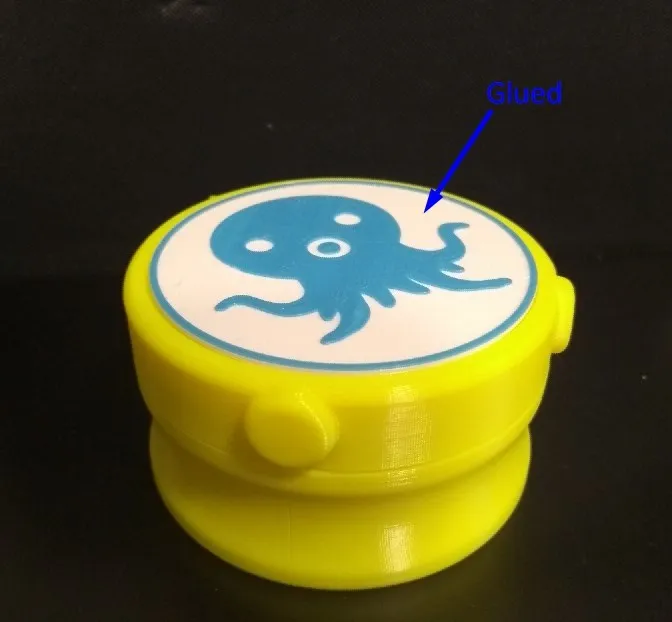

Labels printed, laminated and glued.
Dimensions: 80x92x44
Enjoy :)
Print Settings
Printer Brand:
Creality
Printer:
Ender 3 Pro
Rafts:
No
Supports:
Yes
Resolution:
0.16
Infill:
10-15%
Filament:Amzed PLA Yellow
Notes:
STP files available on request.
