Is your Infinity Cube too Basic for you? Does it keep breaking on you?
Do you want one with more hardware?
LOOK NO FURTHER!
The Over-Engineered Infinity Cube solves all of these problems and more! Want one with screws? This bad boy is FULL of screws! Each joint can be individually loosened and tightened to suit the user's preferences.

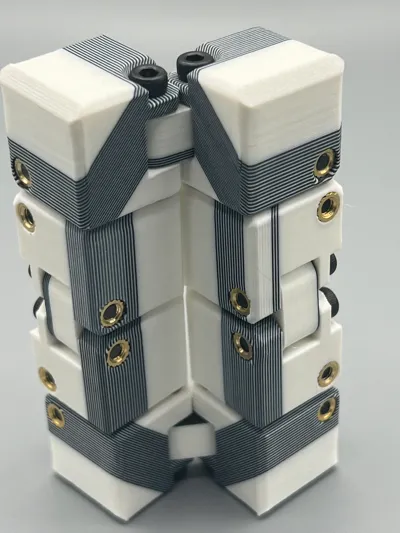

This new version now WITHOUT HEAT SET INSERTS by popular demand!
Boost Me (for free)
Want More Over-Engineered Fidget Toys? Gimme a boost!
If you are like me and found the durability of the many Infinity Cube designs floating around to be lackluster, that most of the time the print would fail and the cube would fuze into a weird rectangle and never achieve it's goal of becoming a cube, then this model is for you! It prints in 16 individual parts and then you get to install 32 pieces of hardware (16 M3x4x5 Heatset Inserts and 16 M3x16mm SCHS)! If any part of this does happen to break, you can remove just that part and replace it, instead of having to throw the entire cube away.

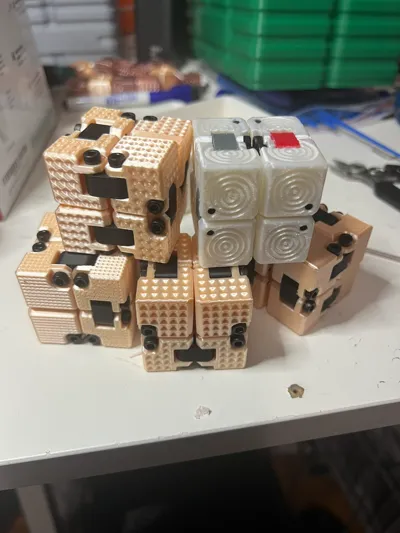

Because it is printed in many different parts, your ability to customize it's colors is beyond compare! Make every cube a different color of the rainbow! Create a pattern using the colors of the cubes, screws, heatset inserts, and hinges to suit your specific tastes!
Bill of Materials
| Name | Qty | Amazon |
| M3x16 SHCS | 16 | https://amzn.to/3wRwW7k |
| 4oz 3/1 Dry Lube (optional) | 1 | https://amzn.to/3USO8Bo |
Assembly

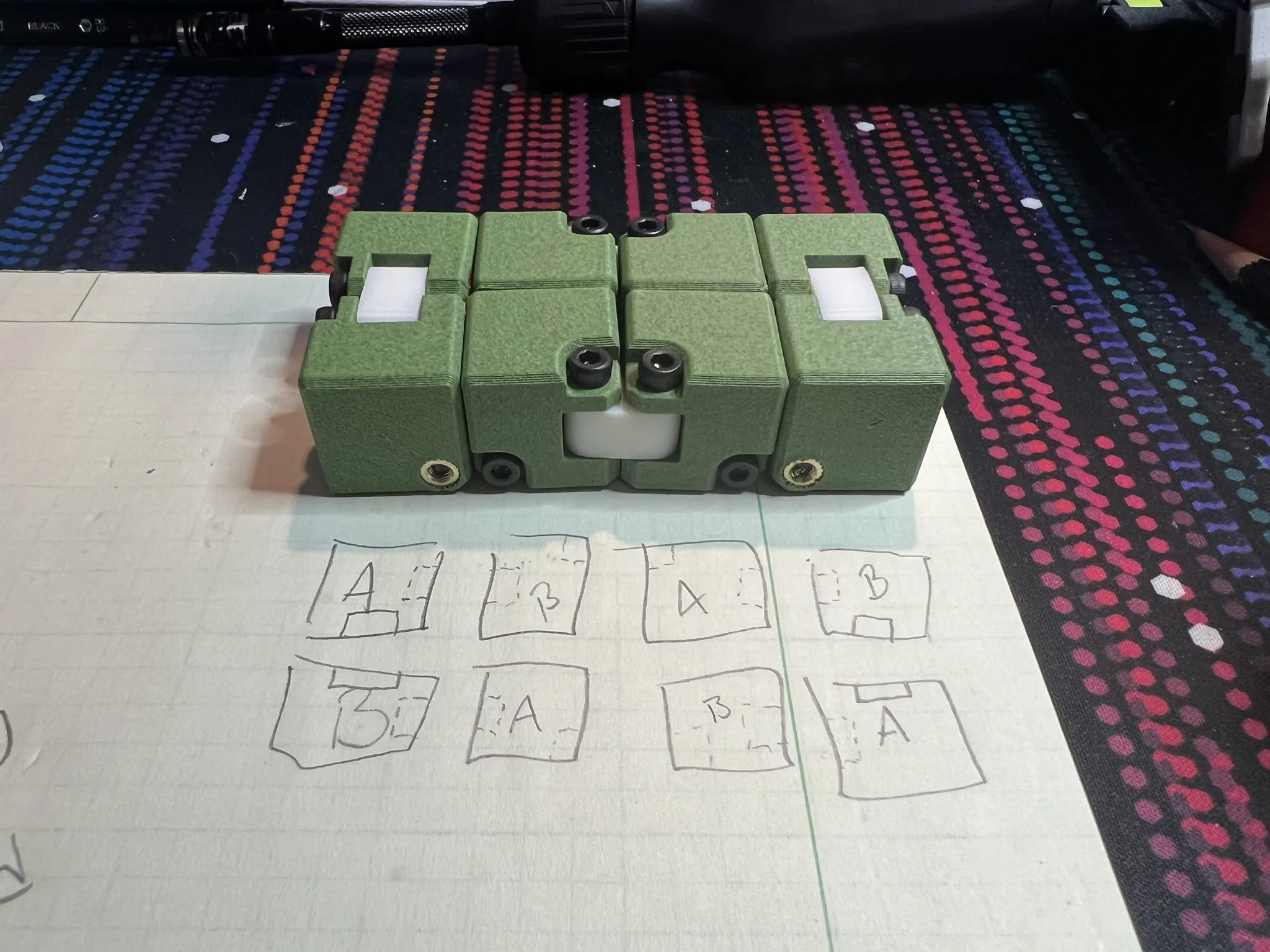

Step 1: Lay out cubes in correct Order
The following image contains the order and position required for proper assembly of the Infinity Cube. Following this exactly will allow you to have the best looking & functional cube. It is possible to assemble the cube in such a way that it does not fold correctly, and it is also possible to assemble it so the screws aren't symmetrical. .

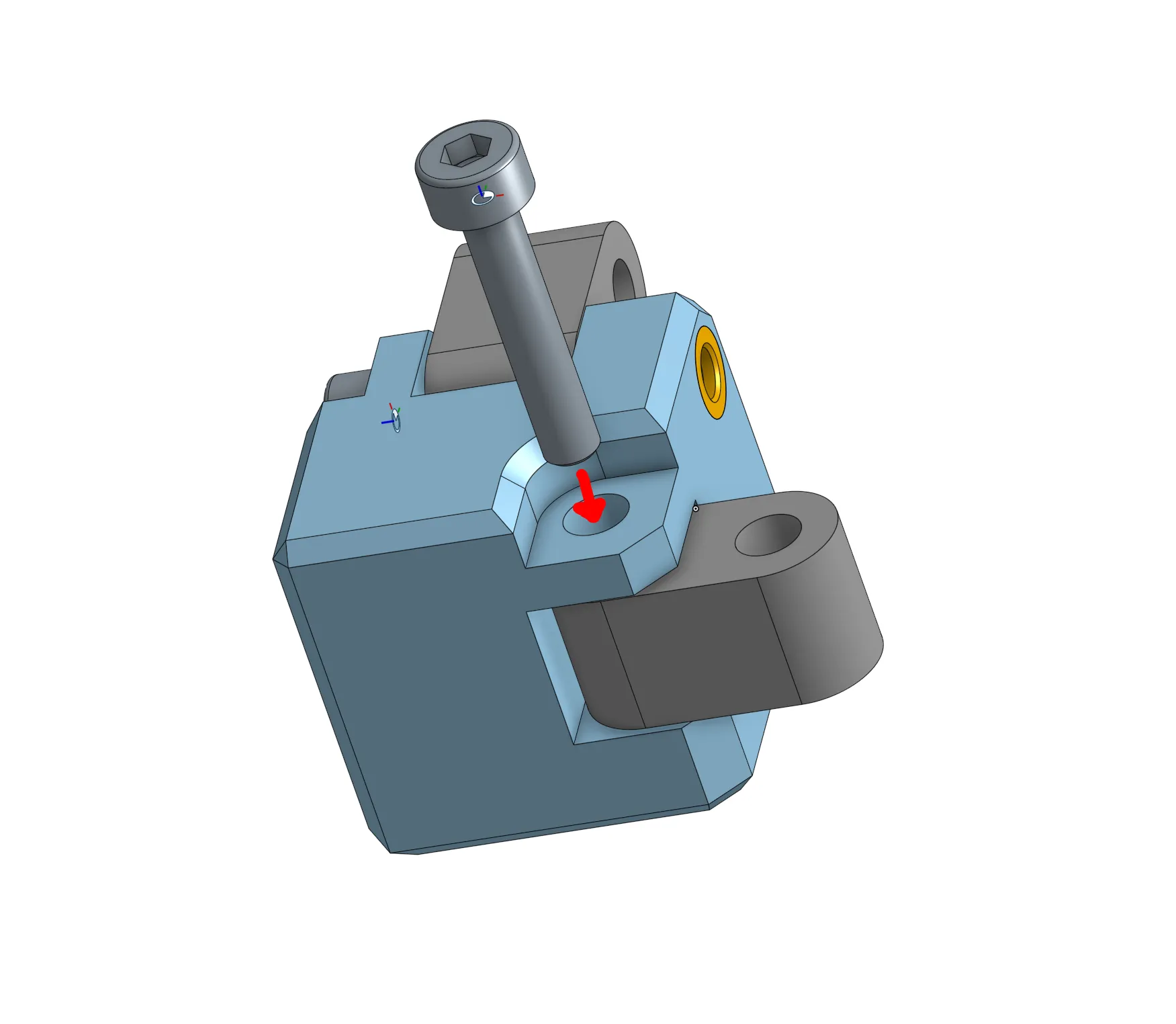

Step 2: Insert Joints and Screws
Now that you have laid out all of your cubes, Begin joining them together using the M3x16 SHCS.
Step 3: Tune
Now that you have assembled the cube it's time to tune! Play with it and find the loose joints and tighten them up, and loosen the ones that are too tight! Want it to be smoother? Add some Dry Lube ( https://amzn.to/3USO8Bo ) to the joints.
This model was created 100% from scratch and is not a remix of any of the other Infinity Cube models out there.
Printing Suggestion

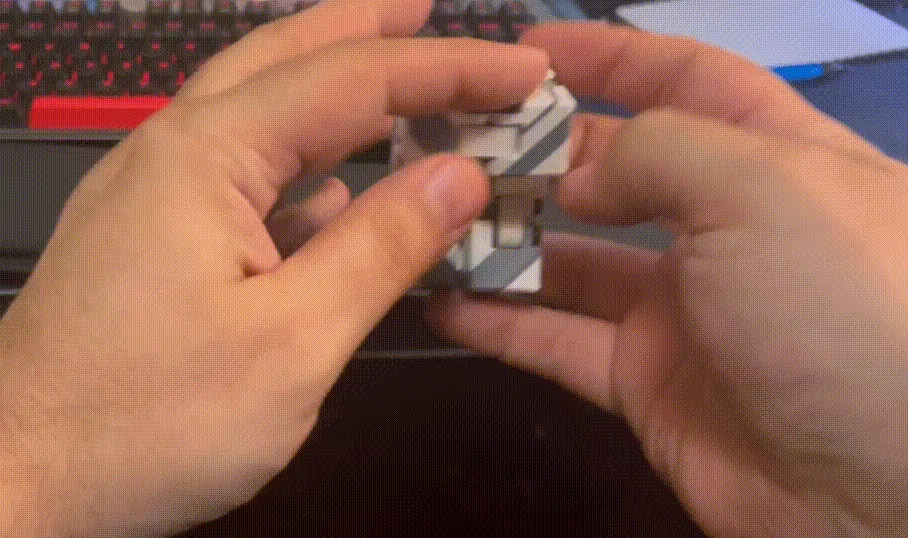

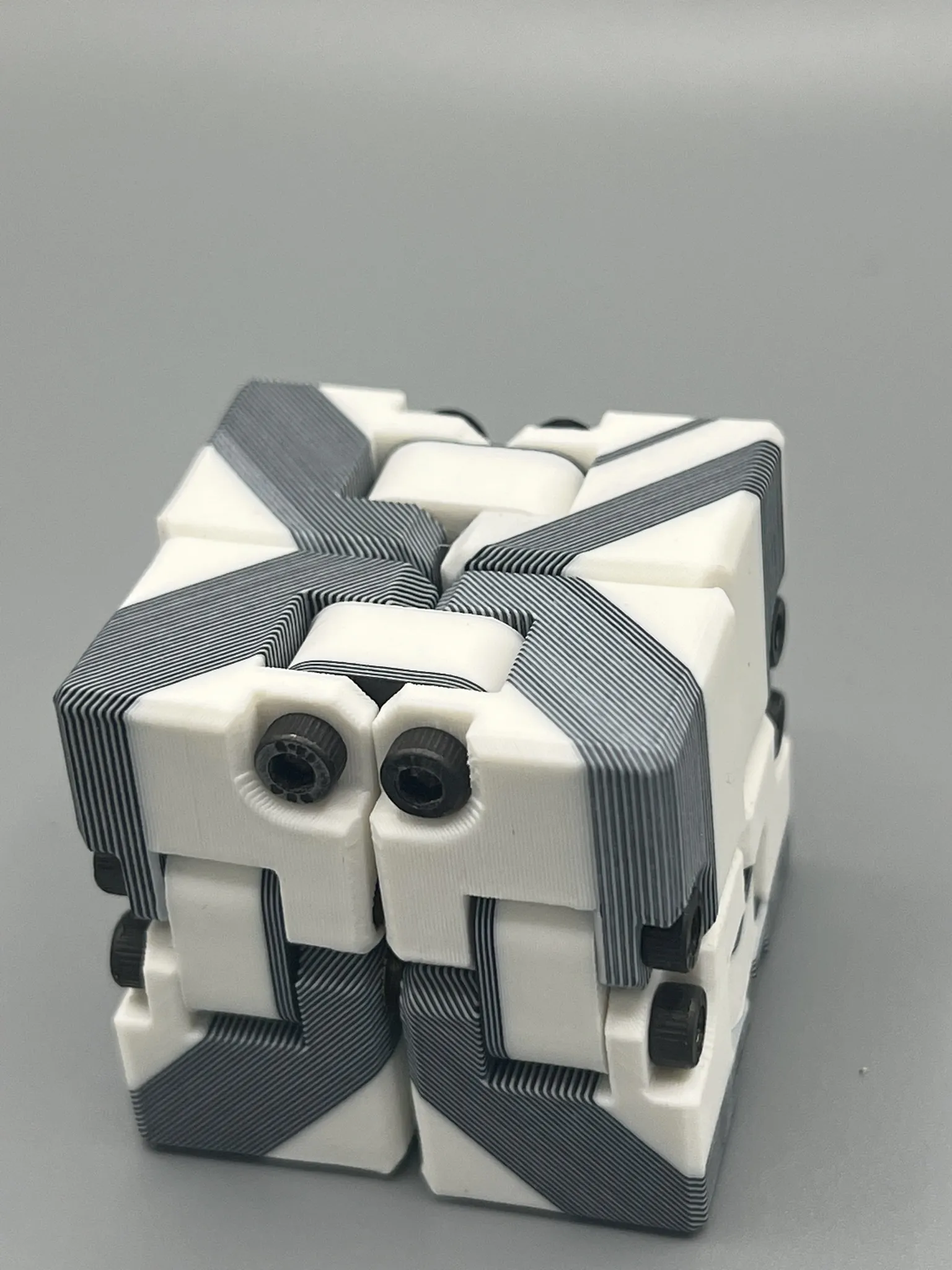

This is an AMAZING model to use for flushing your filament changes into, as the patterns look SUPER cool when playing with it! Here's an example:
---
You can find all different textures in the print profile on this one model.
---
Boost Me (for free)
Want more Over Engineered Fidgets? Boost Me
A BIG HUGE thank you to Made With Layers on Youtube for coming up with this method that allows for strong threads to be created without running the risk of splitting the part!
