Kitchen Drying Stand

Drying Strand

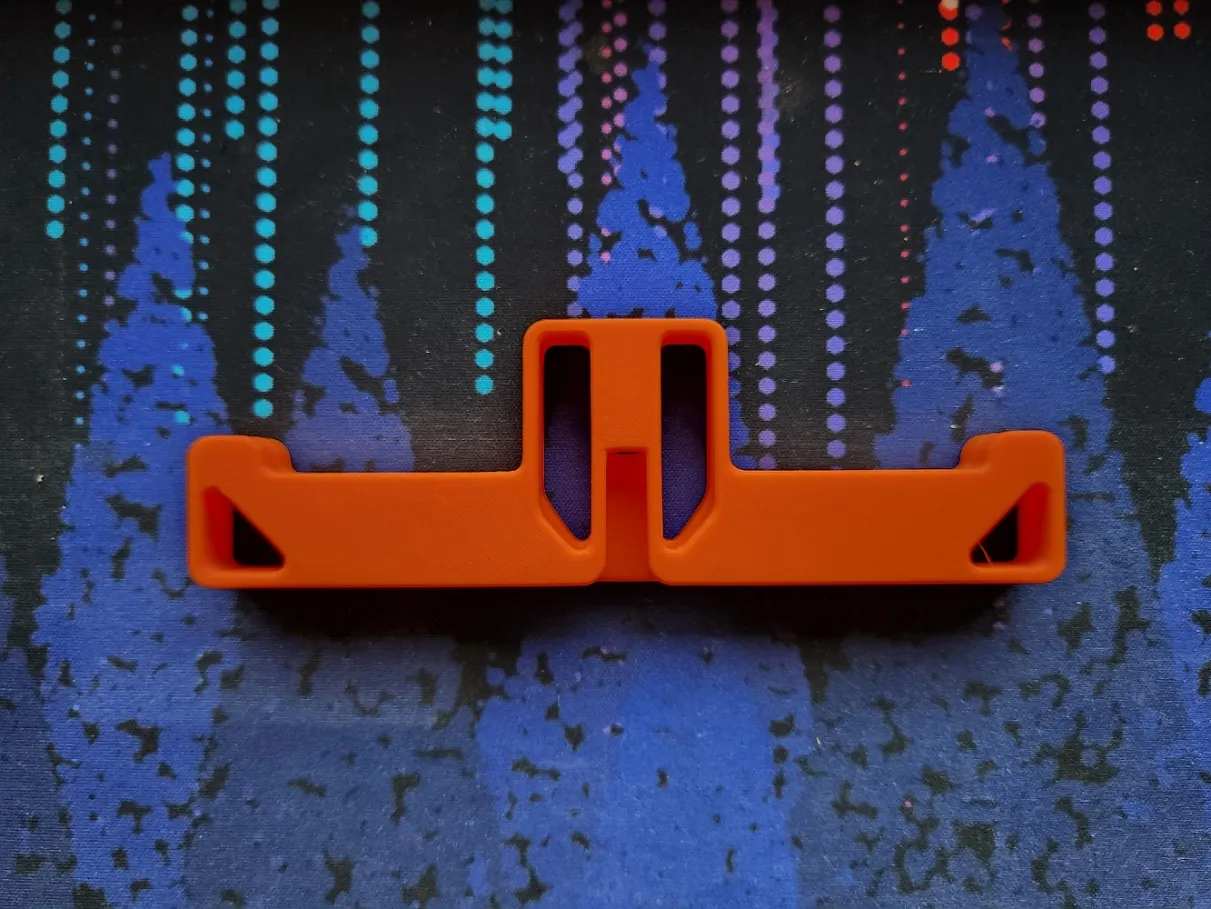

Bottle Stand

This will work for any bottle that has a opening of 28mm or more

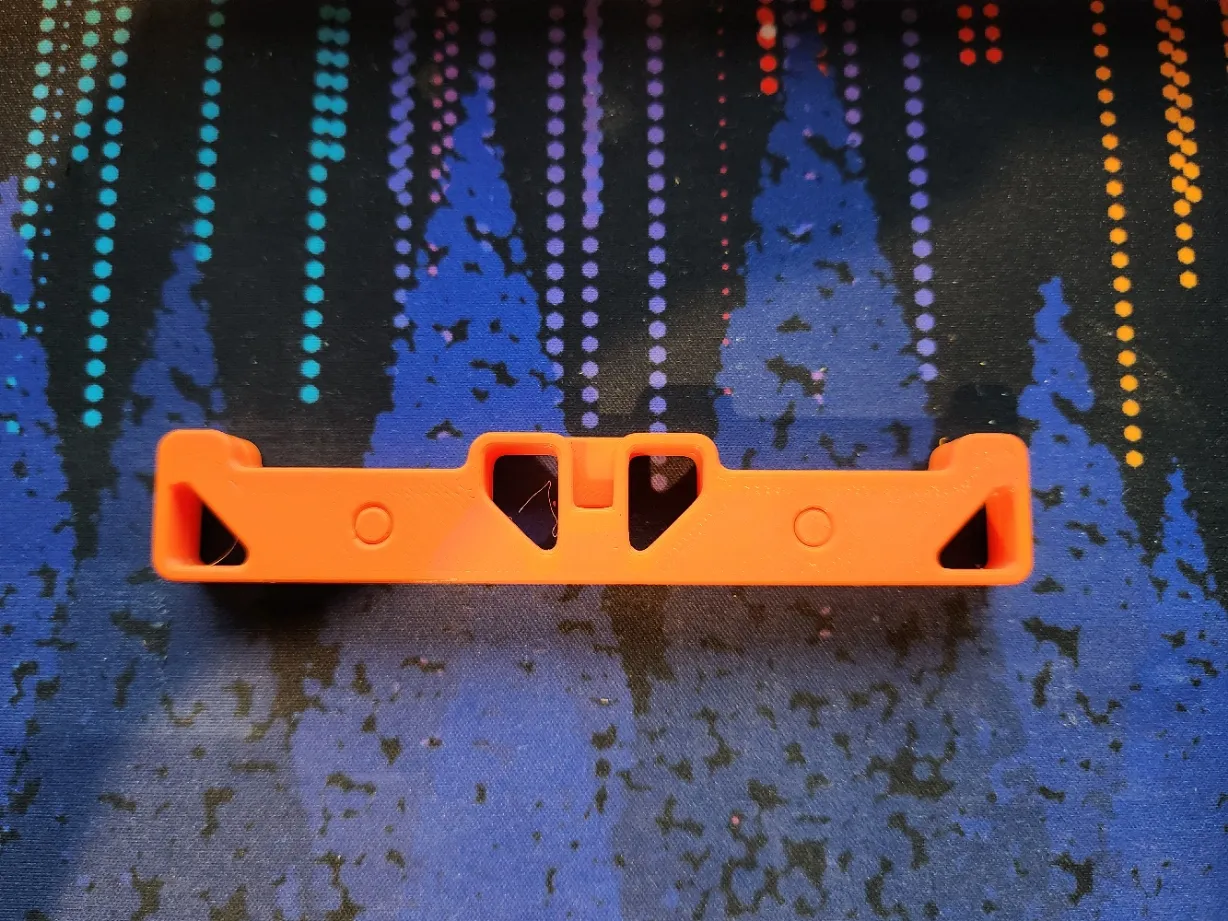

Mug Stand

This will work for any mug/cup/carafe with an outer diameter of 95mm or less

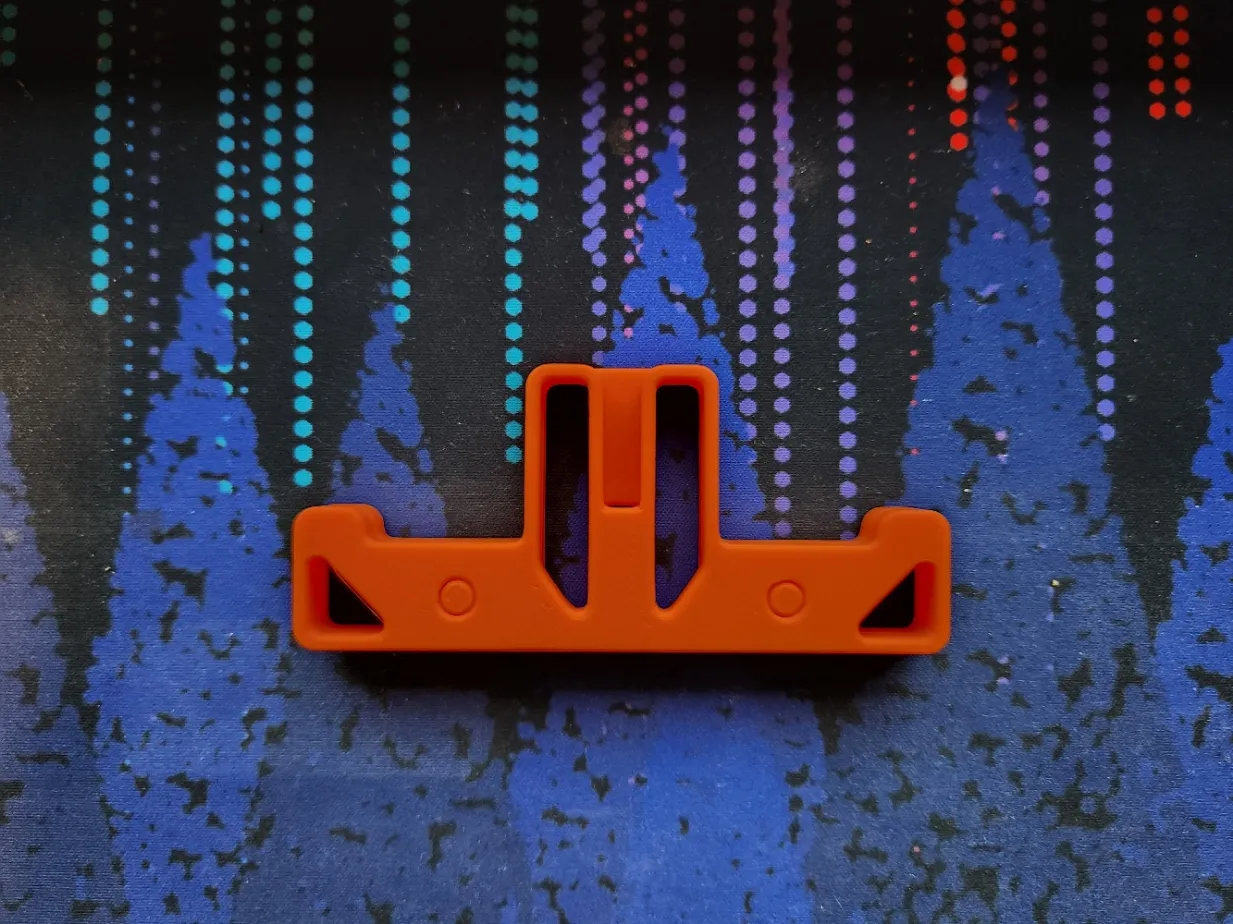

Hybrid

Can be used for any mug/cup/carafe or bottle that meets the above requirements.

Troubleshooting

If the parts are too loose or too tight please check the “download STL” section for a 0.15mm or 0.3mm tolerance parts. This can be accessed by clicking the drop down beside “open in bambu studio”.

Print Profiles

labelled as “TYPE_MATERIAL_BUILD PLATE_TOLERANCE”

To prevent print profile clutter only the 0.2mm tolerances will be uploaded

Most printers will work with a 0.2mm tolerance, the parts may end up a little tight or a little loose between filaments.

If the part is too loose or too tight please use one of the other tolerances.

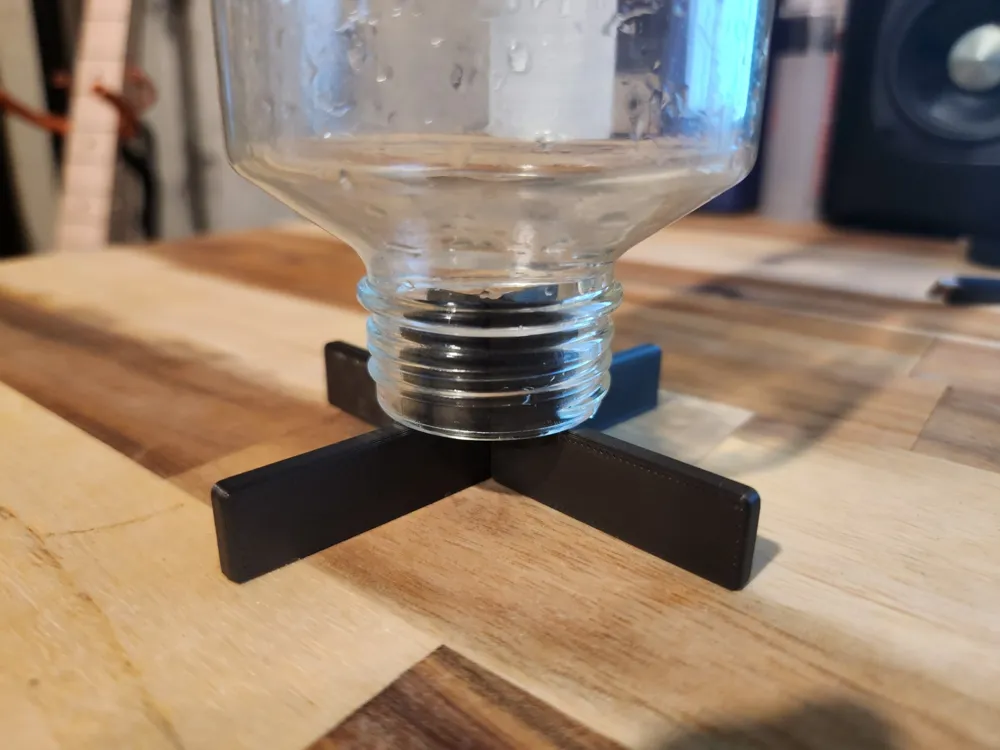

I have personally used this to dry out my water & sodastream bottles as well as my V60 carafe.

!!PLEASE NOTE!! These are not compatible with sodastream crystal bottles.

Print in food safe PLA or PETG and place bottle on top to dry out.

OnShape

UPDATE (2024-01-19)

• Redesign for mugs and other large mouth cups/carafes
• 3 Designs (Bottle/Mug/Hybrid)
• 3 Tolerances (0.15MM, 0.2 MM & 0.3 MM)
• 2 Materials (PLA & PETG)
• 6 New Print Profiles

UPDATE (2024-01-17)

• Fixed issue in f3d file parameters, fixed tolerances
• Added OnShape Link

UPDATE (2024-01-13)

• Two versions of the pin size 5mm and 5.1mm. This is to help with printer variances. the default is 5mm however I have noticed that sometimes a 5.1mm is required.

UPDATE (2023-11-11)

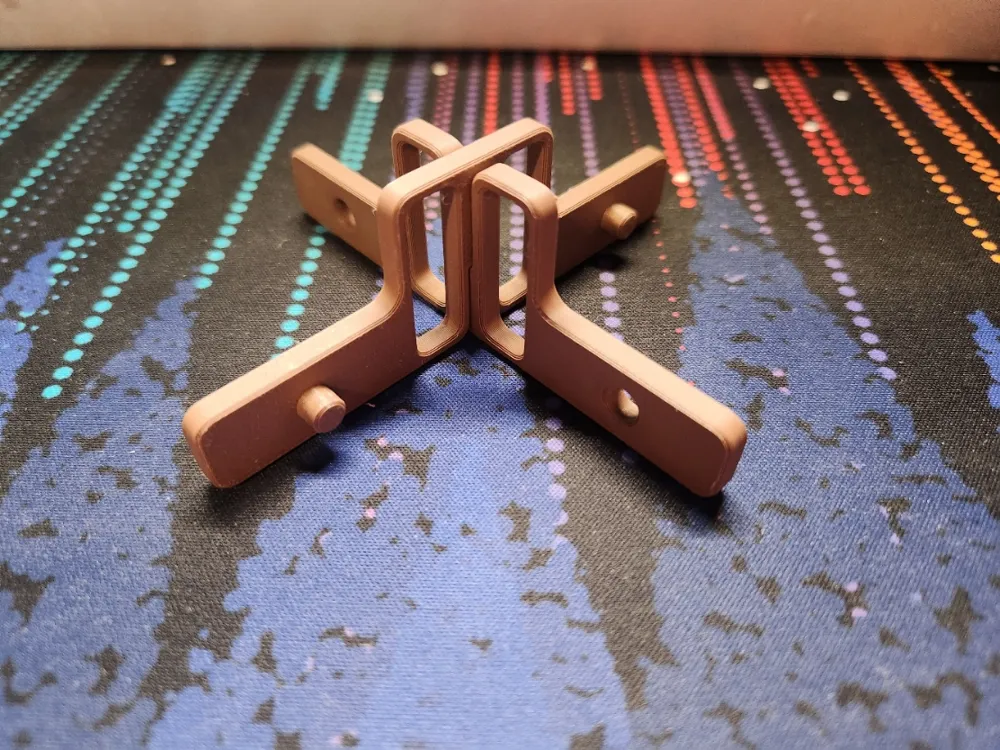

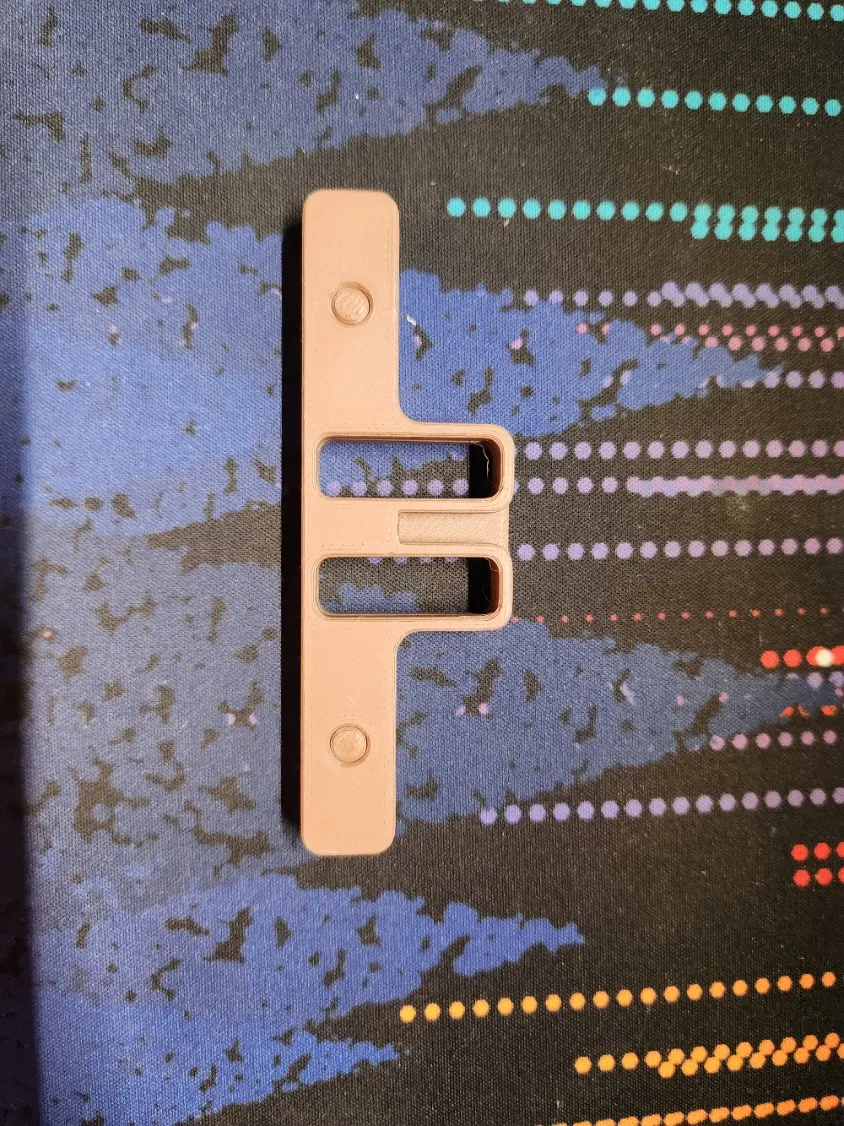

• Parts can now join together to stay closed
• F3D file is now parameterized
• Print in place version: https://makerworld.com/en/models/62272#profileId-64813

UPDATE (2023-11-10)

• Added a cutout near the bottle mouth
