The structure of this mouse is quite cleverly designed. It is the result of a lot of brainstorming and experimentation over a long time until I finally achieved the look I desired. Creation is full of fun and challenges. It's not easy to create, if you think it's good, you can like and support it, thank you very much!

It is characterized by a retro aesthetic and the ability to freely combine colors.

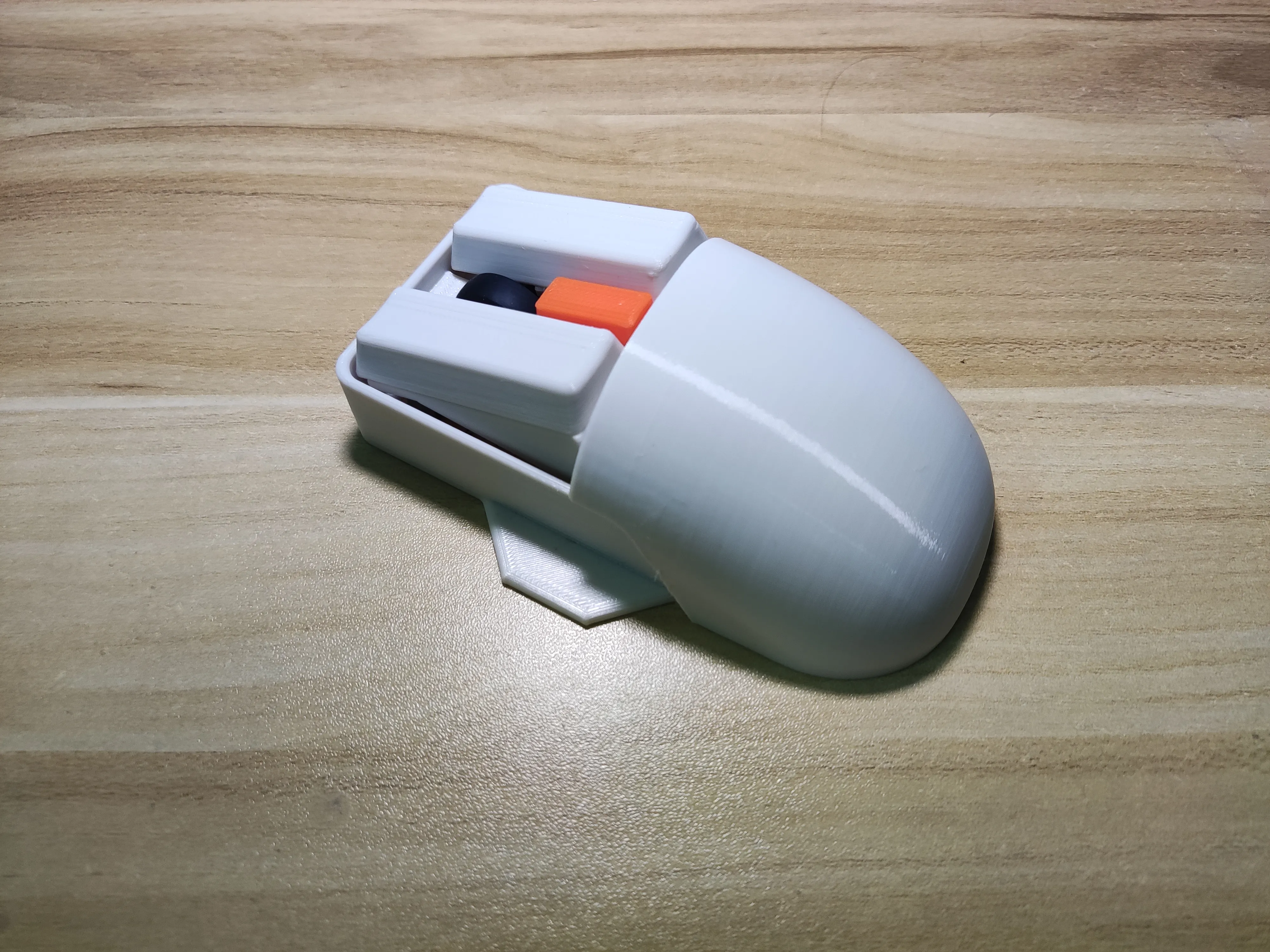

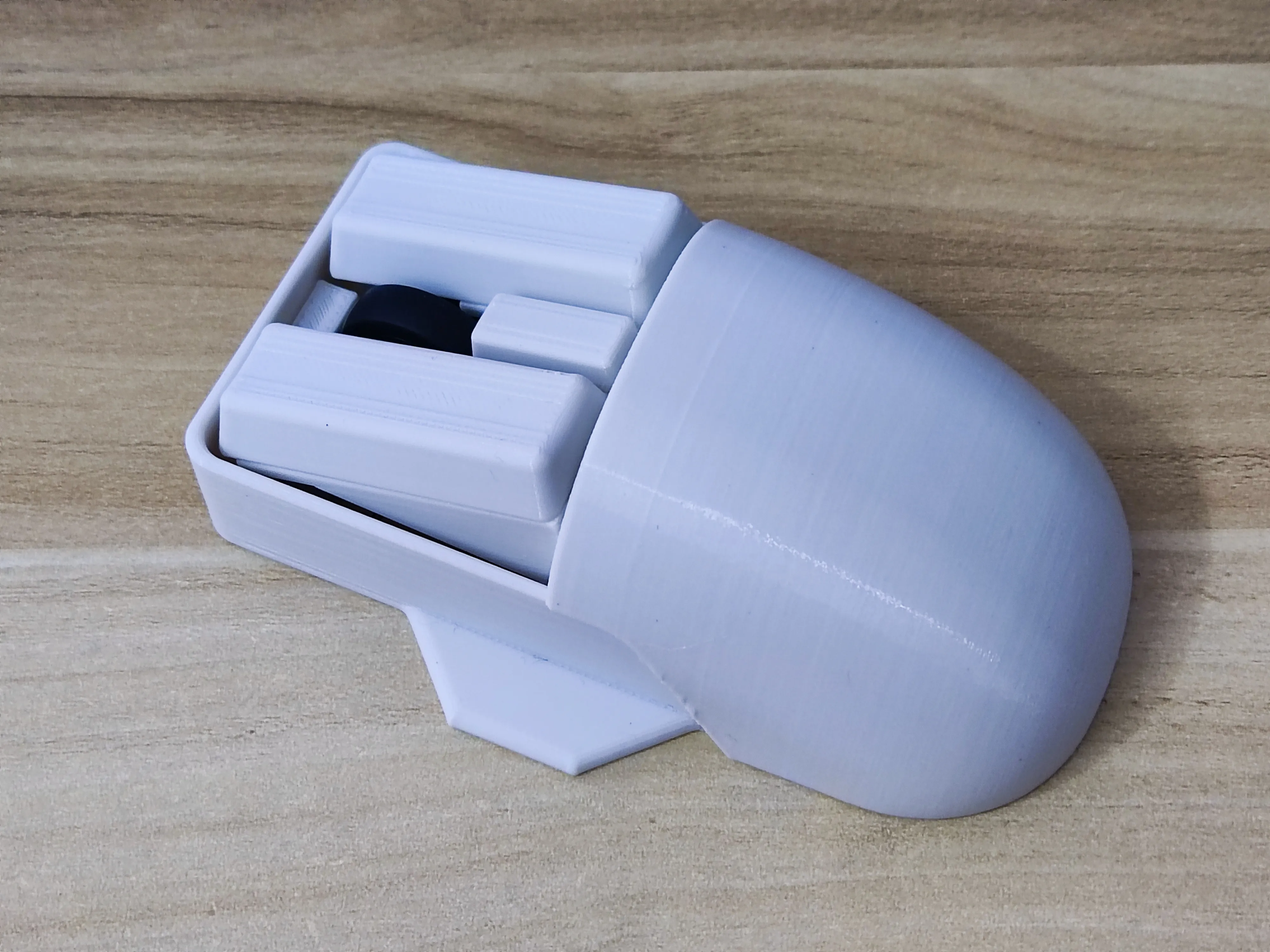

This is tofu colored.

It's my favorite colorway!

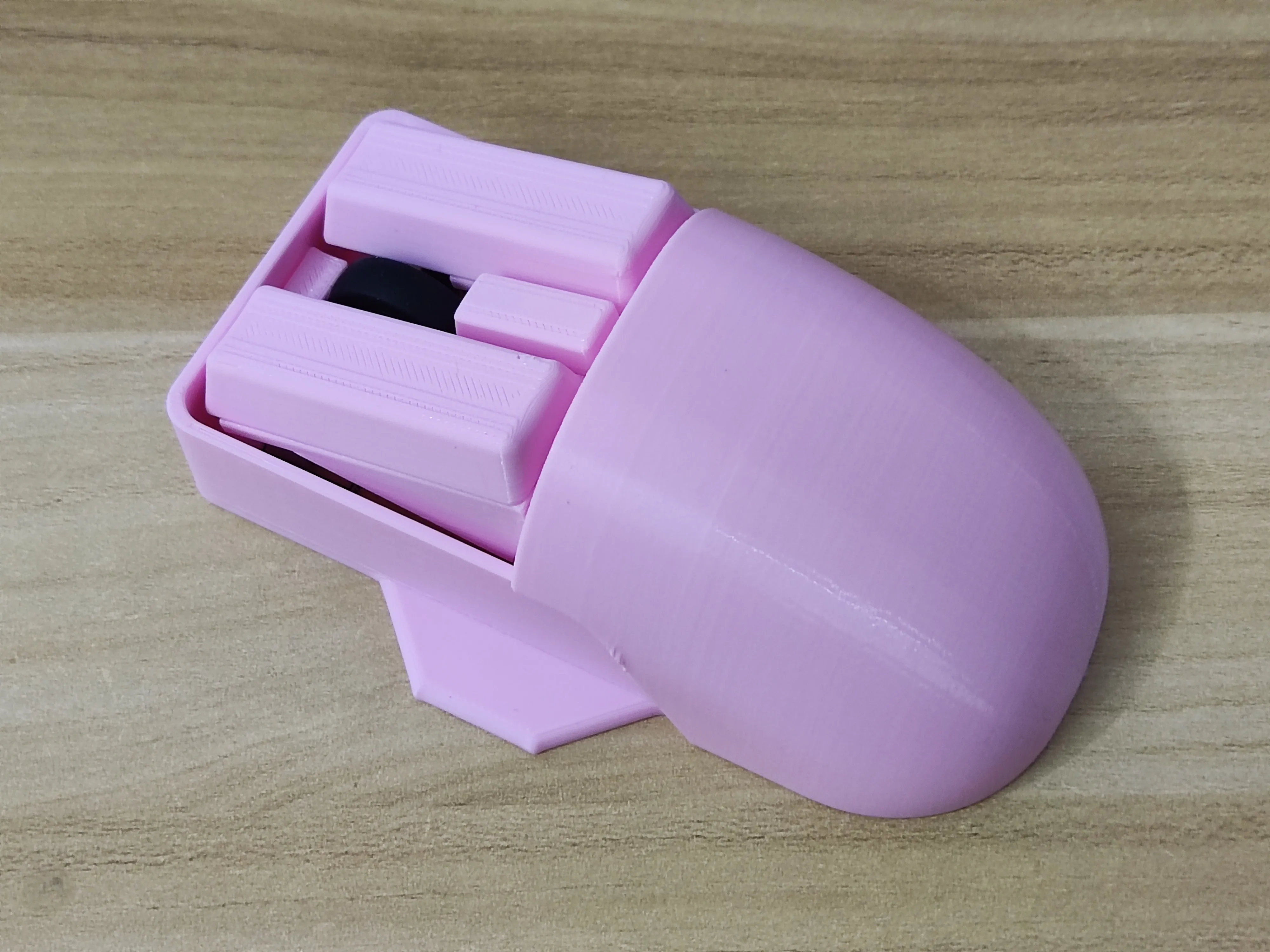

This is cherry blossom pink.

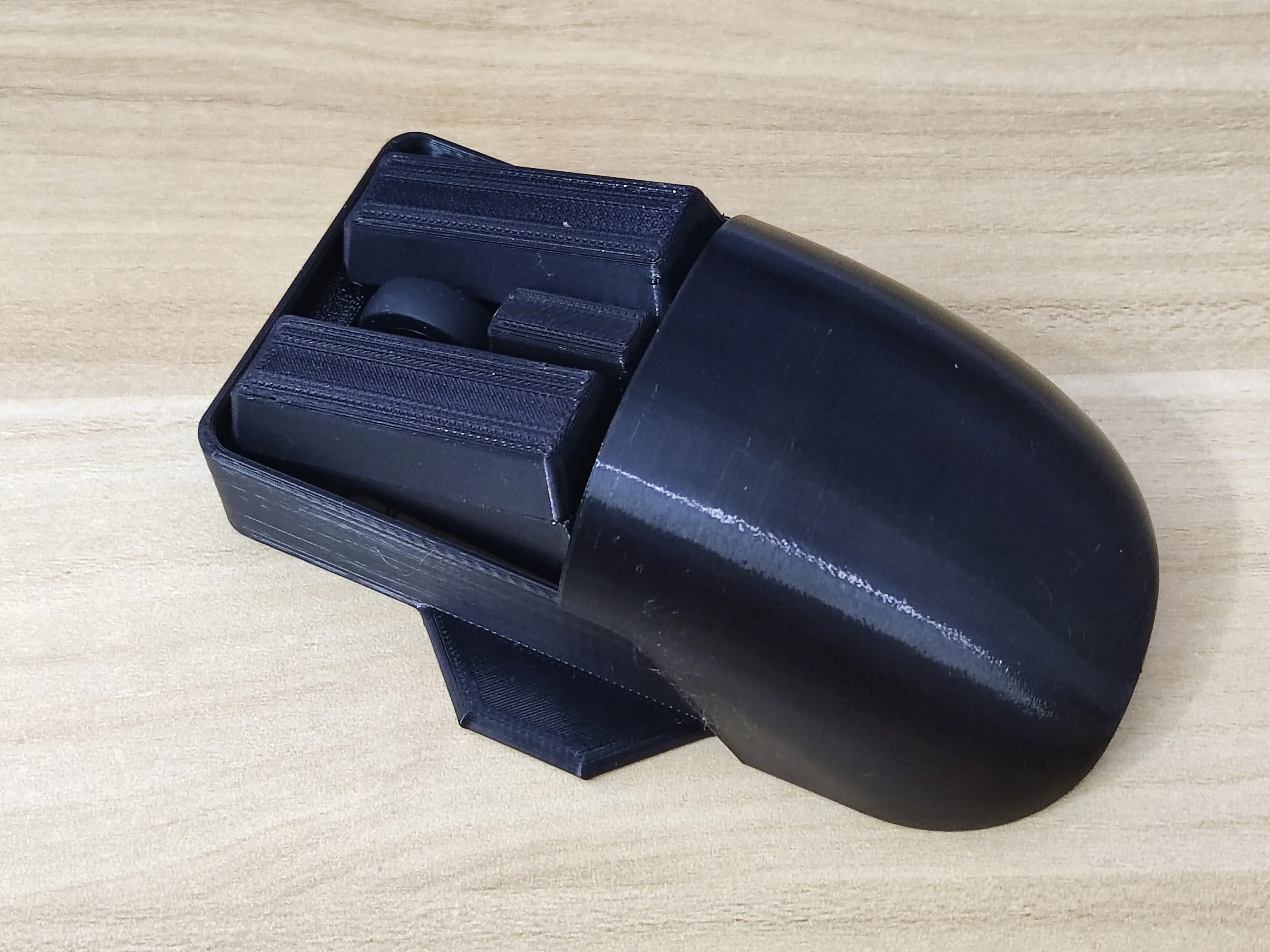

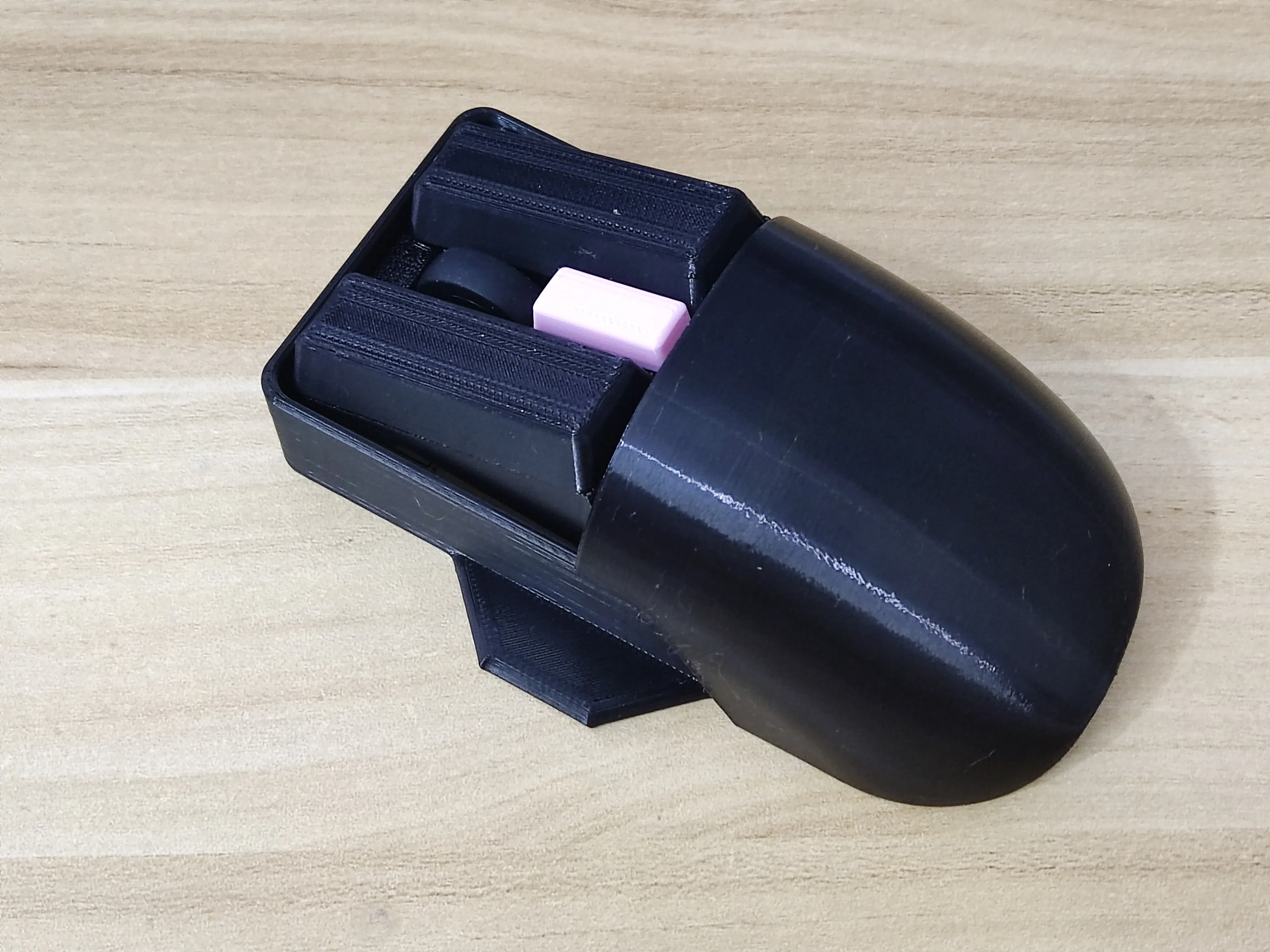

This is the Black Samurai colorway.

This is the panda colorway.

There are many other colors that you can mix and match.

You are welcome to share your color combinations in the comment area!

The following is a detailed installation tutorial.

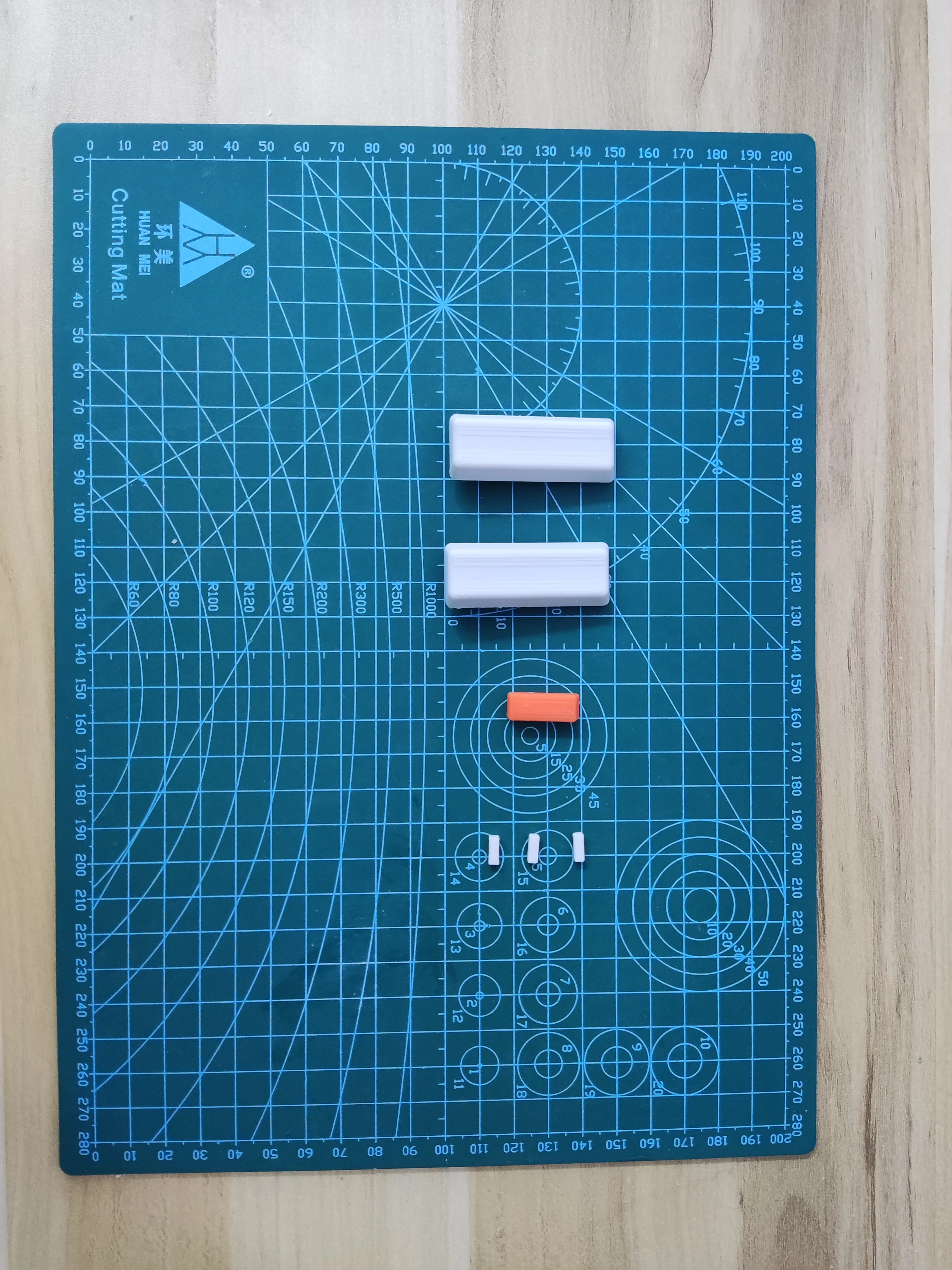

1. You need to prepare the following items.

2. Install the power switch and lens first.

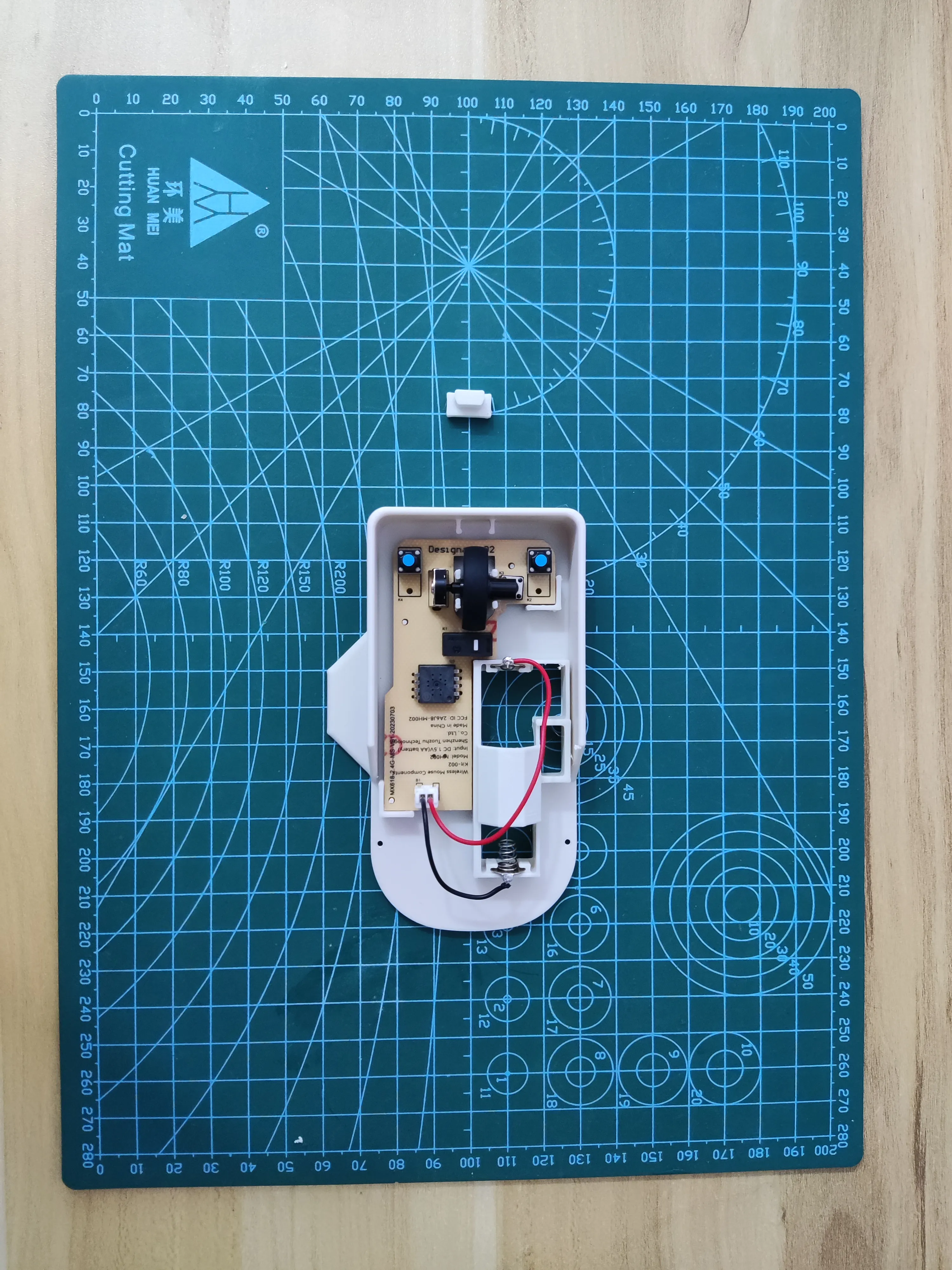

3. Install the circuit board.

4. Install the most front-end small objects.

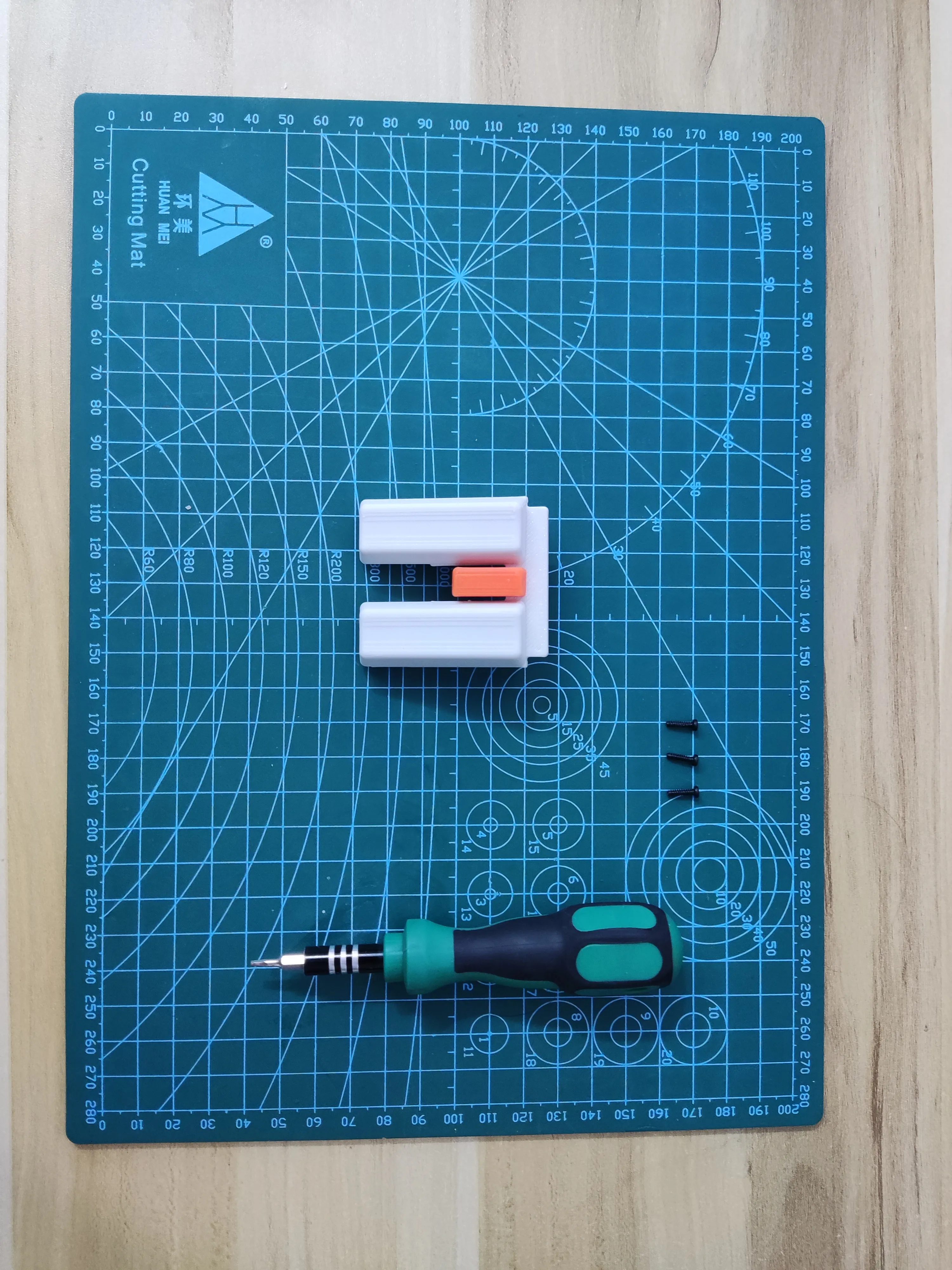

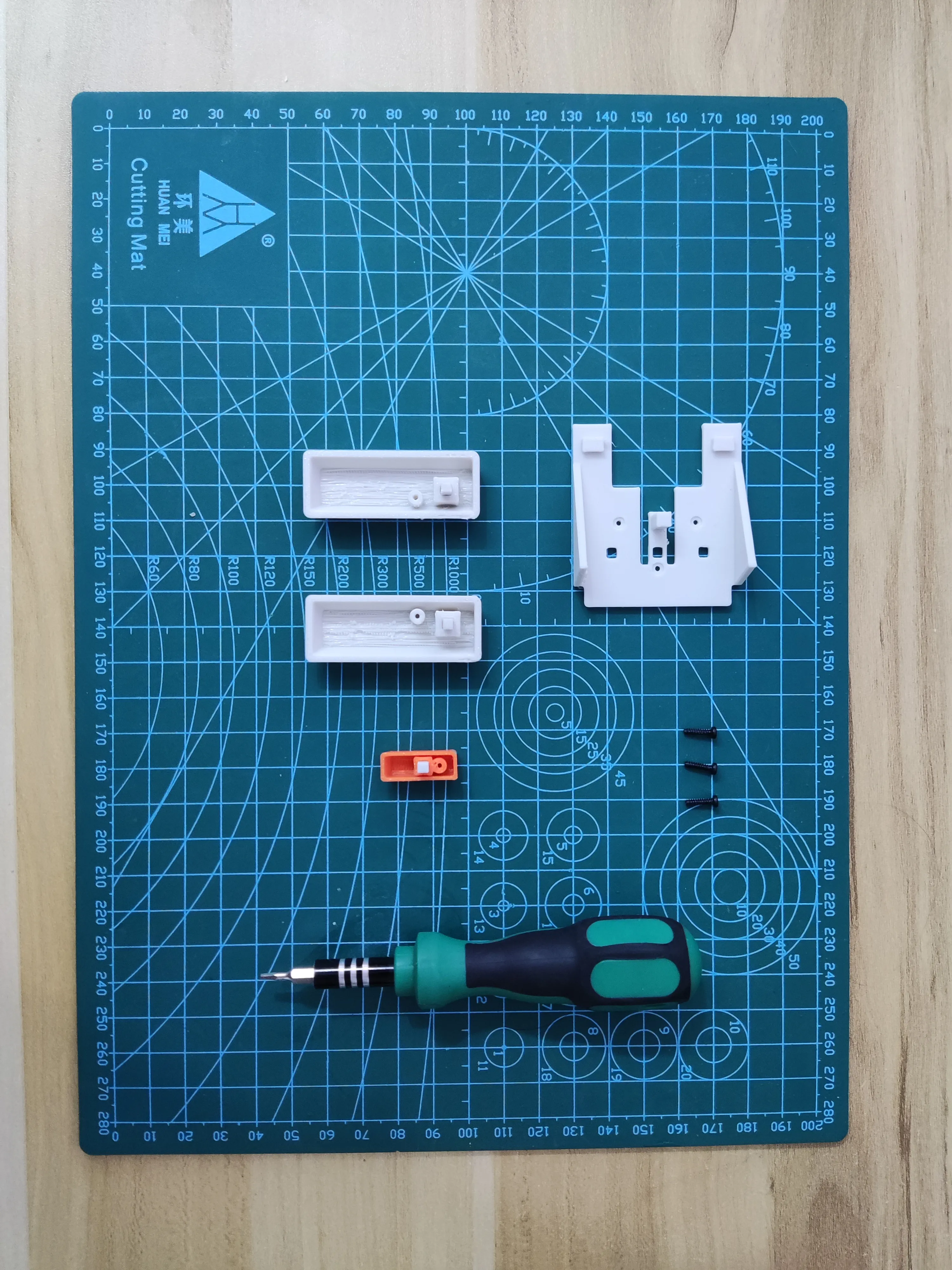

5. Next, the base is placed next to it, and we will install the buttons of the mouse, and fix it with two points with latches and screws.

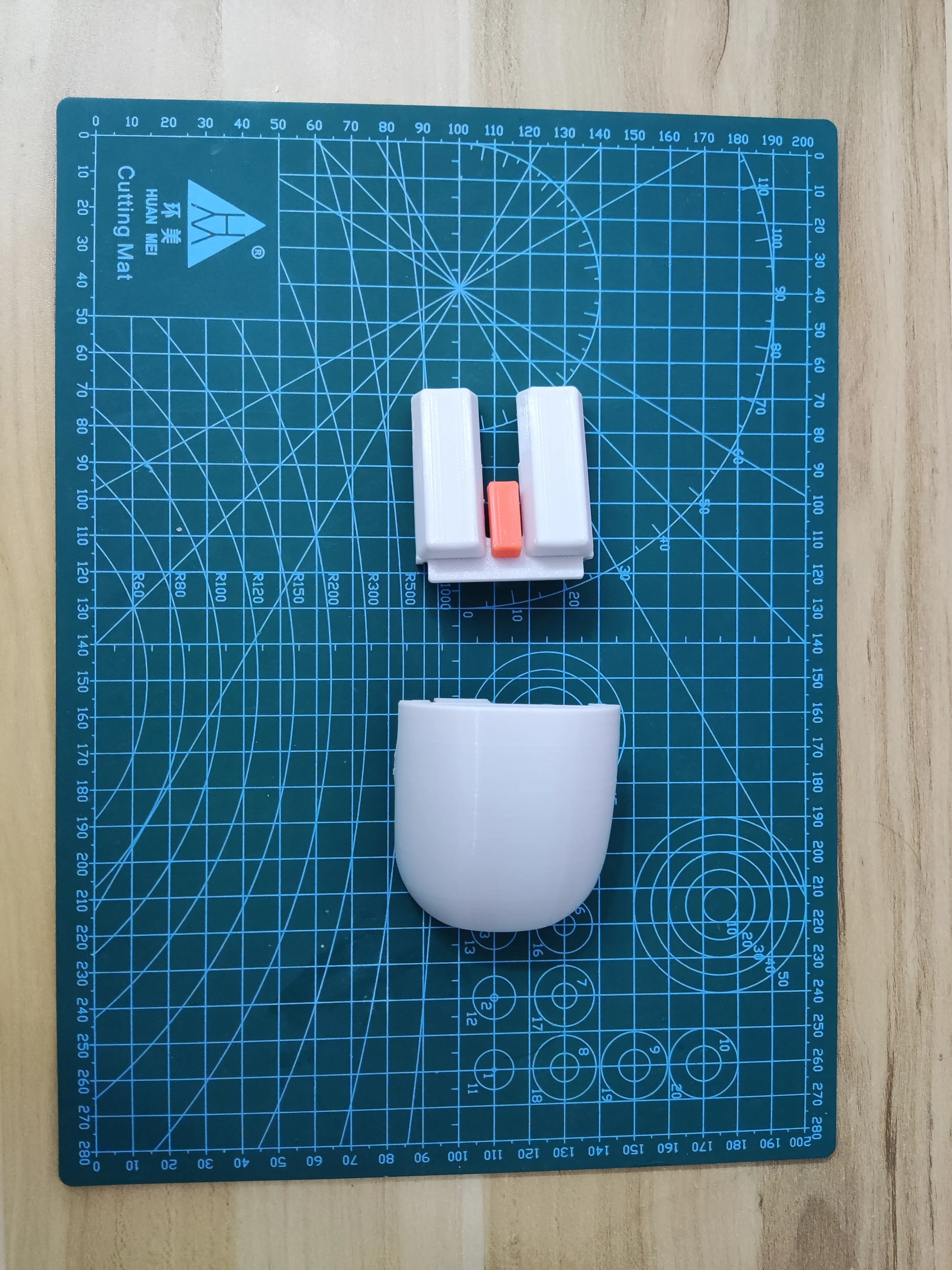

6. Next, take out the back cover and insert the installation inside.

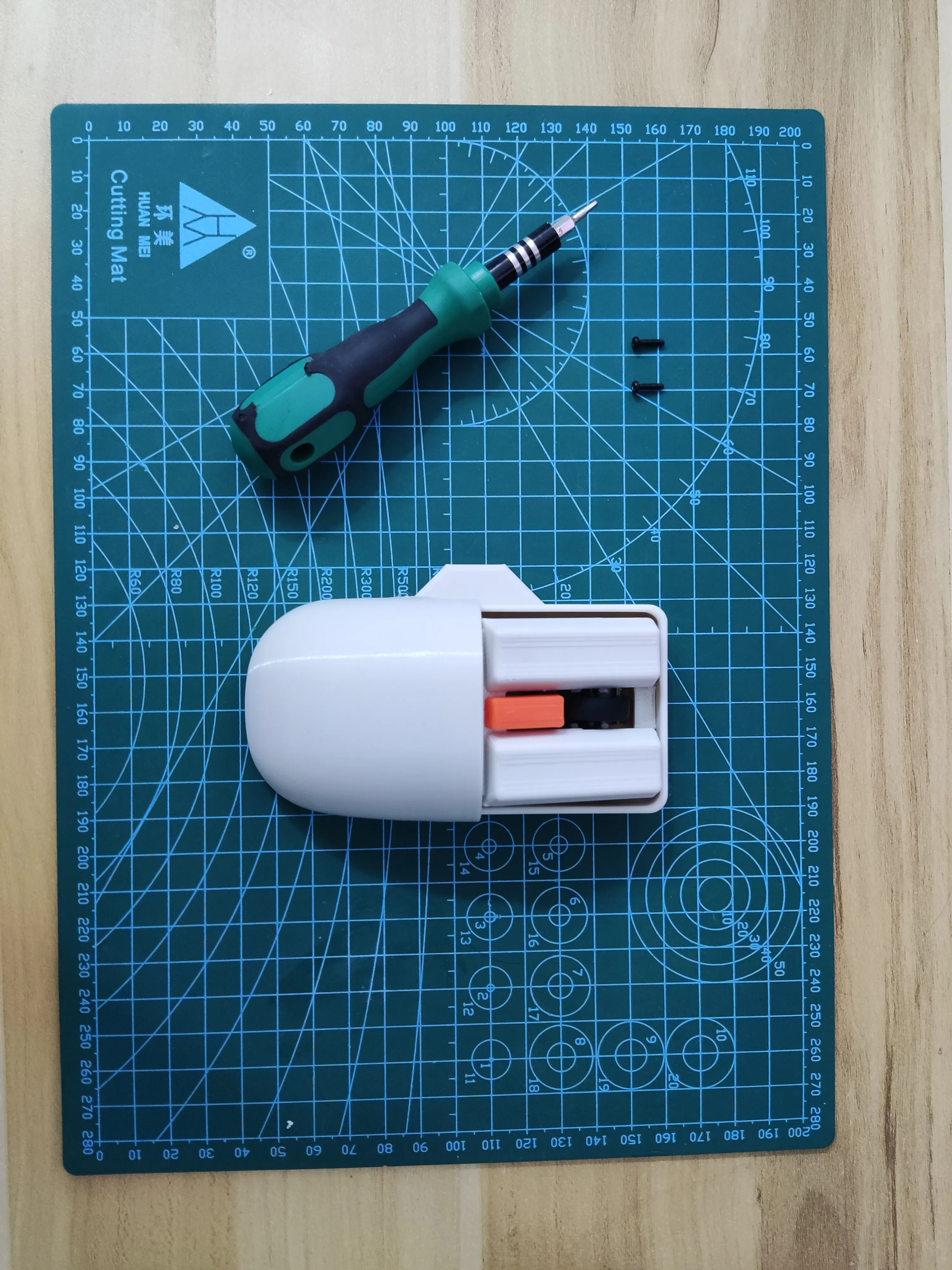

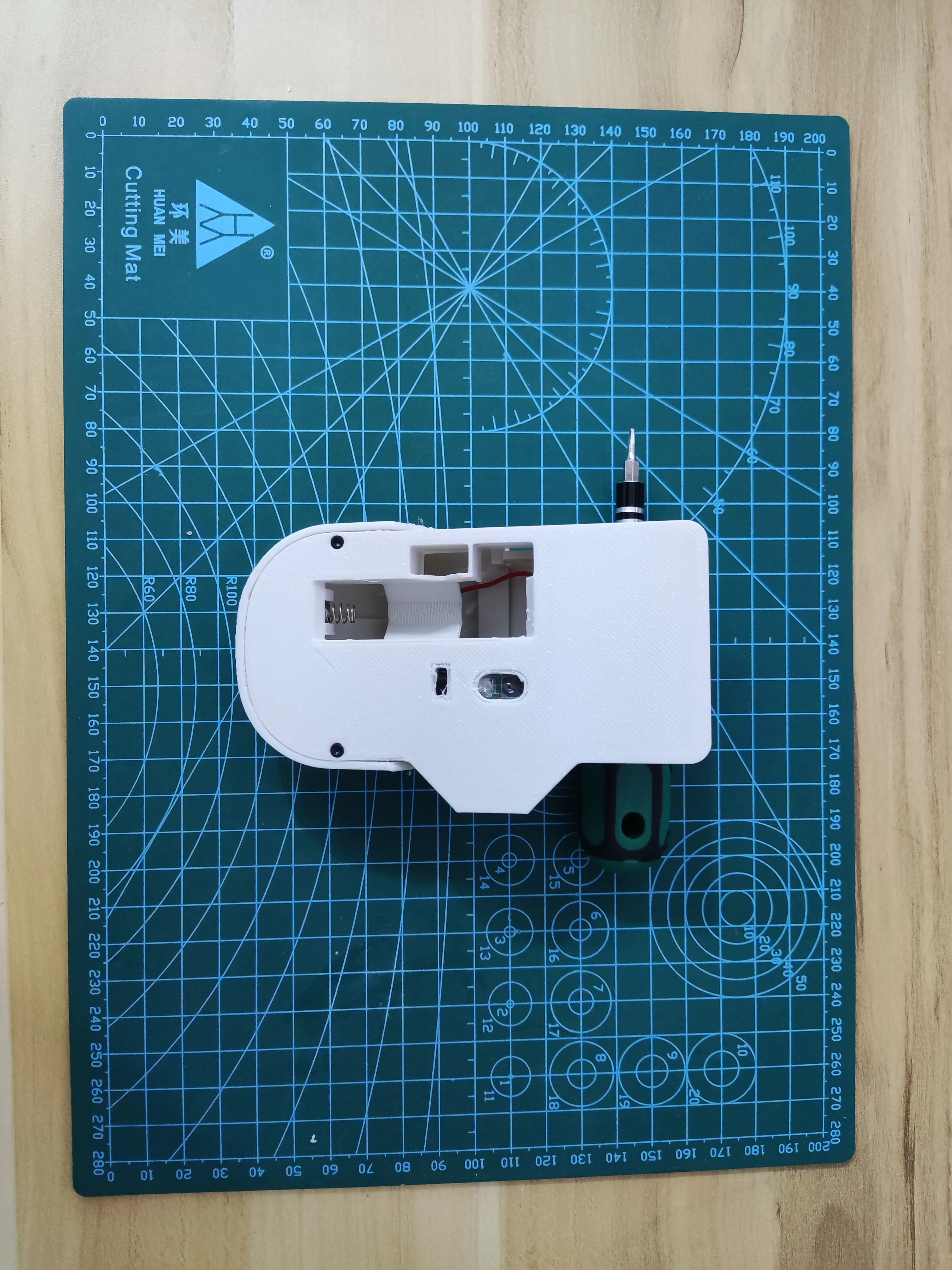

7. Take out the base next to it, put it together, and flip it over and screw it on.

8. Finally, install the battery and cover.

Finally, thank you for seeing this!

鼠标

wireless mouse components kit 002

Wireless Mouse Component Kit 002

Comment & Rating (47)

@HeckinTech

Print Profile

0.16mm layer, 2 walls, 15% infill

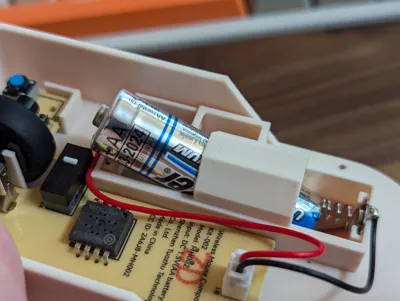

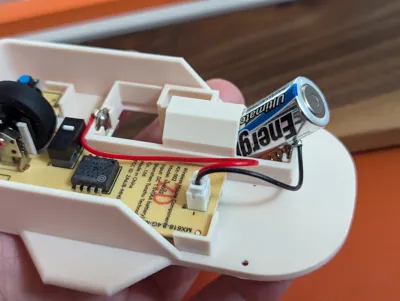

Is there a way to rate the design, and not the profile used? Well, I'm using this like that until there is. The print itself went well, but there are too many problems with the design. There battery compartment needs more cover, so the battery does not see-saw its way in to either end of the internals. Additional support needs to press down on the PCB so the power switch doesn't sink in to the housing. The primary buttons don't fasten to the body in any meaningful way, making them shift out of place, making it's primary function of clicking on things, a complete toss-up. Only 2 screws fasten the bottom to the top, and they're both near the rear of the mouse, which does NOT feel secure. All in all, I don't imagine I'm ever going to actually use this mouse for anything but looking kinda cool. A bummer, really.

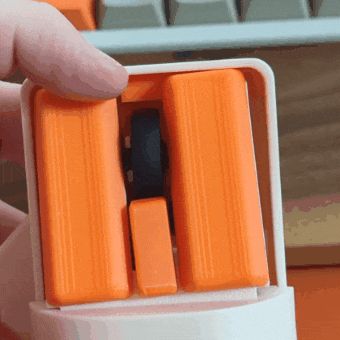

GIF

@MiN5

Print Profile

0.16mm layer, 2 walls, 15% infill

This is a great build, just what I was looking for for the mouse kit! Excellent instructions too. The buttons printing horizontaly produces some "unwanted" layering lines. So, I uploaded a print profile for more "retro texture" buttons & a wheel from user NeverAsk, on a single plate.

(Edited)

@Leonardosos

Print Profile

0.16mm layer, 2 walls, 15% infill

super

@CarloGatto

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

spettacolare!!

@1llia_skyban

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

Very good design, I like it =)

@AxGenTheOne

Boosted

Very nice! lots of thnx!

@PrestigeProto

Print Profile

0.16mm layer, 2 walls, 15% infill

nice print

@zones

This shape is Lofree's Little Wave mouse, isn't it

Show original

@Drewbianaus

I have the lofree, it has a lot of functions this one doesn't.

@kaszti1337

Print Profile

0.16mm layer, 2 walls, 15% infill

@TouchedCoder

You're at 69 likes so I won't ruin it, I'll come back later and see if somebody else does and then add my like

@stopsnstuff

somebody ruined it😩

@user_445479071
