Introducing the Drill Guide and Dust Collector with Levels

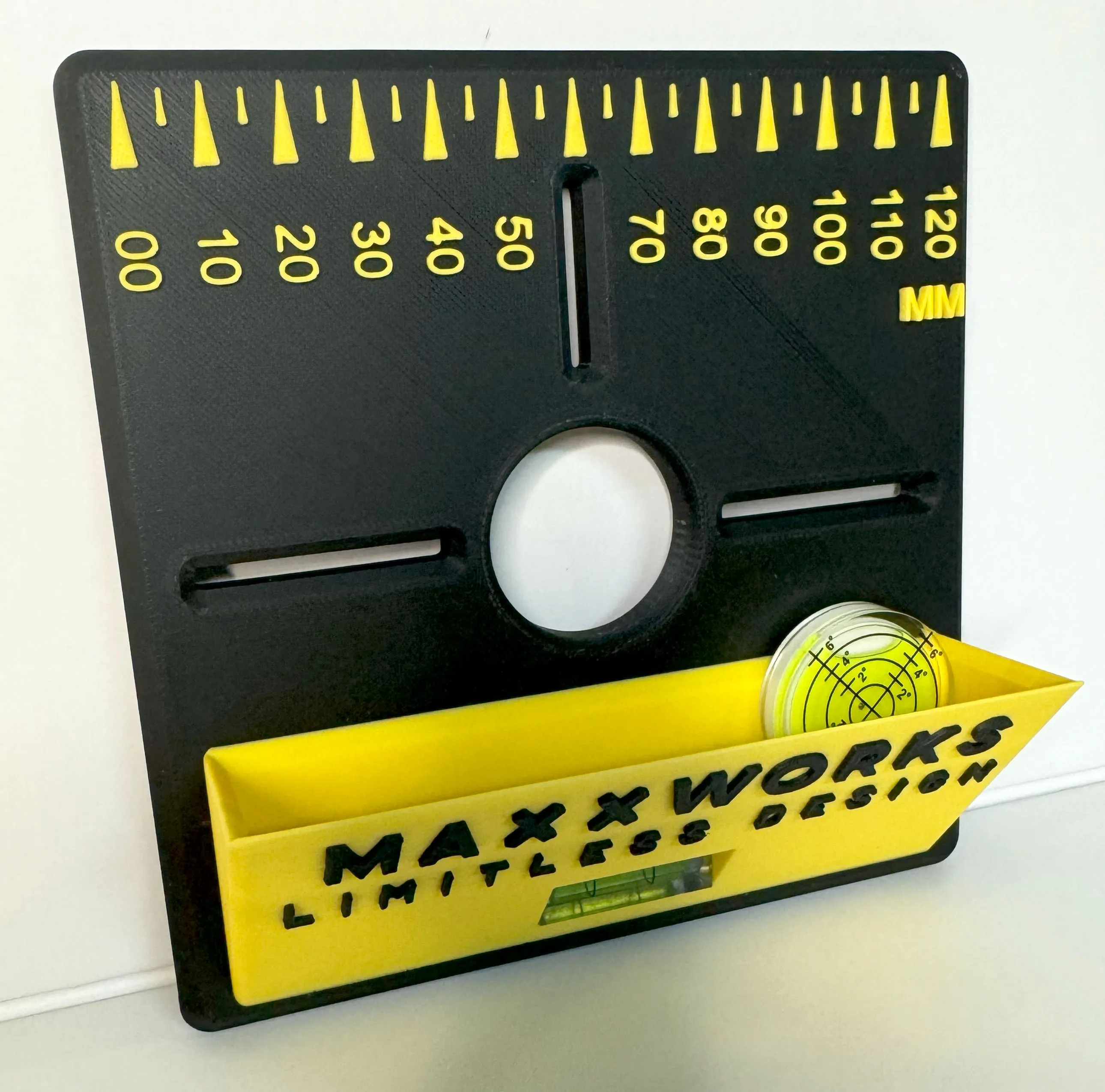

Keep your floors and walls clean, with this new and improved Drill guide. Use it to collect dust while drilling, but so much more! The guide includes a ruler and places to make pencil marks.

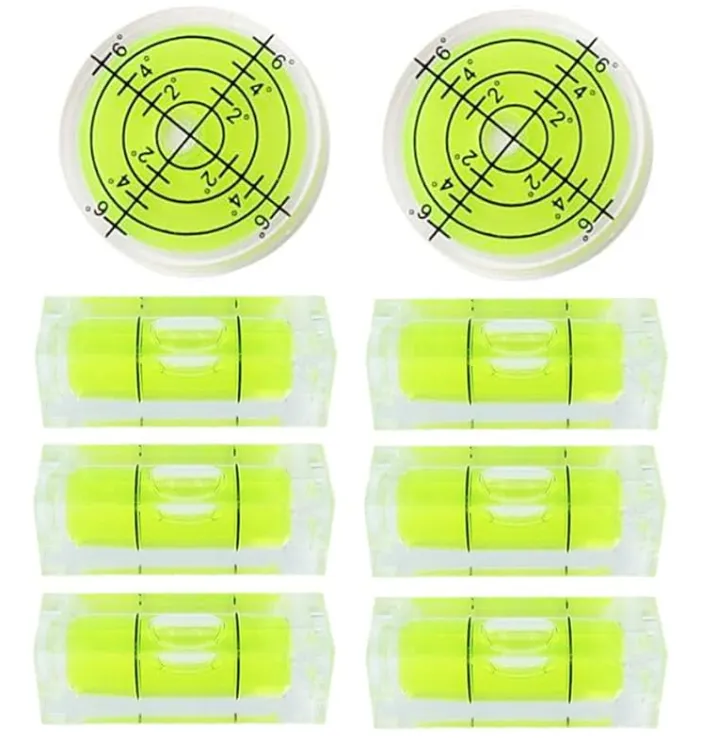

Also, can be fitted with levels to make sure your marking lines are straight. Levels are available on Amazon, please see the link below. Can be used with or without the levels.

Inspired by “aleung” design, found on Printables, I decided that it was more useful to have a removable level in the center of the guide than a drill channel. Levels give the tool a whole new usefulness.

https://www.amazon.com/dp/B098CWYPZC?psc=1&ref=ppx_yo2ov_dt_b_product_details

Features:

Dust Catch: Never leave dirt floor again. Will catch dust as you drill.
Easy to Use: Simple hold and drill.
Can be used with or without levels: For added functionality, you can add the levels listed above. Or if you prefer, use it as is.
Build in ruler guide: The build-in ruler guide is perfect for making straight level marks. Two types of levels can be added.

Recommended Materials:

I printed in PLA Matte, which looks great in black and Yellow. (Inspired by original yellow design on Printables)

Print Mode:

Use the provided .3mf template.

Orientation and Support:

The object can be printed entirely on a single plate. This model does not need support.

Dimension:

135mm x 135mm

I hope you enjoy this helpful tool. Please like or boost this design, it helps a lot! Thanks!
