DIY XT60 18650 Battery pack (2P3S variant)

Copyright Claim

DIY XT60 18650 Battery pack (2P3S variant)

Boost
25
40
3

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1

0.2mm layer, 3 walls, 10% infill
0.2mm layer, 3 walls, 10% infill
Designer
5 h
2 plates

Boost
25
40
3
7
17
2
Released

Description

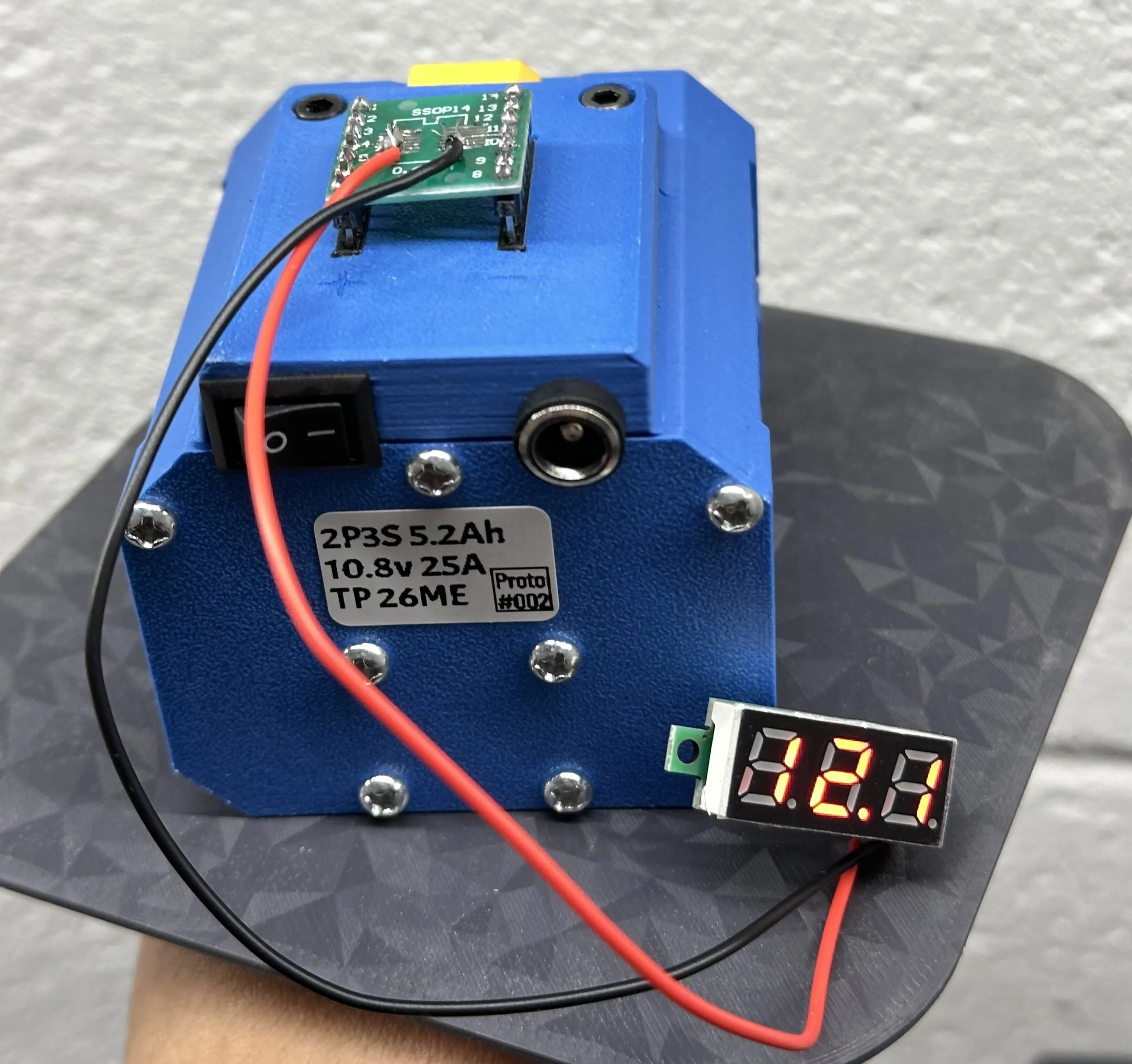

18650 battery pack case with XT60 snap on connector, barrel jack, emergency switch and optional 2 x 8 top pin array.



1P3S variant (x3 18650) https://makerworld.com/en/models/487623



Related projects:

Powerful 99w mega fan https://makerworld.com/en/models/487975

Portable powerful mini fan https://makerworld.com/en/models/487618

LED spotlight attachment https://makerworld.com/en/models/487592

Car socket attachment https://makerworld.com/en/models/487588

x6 battery holder https://makerworld.com/en/models/487614

battery receptacle snap on https://makerworld.com/en/models/487605



Tools to make the building of the pack easier https://makerworld.com/en/models/487583









Material needed:

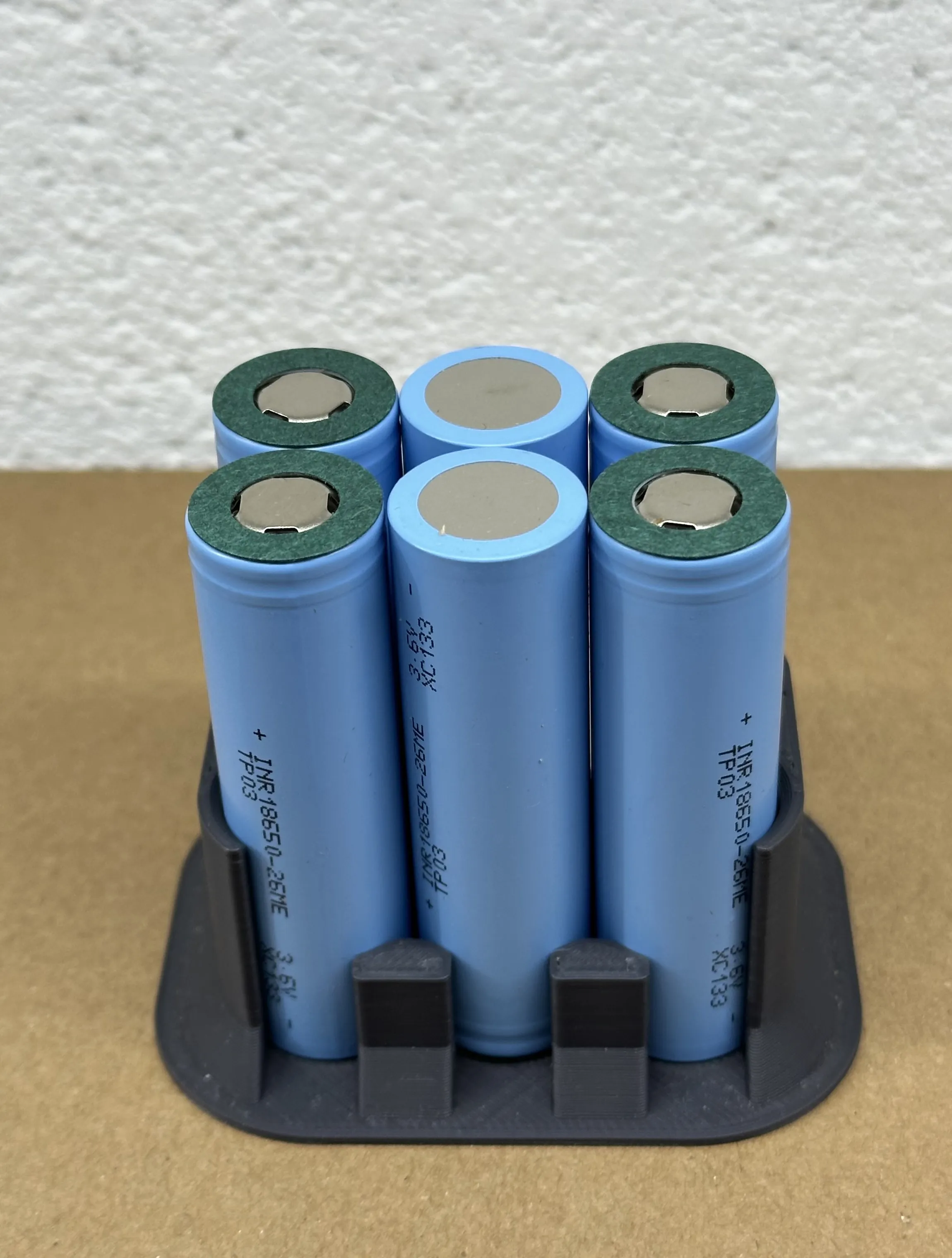

x6 18650 battery (x3 for the 1P3S variant https://makerworld.com/en/models/487623)

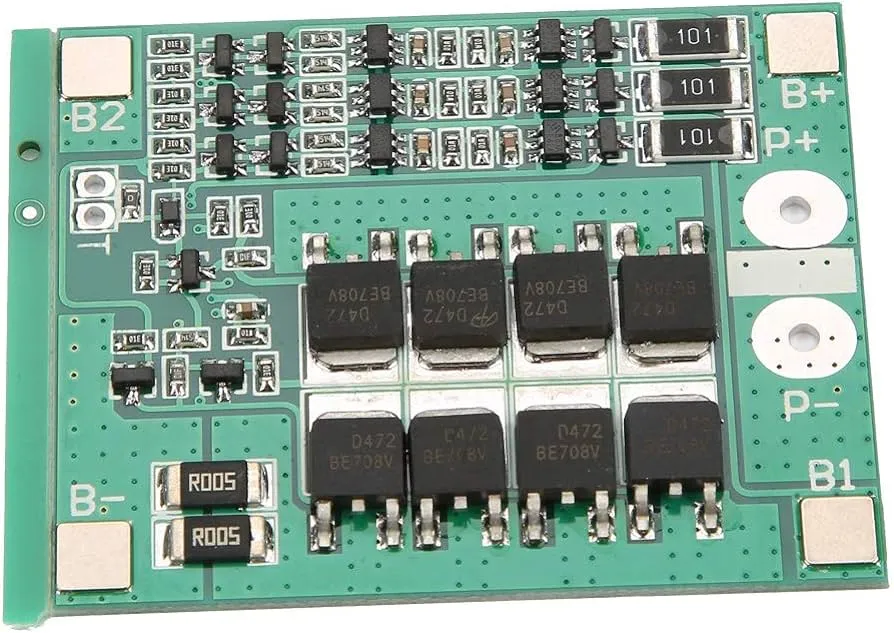

x1 25A 3S BMS

x1 mini switch 3A 10x15mm 2 pin

On/Off Rocker Switch RED 2Pin 15x10mm Mini Small Rectangle 3A Electrical  Project

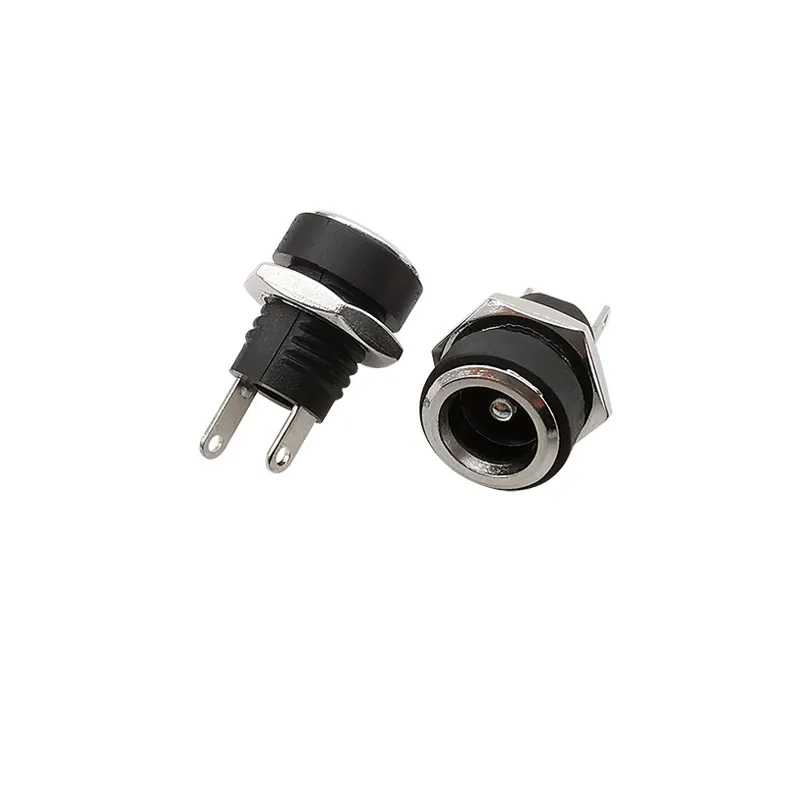

x1 barrel jack female

(Optional) x1 20 pin with female 2.54 header for the top pin row

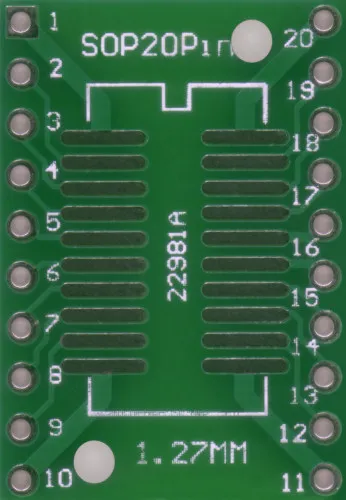

 SMD PCB Adaptor SOIC / SSOP 20 Pin - Electronic Things



x2 8mm hex m3 screw

x8 6mm m3 screw

x1 XT60 connector
