All my models are created by myself and I take great care to ensure that they have been tested and, above all, printed by myself. The success of my - so far few - models seems to prove me right. They have all received very positive feedback. I am currently working on new things. So it remains exciting! 😃

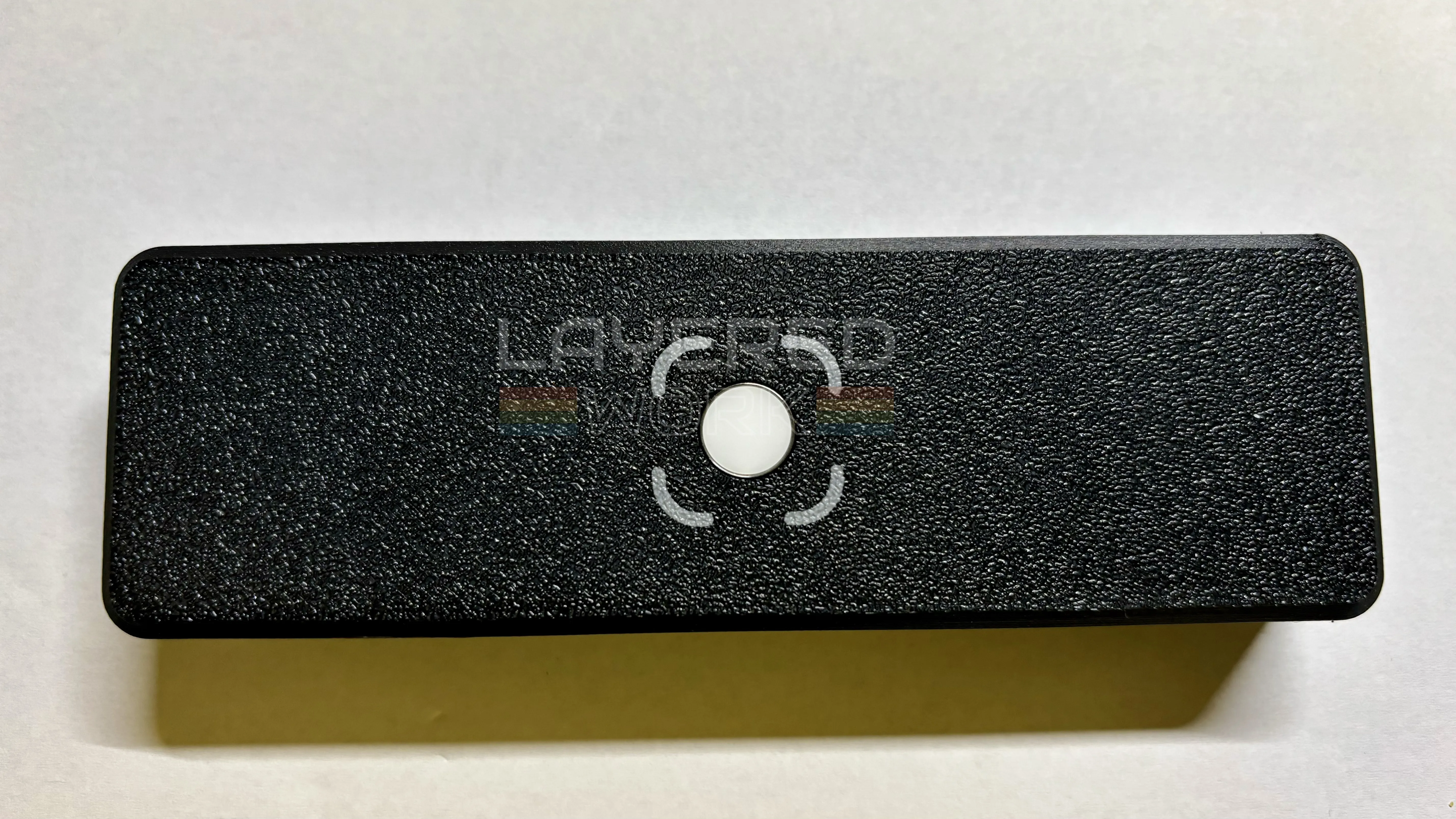

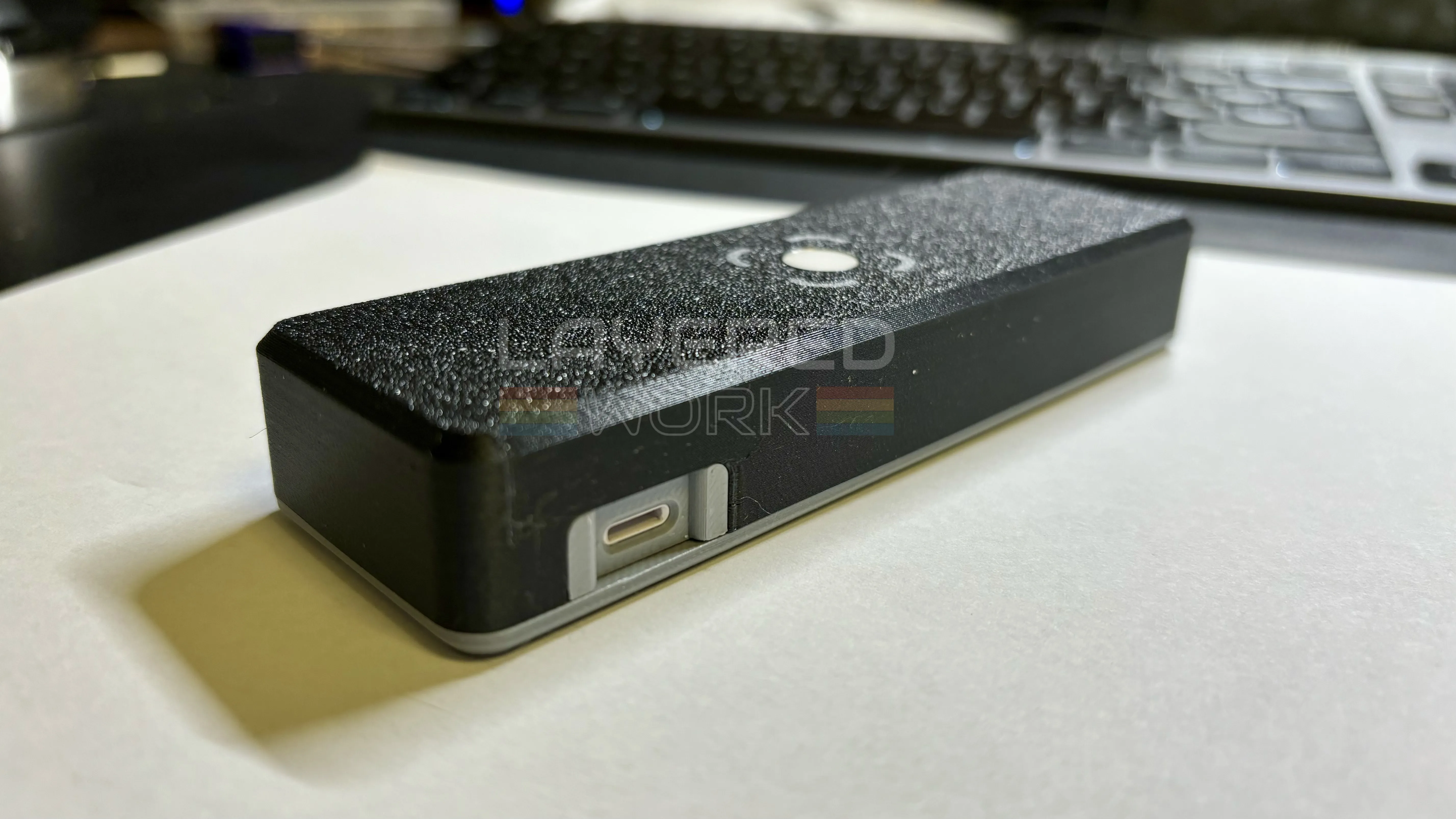

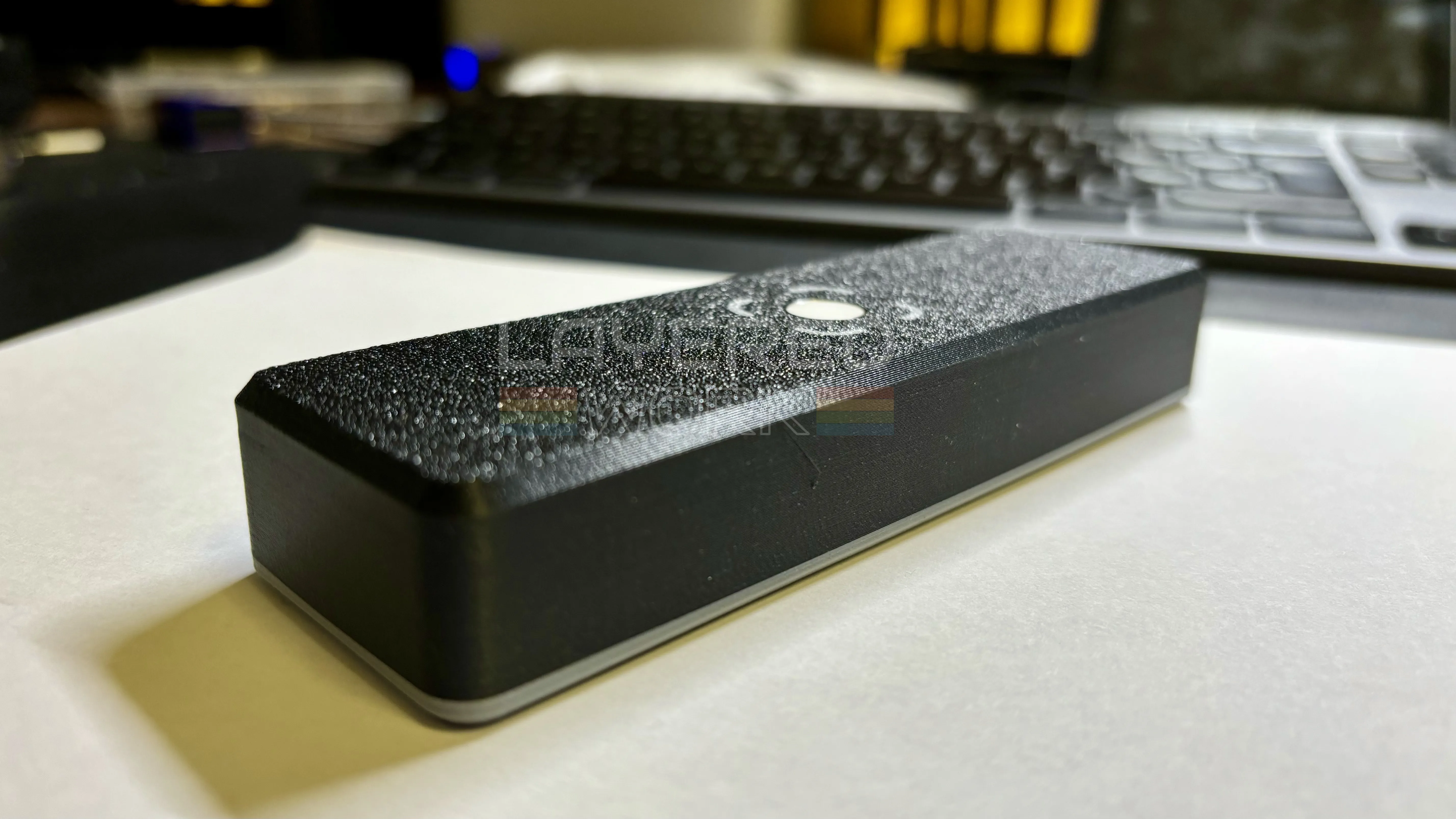

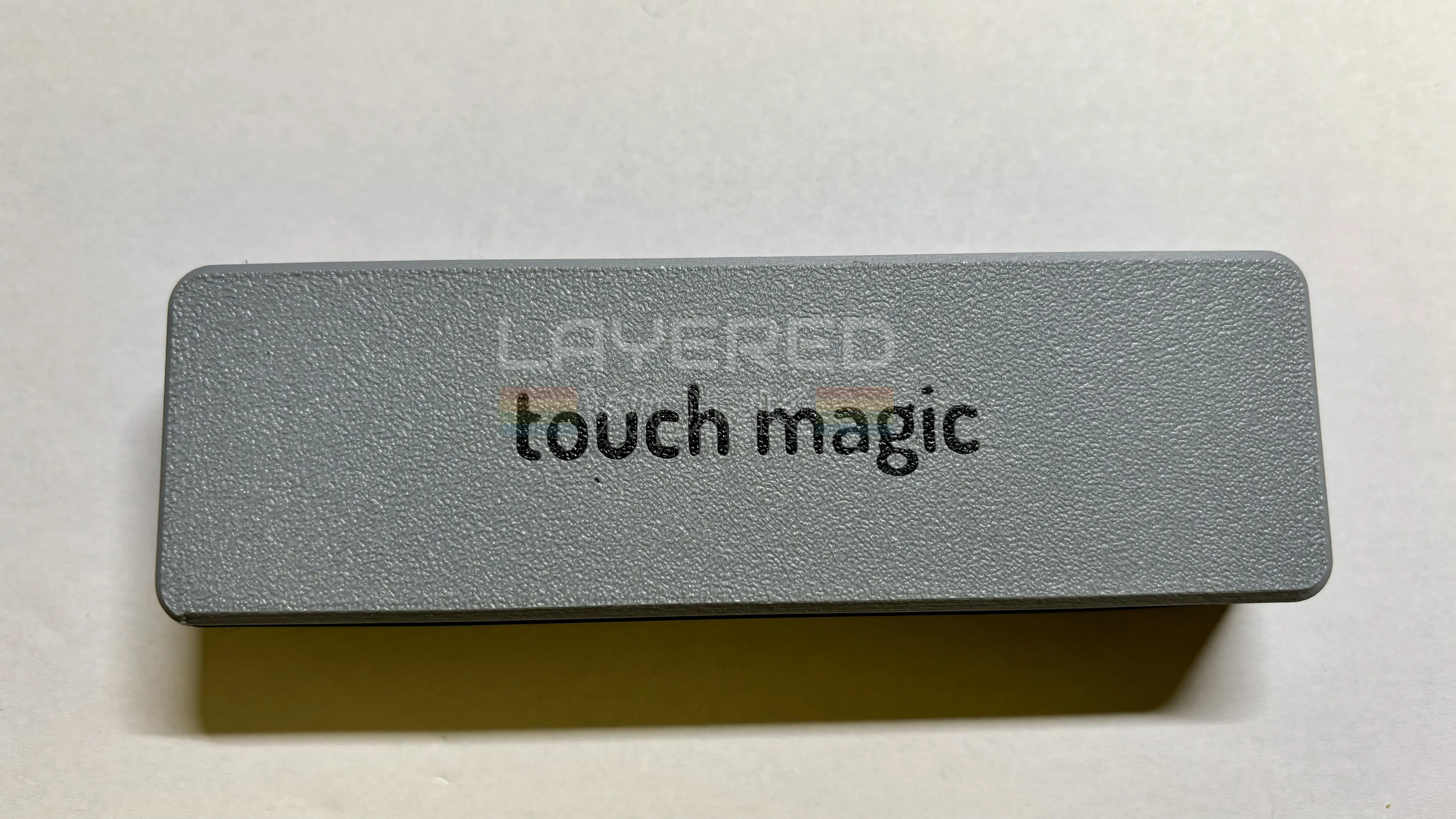

This is the wireless version of my wired “Touch Magic” case.
Key Features
- No glue needed when assembling
- No supports needed on printing
- No threaded inserts
- Only 4 screws (2x for the Lightning Port, 2x for the Logic Board)!
Bill of Materials
- A defective Apple Magic Keyboard with Touch ID (this case is made for small wireless version!)
- 2 BT2x2 self tapering screws (to attach the Lightning port to its plate)

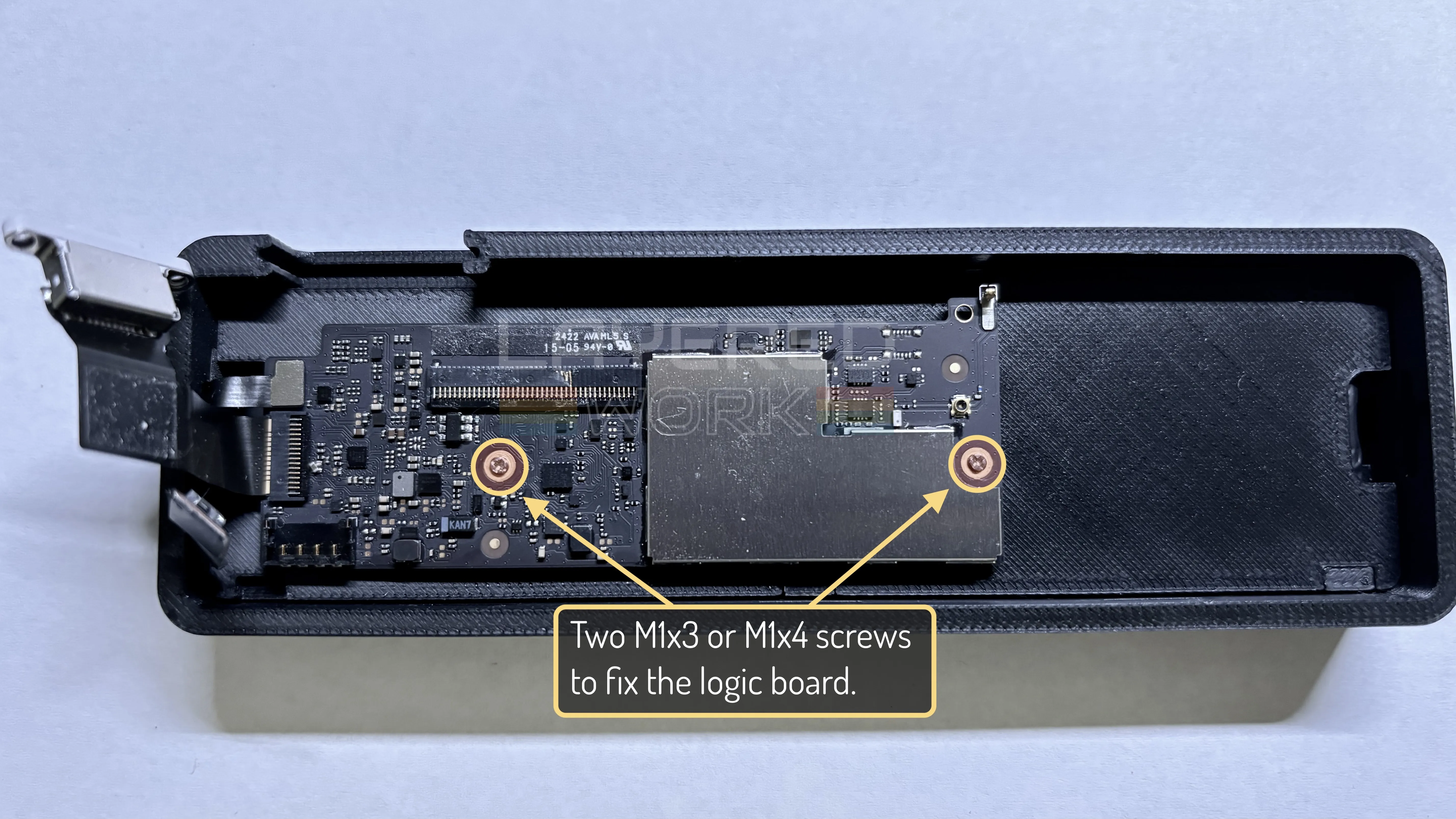

- 2 M1x3 machine screws (to hold the logic board)
NOTE: I used these self tapering screws and these machine screws.

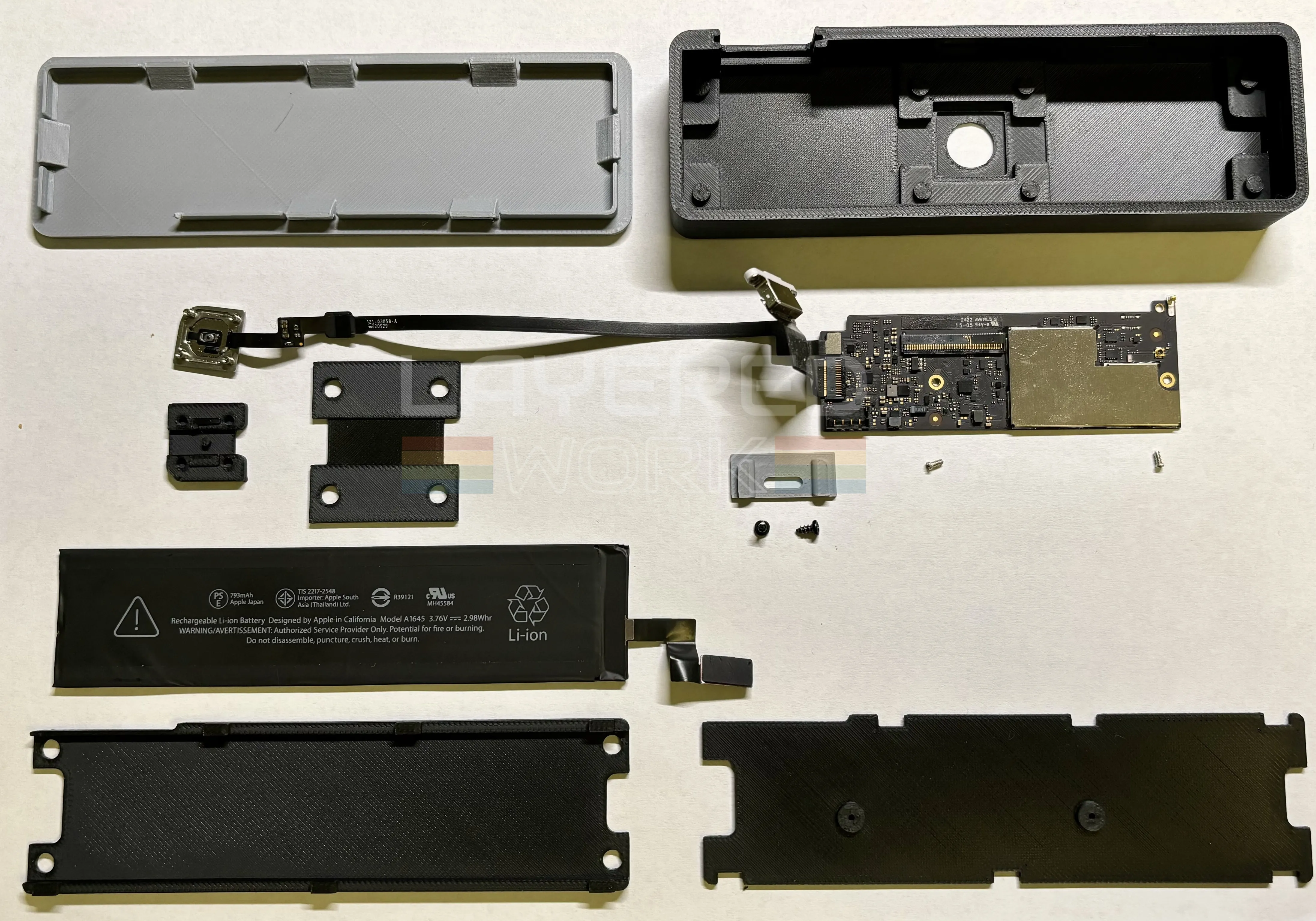

Parts needed from the Keyboard

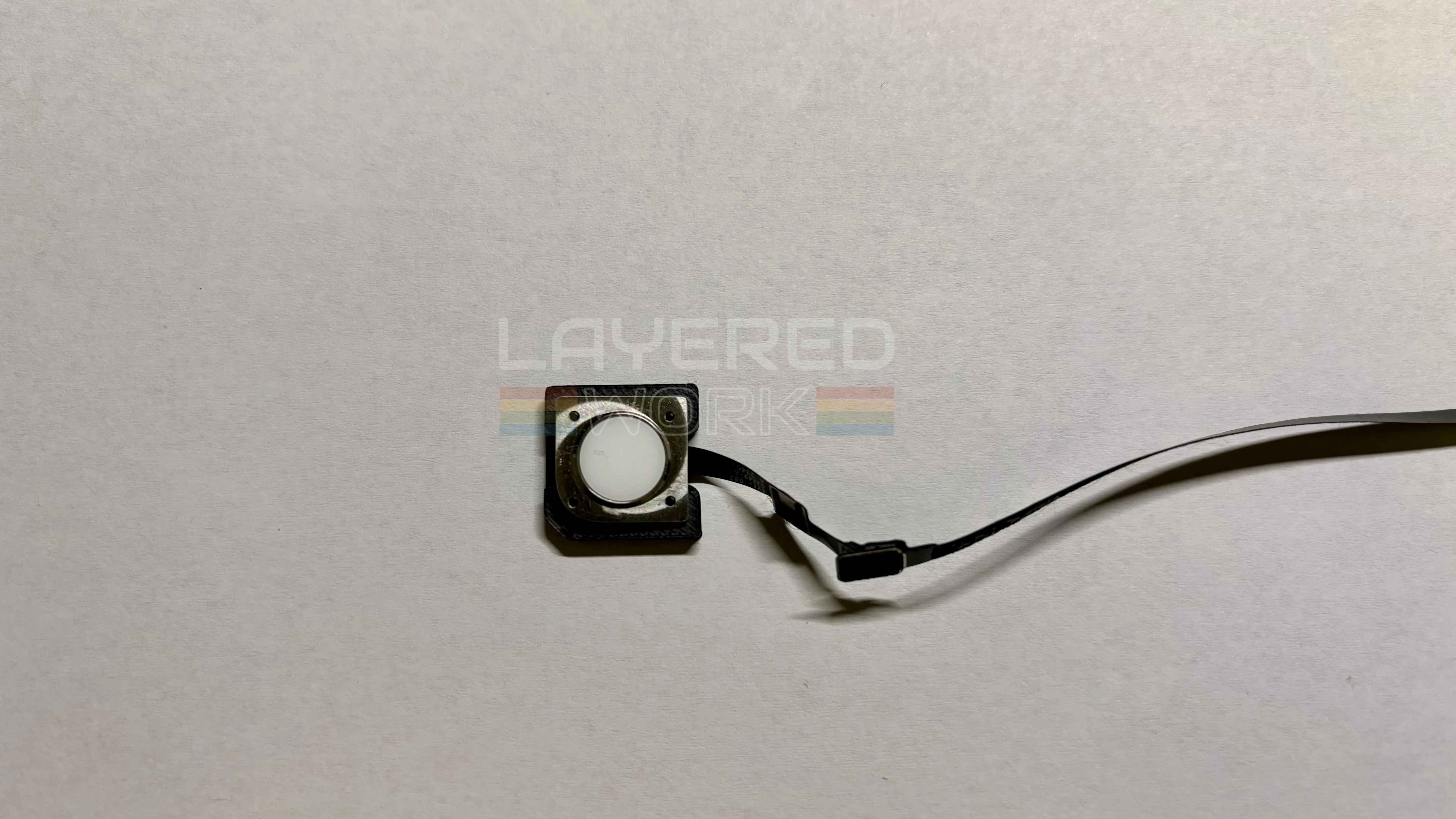

- The Touch ID sensor with its ribbon cable
- The Logic-Board
- The Keyboard Battery
- The Lightning connector with its ribbon cable
Here you can have a look at the current version of the model as a live rendering.
NOTE: I highly recommend to print the “Lightning Plate” and the “Sensor Lid” with 0.1mm layer height! All other parts can be printed with 0.16mm layer height.

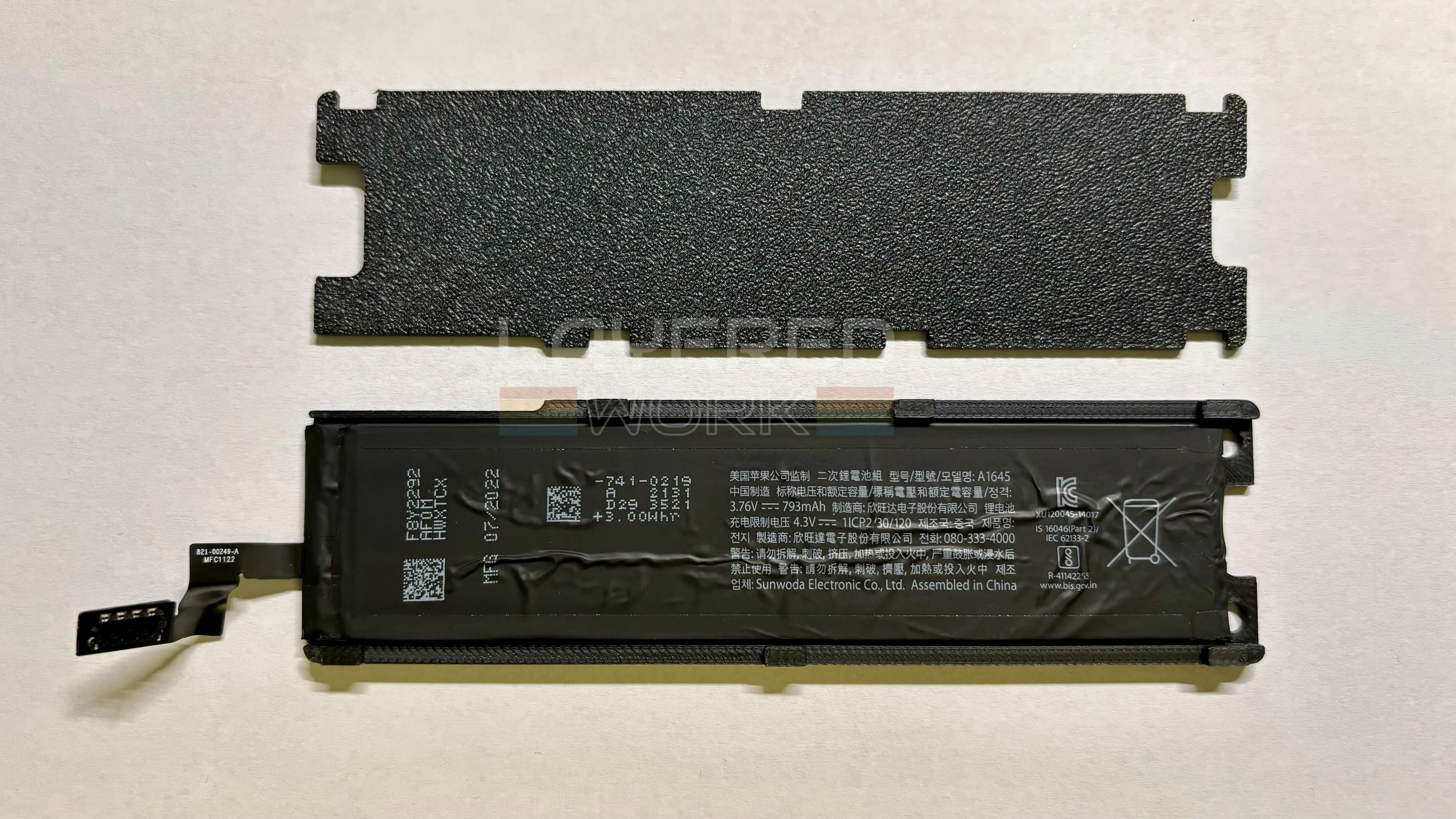

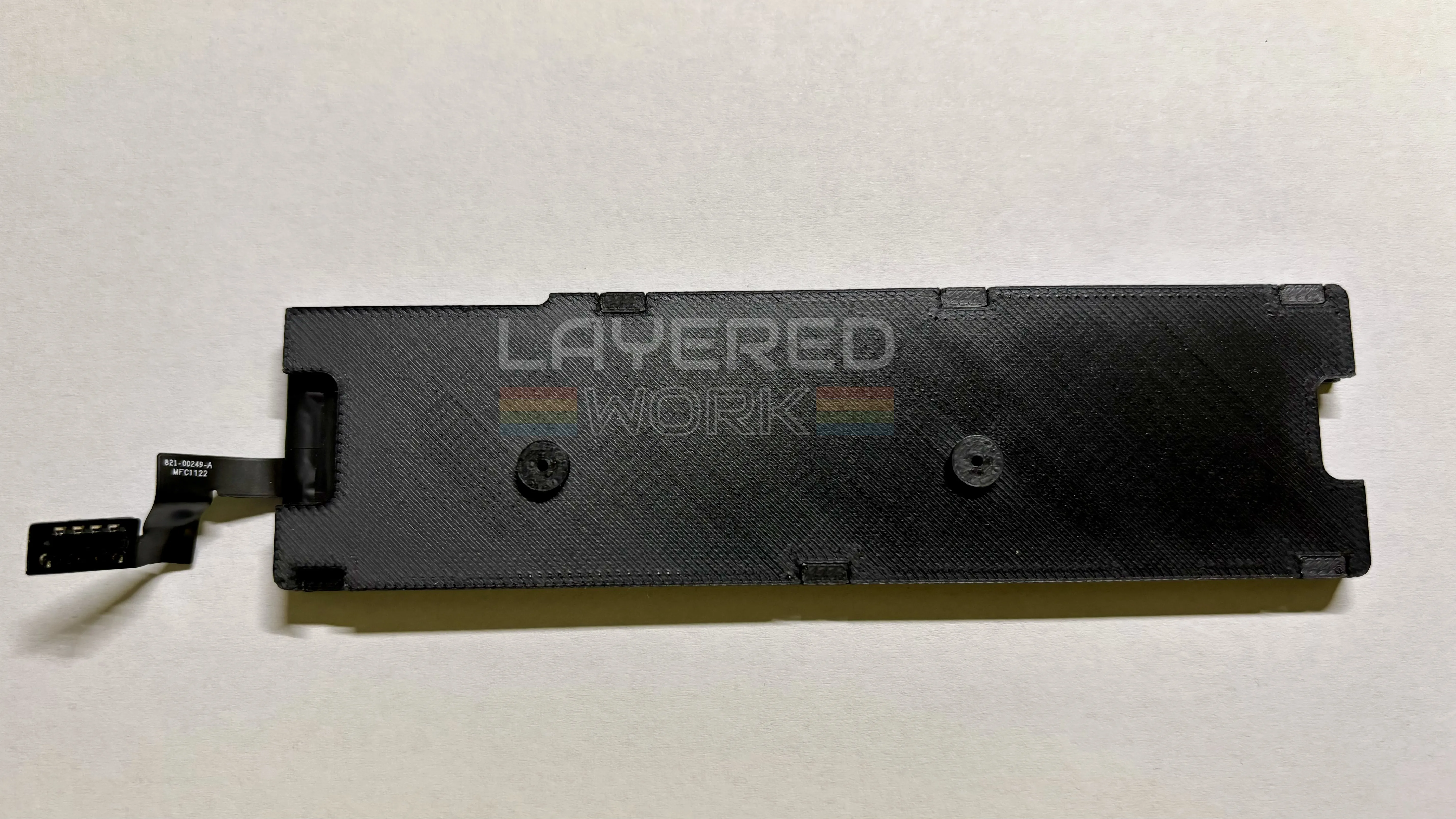

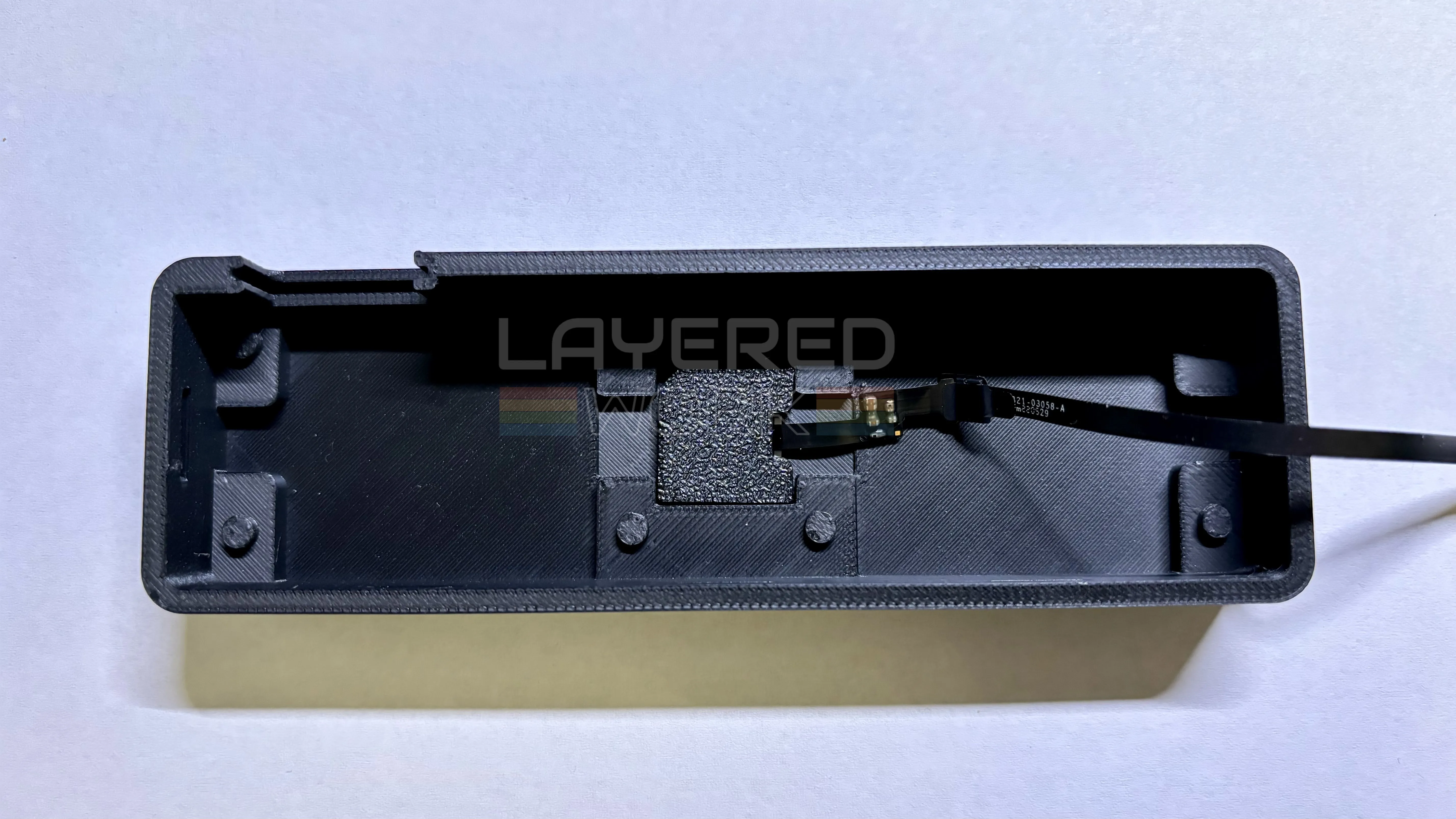

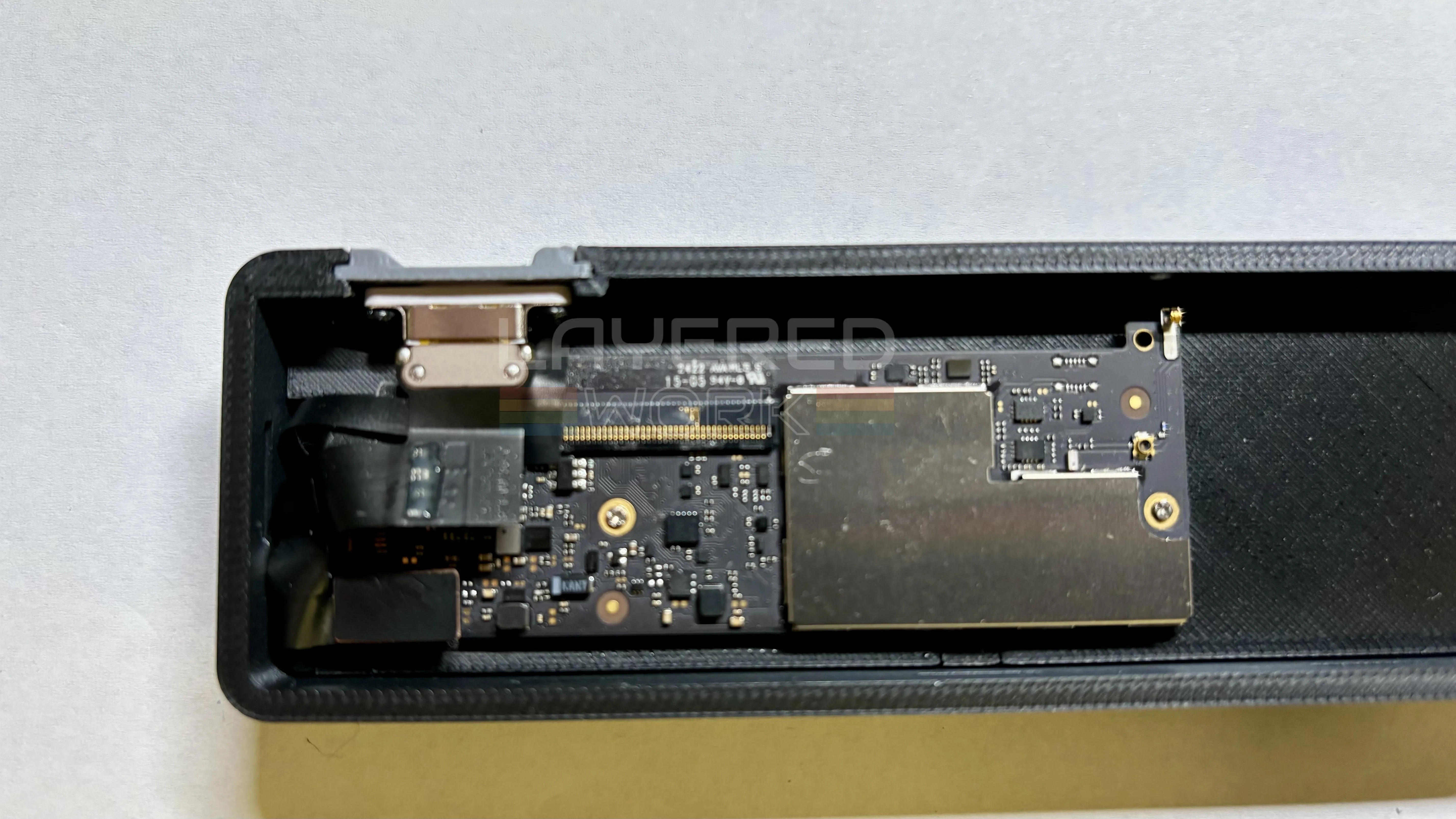

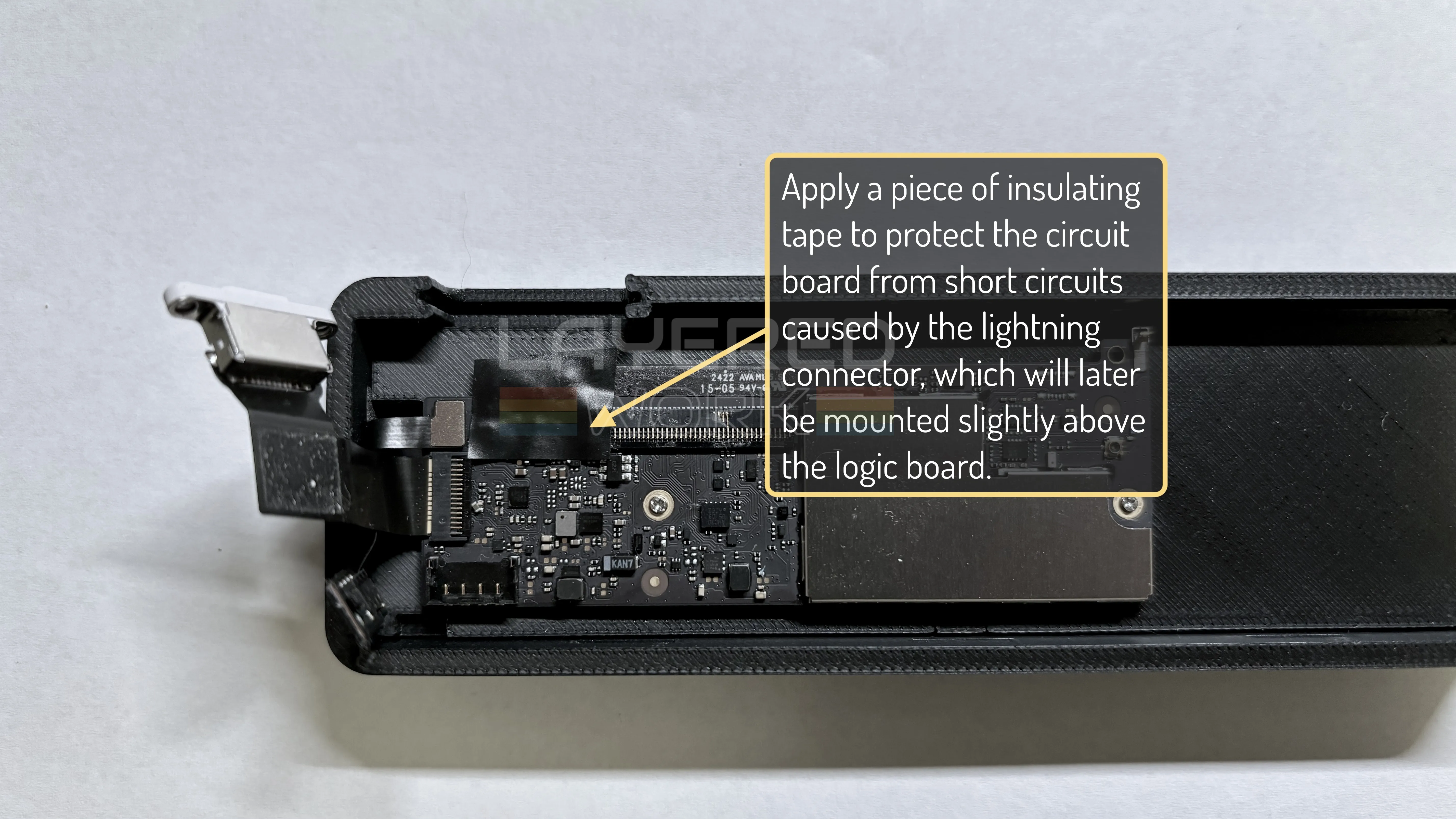

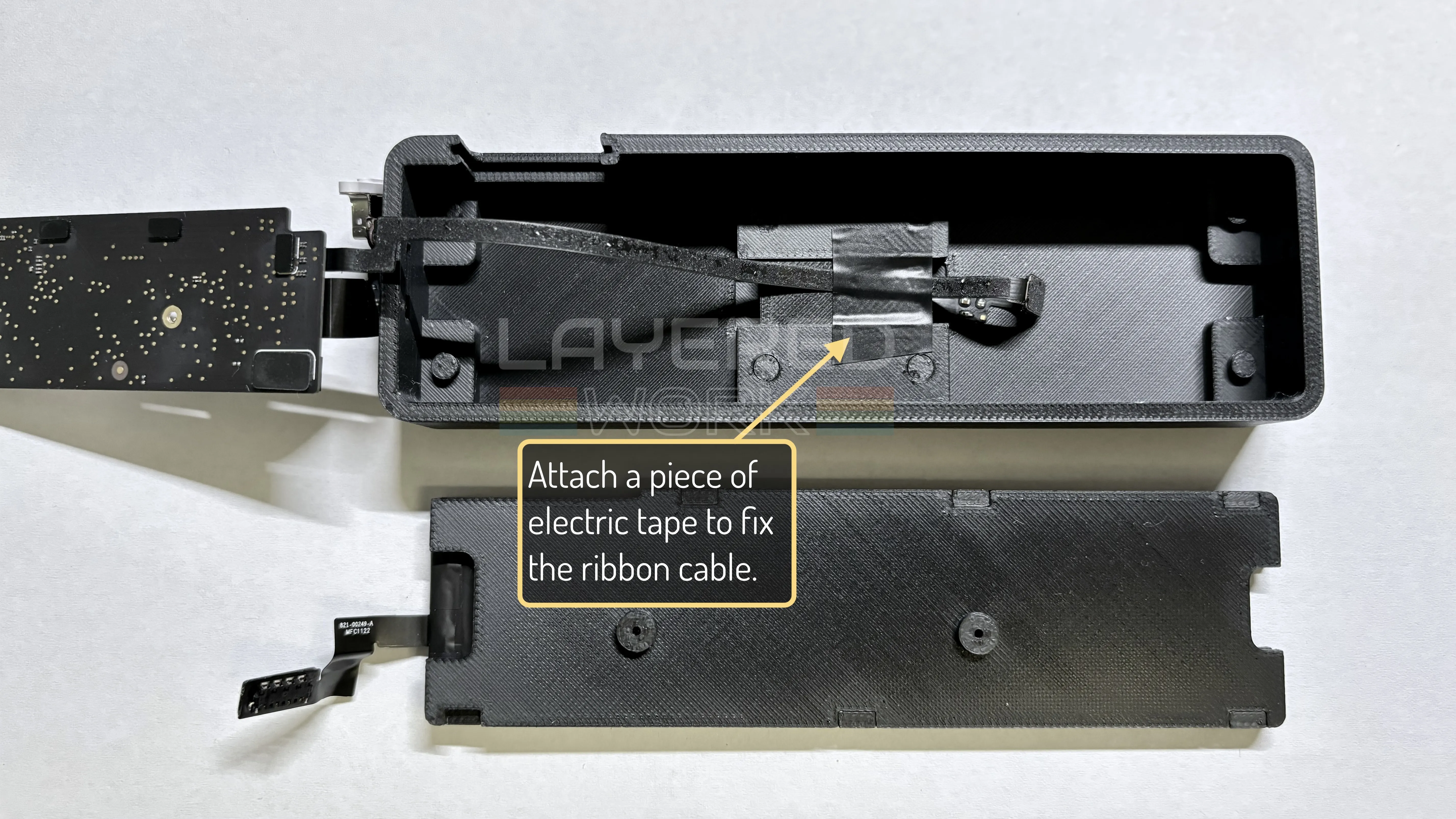

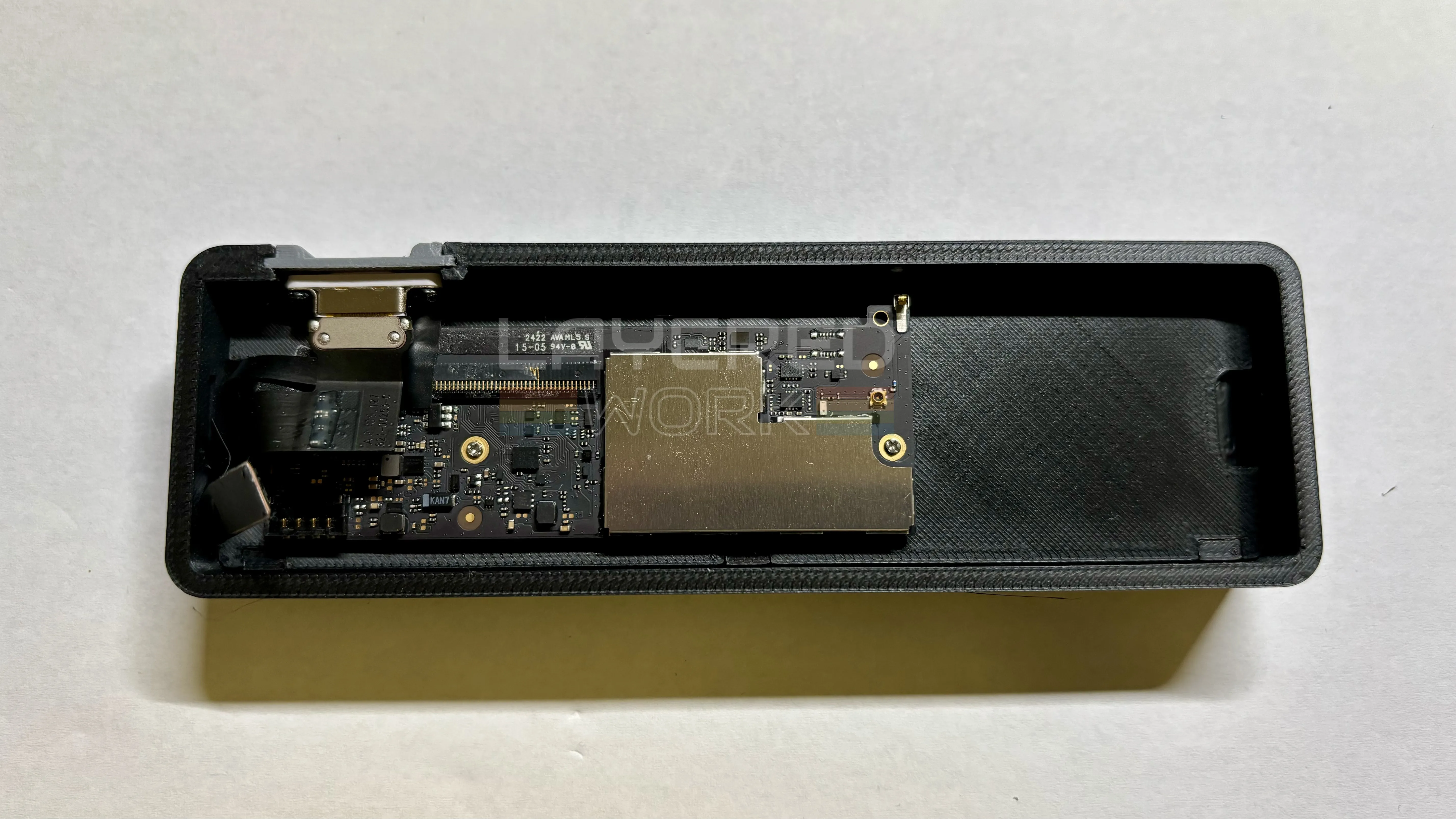

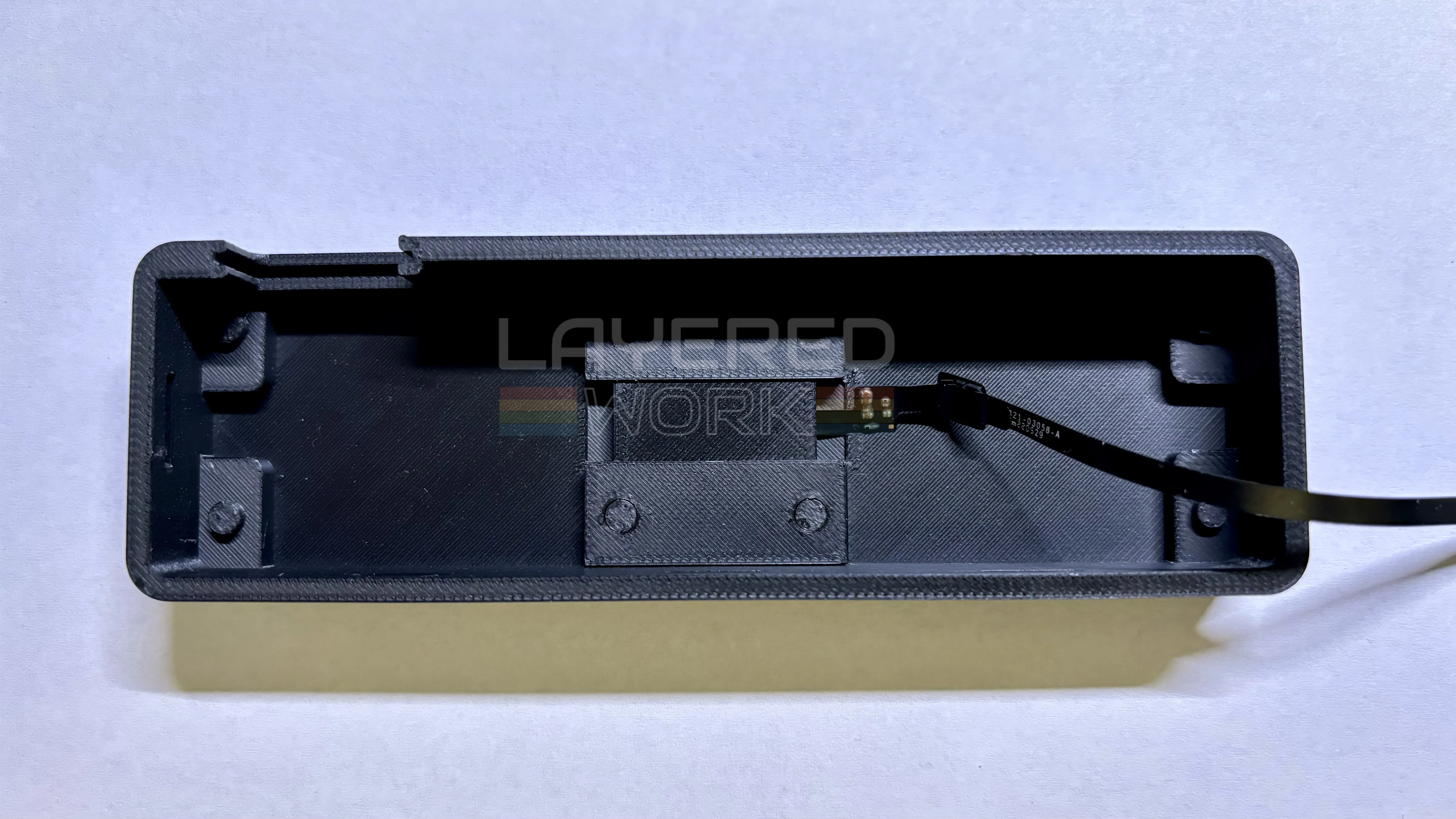

The following pictures are taken in the order of assembly.
Some Notes
I printed it on my Bambu Lab X1C with filaments from Bambu Lab (PLA Matte Ash Grey 11102) and Polymaker (PolyTerra PLA).
