[infomercial pitch]: Ever tackled a DIY project that’s not in your usual spot? Our patented “Tool Tetris” system ensures every hammer, screwdriver, and mystery tool fits just right. Say goodbye to digging through a chaotic toolbox. No more back-and-forth trips from your garage to the project site – your tools will be right there with you at all times… unless you forget one, that is. 😒

anyway…. assembly is pretty straightforward.

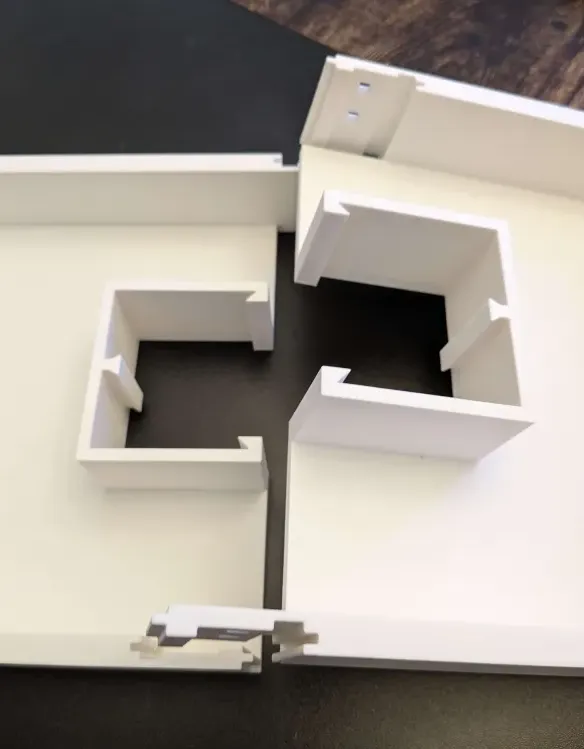

Step 1: base 1 and 2 goes on top of each other

(it should be a snug fit)

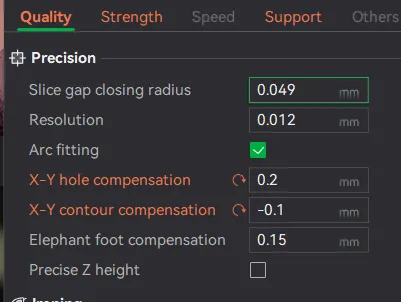

Designer's note: The most important print settings is the X-Y compensation in order for the prints to fit.



Step 2: Insert the wedges (might need to hammer it with a mallet)

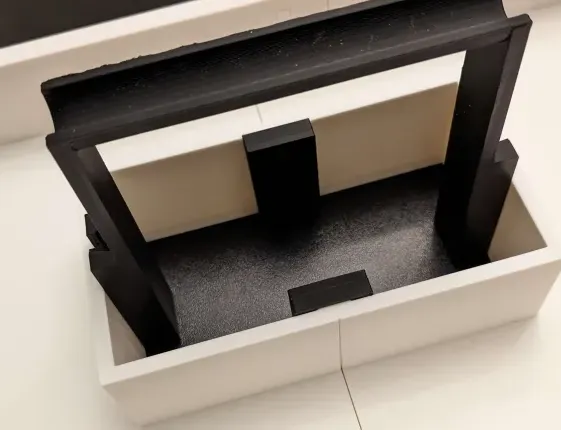

Step 3: The handle goes through the bottom


it should fit the dove tail on both side of the base.


(handle is assembled)

Step 4: insert the locks on both side of the caddy



And That's it.
note: I'll do a remix for that lock part soon. like adding more compartment.

additional assembly.
this has containers for the side of the handle. which can be inserted to the dovetail portion of the handle.

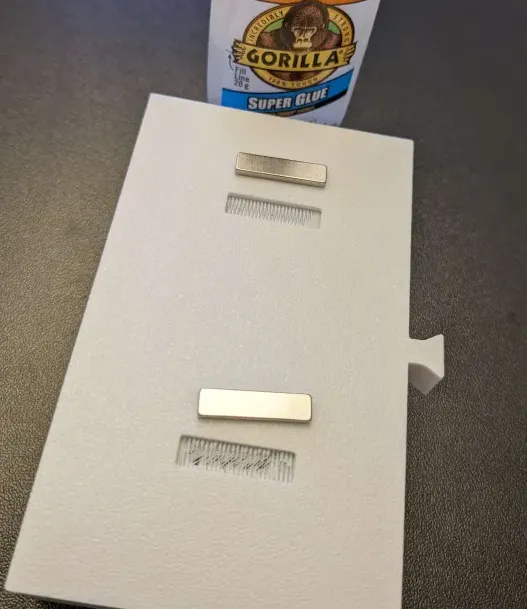

OPTIONAL: There is a magnet slot at the bottom of the containers

just use some super glue. the magnet size is 20x5x2mm. which i purchase from amazon
Amazon Strong Neodymium Magnets Bar, 20x5x2mm → https://a.co/d/675922M

Note: i adjust that thickness for the magnet slot. so my print profile is updated


like always. Please let me know if you have suggestion or concern. Thanks 😊
