Dry Box for AMS lite（AMS lite干燥箱） Remixed by sevenxiaoyu

Remixed by

sevenxiaoyu

3D Printer>3D Printer Accessories

Print Profile(2)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

0.2mm layer, 2 walls, 15% infill

Designer

33.1 h

10 plates

4.7(3)

0.2mm layer, 2 walls, 15% infill

28.1 h

5 plates

Boost

241

492

783

486

Released

Description

拓竹AMS lite干燥箱

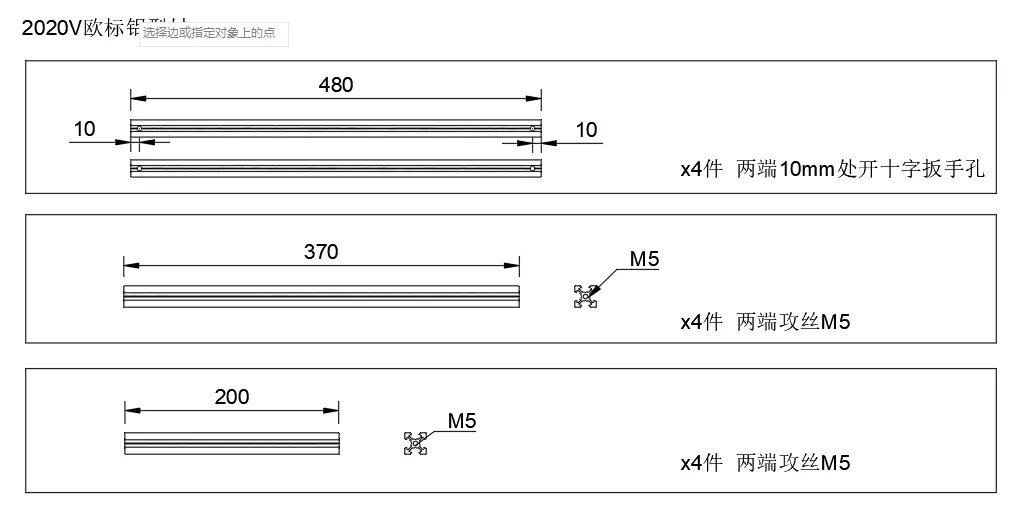

铝型材框架

3mm亚克力（见文件）

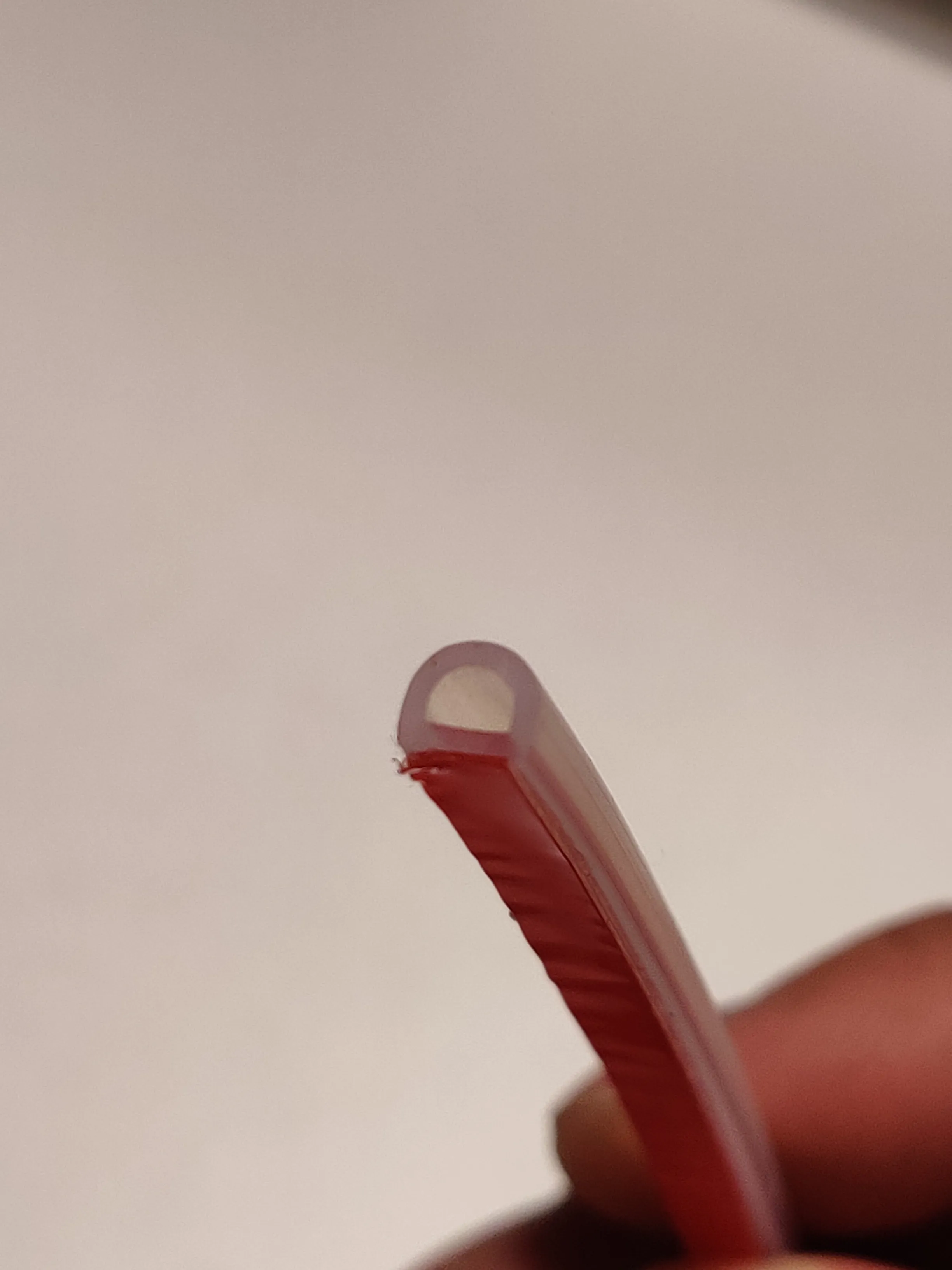

D型密封胶条（5x4x1mm）

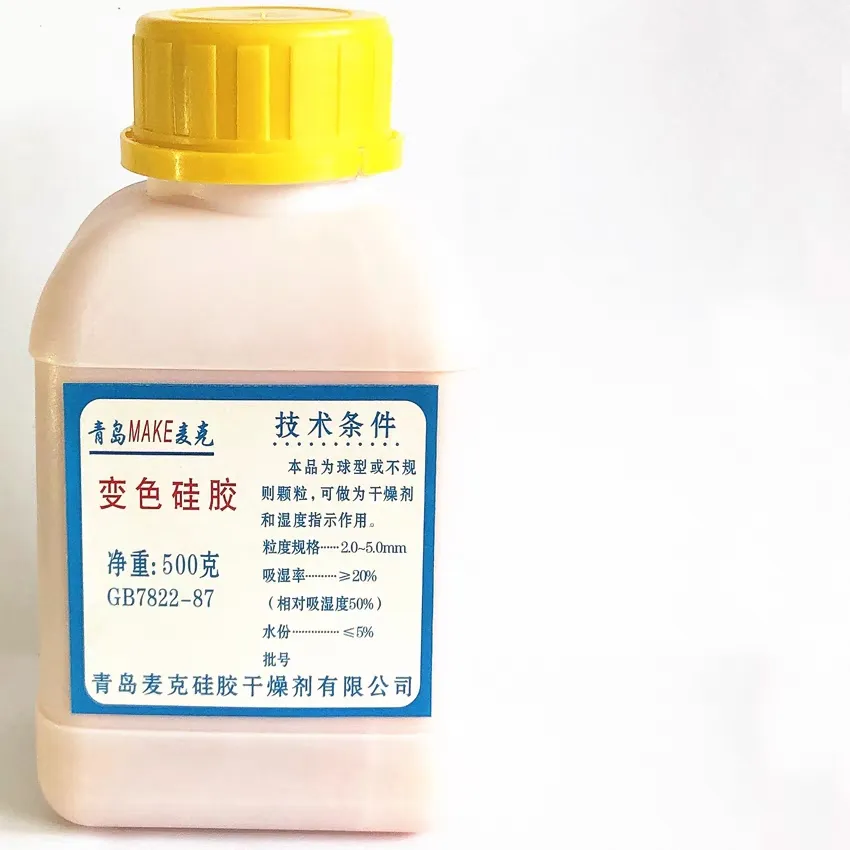

变色硅胶颗粒（50

Documentation (1)

Bill of Materials (1)

BOM.xlsx

Comment & Rating (86)

@stlfatboy

非常整的干燥箱，兼顾颜值和实用性！总结一下过程：1.给型材拧上M5螺丝，2.TPU塞进L角当角码，组成框架，3.贴上密封条，装上非快拆夹块，4。准备好快拆夹块（用耗材塞进去当转轴），5.试装ams lite，固定底座，6.顶板转接器推荐用我二创的（见页面最后，如果按图纸切割了亚克力板），7.安装其余配件主要成本：亚克力板70，型材110 另外，1.可以多打一些快拆夹块，2.多备一些M3*12的杯头螺丝

(Edited)

The designer has replied

@sevenxiaoyu

TPU是用来给边角密封的

@xzx461657769

你亚克力板材居然才70？我直接发图纸出去做花了我220

@stlfatboy

Replying to @xzx461657769 :

货比三家呀要

@GSY_Studio

感谢up主，特别精彩的设计，这是我买了打印机后做得第一个项目，学到了很多！感谢 @stlfatboy，顶板转接器我用的是本帖中的二创。陆陆续续我做封箱做了一个礼拜，踩了不少坑才弄明白怎么装，做了一个安装视频给大家参考： https://www.bilibili.com/video/BV1BW4y1A7bi/ Thanks to the up ! A particularly wonderful design. This is the first project I have done after buying a 3D printer. I learned a lot! Thanks to @stlfatboy, the top plate adapter I used is the secondary creation in this post. I worked on it for a week. I made an installation video for your reference: https://www.bilibili.com/video/BV1BW4y1A7bi/

@GSY_Studio

补充一下我自己做下来的BOM表，黄色的是我在up主的表里额外添加的

@user_780845726

小白看了一头雾水，能不能有详细的组装说明？

The designer has replied

@sevenxiaoyu

在做了

@user_780845726

Replying to @sevenxiaoyu :

我买的螺丝都是M3的，两端开孔M5这个没有问题吗？还有十字板手孔不明白啥意思，求大佬解释一下

@sevenxiaoyu

Replying to @user_780845726 :

铝型材的螺丝忘记写进去了，这就补上

@Kotoubiyca

The main part was taken from this project, but I made some changes, for example, a passage for PTFE pipes, a different thickness of the window seal, more window clamping parts, and a hygrometer mount. Now I have temporarily secured the AMS with ties and clamps; in the future I will develop a model that will hold the AMS motionless.
