Ultimate Gridfinity Bins Collection + Parametric

All gridfinity basic bins, starting with 1x1x1 up to 6x6x12. Each file includes all heights from 0 (lid) to 12 (87.55 mm).

These bins don't have magnet/screw holes. As long they are used for Drawers or non-moving places you don't need them. If you need them with Magnets, just use the Customize feature. You will need 6x2 magnets.

• no labeling tab
• labeling tab on the left side
• labeling tab on the right side

The generated 3mf-files are all based on this openSCAD rebuild. I'm using them a lot, they work as intended, easy to print.

I've include all printable profiles. The 6x6 version isn't currently printable, so there is no printable file. The 3MF-Version of each combination can also be downloaded in the raw-model-files tab.

Bin Sizes in mm

for all that don't want to calculate the sizes:

If you're looking for an easy to print grid, i recommend Gridfinity base with snap connectors. If you have an Ikea ALEX drawer, here you`ll get all needed parts (inkl. spacer).

Other Tools used:

All files are generated with the help of a modded version of OpenSCAD-Bulk-Export. Check out this git if your interested in bulk-exporting from OpenSCAD

Printing:

Print it in any material you like. For most applications PLA is good enough. The slicer recommends a brim. With a bit of glue or the textured PEI sheet it doesn't move.

The 6x6 can`t be printed in one piece! Use the Slicer to split it as you like.

I´ve in also included print-profiles for all versions.

Additional Tools and Helpers

• Gridfinity Height ruler - slim Edition: Helps you to find the correct bin height.
• AIO parametric Gridfinty Project: Generate you own gridfinity bin.
• Slim Gridfinity Base for Ikea Alex: Perfectly fitting grid for Ikea Alex Drawer

Parametric Model Maker

I've made a SCAD Version to work with the new Parametric Model Maker. Just download the “Makerworld.scad” (from Raw Files) and use it there. In the Customize Section, you can change most parameters the get the desired Bin you want. Use the button right next to do Download or use this link.

For advanced User: I added a version with additional Settings.

Parametric Baseplates

choose your grid size. (remember you can only print 6x5 on an X1C) choose a style:	here you can change the parameters for the screw together options

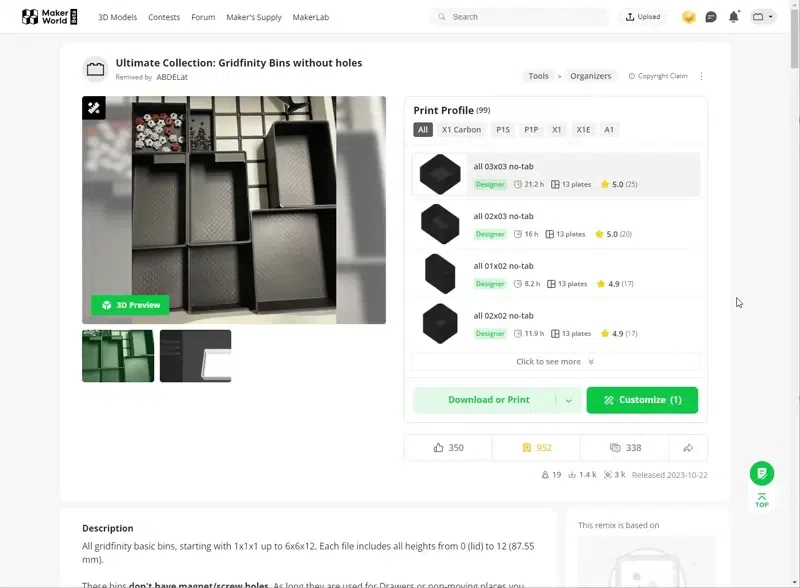

How to download the RAW files

Since the last UI change the download option is a bit hidden. This is the current way to download the RAW files or the File for the Parametric Model Maker.

Updates:

2025-07-13: Added the parametric Model for the Baseplates
2024-02-04: in the raw files section you can find premade zip-files with all generated boxes for each size, starting with 01x01x00 up to 12x12x12. This should help to create any box combination you like. Note: not all files can be printed as one piece! All zip files together are ~ 1.25GB i recommend to download them one by one!
