Description

I wasn't happy with the current alternatives for labelling cables, and many were not suited for ethernet cables. I also wanted something which could be easily removed, or re-labelled.

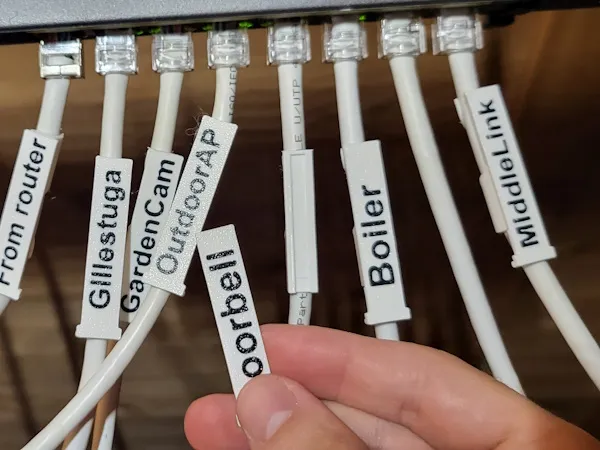

This design is suited for a ~6mm ethernet cable and has several useful features

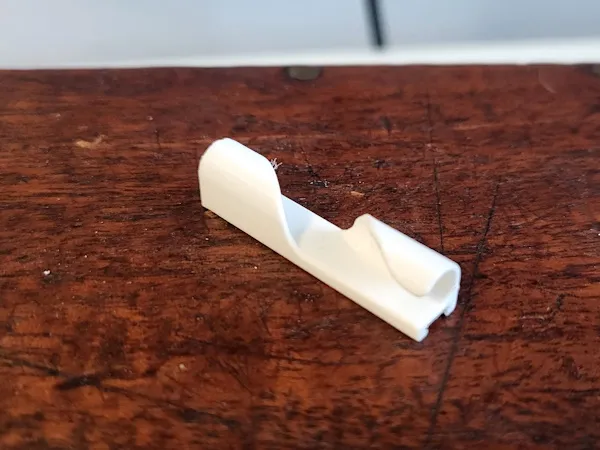

  • Clip
    • Snaps on with ease (you can even do it one-handed) but still stays in place and leave no marks.
    • Can be easily removed, if you want to replace the cable.

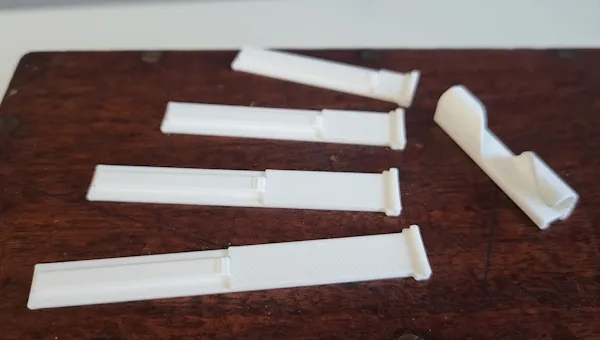

  • Label
    • The label itself is simple and easy to replace, making updates and reorganizations a breeze.
    • It snaps into place so there is no risk of them falling of if mounted horizontally.
    • Available with printed text (plate 2)*, or blank (plate 1) if you prefer to use a pen.
    • Alternatively you can tape/glue the label to an object and use it to hold the cable in place but still make it easy to remove it.



*Description for changing the text

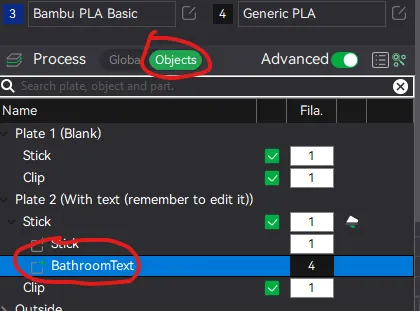

Select the label on plate 2
Click “Objects” and select “BathroomText”
Click on the text tool and change the text to you liking

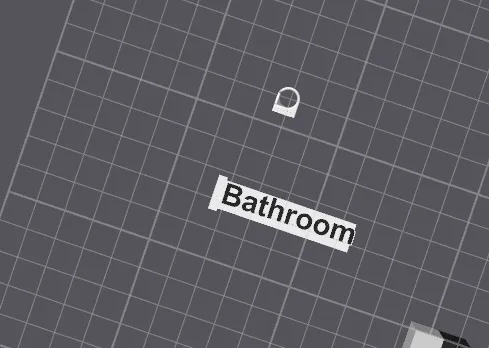

You may want to flip the camera to below to see the text as it prints on the bottom
If the text doesn't fit decrease the font size or use the profile with larger labels



Don't forget to check out my other designs!
