Rugged box for DJI Osmo Action 4 Camera Remixed by 3DFilmParts

Remixed by

3DFilmParts

Hobby & DIY>Electronics

GIF

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

0.2mm layer, 2 walls, 15% infill

Designer

11.8 h

5 plates

5.0(3)

Boost

Released

Description

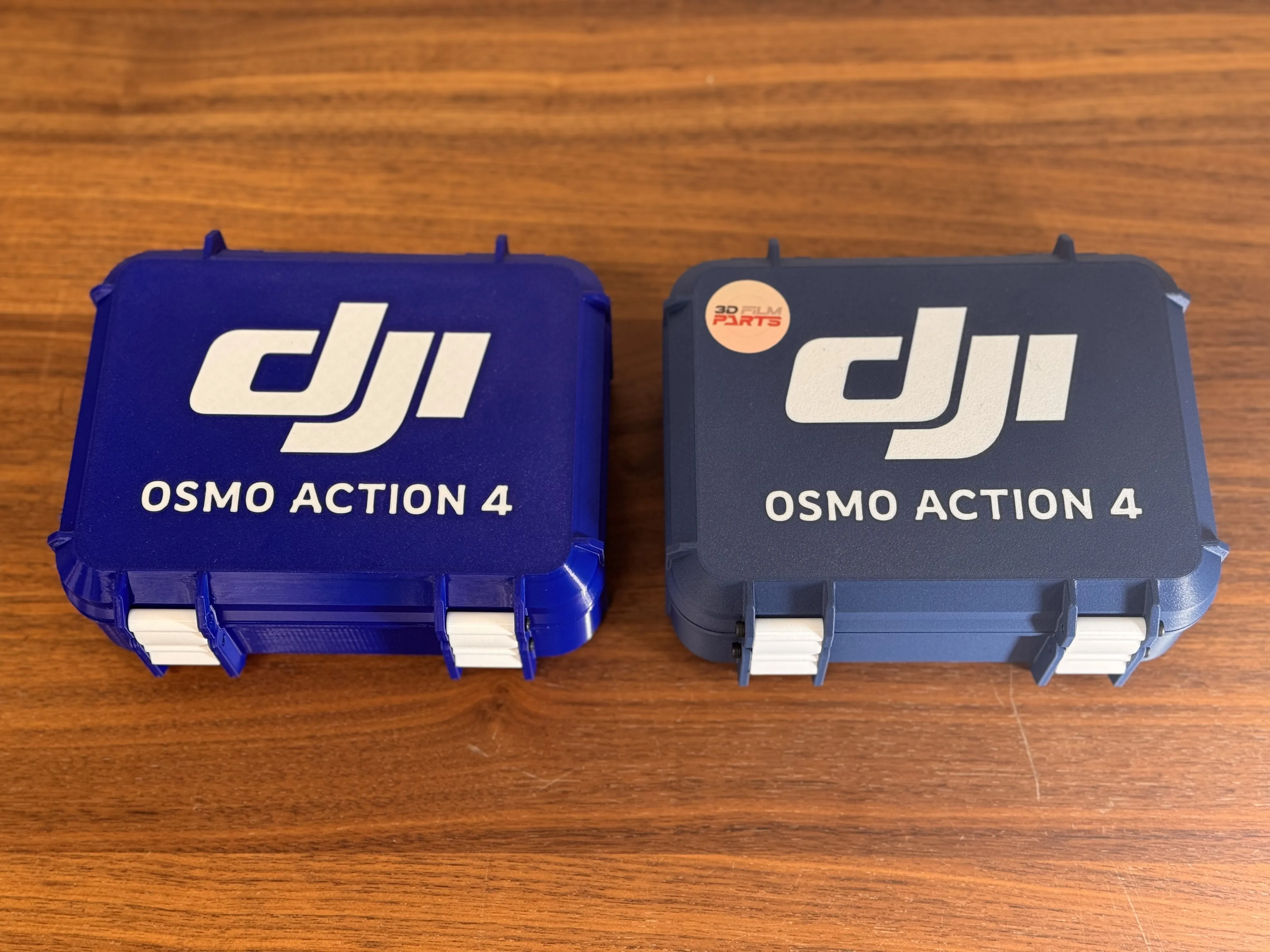

Rugged box for DJI Osmo Action 4 Camera

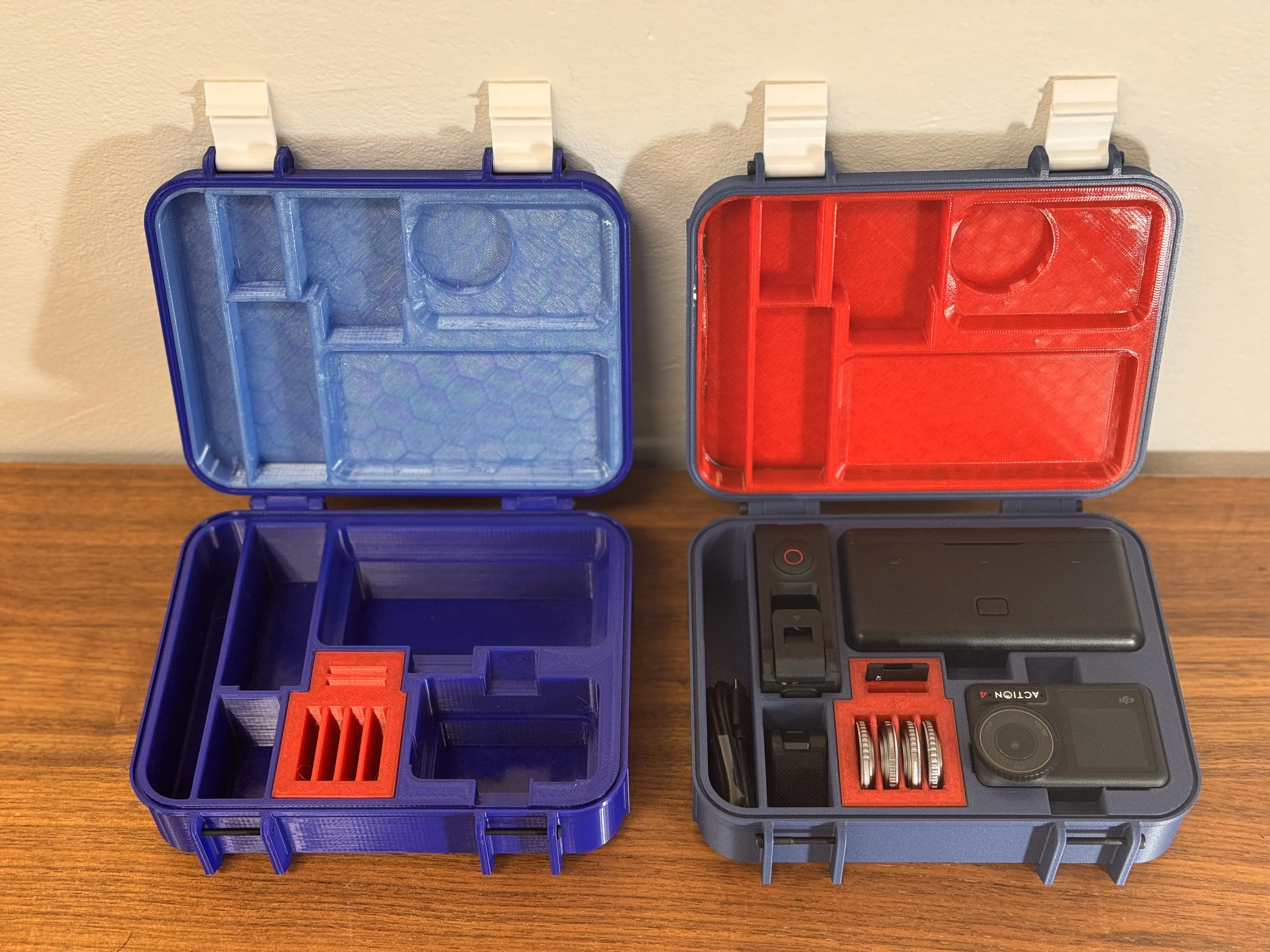

This has more storage space, SD card / ND Filter Inserts than original.

6 x 30mm M3 bolts required - you can find these on Amazon & AliExpress.

Note: You can use full or half threads, I think half look nicer.

Print the insert in TPU if possible (pictured in red here), makes the filters and memory card fit perfectly - but not essential.

Comment & Rating (18)

@user_152213555

Boosted

Enlarge the parts by 0.5mm in width and length, including the latch tpu. The camera and frame come in and out more easily and are still tight and do not move. There is a problem with the inner cover that is attached to the top cover. When you print without support, one side is damaged and separated from the print. Print it with support.

The designer has replied

@htalves

did you print PETG or PLA?

@user_152213555

Boosted

Replying to @htalves :

i use abs for hardcase, just 1 piece tpu this pack, thx for this is good case

@3DFilmParts

The original model I remixed had a problem with a 'gap' once you sliced the lid insert which is now fixed in this model. I added a filet to the edge, see photo of the sliced model.

@PaulNL

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Thank you for the design, printed superb

The designer has replied

@3DFilmParts

Thank you for rating!!

@PaulNL

Boosted

Very nice design, thank you.

The designer has replied

@3DFilmParts

Thanks so much!

@pbhimani

Unfortunately, the screws needed are not available anywhere. The link in the description leads to a M3x23 but the width required is 30. Amazon or other hardware stores only carry full-threaded screws. I wish everyone had designed boxes without screws or other external parts in mind. Similar to this box organizer, https://makerworld.com/en/models/213420#profileId-239408

(Edited)

The designer has replied

@3DFilmParts

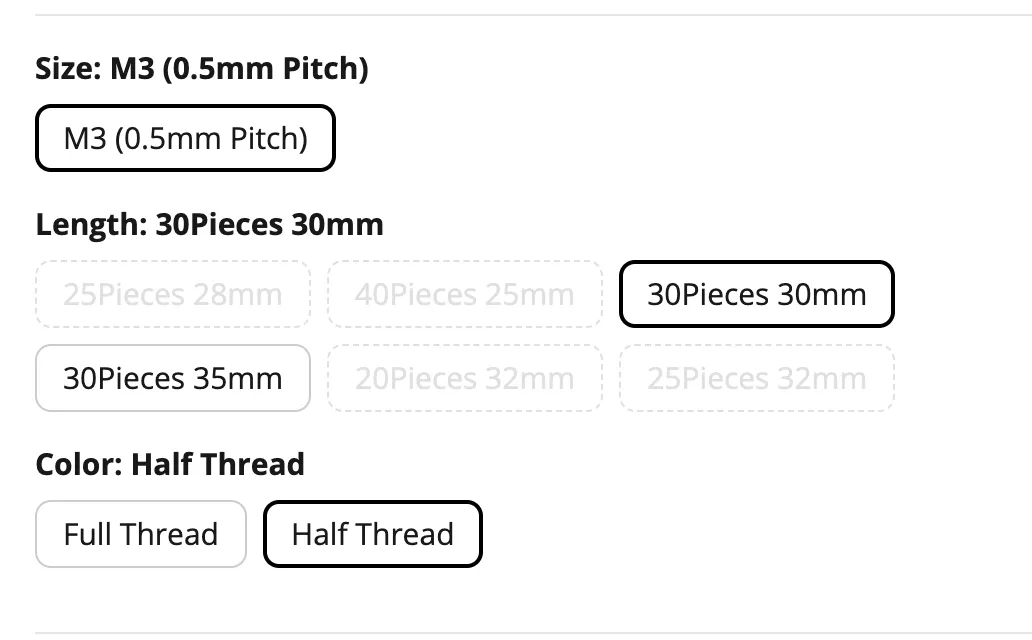

Hi there, the screws are available on makers supply: https://tinyurl.com/2s3zunbh make sure you select M3 x 30mm

@HipCampers

Great design, came out perfect!

The designer has replied

@3DFilmParts

Thank you!

@trapeze39

the link for the screws is WRONG. it links to 23mm length, it needs 30mm!!!
