Driver bit holder
IP Report
Print Profile(2)
P1S // Both Sides (L/R) // 0.28mm layer
36 min
2 plates
A1 Mini // Both Sides (L/R) / 0.08mm layer
2.1 h
2 plates
Open in Bambu Studio
Boost
67
177
16
7
216
158
Released
Description

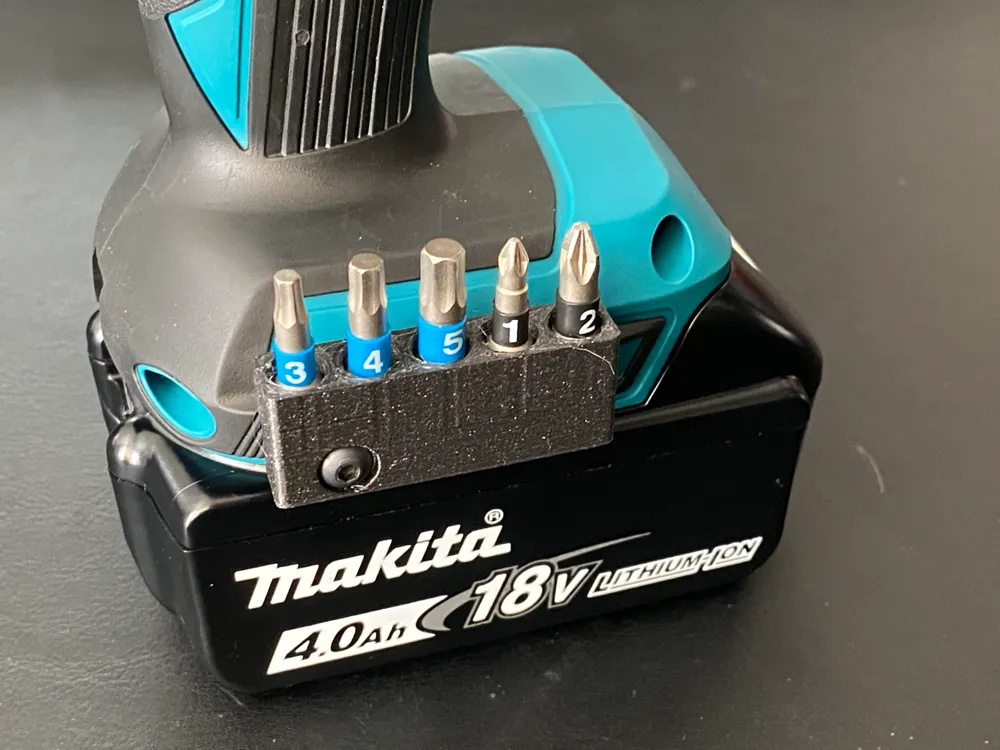

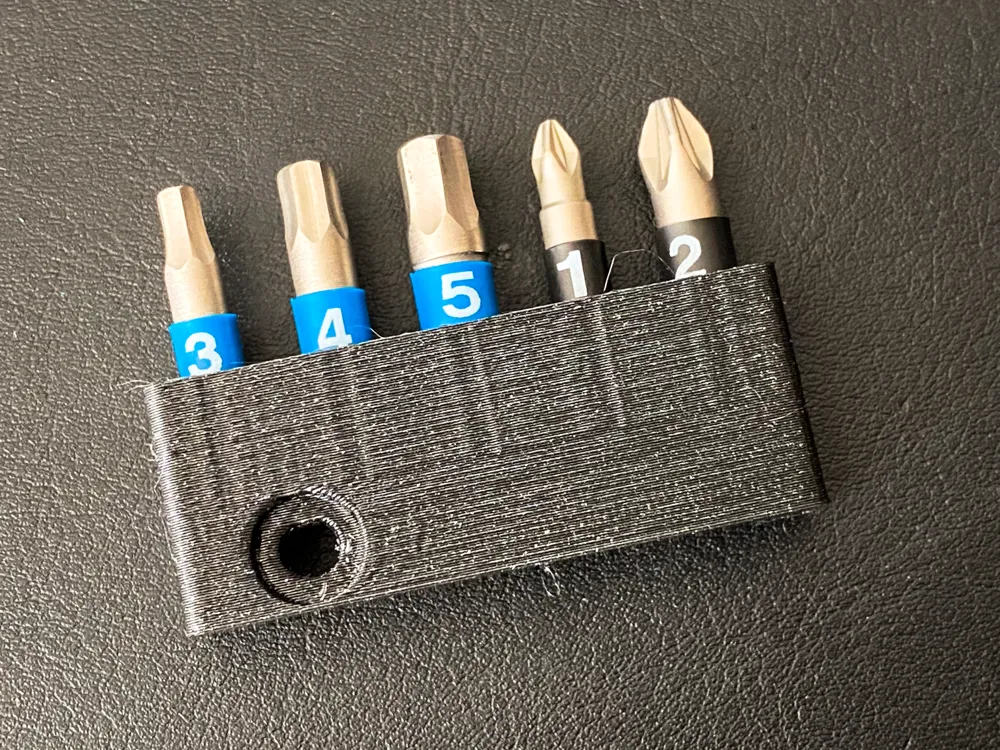

Bit holder for the spare belt hook screw ion your drill/driver. Holds 5 standard bits using the power of magnets!

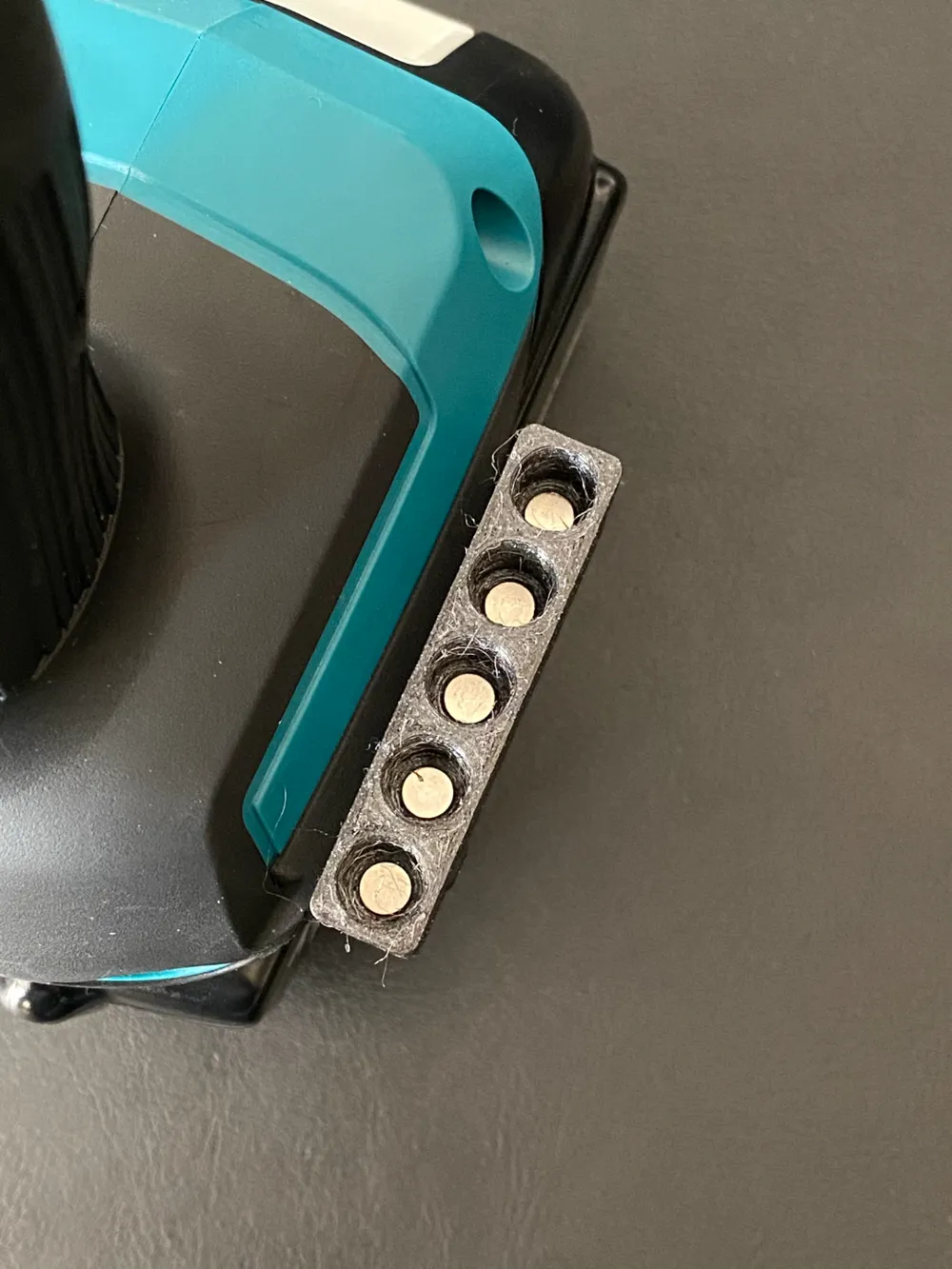

Once printed simply press in the magnets, they are snug so may need a good shove.
This is to fit the right side of a driver, for the left simply mirror before slicing.
You will need:
- 5x 5mm diameter x 2mm tall Neodymium magnets.
- 1x mount screw.
- For my Makita I used an M4x20 which is a shade long, 18mm would be better but you'll need to cut one down.
- For Dewalt I believe they use M3 but check on your own tool.
