Quick Stubby Jack Handle Harbor Freight Hydraulic
Print Profile(1)
Description

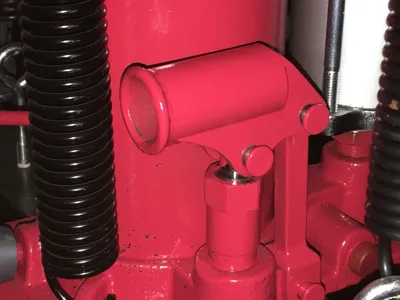

now you don't have to insert the long metal pump handle for light duty stuff or just quickly positioning the ram on your press or bottle jack.
this works for Harbor Freight Air over Hydraulic bottle jack only. tested on 20T.
If you Have a regular Hydraulic Cylinder check out my Quick Handle for that design here…
https://makerworld.com/en/models/447011

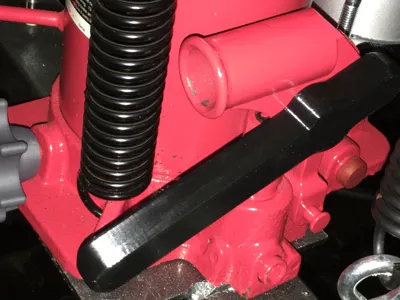

verify that you have about 1/8 inch (0.125") under the head of your keeper pins and this should fit perfectly. no hardware or tools required to install, you have to force it on, by placing it over the pin heads and then pushing it back, until it snaps in place so that it stays attached securely.
0.2mm layer hight
print 16 solid bottom layers
10 wall loops
holes facing down.
5 or more top layers.
PETG or what ever you like.
download
like
post a make
enjoy
check out my Pressure release valve knob also, its also very helpful!
https://makerworld.com/en/models/421380#profileId-324224
Also please Check out my other super cool models here!
Boost Me (for free)
Thank you for Printing My Model, If you found it Enjoyable and you were satisfied with the results of this design please give it a boost or two! I really do appreciate it, and it helps me to make more cool stuff for you to print! come back on Monday and boost again if you really enjoy this model
Please post pictures and comments, I love the feedback on how you're using this model and enjoying it!
Enjoy!
