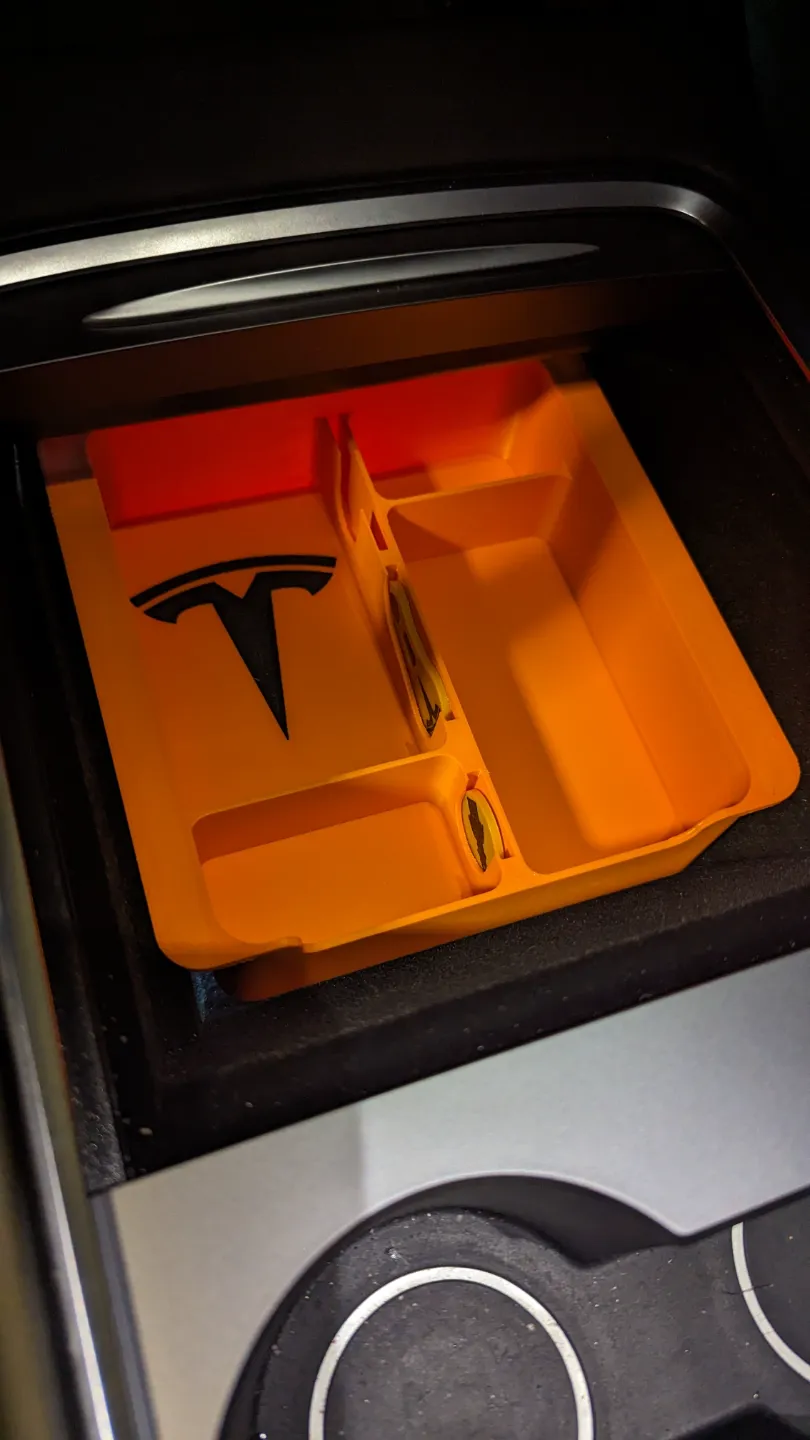

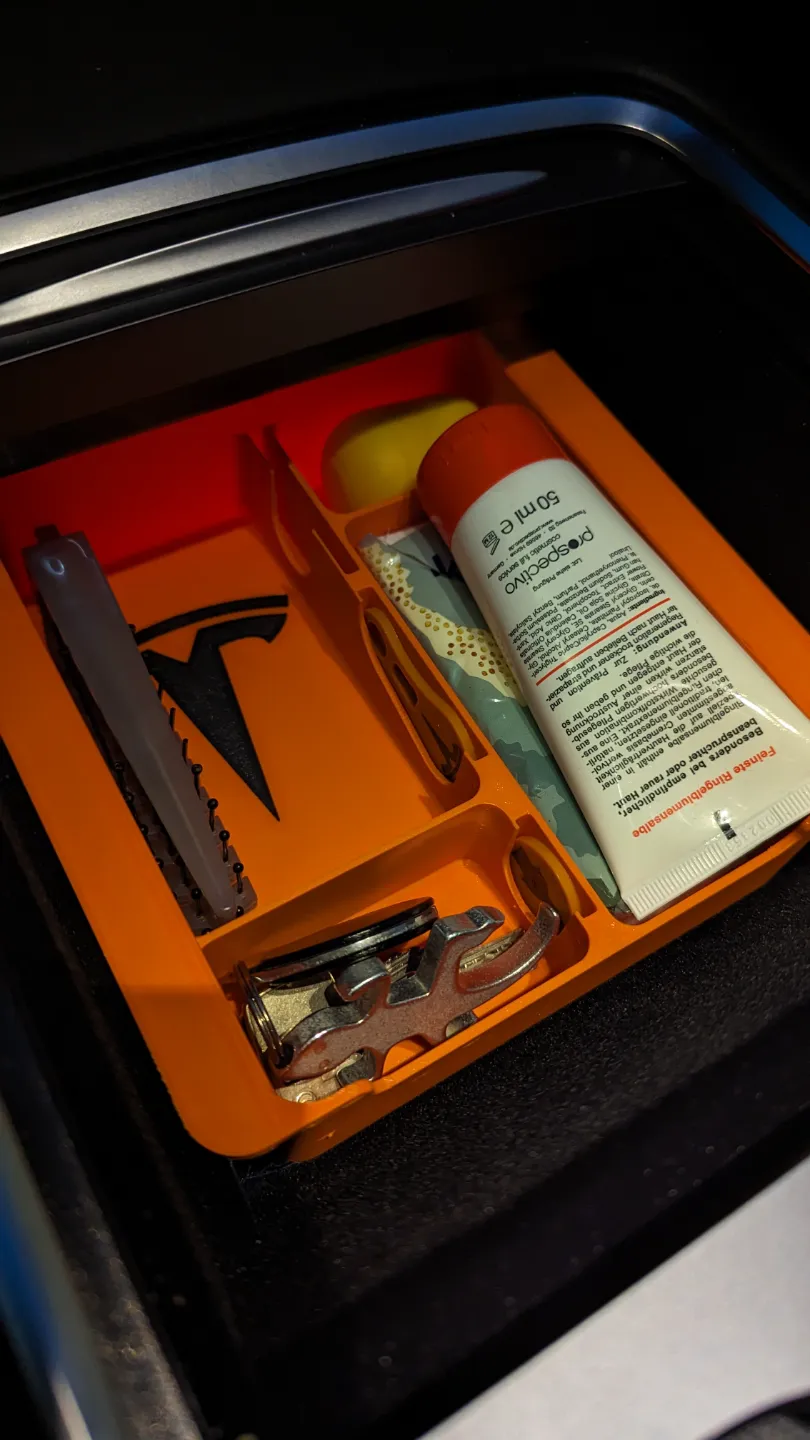

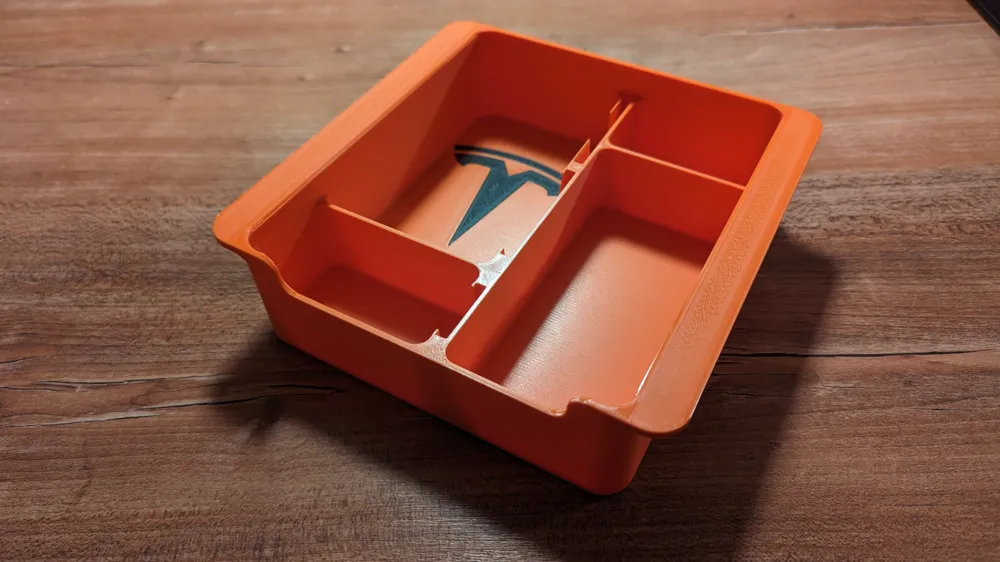

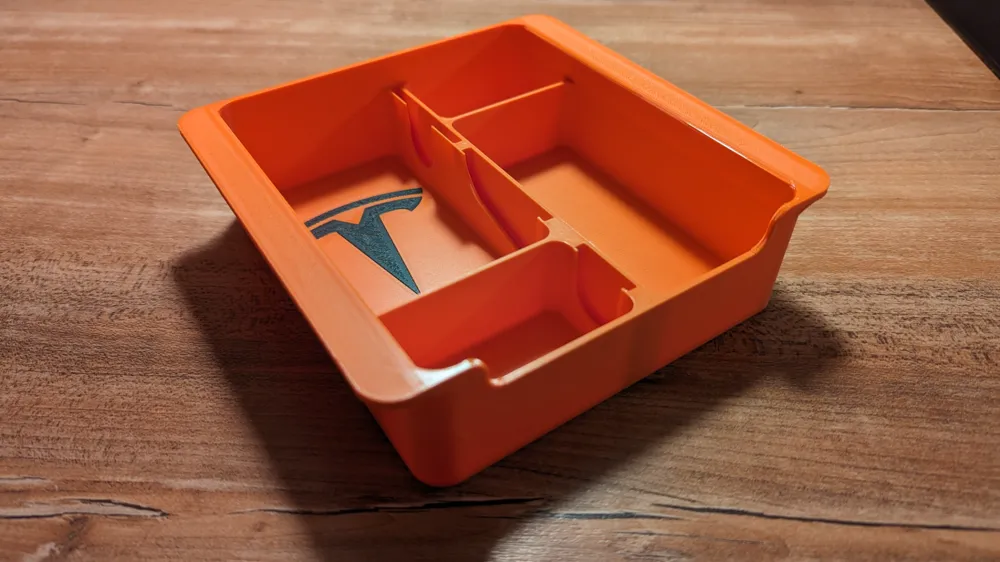

A drawer for the center console of a Tesla. Definitely, it fits in a Model Y of the year 2022. ;-)



In the middle walls, I added slots for shopping cart chips. A normal one and one of me that can be pulled out if something went wrong. You can find the models that you see on the photos in my profile, too.

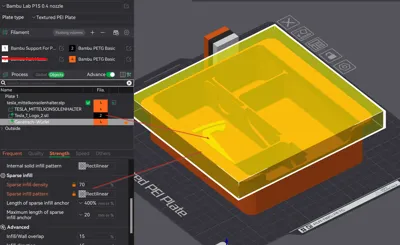

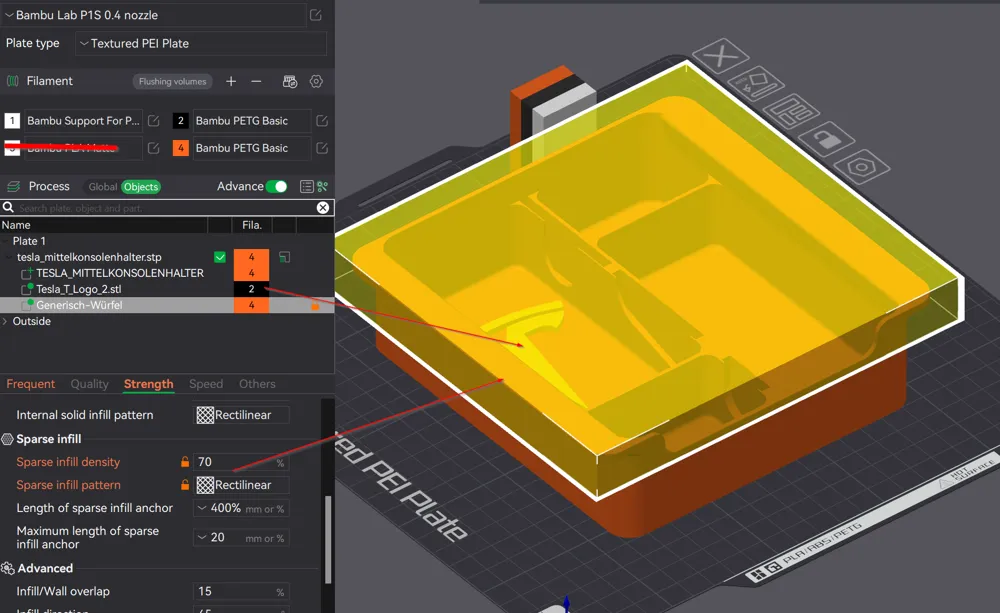

I printed it with PETG and modeled the upper part with a thick rounding so that the guidance parts of the drawer are more stable. Additionally, the top layers have 70% infill in the print file (see screenshots).

I used PLA Support filament under the guidance parts what worked fine for me. You could even use normal PLA as a support material for PETG instead. That can be removed easily from PETG, too.

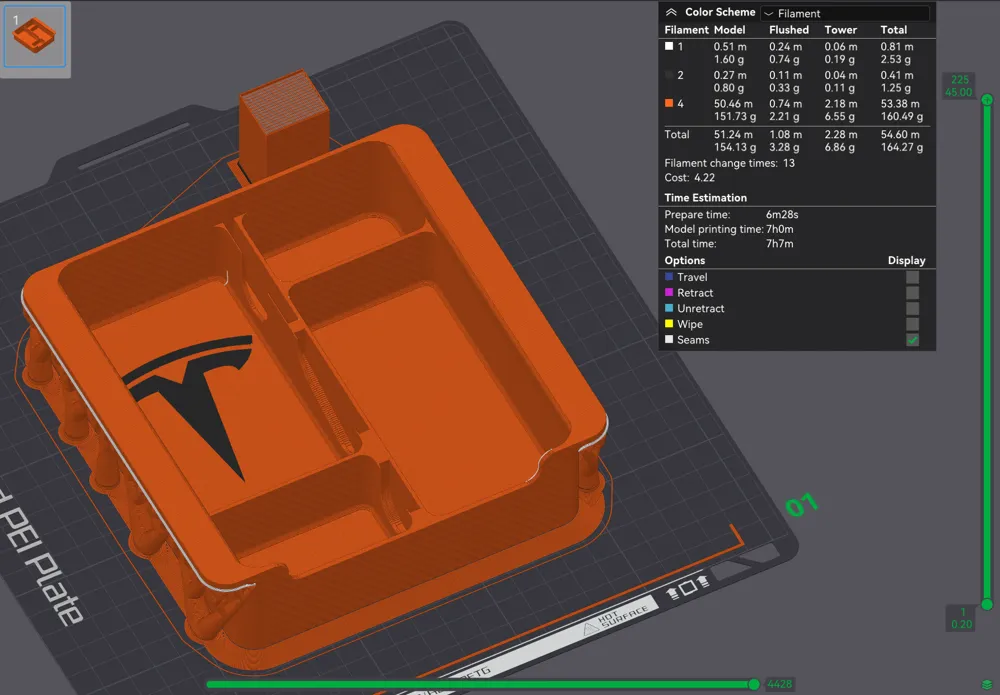

The print uses 165 grams of filament and my configured print file runs 7h, because I included an ironing of the top surfaces. You can unmask this to speed things up.



The Tesla logo is inserted as a part. So it can be deleted or changed easily in color. I took the logo from this Printables make: https://www.printables.com/de/model/138781-tesla-logo/files
