Dji Avata 2 Prop Guard by Mütze

Mütze

Hobby & DIY>RC

GIF

Print Profile(1)

All

P1P

P1S

X1 Carbon

X1E

0.2mm layer, 3 walls, 0% infill

Designer

51 min

1 plate

4.6(8)

Boost

129

134

249

110

Released

Description

Propellerschutz für die rechte / linke Seite der DJI Avata 2.

Durch Erhöhung/Reduzierung der Wandanzahl im Slicer kann die Härte bestimmt werden, 0 Böden/Decken/Infill.

! Das Modell wird erst nach dem Slicen im Vorschaufenster richtig angezeigt.

Gedruckt in PETG, andere Filamnete noch nicht getestet.

!!! INFO !!! Konnte erst verspätet einen Testflug mit dem Modell durchführen, als Anfänger kann ich leider nicht einschätzen ob die Flugeigenschaften negativ beeinträchtigt werden. Beim Normal und Sportmodus sowie Manöver mit Easy Acro hält das Modell an der Avata 2, ein Teil löste sich jedoch beim durchfliegen eines Gebüsches. Hier werde ich bei der Haltekraft des Modells an der Drohne noch etwas nachbessern, als vorzeitige Lösung habe ich den Schutz zusätzlich mit dünnen doppelseitigem Klebeband an der Drohne gesichert. Die Avata passte bei mir auch mit montierten Schutz noch in die Transporttasche. - Sobald das Modell geupdated ist werde ich diese Info löschen.

Wüsche weiterhin guten Flug

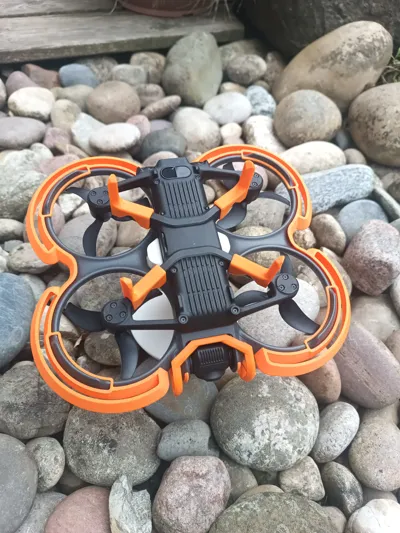

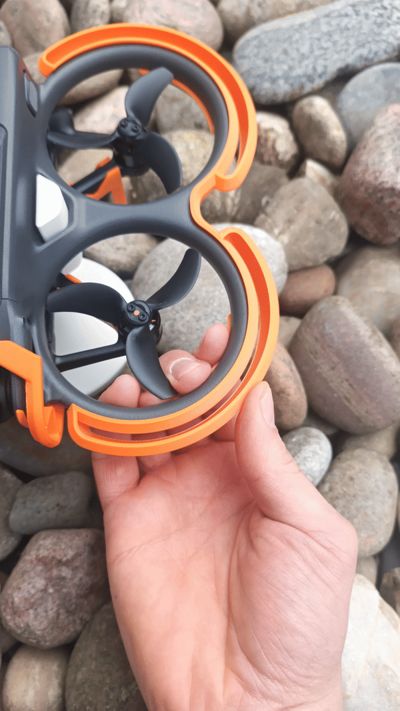

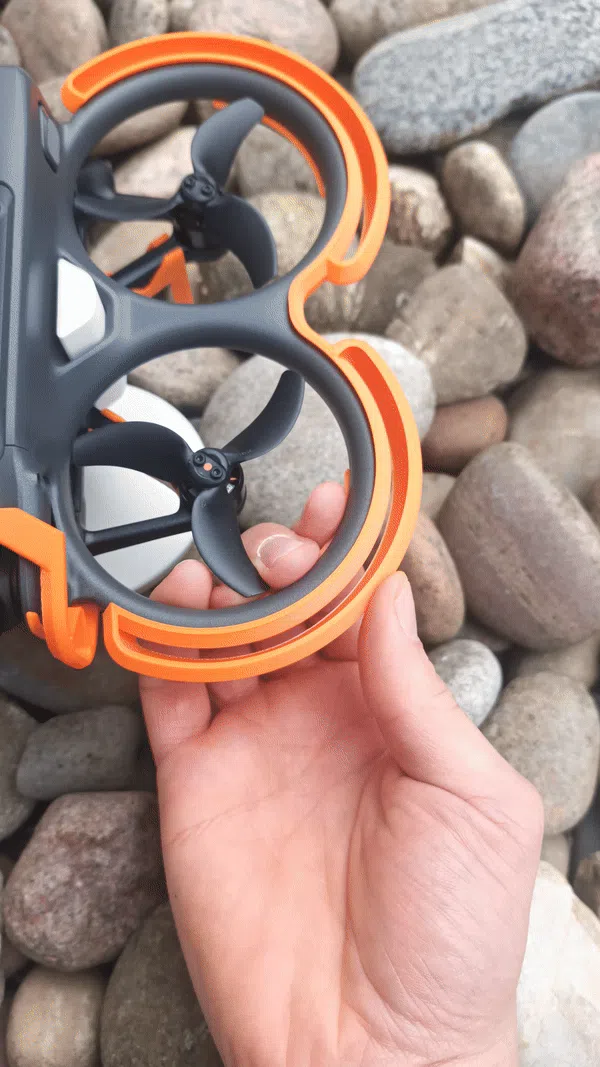

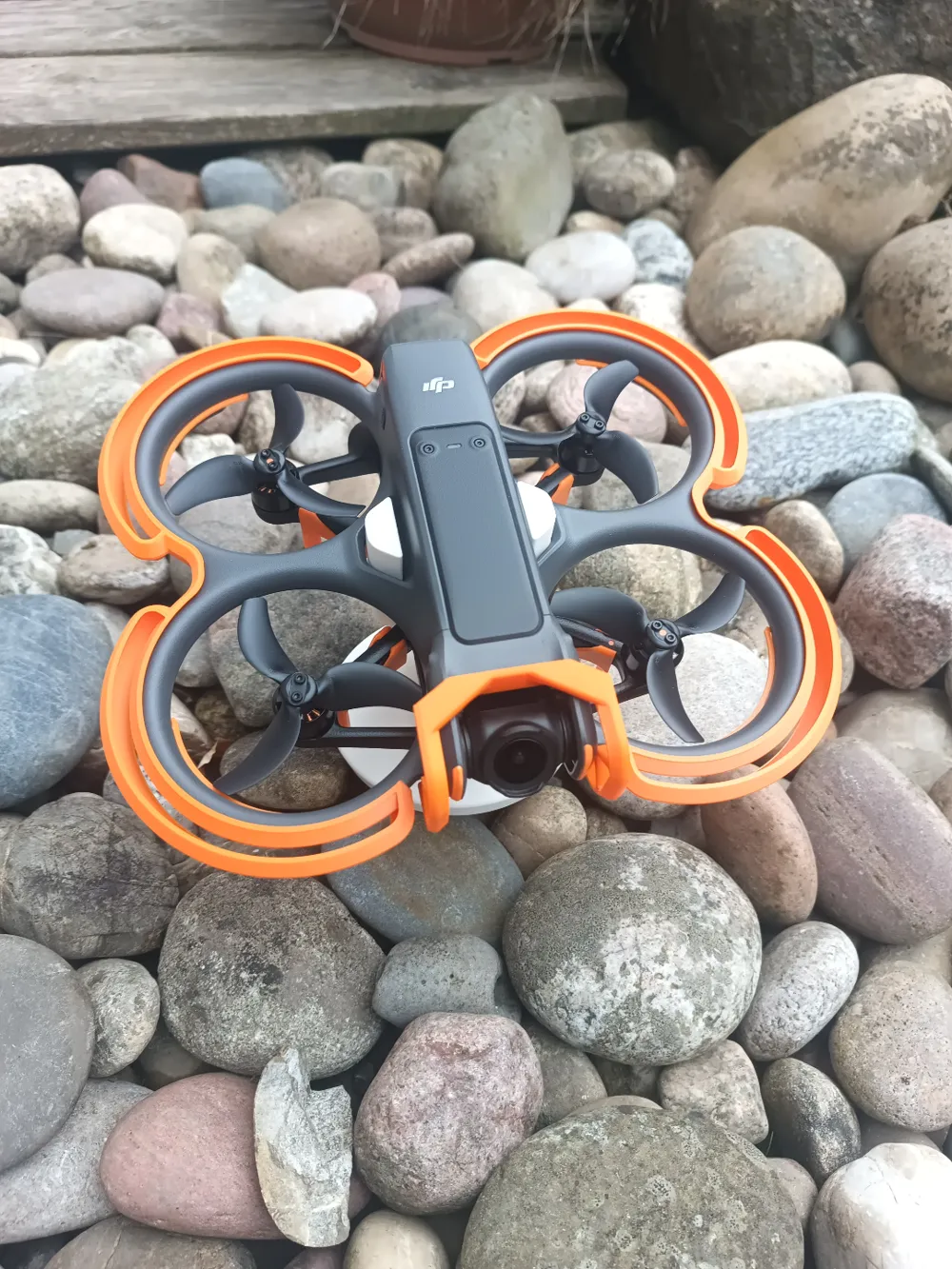

Propeller protection for the right/left side of the DJI Avata 2.

By increasing/reducing the number of walls in the slicer, the hardness can be determined, 0 floors/ceilings/infill.

! The model is only displayed correctly in the preview window after slicing.

Printed in PETG, other filaments not yet tested.

!!! INFO!!! I was only able to carry out a test flight with the model late; unfortunately, as a beginner, I cannot assess whether the flight characteristics will be negatively affected. In normal and sport modes as well as maneuvers with Easy Acro, the model sticks to the Avata 2, but a part came off when flying through bushes. Here I will make some improvements to the holding force of the model on the drone. As an early solution, I additionally secured the protection to the drone with thin double-sided adhesive tape. The Avata still fit in my transport bag even with the protection installed. - As soon as the model is updated I will delete this information.

I wish you a good flight

Comment & Rating (39)

@user_333781831

不错的完美贴合

@user_3601850033

什么材料？

@user_333781831

Replying to @user_3601850033 :

三绿夜光黄

@ljh841004

The bumper cover was printed very neatly. However, there is some inconvenience in attaching and detaching it. It is difficult to remove from the protective cover (red), so it is removed along with the protective cover.

The designer has replied

@muetzmaster

Removing the cover can be a bit tricky the first few times, it's best to push/press to one side so the other should come loose and it can be swung out to the front.

@user_624933881

For the folks who are new to 3d printing and are having trouble printing this should do the trick - these things are great.. Wish I had not bought the ones I did from esty, too late.. thanks am using yours! https://youtu.be/66L5gjiIYMc

@INNERVISION

Print Profile

0.2mm layer, 3 walls, 0% infill

Great model. Thank you.

@Fabi09

Print Profile

0.2mm layer, 3 walls, 0% infill

Awesome and easy print. I hope it will not restrict the flight characteristics.I also found out that you may not need your gimbal bumper at all as the prop guard also provides a distance to the wall. Again: Thanks for your work. :)

@MickeyPrints.

but it already has prop guards.. extra weight for no good reason.

@SoaringSpoon

My prop guard broke and had to get it replaced. If this can be a sacrificial piece it's worth it 100%.

@MickeyPrints.

Replying to @SoaringSpoon :

that makes sense. good work around

@SennaStas

the model that i can downloaded is a different one than you are showing in the picture.

The designer has replied

@Fabi09

Read the description. Set the top/bottom/infill to 0 and slice it, then you will have the same model like in the pictures from him.

@muetzmaster

Should be displayed correctly after slicing, zero floors - ceilings - infill. Thanks for the comment, I'll include it in the description

@ljh841004

When I download the STL file, there is only the right part. If I print two of these, can I use them on both sides?

The designer has replied

@muetzmaster

No, the other side has to be mirrored in the slicer

@user_2440861548

is it work for Pla?

The designer has replied

@muetzmaster

PLA works but doesn't spring like PETG

@chrisrivera23

I keep getting print failure every time on my X1C. I tried more than 10 time... =( I was really looking forward to trying these on my Avata 2.

The designer has replied

@muetzmaster

Is the problem perhaps caused by the lidar sensor? I printed the models on the A1 mini and p1p and therefore unfortunately can't say anything more specific about troubleshooting on the x1c. Is printing possible without a lidar sensor? Alternatively, I would try printing with PLA if it is due to the filament
