Description

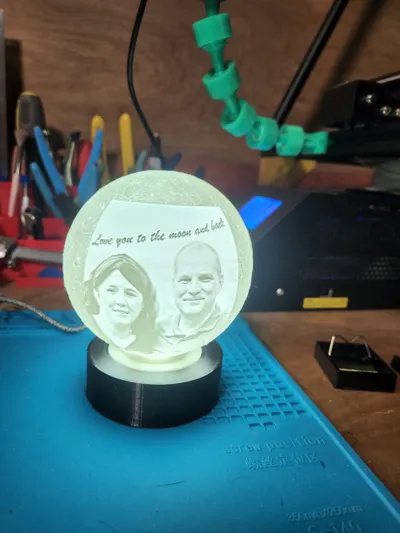

I saw many different designs for Lithophane stands and globes ect. I wanted something I could plug in. I designed this stand to allow me to customize my needs. It's very basic and easy to print and gets the job done.

For the Stand:
For the lighting I choose to use strip LED's of 5v - s://www.amazon.com/gp/product/B08M65DKZ7/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

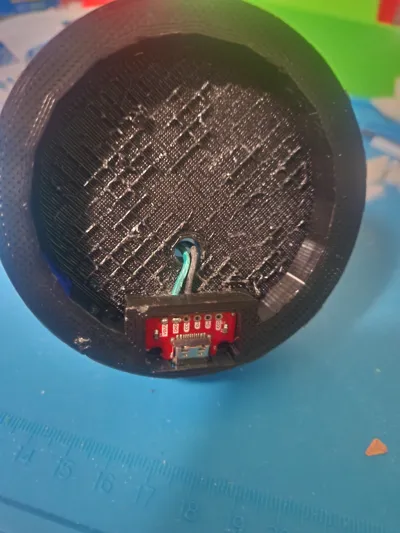

For the connector I used a USB-C type connector. You can then use an old phone charge or a battery recharge pack to power it. For this one you may need to trim the corners of the board off to get it in snuggly so it will not move.
https://www.amazon.com/gp/product/B09KC1SMGD/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1

A little solder and wire and you are good to go.

Any questions or suggestions please let me know.

If you decide to redesign it please tag it as a remix and show me what you did.

Any suggestions for improvements please let me know.

For the Globe:
I used Lithophane Maker-
https://lithophanemaker.com/index.html

I used these settings:
Lithophane Resolution: 0.25
Sphere Diameter: 100
Picture Angular Height: 90
Picture Angular Width: 120
Maximum Thickness: 2.4
Minimum Thickness: .6
Cylinder Outer Diameter: 40
Cylinder Height: 10
Cylinder Thickness: 5
Cylinder Ledge Outer Diameter: 55
Top Hole Outer Diameter: 0
