Dimensional Calibration Tool
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
1
14
0
0
33
3
Released
Description

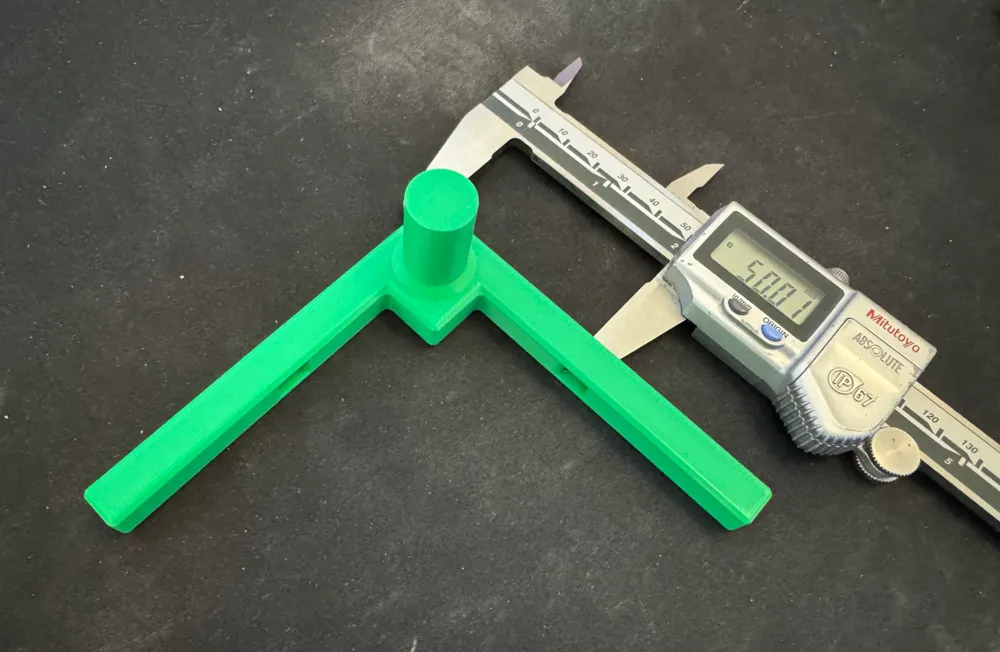

This is model created to satisfy a request concerning BL printer's dimensional accuracy. The purpose is to check if round objects will be dimensionally accurate when linear dimensions are.

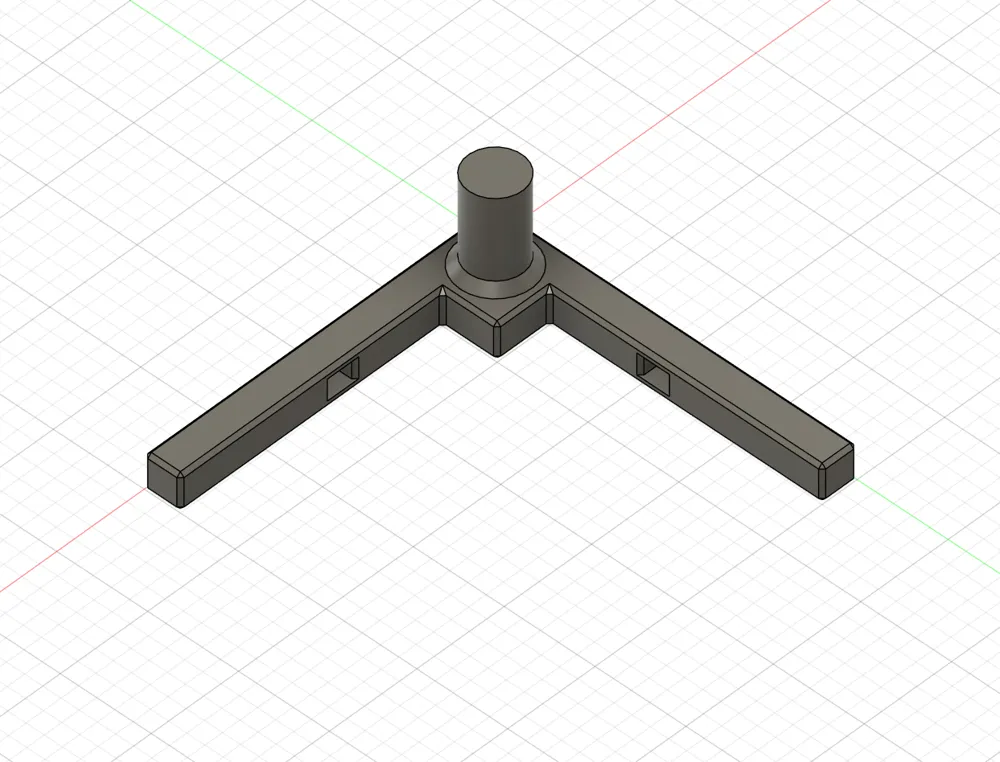

Here are the dimensions.
Arms: 100mm long, 10mm thick with 50mm reference holes from the corner to the inner wall of the hole.
Corner Square: 25mm
Bottom Hole: 15mm diameter
Top Cylinder: 15mm diameter, 35mm top to base
If you use this model please comment below with your measurement results.
