NOTE: I have uploaded STEP files of all models. To access them you just have to click on “Download or Print”, and then the REALLY badly labelled "Download STL" and it will show the raw model files, which are all STEP.

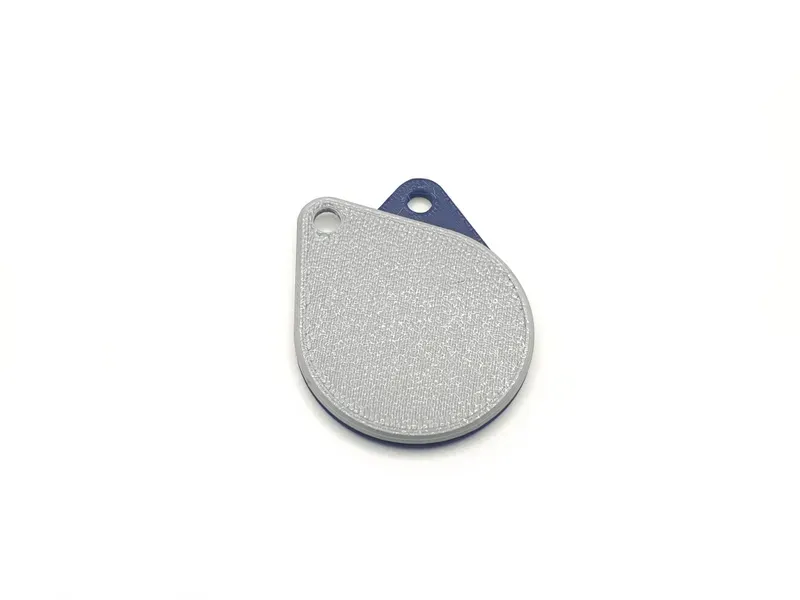

This key fob holds 2 Micro SD & 1 SD Card in a very small package, with a secure twist lock.
Just place your cards in two layers, then drop the top on and twist to align the attachment hole, looks like a standard RFID key fob, but securely holds your data!
This is designed for PLA, and prints fine with a 0.4mm nozzle, though a layer height of 0.1mm is recommended to capture the detail in the latches.
Uses very little filament and prints very quickly, even at 0.1mm layer height

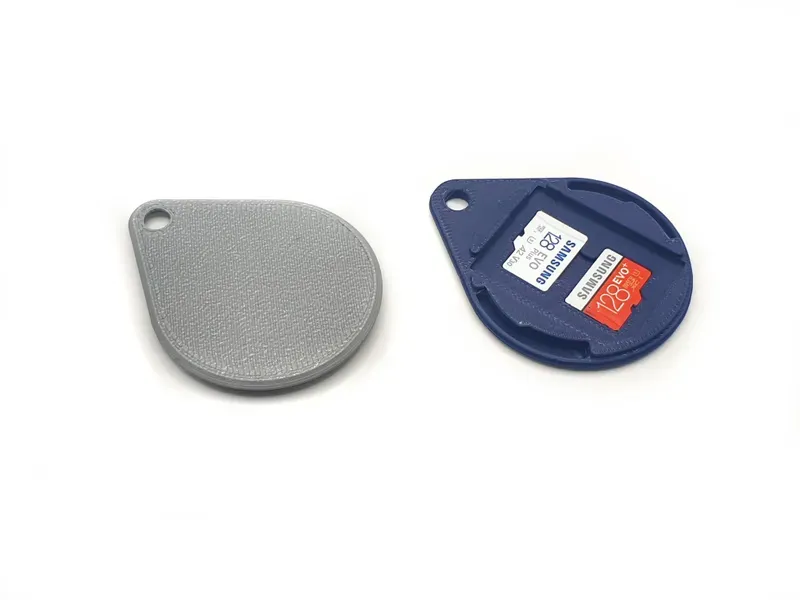

First layer - 2 Micro SD

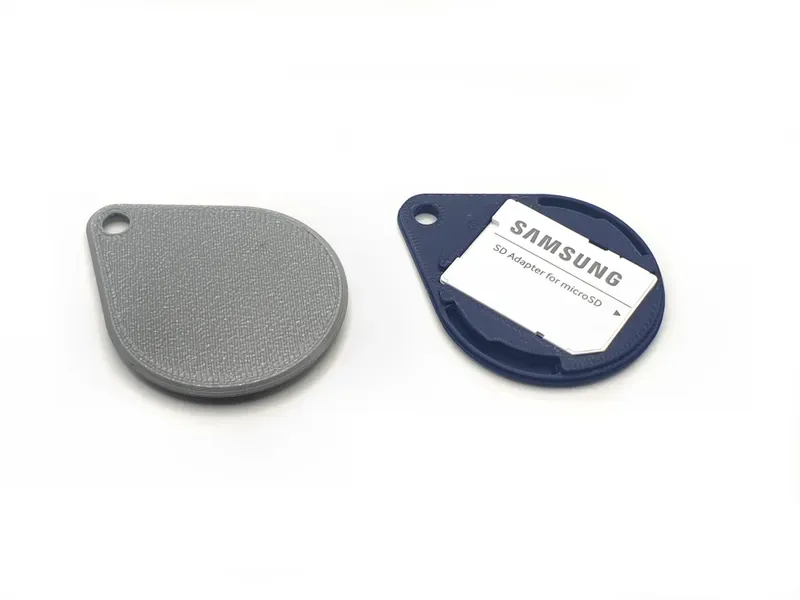

Second layer - 1 SD Card
Top goes on at an angle
Twist to close
Lobster clip to lock and complete the illusion!
