Description

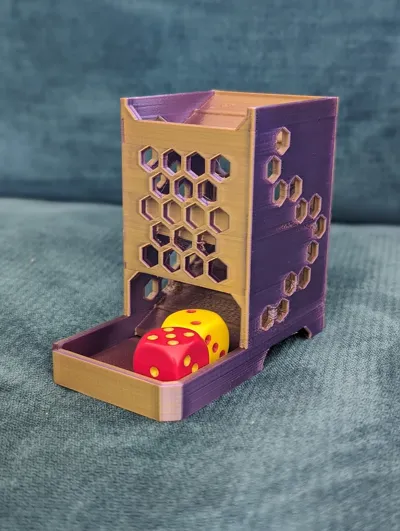

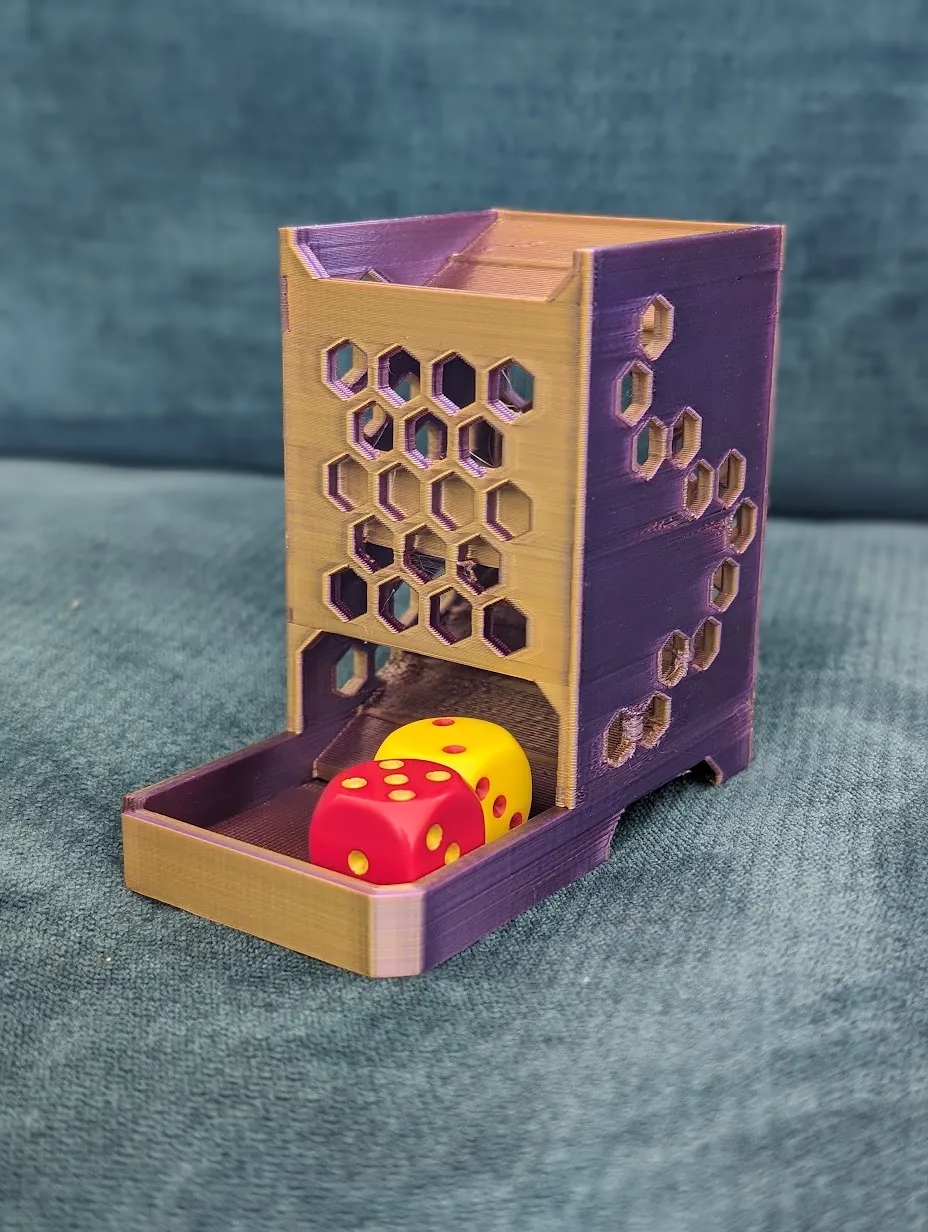

Compact dice tower that can be printed in one go

I wanted to design something small and portable but not folding, requiring assembly etc.

Modern design, no castle motif

Can handle abuse from my kids :)

(We use it for a lot of different board games including Catan)

Features

Dice tower that can accommodate up to 3 standard size D6 dice (16mm); can do 4 dice in a pinch

Does not work with larger RPG dice

Material savings through stylish cutouts in Hex form (mimicing the Catan board)

Printing

0.2mm PLA, 25% infill (can probably print with even less infill)

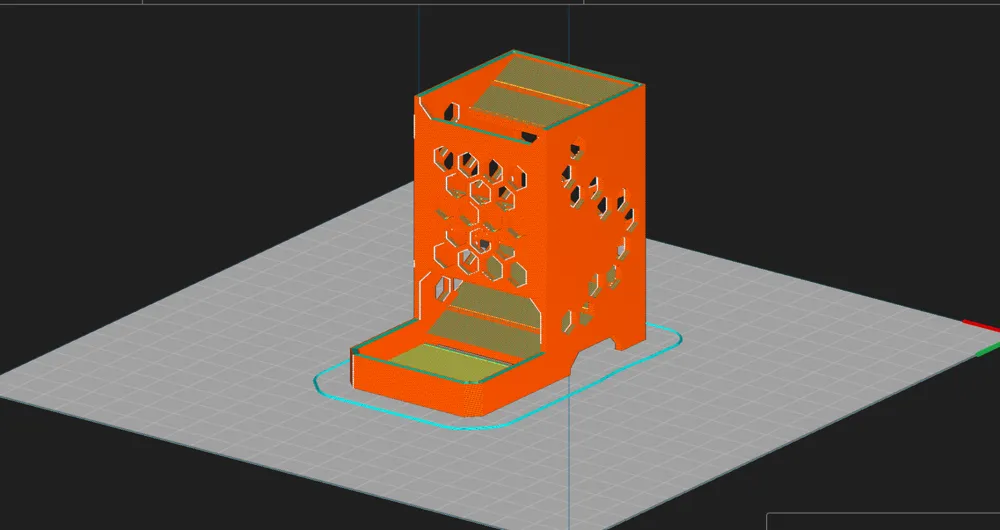

Design can be printed upright orientation without supports

Ensure your printer can do ~40mm bridges without support (my old Ender 3 can do it, so any Bambu Labs should be fine)

Update:

Based on prints from my friends, I made a ton of small changes to refine the model further. I have uploaded the new version as well.
