Meyerhouse

PLA_Silk_Dual_color_Velvet_Eclipse

PLA_Silk_Gold

cover



















The weapons are printed separately, allowing for greater strength and improved detail. This design also simplifies the printing process by avoiding fragile, unsupported parts. It’s a smart upgrade—if a weapon breaks, you can easily reprint just that piece and slot it back into the chess figure.

Modular Weapon Upgrade.


I made the print take a 15mm by 3mm magnet that you can buy on the Bambu store. I made the pawn supports easier to come off. Made octagons symmetrical

15 by 3 mm magnets ridged design pieces


I went and reworked this again from feedback I have gotten. I have made the Biship staff even thicker and worked the knight and his mace over more. I also changed the bridging over the magnet to be easier to print.  This print has come a long way!

Improved rigid design REV B


I improved the design to make these pieces not break so easy and print better.&nbsp;

Improved rigid design

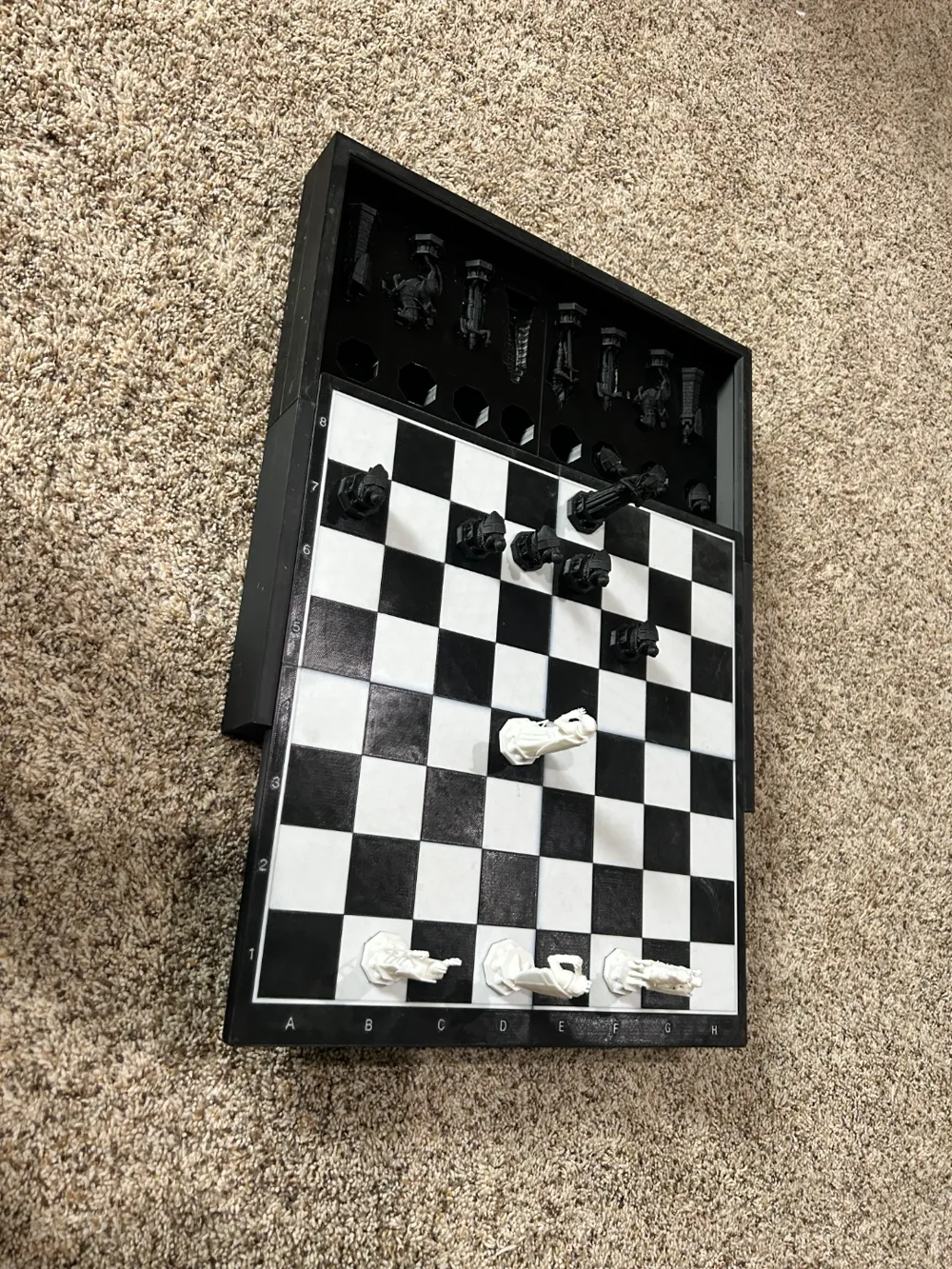

Added extra supports for the knight under the horse's mouth&nbsp;&nbsp;Chessboard with no box&nbsp;<a target="_blank" rel="noopener noreferrer" href="https://makerworld.com/en/models/431446#profileId-335982">https://makerworld.com/en/models/431446#profileId-335982</a>Board that goes with the box<a target="_blank" rel="noopener noreferrer" href="https://makerworld.com/en/models/475095#profileId-385773">https://makerworld.com/en/models/475095#profileId-385773</a>chess box&nbsp;<a target="_blank" rel="noopener noreferrer" href="https://makerworld.com/en/models/472045#profileId-381804">https://makerworld.com/en/models/472045#profileId-381804</a>

"Slender design" Added extra support on knight



I did manual supports in only critical areas. Variables levels where it did little overhangs. Clip off extra model supports that I made.&nbsp;&nbsp;&nbsp;Chessboard with no box&nbsp;<a target="_blank" rel="noopener noreferrer" href="https://makerworld.com/en/models/431446#profileId-335982">https://makerworld.com/en/models/431446#profileId-335982</a>Board that goes with the box<a target="_blank" rel="noopener noreferrer" href="https://makerworld.com/en/models/475095#profileId-385773">https://makerworld.com/en/models/475095#profileId-385773</a>chess box&nbsp;<a target="_blank" rel="noopener noreferrer" href="https://makerworld.com/en/models/472045#profileId-381804">https://makerworld.com/en/models/472045#profileId-381804</a>

Manual supports, Variables levels  2 walls, 15% infill








MaxFabFlo.3D.Druck







Die Figuren sind die Gleiche NUR die Supports geändert für A1 Mini und Die Boxen sind Selbst Gezeichnet für Den A1 Mini&nbsp;

The figures are the same, ONLY the supports have been modified for the A1 Mini, and the boxes are custom-designed for the A1 Mini&nbsp;

Harry Potter Chess Pieces for A1 mini

Bonded by Filament 3D



I changed the nozzle size to 0.6mm for thicker walls. I set the layer height to 0.18mm fine. I manually painted the support locations and changed them from slim to organic. This kept the supports in place through the entire print. The original supports were fragile, and many users report that the set cannot be printed all on one plate. I was successful in that. I also used PLA marble for a very pleasing appearance and density.

0.6mm nozzle, 0.18mm layer, 2 walls, 15% infill

Chess Pieces

CreeaFabra


*UPDATE: The original pieces in this profile were slightly different than the ones that fit into CreeaFabra&#39;s box. This has been fixed.&nbsp;Here are the pieces that fit inside CreeaFabra&#39;s Box.

6x3 Magnets in Base

lemmieBfrank


Same as Modular Weapon Upgrade profile, except scaled down so the base of each piece is 24 by 24 mm, and changed the negative area to fit 8 by 2 mm magnets so that it would fit with this board, which is sized to a single plate (<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1108685-harry-potter-wizard-chessboard#profileId-1207004">https://makerworld.com/en/models/1108685-harry-potter-wizard-chessboard#profileId-1207004</a>). Pause at layer 34 to insert magnets. Each piece has a different scale factor and the corresponding weapons were scaled to match. The handle of the rook sword needed to be sanded slightly to fit in the hand.

Modular Weapon Scaled to 24x24mm base, 8x2mm magnets

Harry Potter Chess Set

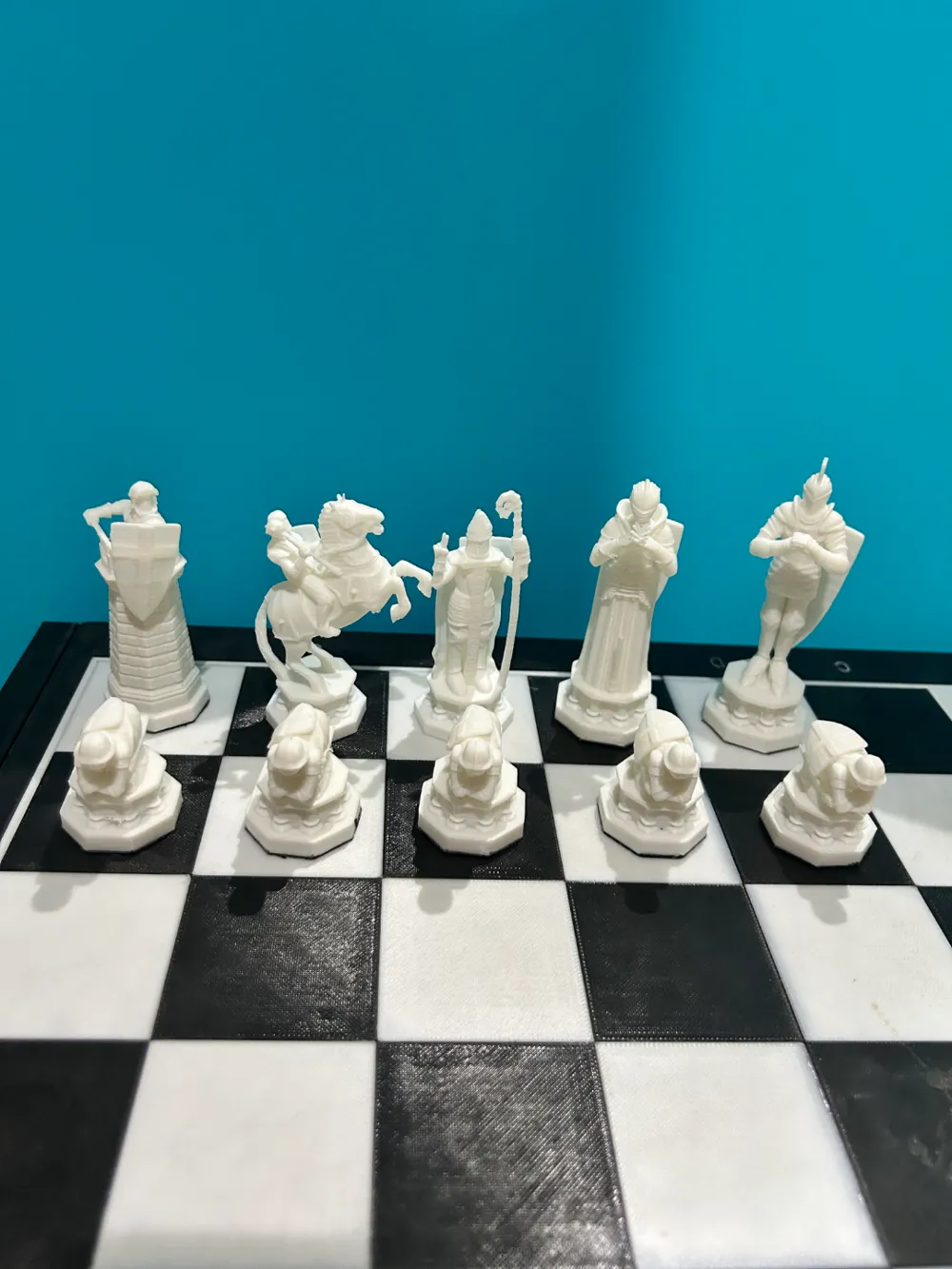

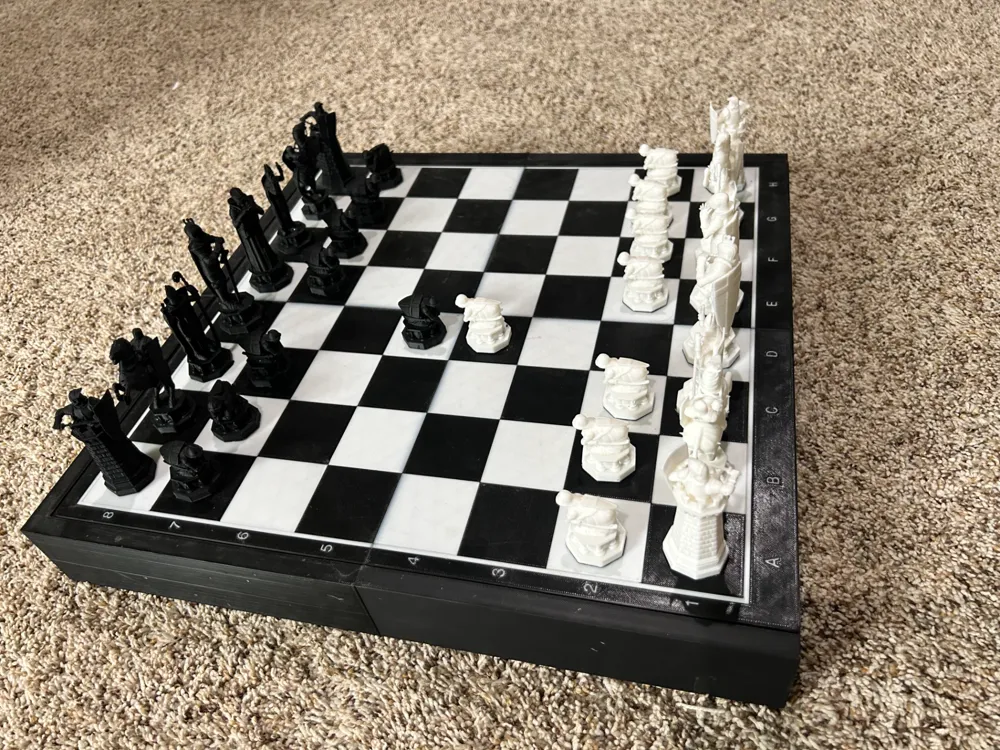

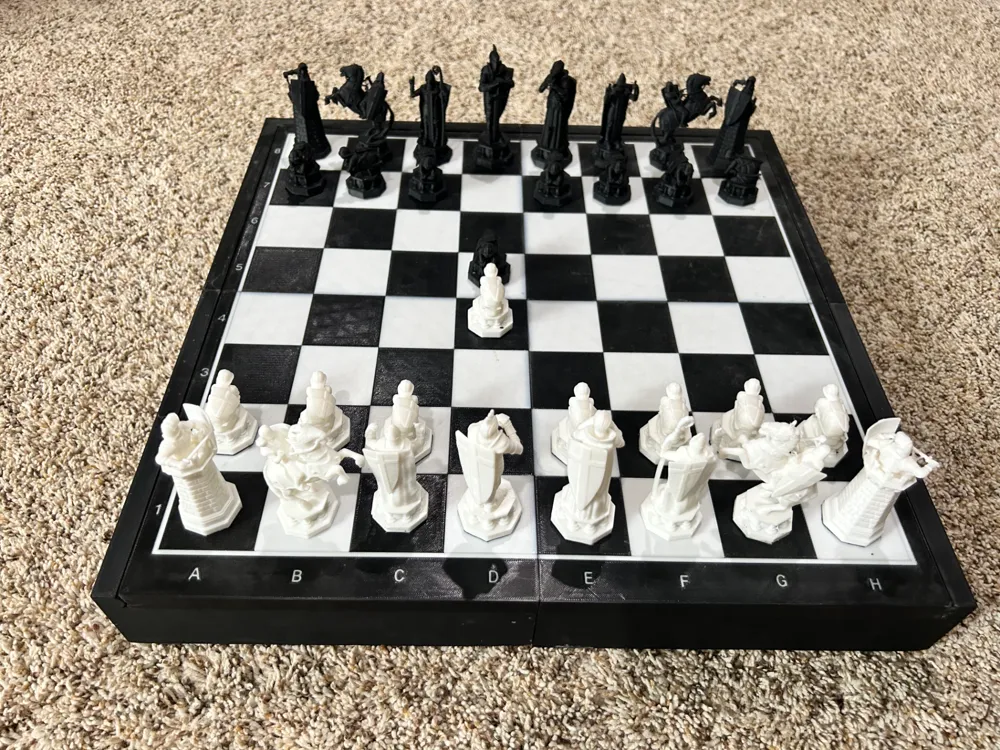

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Boost if you enjoy</boostcontent></boostme>Harry Potter Chess Set Harry Potter Wizard chess set. I have done what I could to make these chess pieces print great with the ability to put in magnets or weights in them (15 by 3mm) You can modify them to any size if you like, if it can fit in the piece. &nbsp;If you want to make the supports come off easier change the support interface to PETG or use Support for PLA/PETG or even PVA &nbsp;For the board and the box storage<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/475095#profileId-1080533">https://makerworld.com/en/models/475095#profileId-1080533</a>&nbsp;For a smaller version that will fit the board and box on the A1 mini<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1366692-mini-harry-potter-wizard-chess#profileId-1412473">https://makerworld.com/en/models/1366692-mini-harry-potter-wizard-chess#profileId-1412473</a>&nbsp;

Wizard Chess

RFSworks


Screenshot 2024-08-30 033527.jpg

Harry Potter Chess Set Bookend

E-Z Squeezy



Harry Potter Chess King and Queen Bookends
