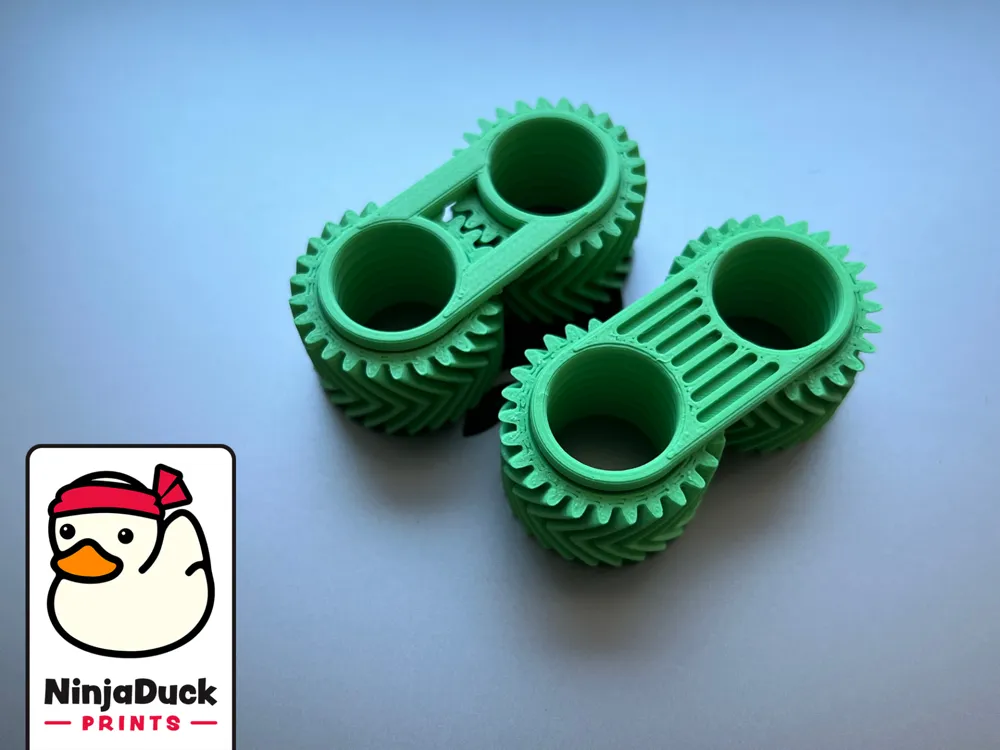

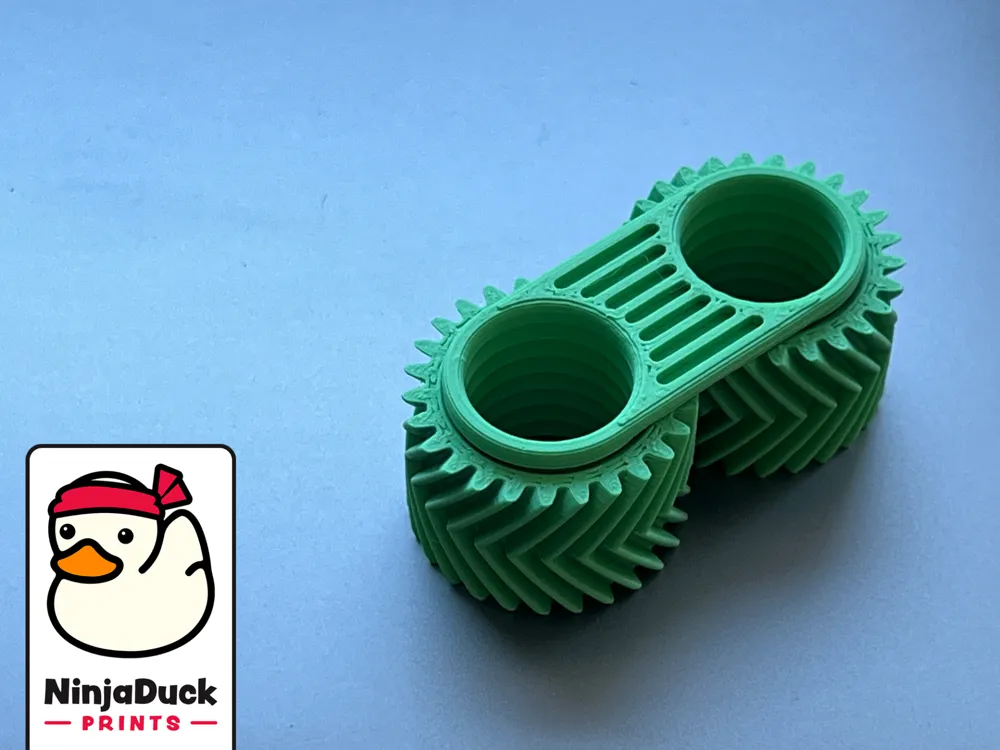

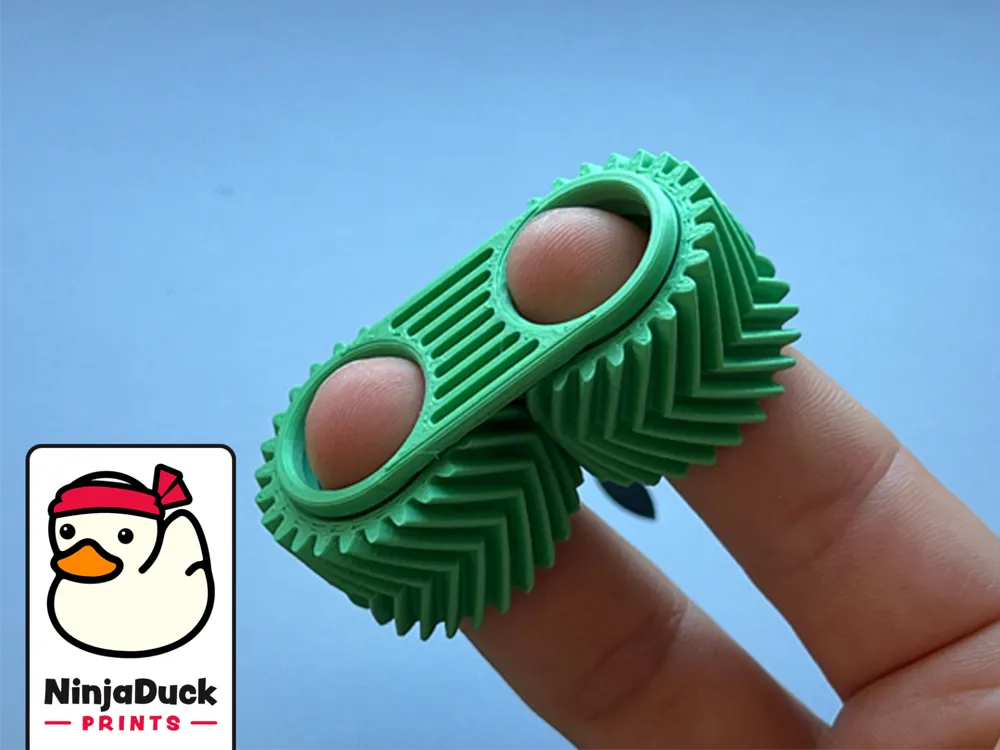

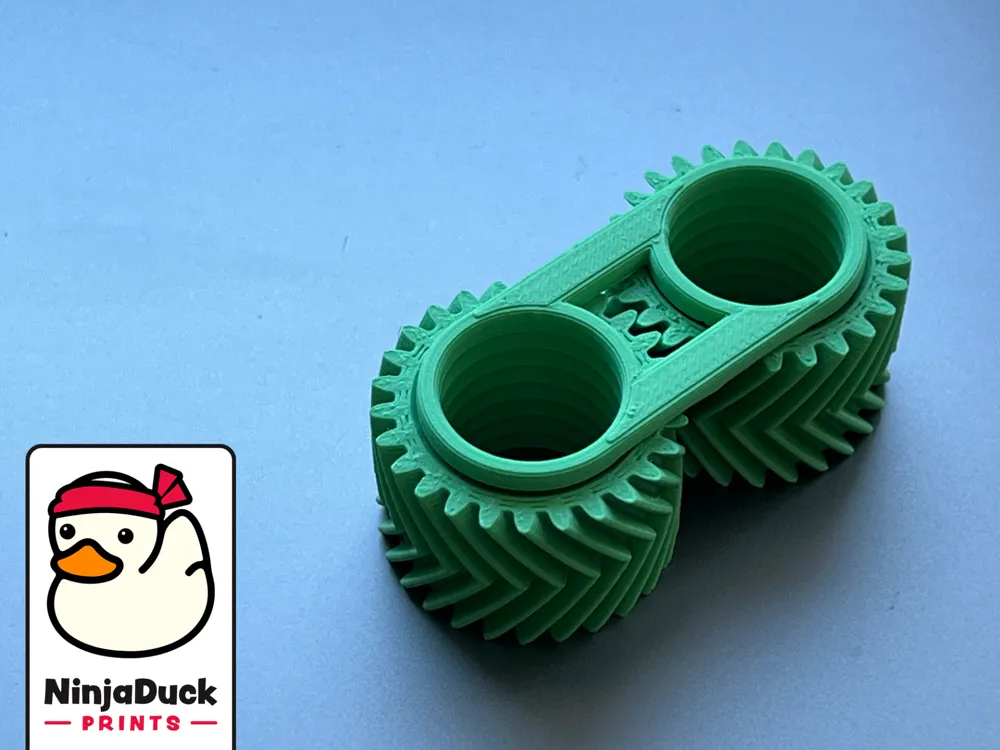

Fidget Gears - Print in Place by NinjaDuck Prints

NinjaDuck Prints

Toys & Games>Other Toys & Games

Print Profile(6)

All

P1P

P1S

X1 Carbon

X1E

A1 mini

0.16mm layer, 3 walls, 15% infill

Designer

1.8 h

2 plates

4.7(159)

0.35mm Clearance

Designer

1.8 h

2 plates

4.8(24)

0.16mm layer, 3 walls, 0% infill

50 min

1 plate

4.8(17)

0.2mm layer, 3 walls, 15% infill, Random Z Seam

1.6 h

2 plates

5.0(8)

Click to see more

Boost

343

576

271

1.5 k

1.8 k

Released

Description

Designed with a 0.3mm clearance. This model will bridge a 27mm distance towards the end of the print, the P1P default settings have no problems with this.

Warning

Do not press auto-arrange in your slicer otherwise this print will not work. The part is separated into 3 different objects to make it easier for AMS or other multi-colour printers. If you print directly from the Bambu Handy phone app and increase the number of copies, the app will auto-arrange the parts.

Slicing

0.16mm Layer Height
3 Walls instead of infill
No supports
No brim

Comment & Rating (271)

@exl999

Print Profile

0.16mm layer, 3 walls, 15% infill

A way to keep them in place on the bottom side would be mode useful. Nonetheless a nice print.

The designer has replied

@NinjaDuckPrints

Did those bottom bits fall off during use or did it print like that?

@exl999

Replying to @NinjaDuckPrints :

they are not there anymore, they came of when i tried to put on the knurls

@NinjaDuckPrints

Replying to @exl999 :

Wait, did you print this in 3 separate pieces? If so, you shouldn't do that, it's meant to be print in place. When you press auto arrange in your slicer, it can separate all parts which causes the print to fail. See the description for more info :)

@LabRatt

Print Profile

0.16mm layer, 3 walls, 15% infill

gears didn't move ):

The designer has replied

@NinjaDuckPrints

I'll upload one with larger clearances soon :) It's currently a 0.3mm clearance

@LabRatt

Replying to @NinjaDuckPrints :

thanks :D

@NinjaDuckPrints

Replying to @LabRatt :

Uploaded a new print profile with 0.35mm clearances. Fingers crossed that works better for you!

@Joosdt

Print Profile

0.16mm layer, 3 walls, 15% infill

Nice quick little print! Thanks for sharing. Printed in PLA

@Elite_1650

Print Profile

0.16mm layer, 3 walls, 15% infill

Printed well, with no issues. spins around prefectly!

@MofWI

Print Profile

0.16mm layer, 3 walls, 15% infill

It printed nicely, but it took quite an effort two free up one side. I think I'll reslice it myself. and try again with the same filament. admittedly it wasn't bambu filament

(Edited)
