Watch winder.
You need
- N20 motor (i used 100rpm 12v motor but run it at 3v).
- Switch
- Power supply
- m3 nuts and bolts
- 608 bearing (8x22x7mm)
- A smooth sided pet bottle (for the door window)
Bolt sizes, something like this
3mm bolts
- for the lid 3x 8-9mm
- For the box ends, 8 x 10mm
- For the box joint 4x 20 mm
- For the motor housing 4x 12mm, 2x15mm
- For the drum 4x 8mm, 18mm
Instructions
Instructions coming soon.
Here are some images to start with…
Door (is optional)

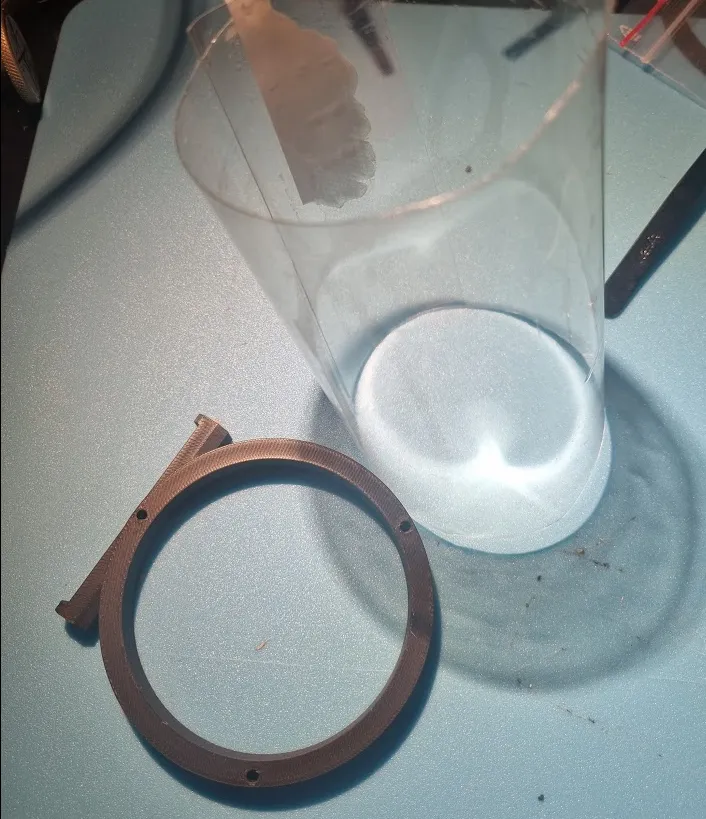

Cut pet bottle

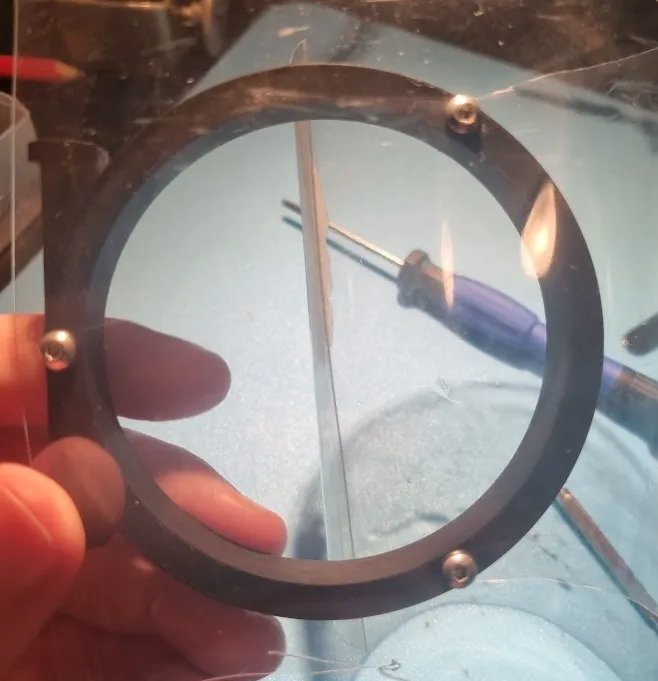

Flatten and attach to door
Cut to size

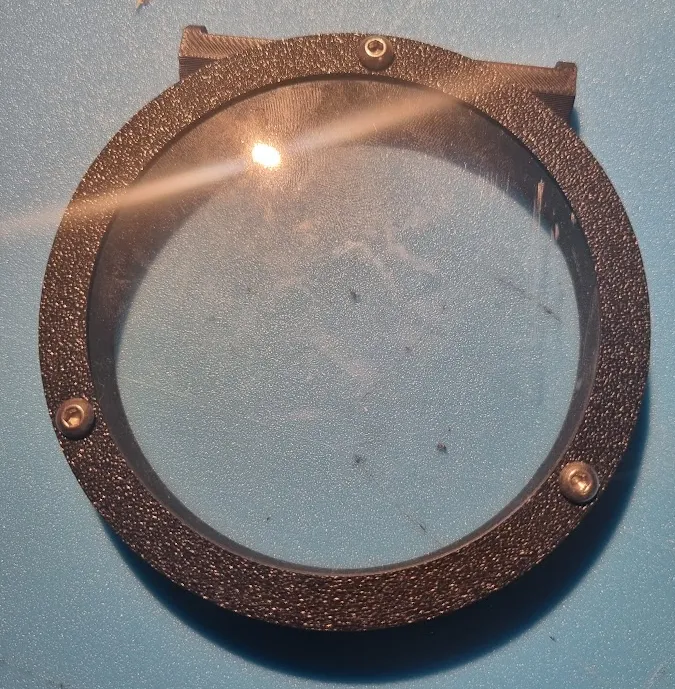

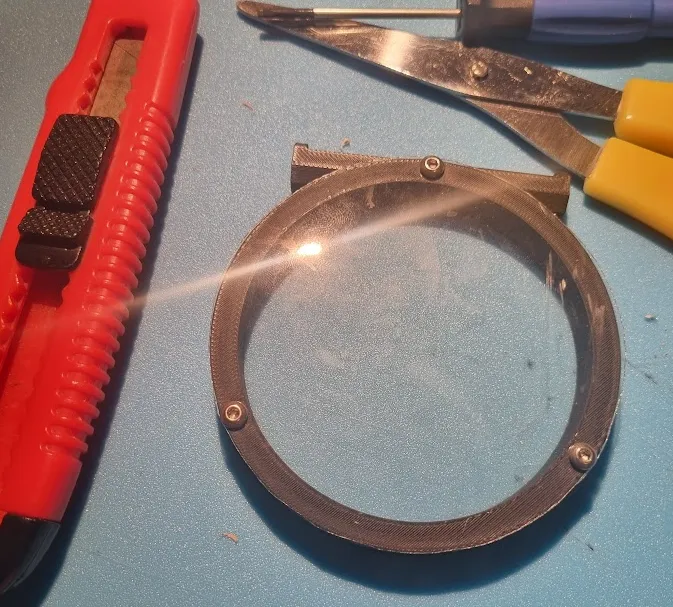

Remove screws, tidy up edges and add the lid. Screw the lid with windows sandwiched.
Drum

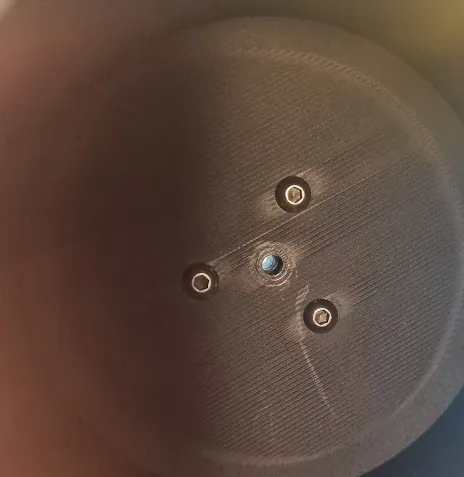

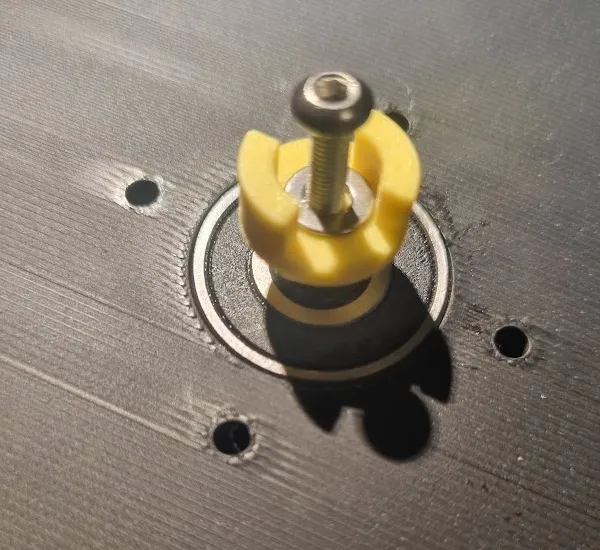

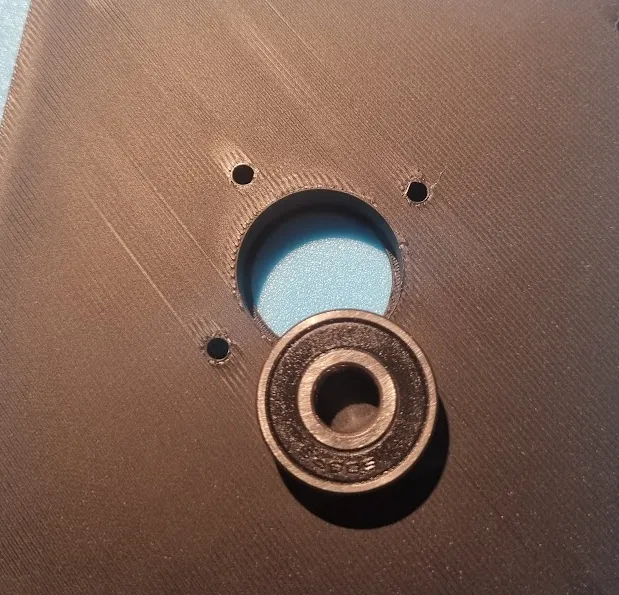

Insert ball bearing
Attach axel to drum

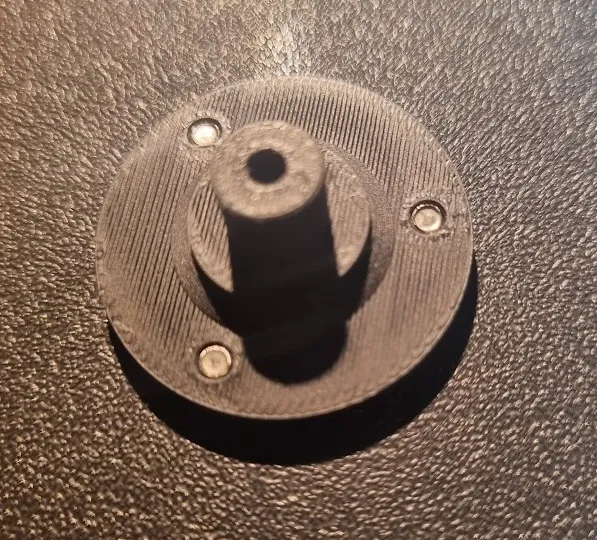

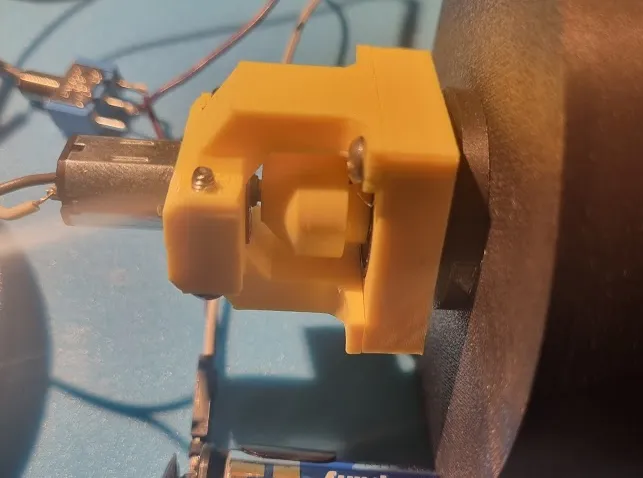

Motor coupler and backplate for drum

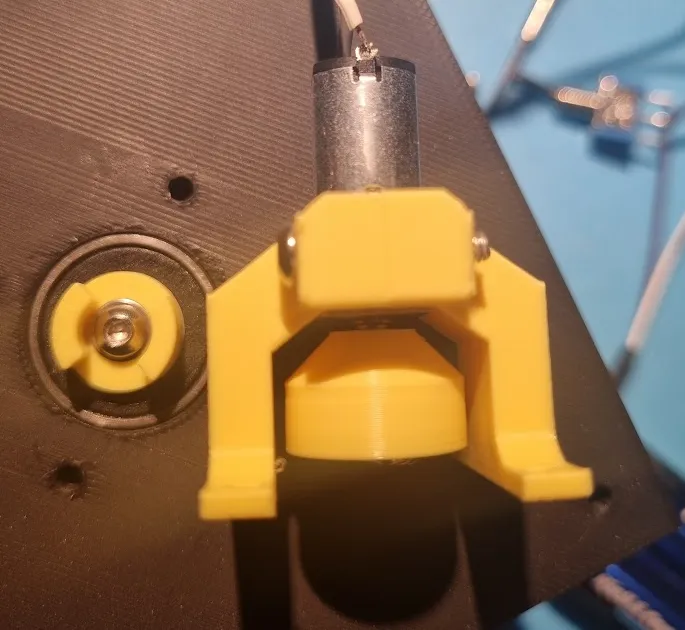

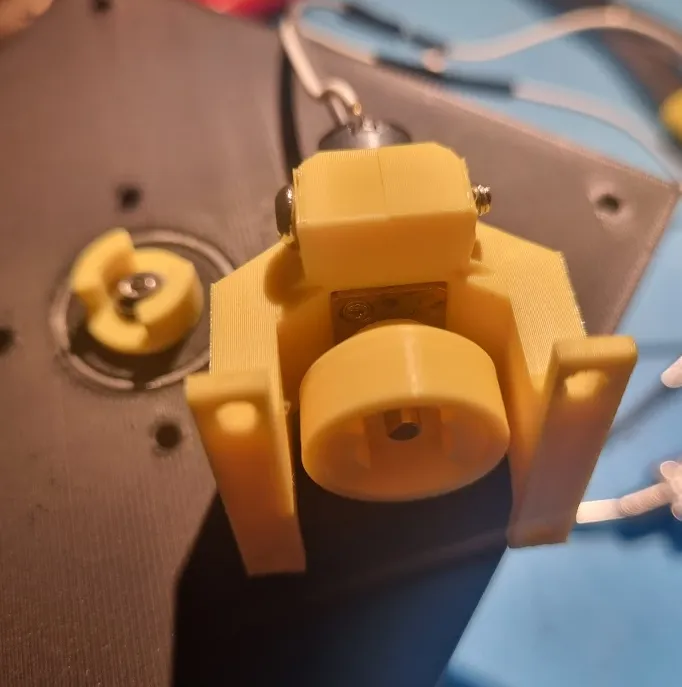

Add the other piece of the coupler to the motor shaft

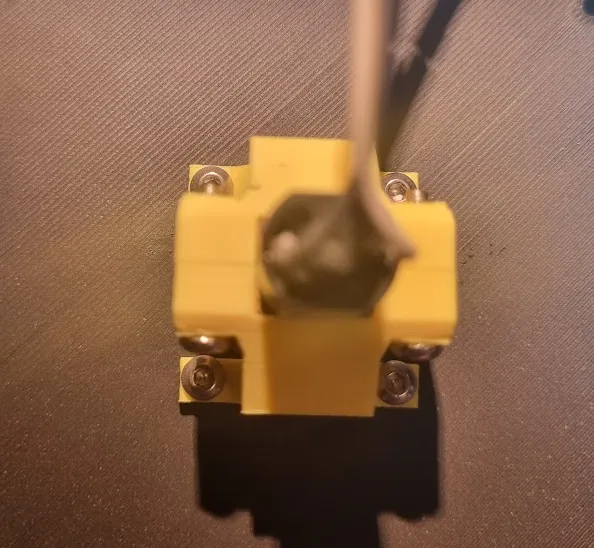

Motor

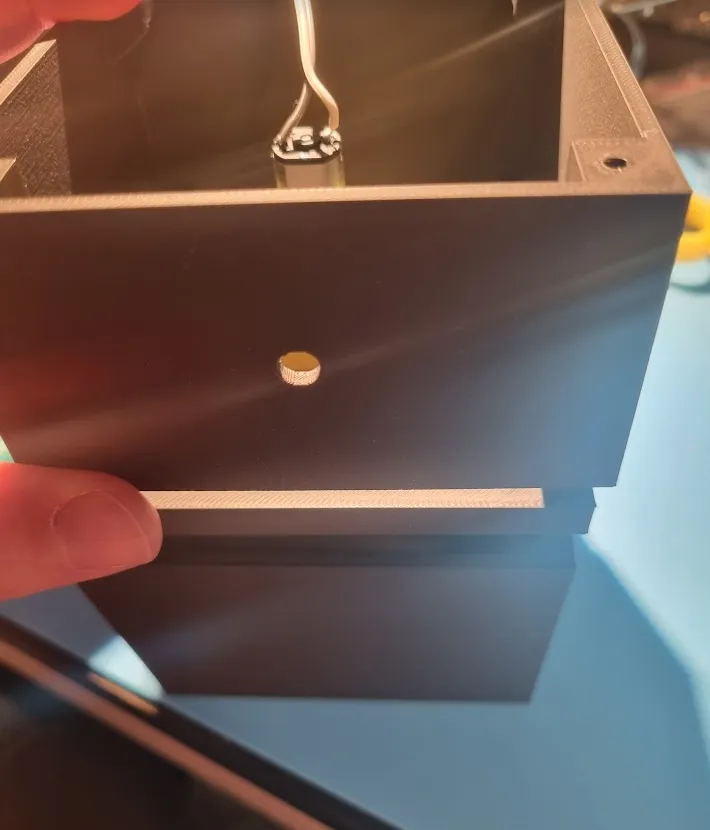

The box
Add the back and front walls

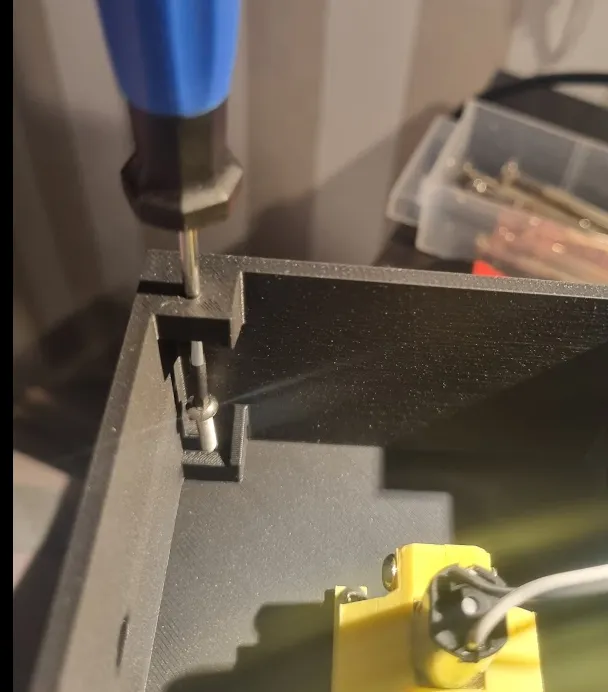

Screw in place
Add the door
