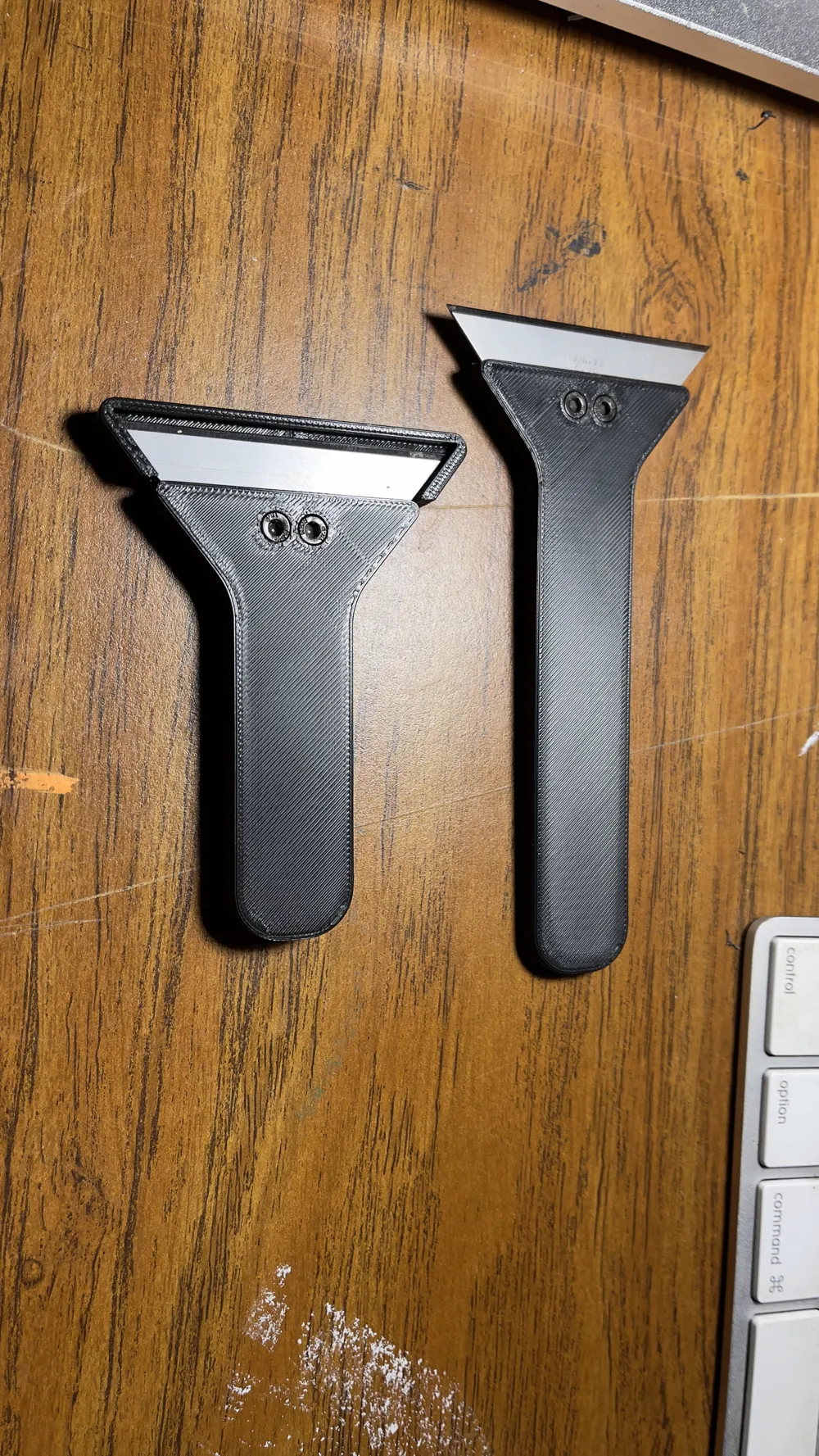

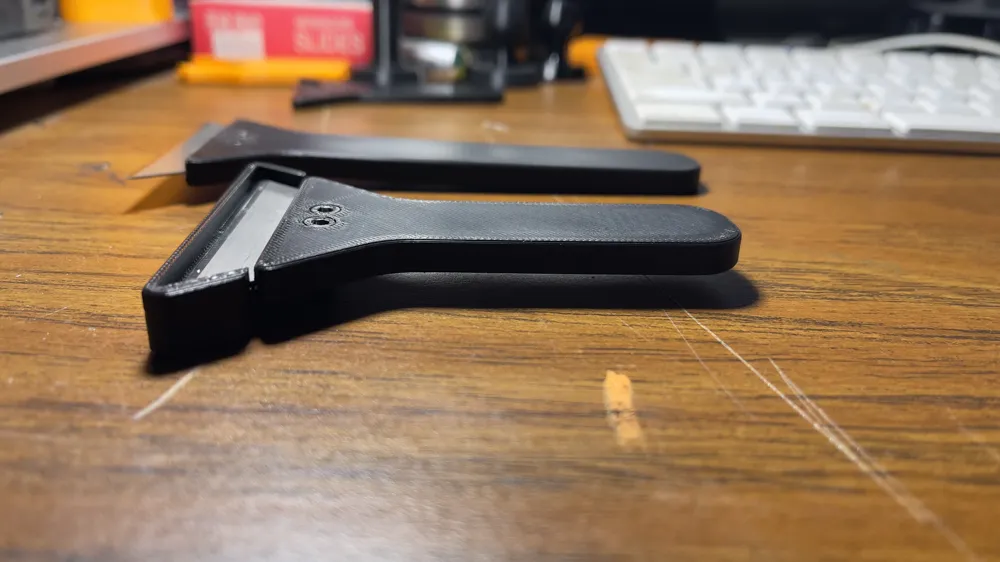

I present to you, another remix of this awesome little scraper. This version has a few nice upgrades that I felt would make this a bit more durable and safer. They’re now 6mm thick and the long version is even longer at 120mm. Anyways, I also redesigned the way it holds blades. After messing around with the original one, I felt like if you pressed hard enough on the back side that you could pop the blade out. And no matter how good your safety-squints are, no one wants a razor blade to the face. The slot fits a standard utility blade pretty snugly and whether you use supports or play with bridge settings, you’ll likely have to clean out the slot a little to get the blade to seat properly. This can print with or without supports, just takes some clean up afterwards either way. This redesign still uses M3 hardware and the holes are countersunk to give it a clean look. I only had M3x6 screws on hand so they kind of poked through the back, if you have M3x3 or M3x4 screws, those would probably work better. I also included files for a cover I found that I made some changes to so it would better fit these scrapers. I printed the scrapers with 3 walls and 75% infill for increased strength from Sunlu PLA with 0.2mm layer height.

Comment & Rating (12)

Please fill in your opinion
(0/5000)

Print Profile
0.2mm layer, 3 walls, 75% infill
nice work
0
Reply
came out great, and a 6mm round magnet in the hole on the cover will hold it on the blade nicely.
0
Reply
Print Profile
0.2mm layer, 3 walls, 75% infill
Support Issue
Other Issues:screw hole is messed up, it’s useles
The designer has replied
0
Reply
thanks for the feedback, I’ll work on improving the model. In the meantime, try slowing down for overhangs and orienting the model so the slot is facing the aux fan so it gets the most cooling possible.
0
Reply
Print Profile
0.2mm layer, 3 walls, 75% infill
hard to insert blade its very tight
The designer has replied
0
Reply
the slot may require some cleaning with an x-acto knife or other thin blade to clean up the overhangs. I’ll work on getting the file to print better. thanks for the input!
0
Reply
Print Profile
0.2mm layer, 3 walls, 75% infill
Passt alles und funktioniert!!!
0
Reply
Print Profile
0.2mm layer, 3 walls, 75% infill
Other Issues:bridge collapsed
The designer has replied
0
Reply
Try lowering overhang speed. The slot may still require some cleaning but it should still work. Alternatively, you could try printing it vertically but it may not be as strong.
