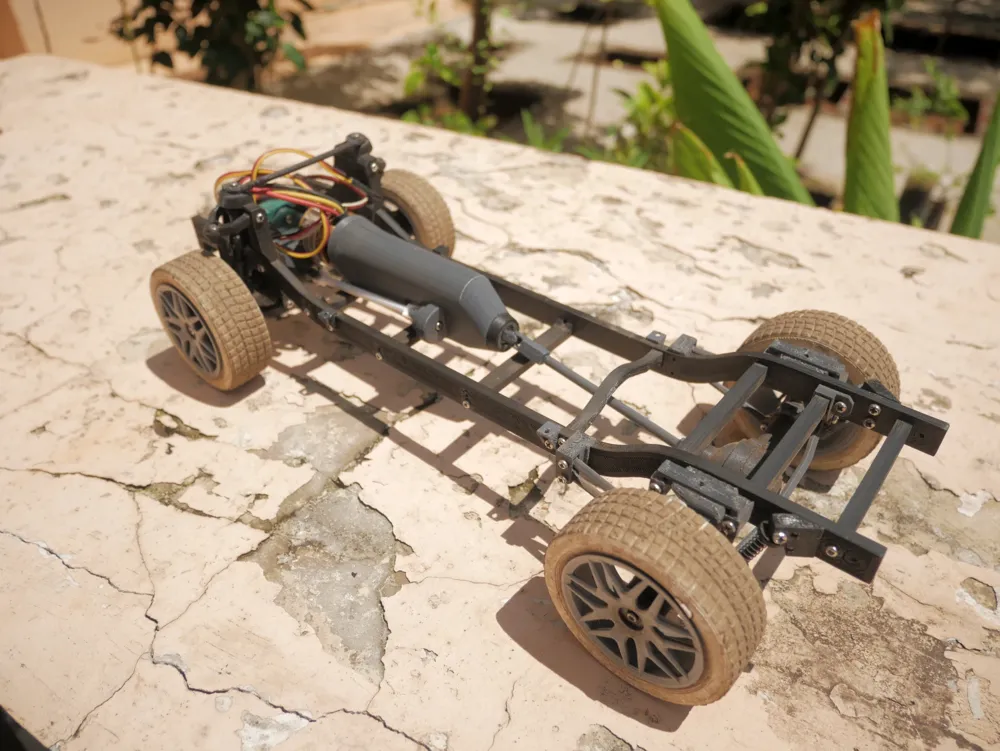

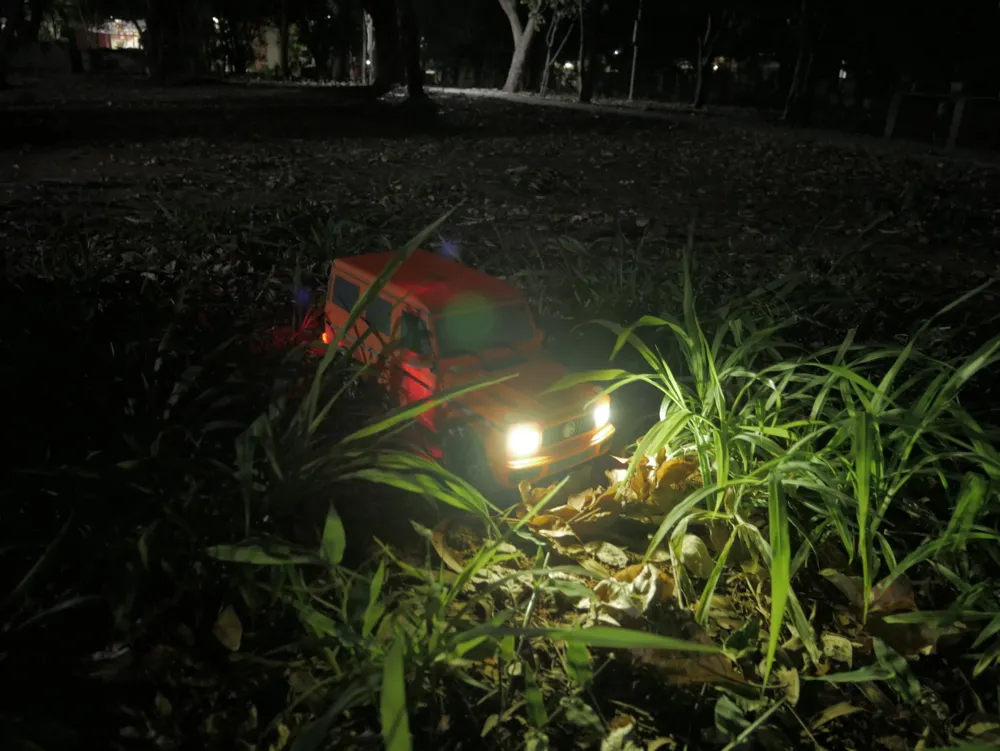

G-Wagon - 3D printed 4x4 RC car (Chassis)

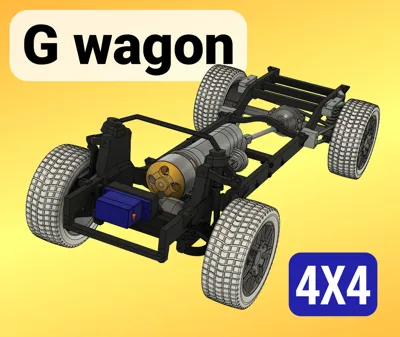

G wagon - True scale model

After months of designing and testing, The design is finally ready.

A Performance RC model with offroad capabilities. The chassis has ~150 printed parts.

Join our :Discord

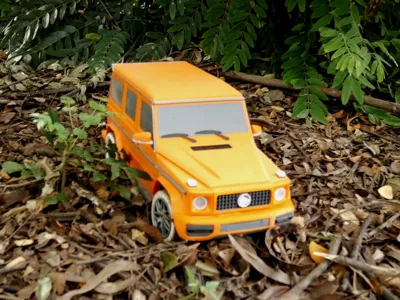

The body for this Chassis can be downloaded here: https://makerworld.com/en/models/410847

Features:

• Accurate 1/12 Scale
• Fully 3D printed (including shock absorbers)
• Full time AWD
• Open Differentials

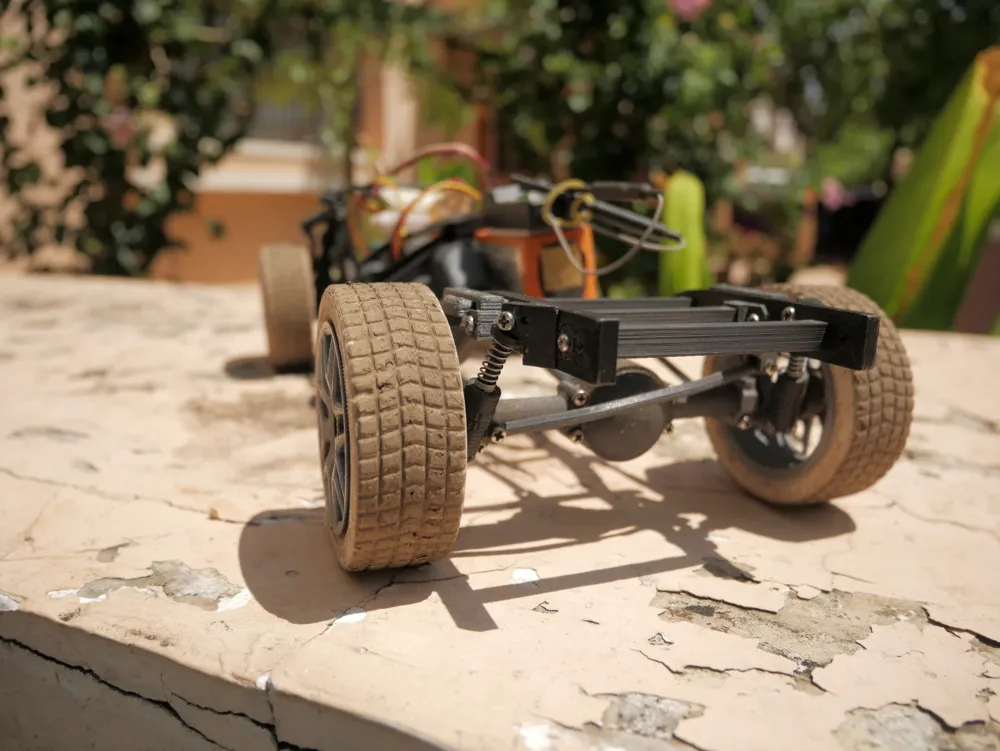

• Independent front suspension
• 30kmph Top speed
• 100% slope climbing

Complete parts list

CHASSIS ASSEMBLY:

Part 1 - Chassis frame & Rear suspension assembly

Part 2 - Motor drive assembly

Part 3 - Steering and Front differential assembly

Part 4 - Front suspension & final assembly

Shock Absorbers:

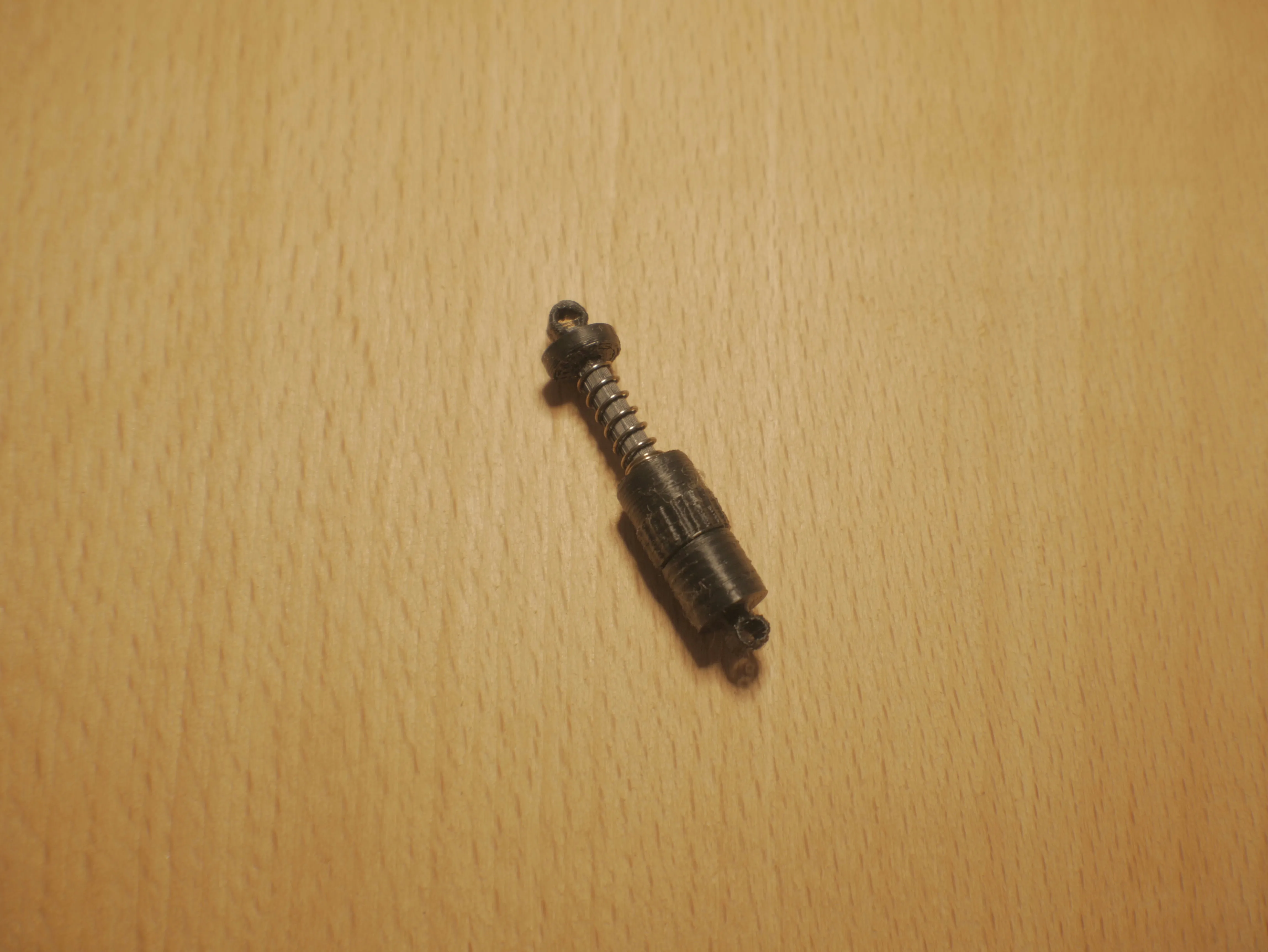

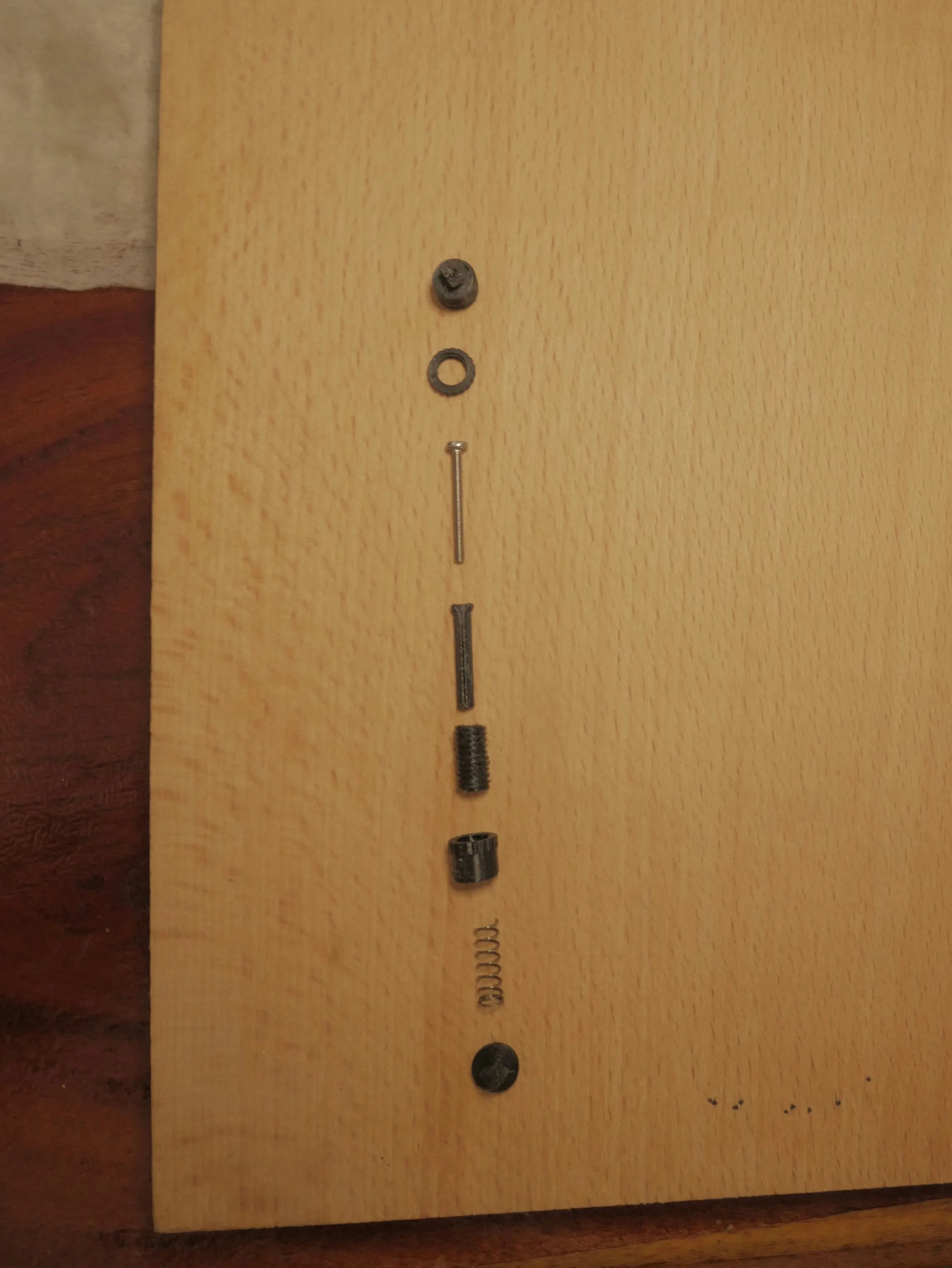

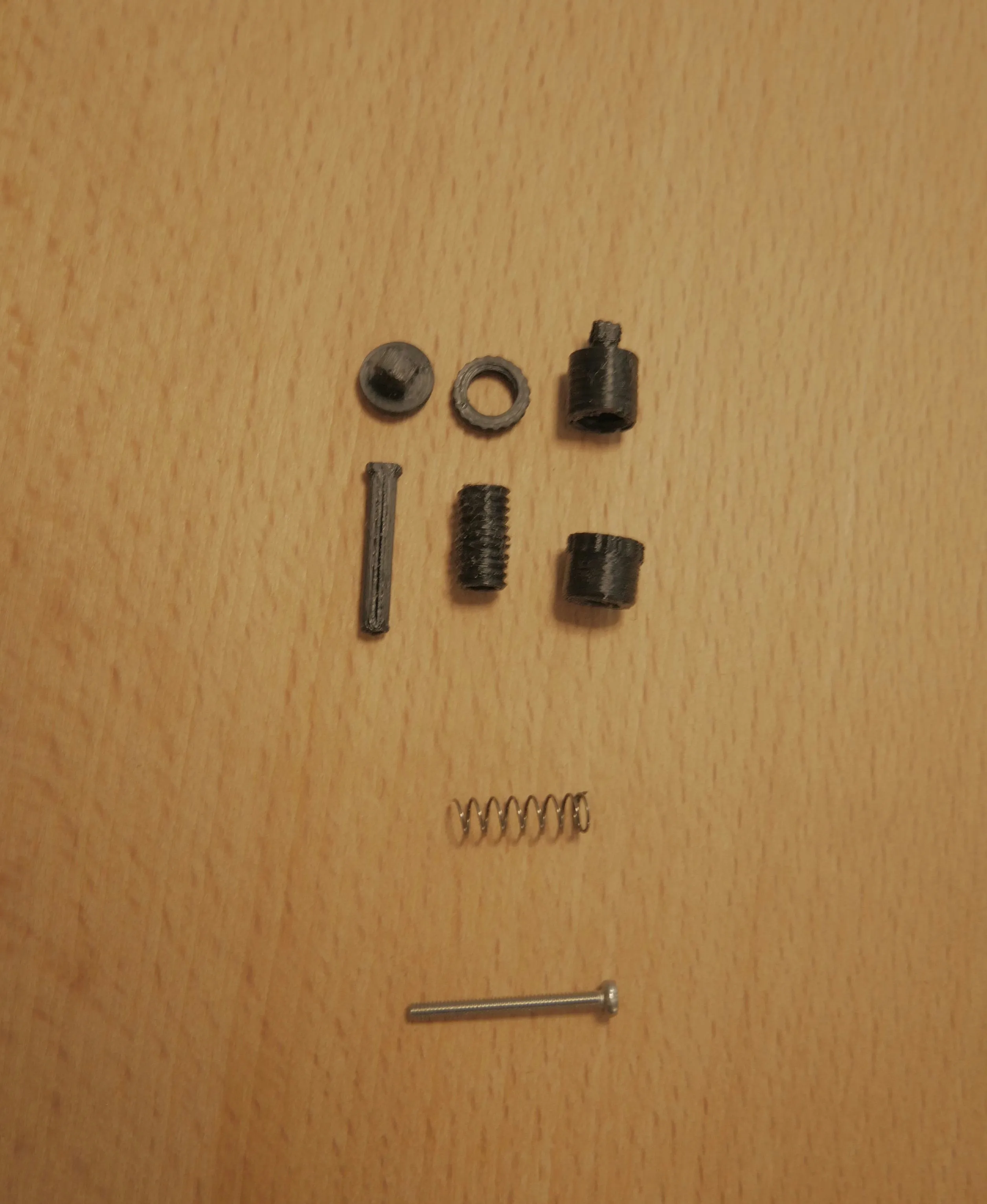

The 3d printed shock absorbers need a M2 20mm screw and a pen spring.

Notes:

• With a 3S battery, this model can reach upto 30kmph! before the gears start melting. So it is recommended to use 2S battery and low KV (1000-1400) motor. Lubrication recommended for the gears.
• Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura.
• The 3mf files were generated with Cura Slicer.
• The provided files have support blockers which may open as normal models in other slicers. You may have to manually assign them as support blockers.

Print settings:

Cura 3MF file
