• S - Scale (1/64)
• 22.5mm size (Standard gauge)

The train tracks are a part of the Dragon Railway

Recommended Radius : Minimum 400mm

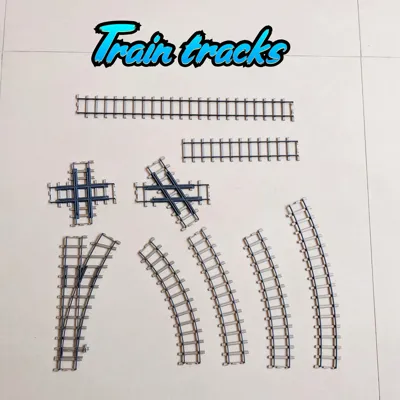

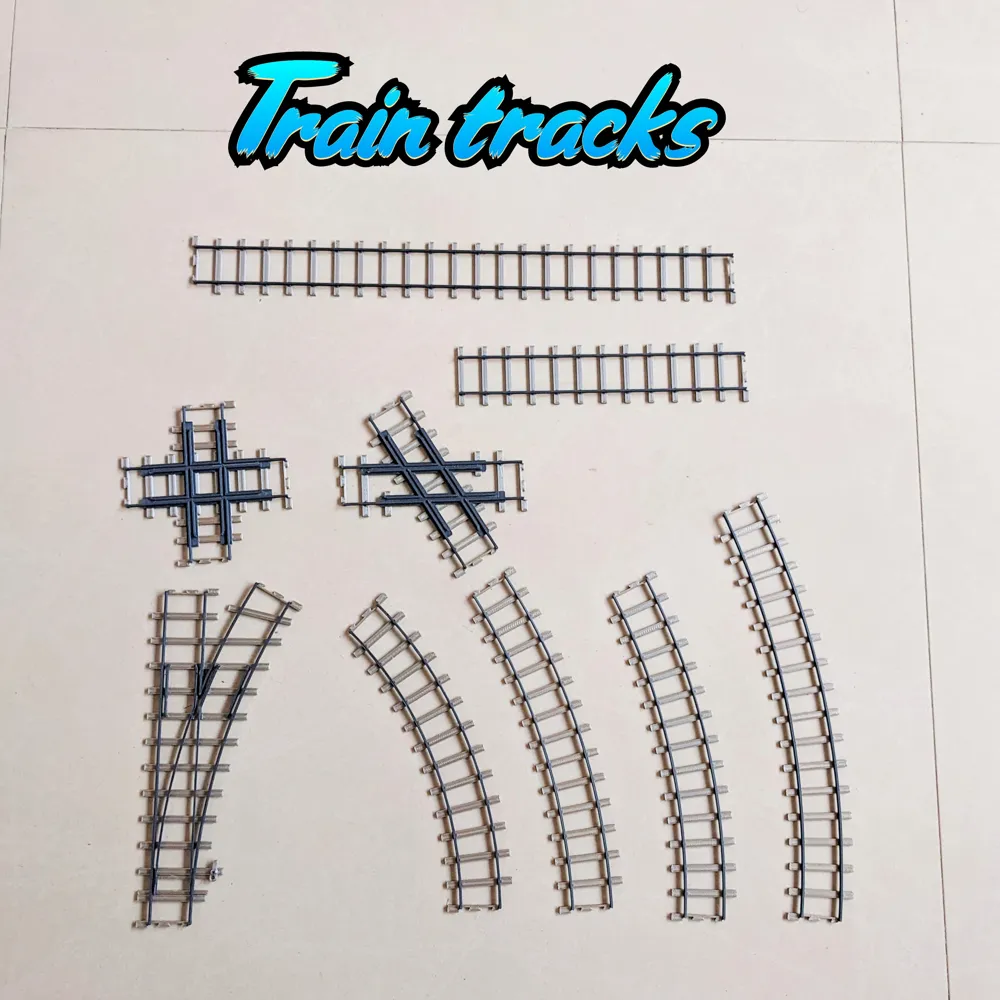

Whats included:

Straight tracks

• 50mm
• 100mm
• 150mm
• 200mm
• 250mm
• 300mm

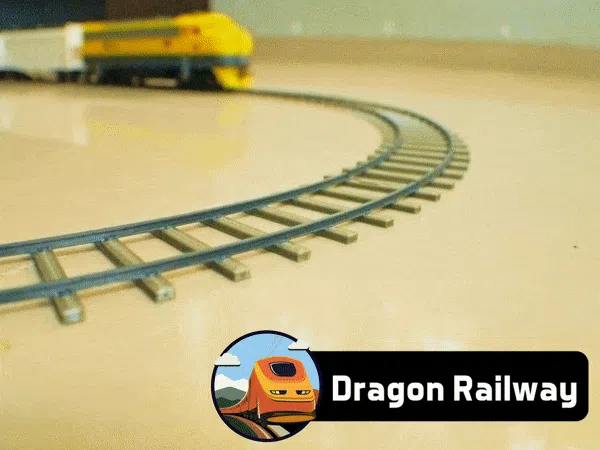

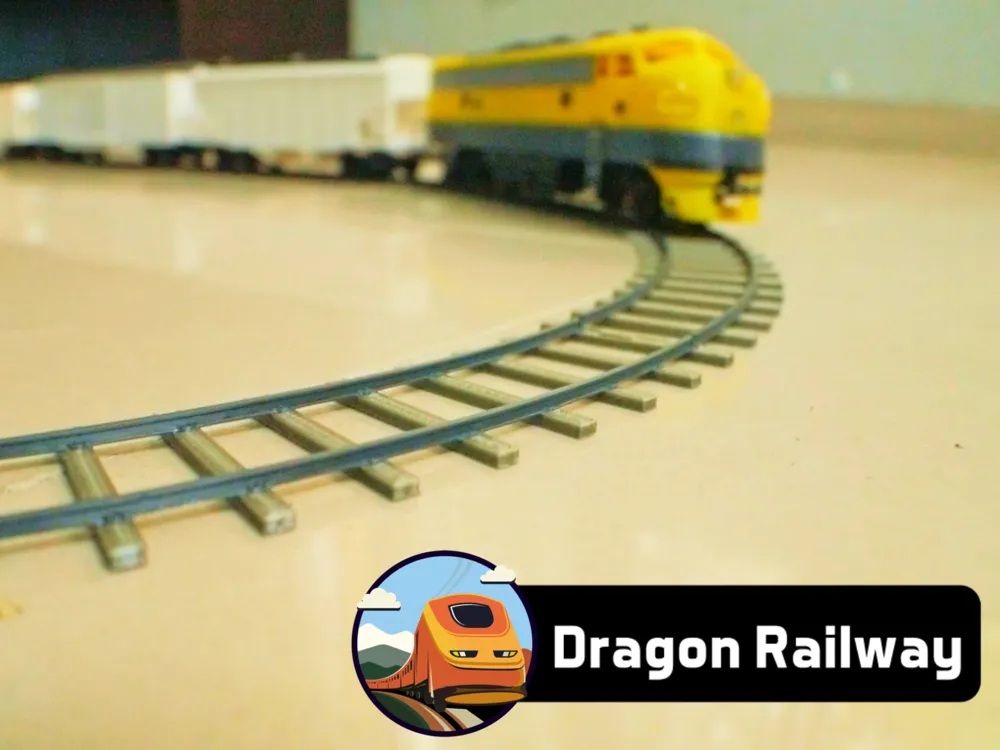

Curved tracks

• Radius 300mm - 7.5°,15°,22.5°, 30°, 45°
• Radius 350mm - 7.5°,15°,22.5°, 30°
• Radius 400mm - 7.5°,15°,22.5°, 30°
• Radius 500mm - 5°,7.5°,10°,15°°,22.5°,30°
• Radius 600mm - 5°,7.5°,10°,15°°,22.5°
• Radius 700mm - 5°,7.5°,10°,15°,22.5°
• Radius 800mm - 5°,7.5°,10°,15°
• Radius 1000mm - 5°,7.5°,10°,15°

Crossings

• Crossing L100mm 30°
• Crossing L100mm 90°

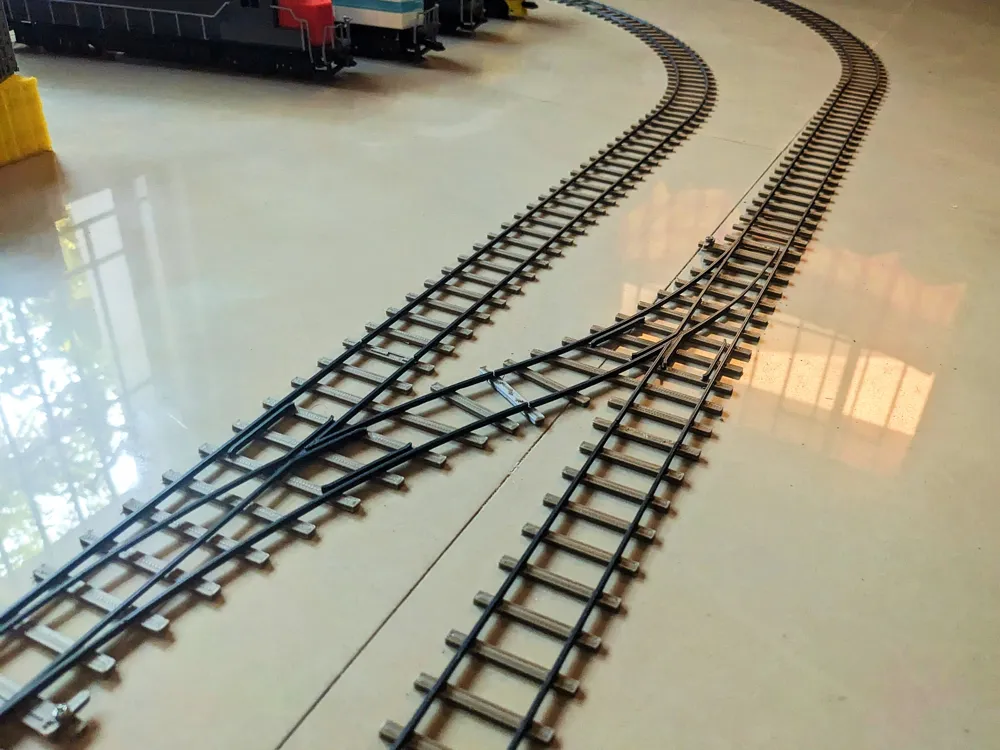

Turnouts

• Single - R400 30°
• Single - R500 22.5°
• Single - R600 22.5°
• Split - R400 22.5°
• Split - R500 22.5°
• Split - R600 15°

Assembly manual:

• Google docs

Check out the Dragon Railway ecosystem!

Join our :Discord

Print Settings:

Cura Files (or)

• Layer Height - 0.2mm
• Wall Thickness - 0.8mm
• Top Thickness - 0.8mm
• Bottom Thickness - None
• Infill - None
• Bridging Enabled
• Colling 100%
• 2 Skirt Lines With 0mm Distance
