Dragon R1 - Open Source RC car

Features of this Open Source car:

• Maximum 3D printed parts
• Easy to source hardware
• Simple Assembly
• Easy maintenance and battery access
• Dual wishbone suspension
• Open differential
• Low noise drive (using Blheli ESC)
• Printable with a 200mm size printer

Model is 1/12 scale;

• length: 396mm
• width: 164mm
• height: 71mm

Print Settings:

Cura Files

BOM: Complete parts list

Wiring Diagram:

Join our Revolt server if you need help with your builds:

https://app.revolt.chat/invite/JacMpJHW

The assembly process is divided into 3 main parts:

1) Rear chassis

• Rear axle
• Differential
• Rear Suspension

2) Front chassis

• Steering mechanism
• Front suspension

3) Body assembly

• Base chassis
• Body

Instructables: https://www.instructables.com/3D-Printed-RC-Car-Open-Source/

Remix Collection: Dragon R1 & Remixes

Update notes:

The design has been updated now, It is slightly different from the one shown in video.

Refer to the following photos for assembly.

Notes:

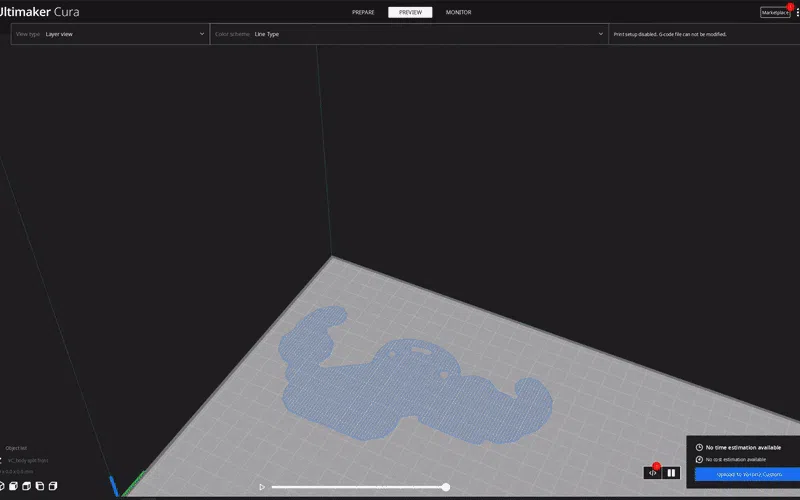

• Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura.
• The 3mf files were generated with Cura Slicer. STLs also provided for other slicers.
• The body requires tree supports when using "touch build plate only" support option. Please check the print preview before printing. It is better to print the two parts separately.

3D View:

Fusion 360 3D View
