DUMMY 13 Functional Backpack

NEW - Easy fit hinge! - AND - Snap close lid! - NEW

The following backpack types are available:

• Regular backpack

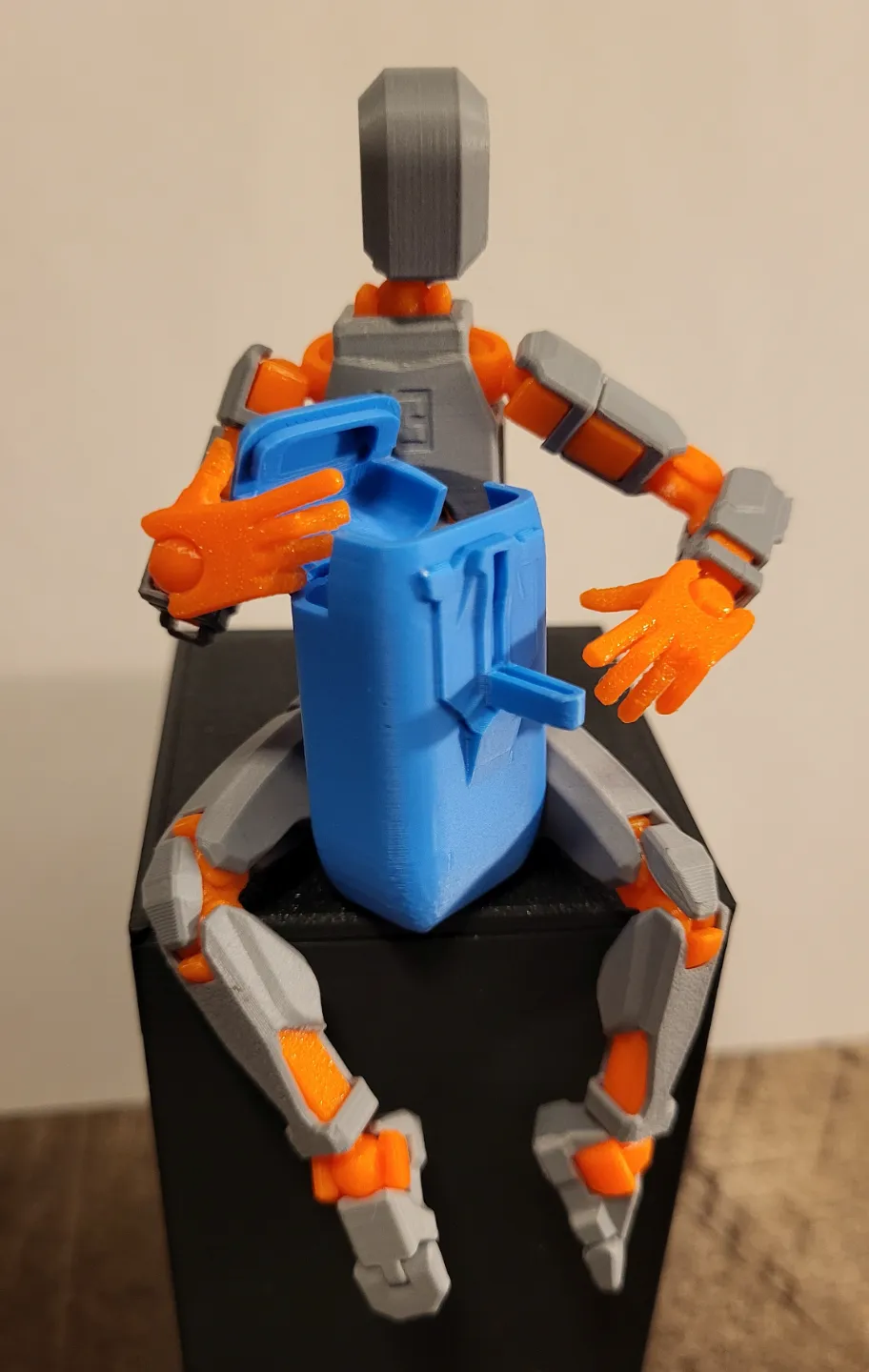

  • Just the internal storage
• Accessories backpack
  • Internal storage
  • Two holsters

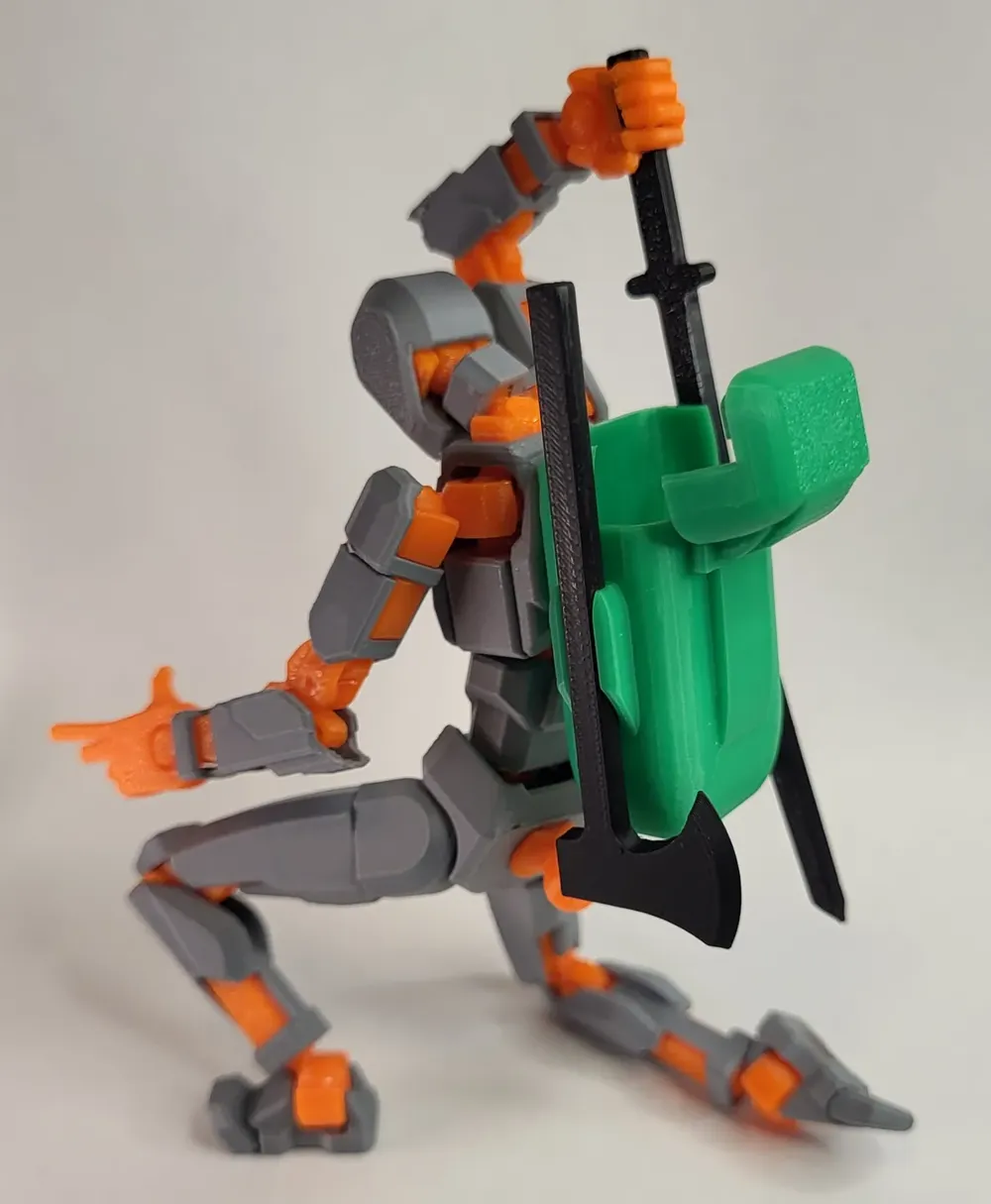

    • One for the Dummy 13 Katana by kh4rj0
    • One for the Dummy 13 accessories by Lucky 13 Toys

It prints in two parts: the lid and the compartment. Printing will require supports for the peg that attaches the backpack to Dummy 13. Recommend using .12mm layer height or less.

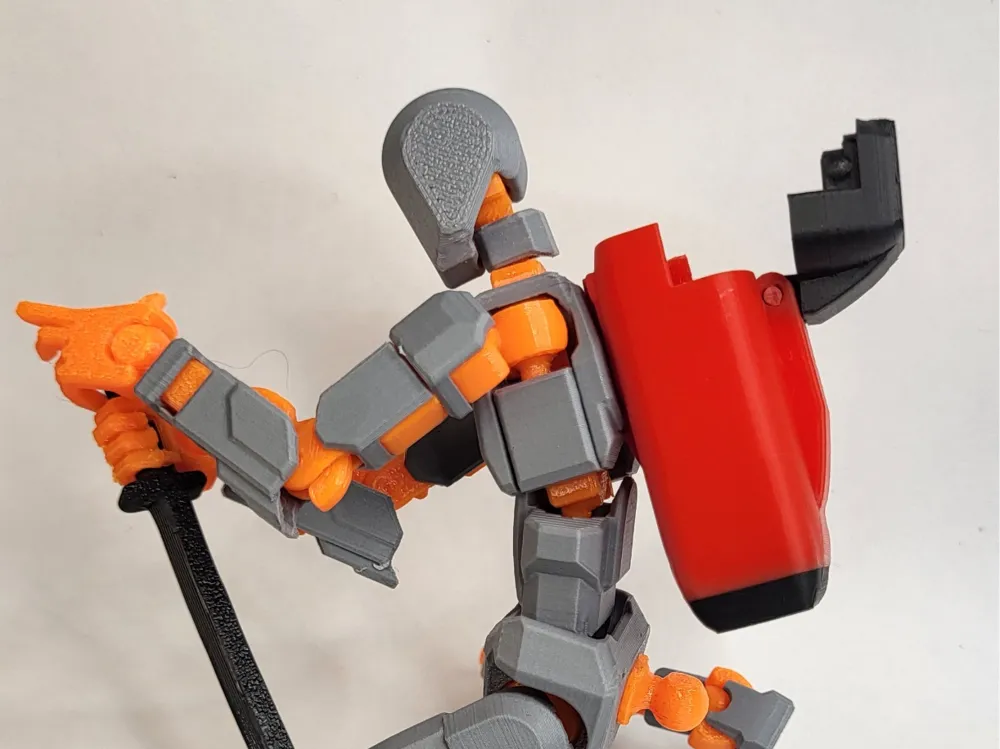

The lid and compartment connect using a hinge held together by a pin. A piece of filament can be used as the pin. There is also a pin model which is useful if you are increasing the scale of your print.

The hinge slides in place by aligning the lid with the compartment in the closed position and pushing the two parts together. The pin can then be inserted into the hinge and trimmed flush.

Attach the backpack to Dummy 13 using the peg, which fits into the square hole in the dummy's back.
