Mc2.project3D

cover






Helmet


Visor



Remember that the two hinges are 2 pieces of 1.75mm wire

0.16mm layer, 3 walls, 0% infill

zackza



Rotated UPWARDS with MUCH better supports so it looks PERFECT compared to the original! WAY BETTER!&nbsp;AND I added VISOR PEGS so no need for filament or screws, just pop it in!&nbsp;&nbsp;1 plate, by object, 0.12 fine layer height. ams, a1 mini compatible.&nbsp;&nbsp;For non AMS, just print by part 1 at a time!&nbsp;(edit, since i changed the orientation, i had to change the support and repaint blockers etc…and I had to change support on the helmet to normal from tree so its easier to remove.&nbsp;

ams, 1plate, by object, 0.12mm layer, 0% infill, rotated up


same as my other profile but the back is better, this is before i rotated it to make the front perfect, but at the cost of the back. this one is just like the regukar uploaders profile but has 0.12 which makes a huge difference. 0.08 could be even better but i think this is basically the best before its diminshing returns. Although i could try 0.08 and then of course 0.2mm nozzle 0.06 layer height would be interesting&nbsp;

0.12mm layer, 2 walls, 15% infill

Portachiavi casco con visiera mobile, semplice da assemblare.Video completo dell&#39;assemblaggio in fondo a questo documento.&nbsp;Stampare Casco e visiera, successivamente tagliare due pezzi di filo da 1.75mm scaldarlo in testa (vedi immagine sucessiva)<figure class="image image_resized" style="width: 86.59%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000407684/design/2024-04-01_07211c68ec49a.jpg"></figure>Infilalo sul foro e scalda anche l&#39;altra estremità.(vedi immagine successiva)&nbsp;<figure class="image image_resized" style="width: 86.17%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000407684/design/2024-04-01_8648e4a81b87f.jpg"></figure><figure class="image image_resized" style="width: 85%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000407684/design/2024-04-01_6e4fbb20722c.gif"></figure>Video per assemblaggio:&nbsp;<a target="_blank" rel="noopener noreferrer ugc" href="https://www.instagram.com/reel/C0pBnnLNqoZ/?igsh=NXo4bWxyd2ptODFp">https://www.instagram.com/reel/C0pBnnLNqoZ/?igsh=NXo4bWxyd2ptODFp</a>&nbsp;Buona Stampa da MC²_project_3D&nbsp;

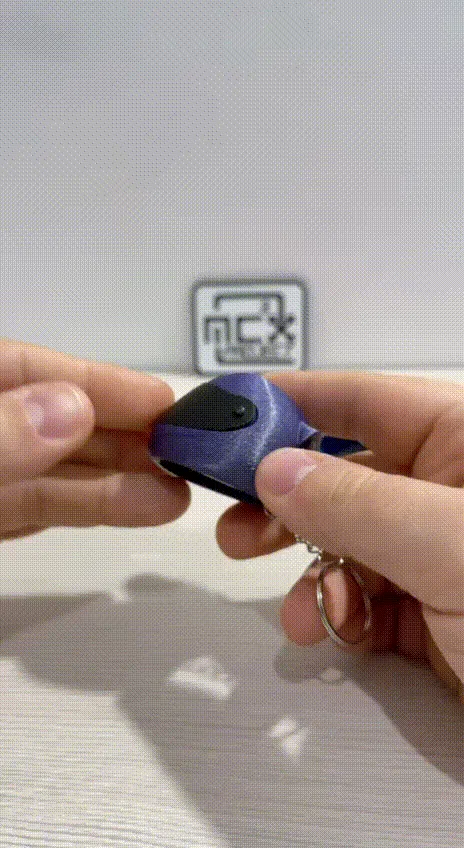

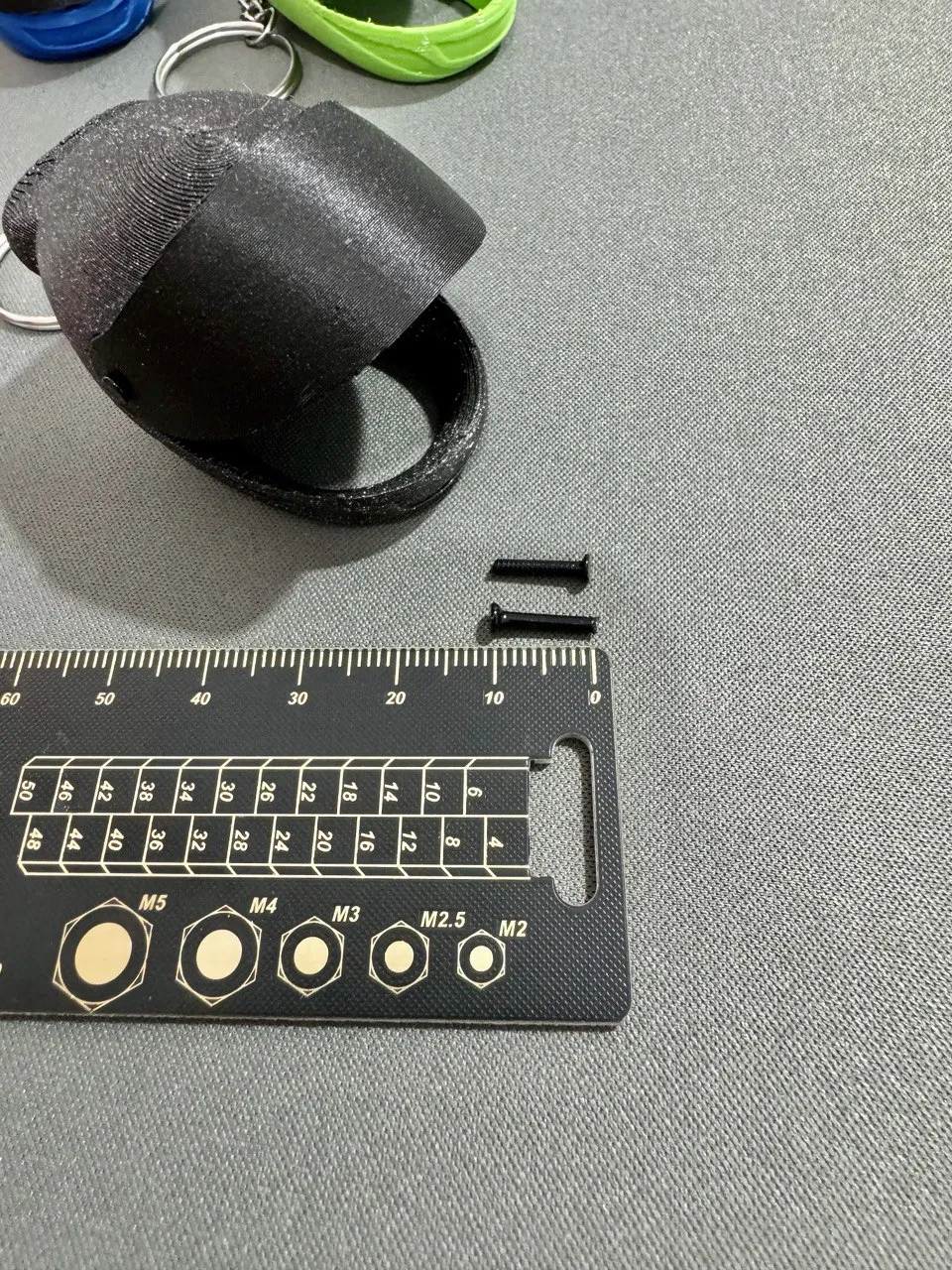

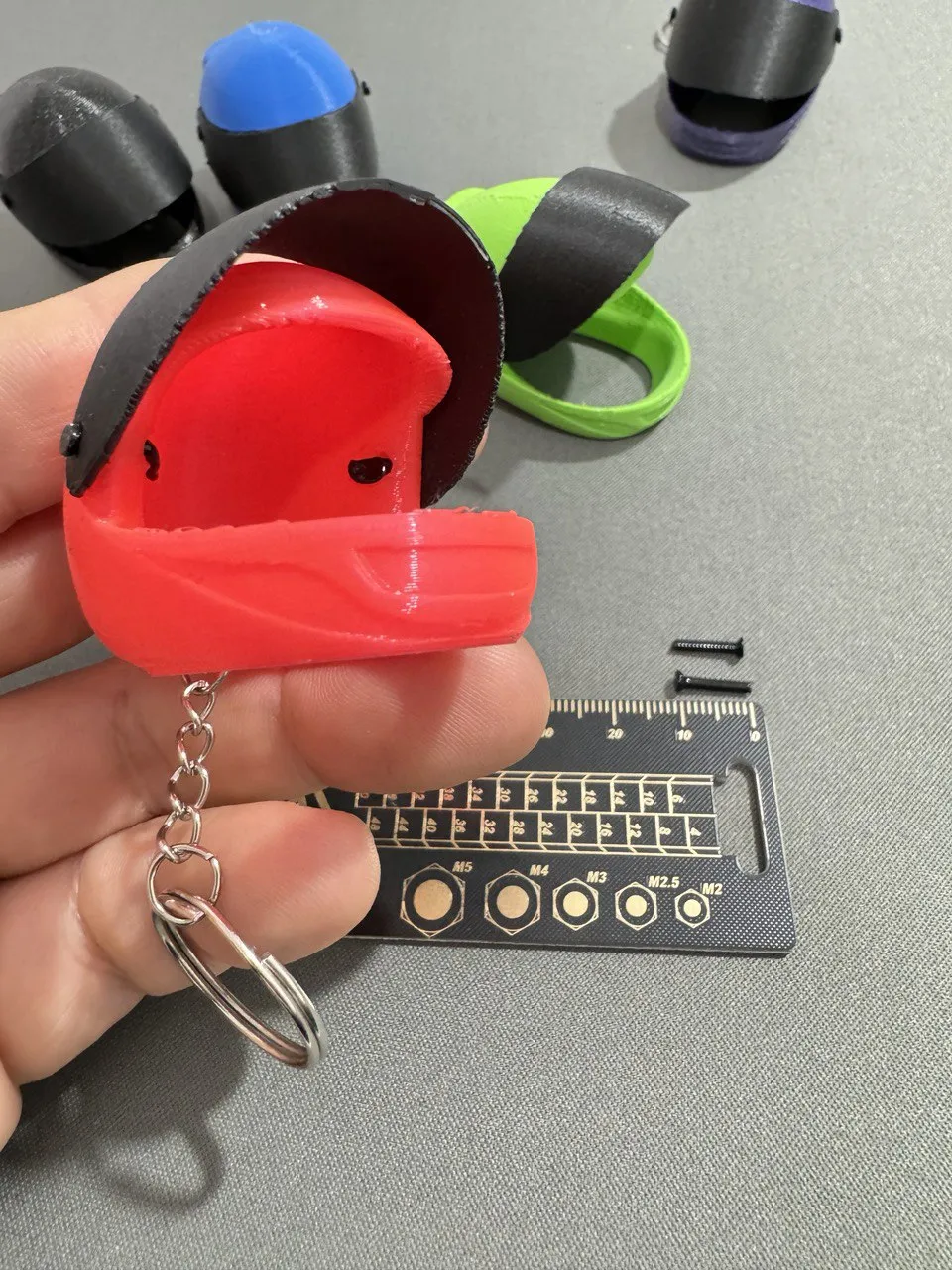

A helmet keychain with a movable visor, simple to assemble.A complete assembly video is at the end of this document.&nbsp;Print the helmet and visor, then cut two 1.75mm pieces of wire, heating the end of each (see next image).<figure class="image image_resized" style="width: 86.59%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000407684/design/2024-04-01_07211c68ec49a.jpg"></figure>Insert it into the hole and heat the other end as well (see next image).&nbsp;<figure class="image image_resized" style="width: 86.17%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000407684/design/2024-04-01_8648e4a81b87f.jpg"></figure><figure class="image image_resized" style="width: 85%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000000407684/design/2024-04-01_6e4fbb20722c.gif"></figure>Assembly video:&nbsp;<a target="_blank" rel="noopener noreferrer ugc" href="https://www.instagram.com/reel/C0pBnnLNqoZ/?igsh=NXo4bWxyd2ptODFp">https://www.instagram.com/reel/C0pBnnLNqoZ/?igsh=NXo4bWxyd2ptODFp</a>&nbsp;Happy Printing from MC²_project_3D&nbsp;

Print Profile(3)
