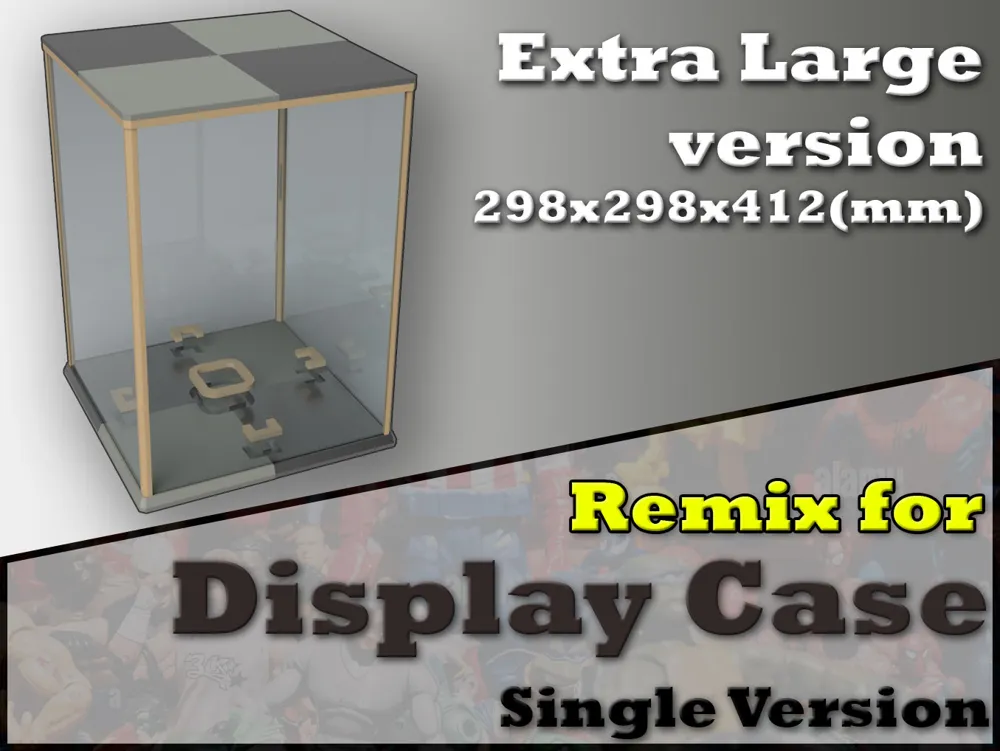

As requested. Here is Larger Size single version Display Case for Big Figures or Die cast models.
In this version of Display Case is made to be used with Glass (or Acrylic Glass) with size of 420mm x 290mm x 2mm like this one:
510px
If this Display Case for You is too high and You are OK to cut Acrylic glass Then You can cut Corner Poles in size You need in a slicer program or ask me and I made separate Corner Pole model for You.
Inner Compartment Size is 298x298x412mm. Can be reduced in height by cutting Corner Support Pillars in slicer.
List of Parts and assembly schematics:
| Bottom Base 4 x Split Parts of Base Platform (Print one 4 times) 1 x Centre Connection Ring 4 x Connector Pins (Print one 4 times) |  |
| Corner support Stands 4 x Top halves of stands (Print one 4 times) 4 x Bottom halves of stands (Print one 4 times) 4 x Connection stand Pins (Print one 4 times) |  |

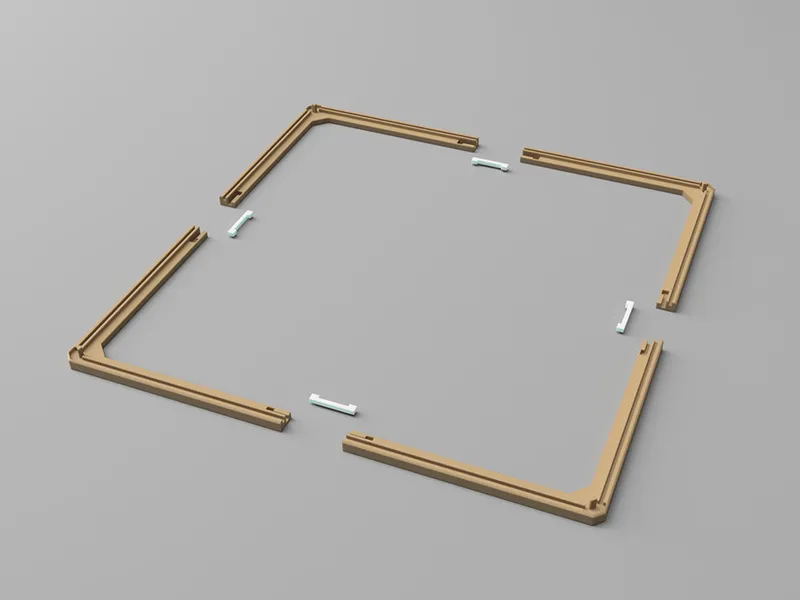

| Top Support Bracket 4 x Split Parts of Support Bracket (Print one 4 times) 4 x Connection Pins (Print one 4 times) |  |
| Top Lid 4x Split Lid parts (Print one 4 times) 1 x Centre connection circle 4x Connection Pins (Print one 4 times) |  |
TIP
Use a Glue putting parts together for stronger construction. Good idea is to use a bit of glue on ends of glass panels as well.
You can Buy me a coffee if You feel good doing so :)
https://www.buymeacoffee.com/warlogh
(And very big Thank You For interest in my work)
