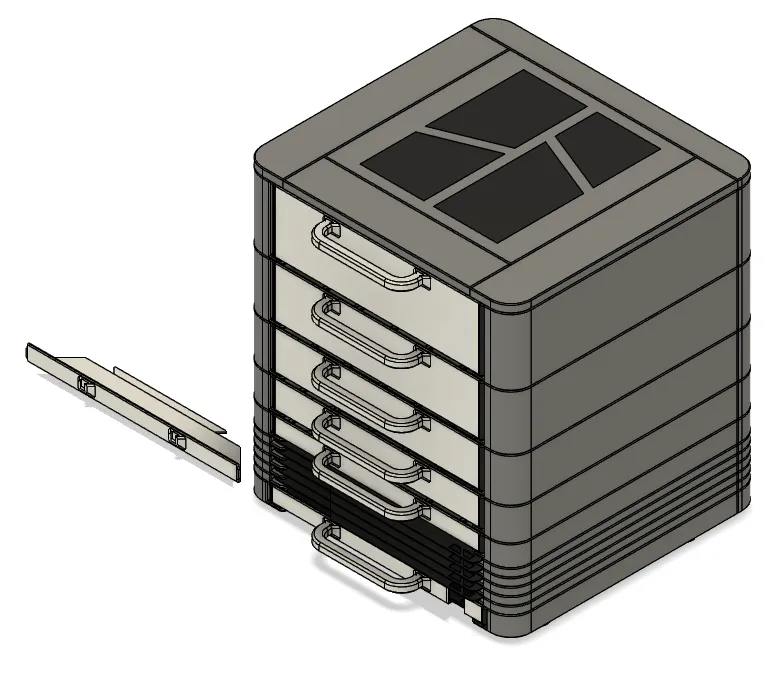

This is a the full assembly directing you to the parts you want to download, you do not have to download the step files unless you want to make changes to the full assembly, further down in this post you will see all the parts you want to build your own custom organizational system.

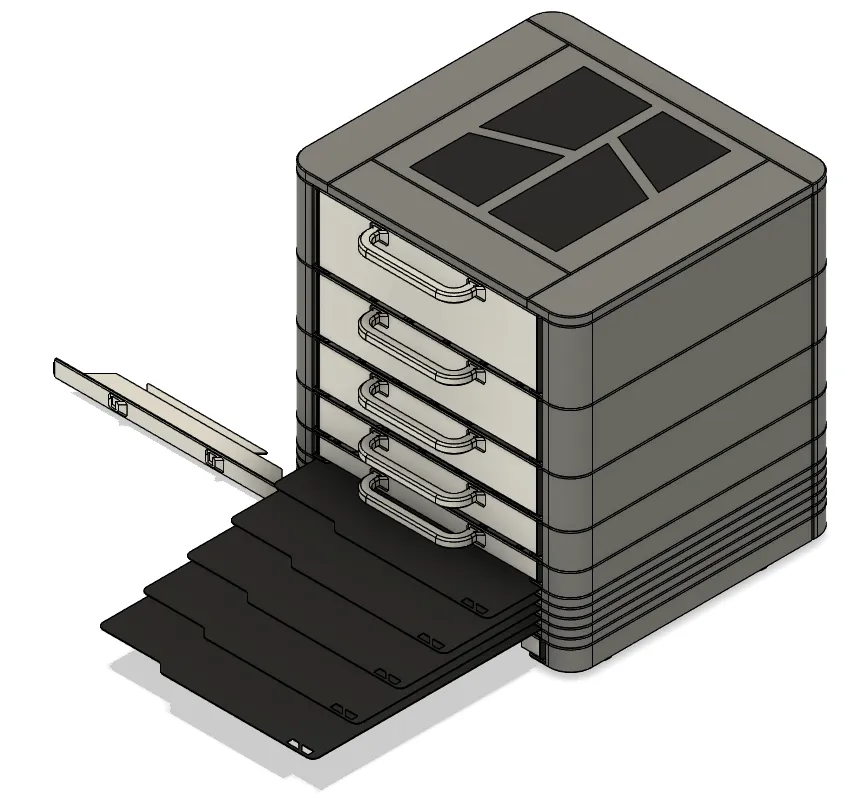

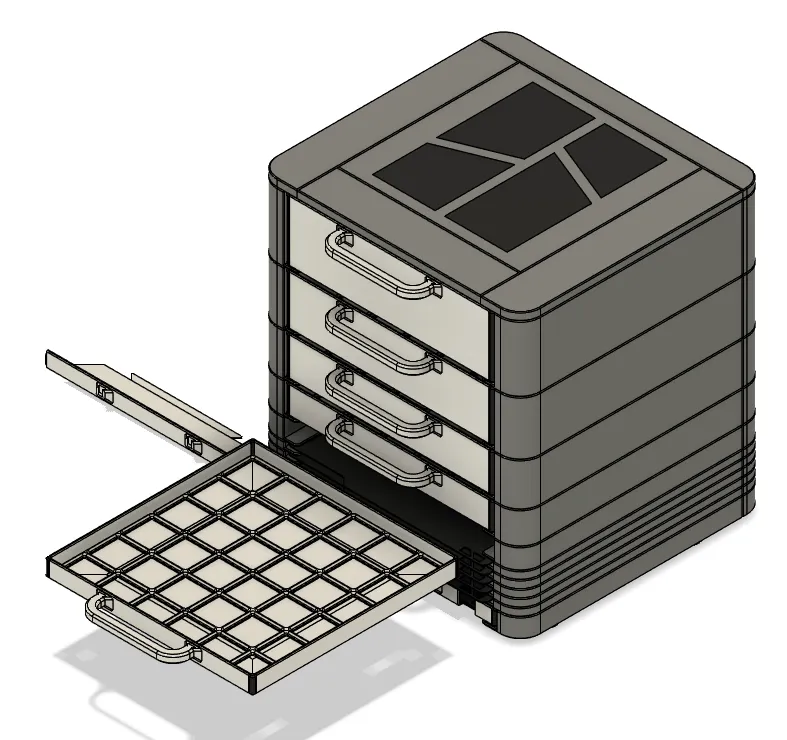

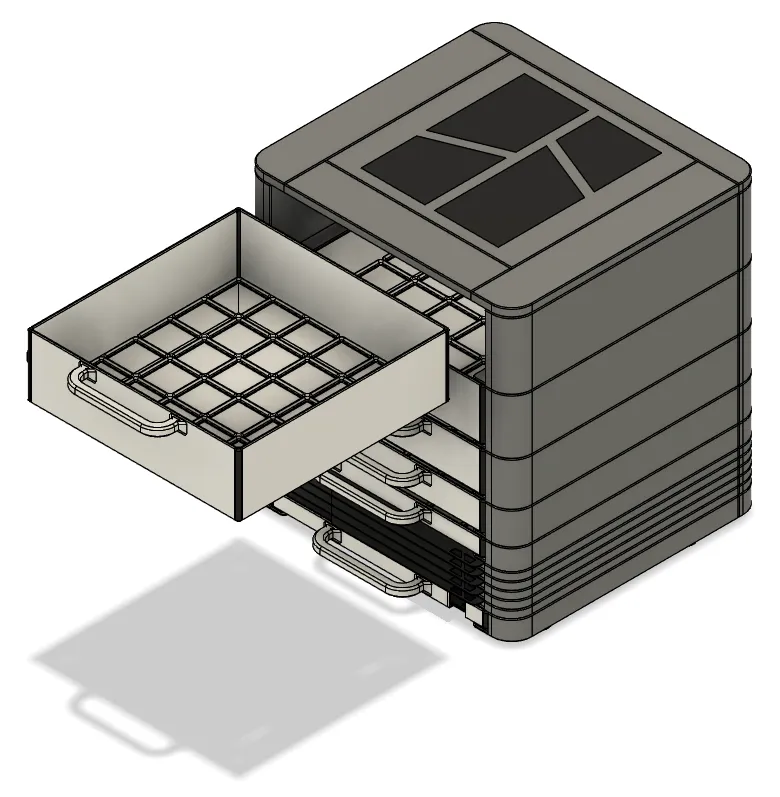

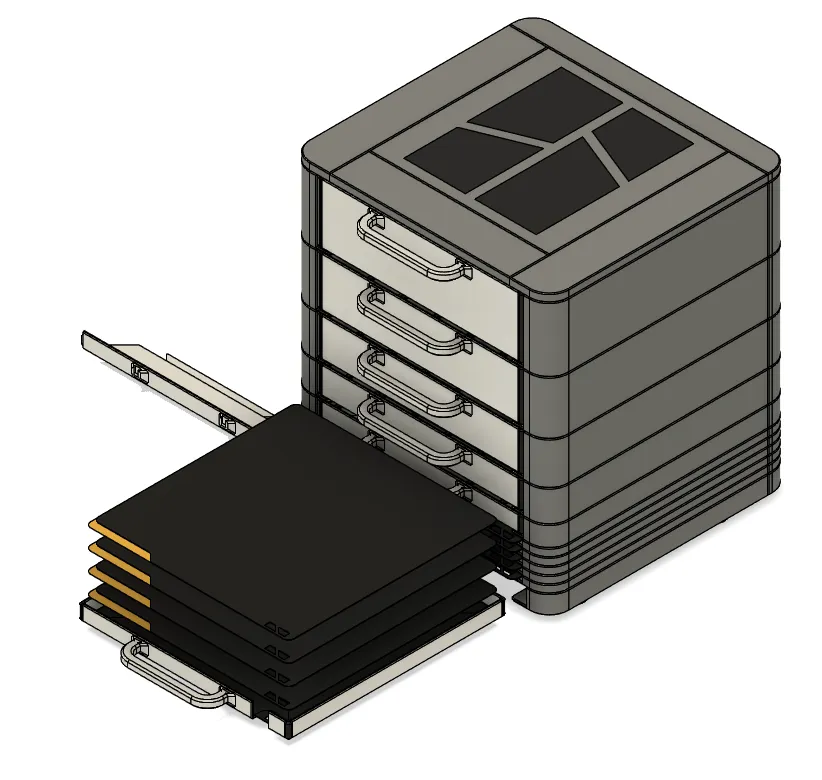

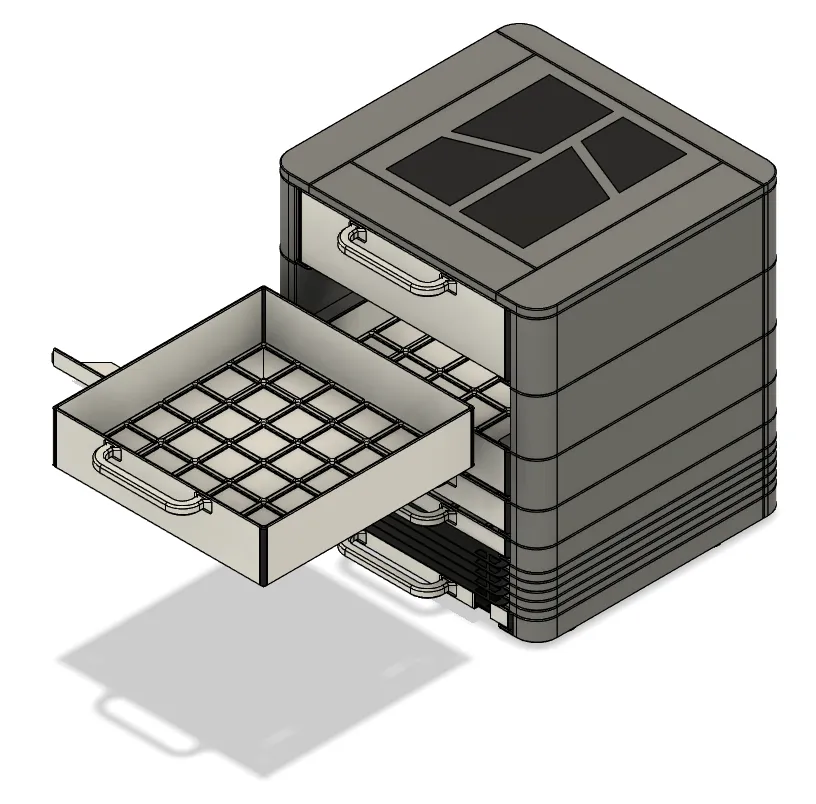

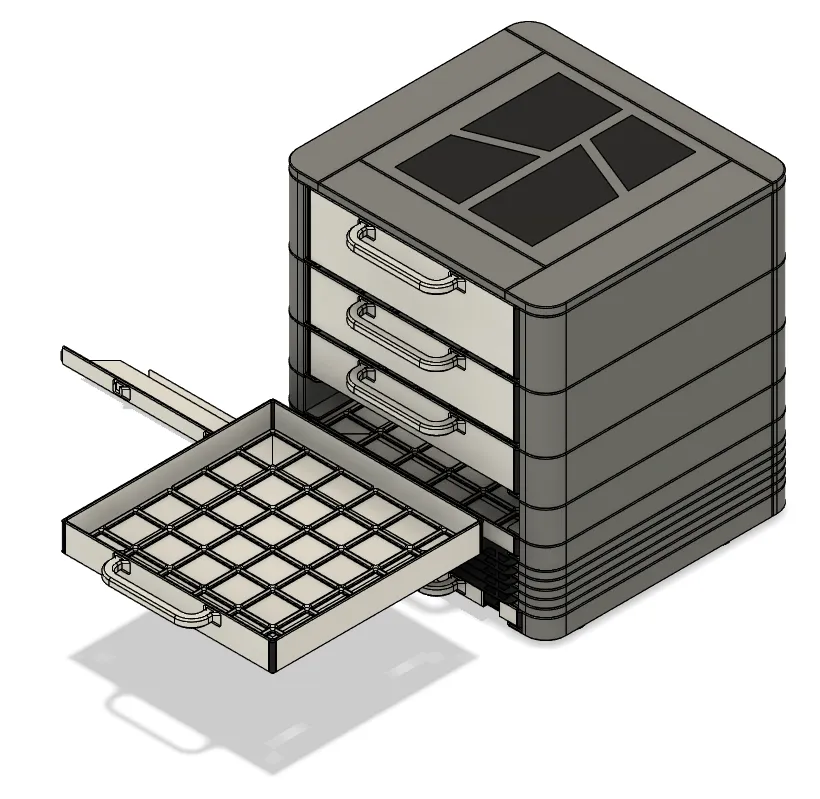

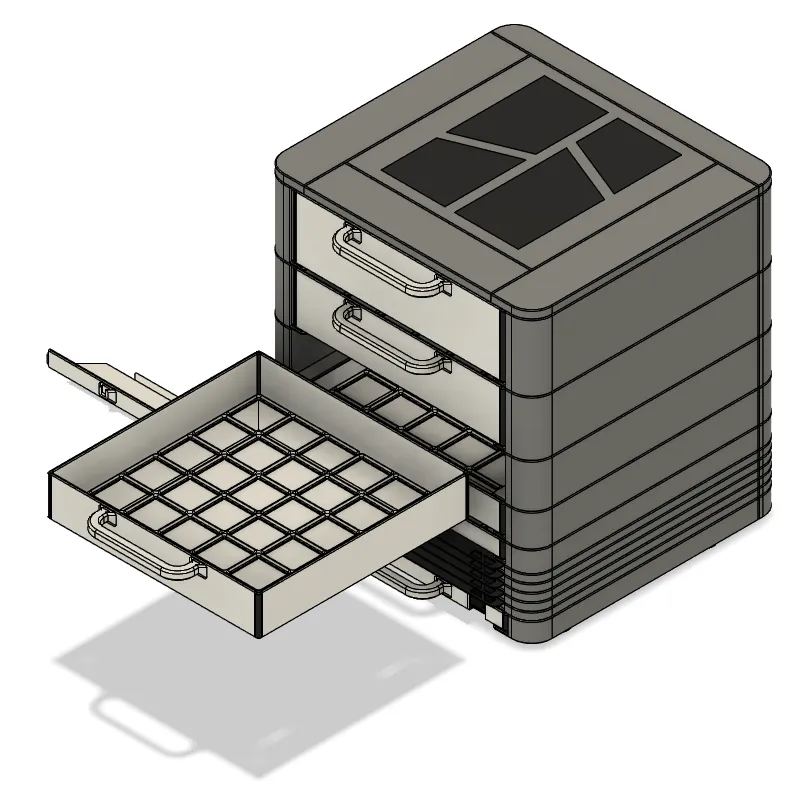

The system besides the drawer for the spare bed sheets and the bed plate holders are following the gridfinity standard, any gridfinity bins you have will fit this design. All drawers are 6 units wide and 6 units long, the drawers I provide are 2,4,6,8 and 10 units high. If you want a different size the fusion 360 and step files are included in all models.

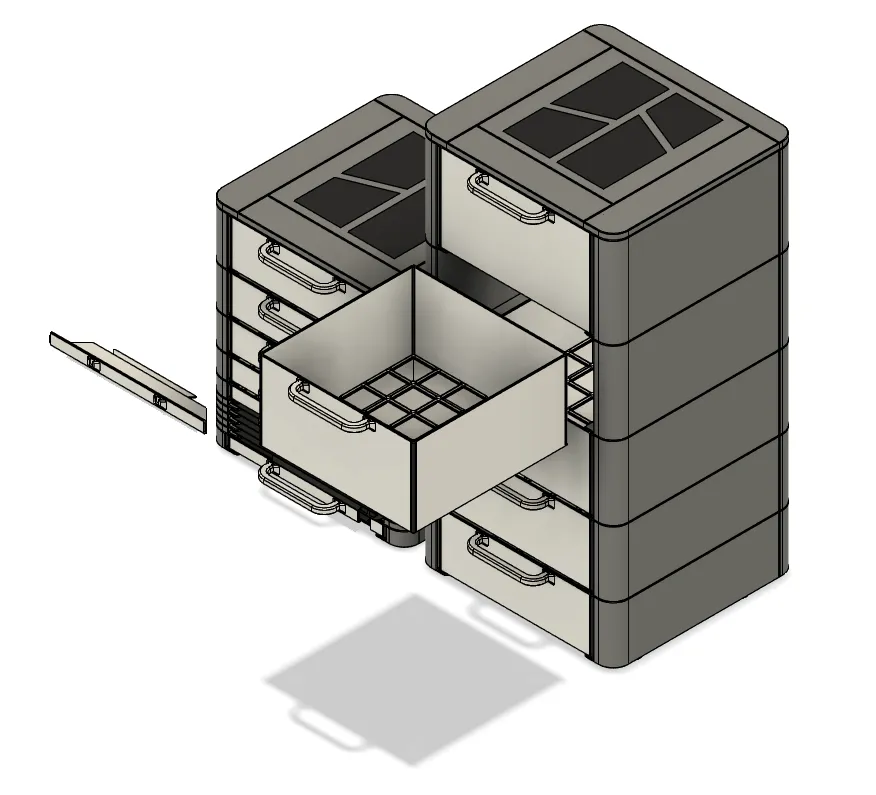

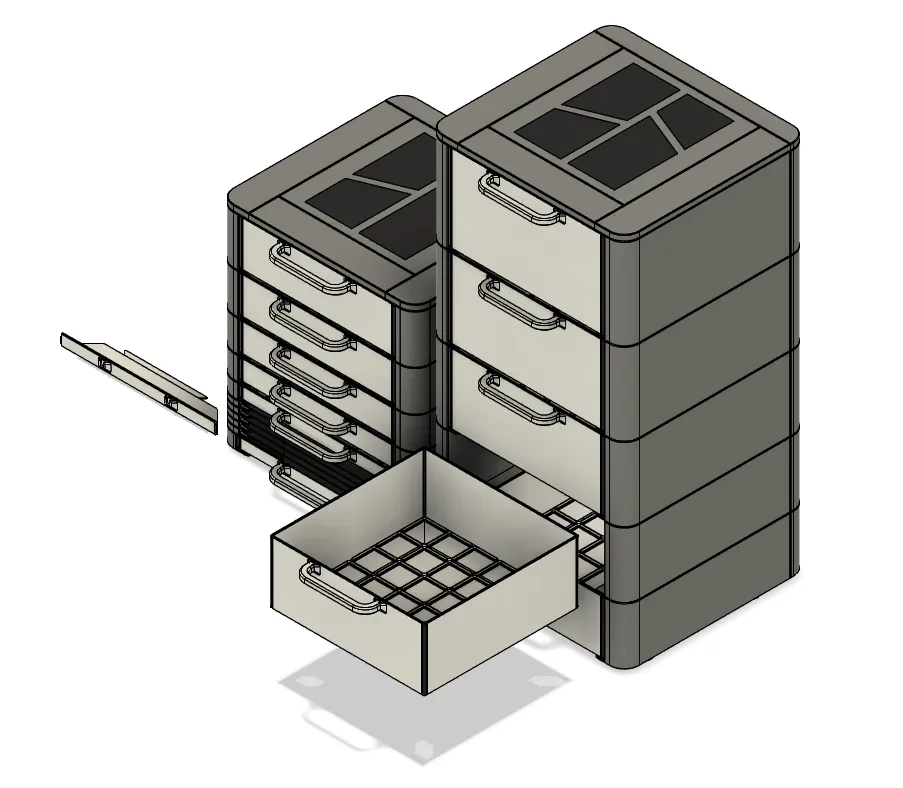

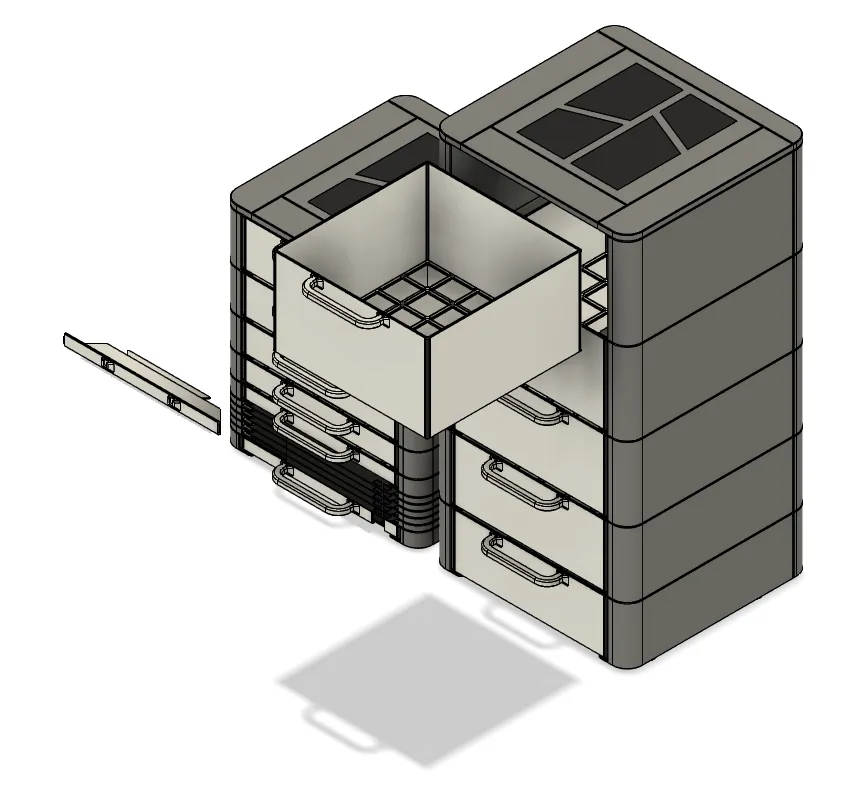

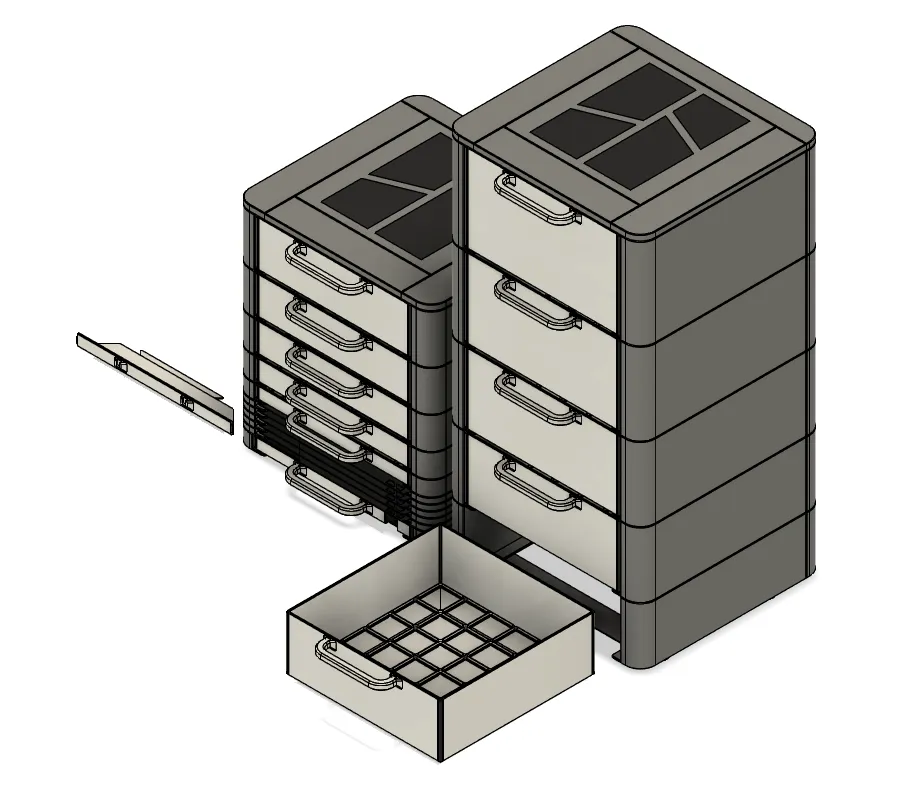

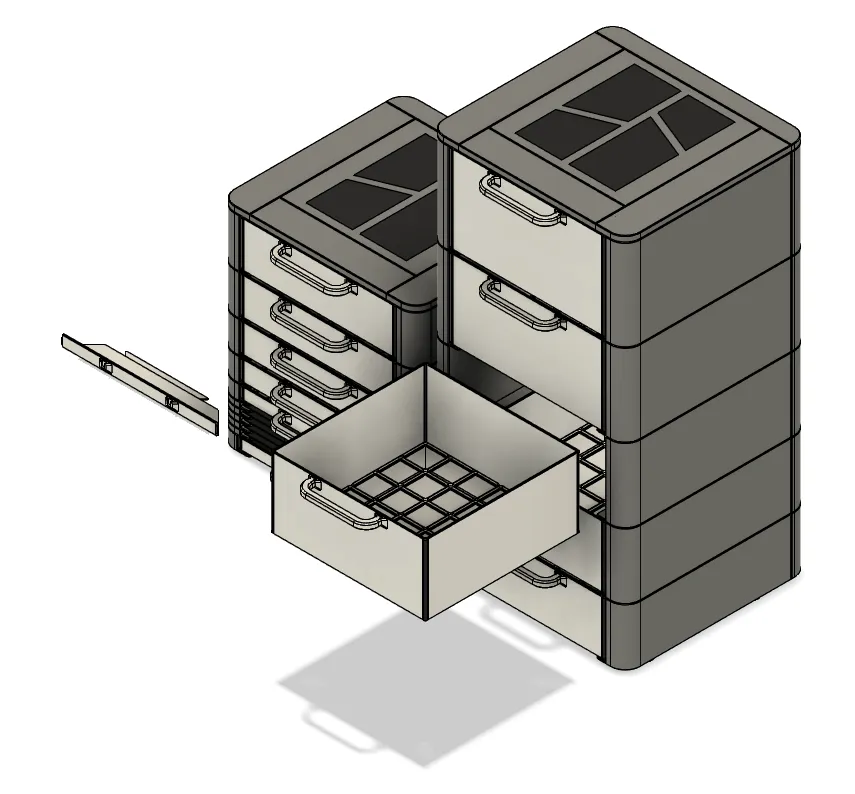

As requested by the community I have now added taller drawers, 12, 14, 16, 18 and 20 units high, these are a couple real tall boys and can no longer print the corner pieces straight up. The corners will need support to be printed. There is only a single line being supported so its easy to clean, only a couple extra grams of wasted filament unfortunately.
Note: Even though the image show the drawers next to the original system, they all stack and fit the same, they were just so tall it would not fit the frame.

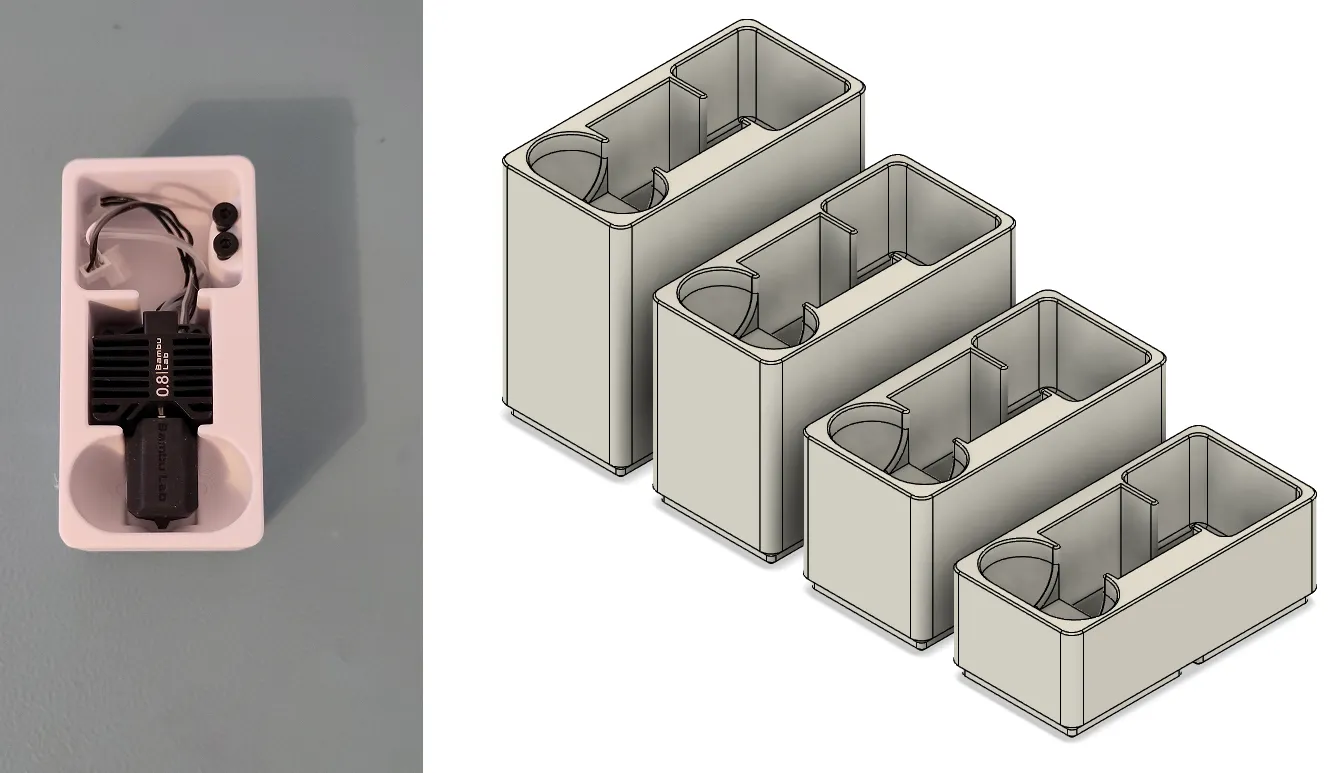

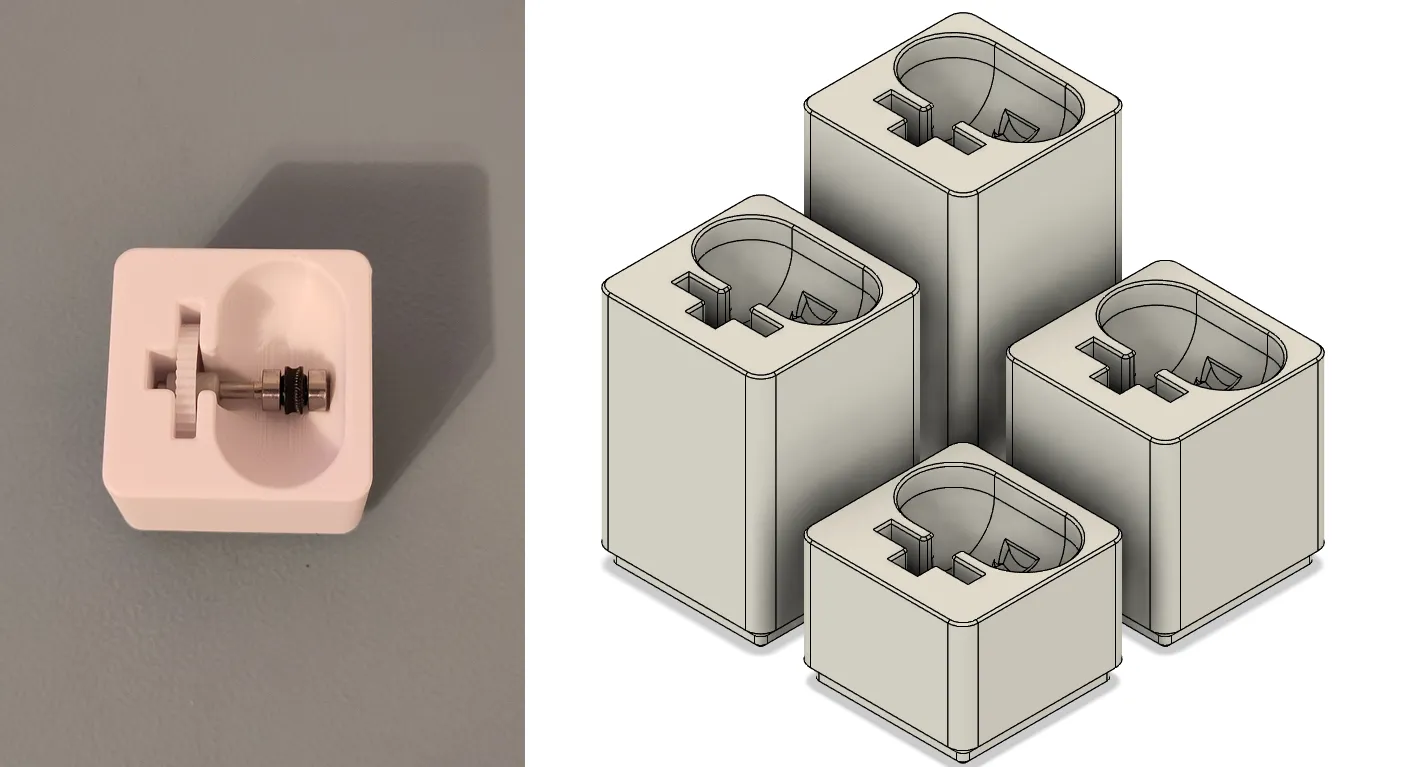

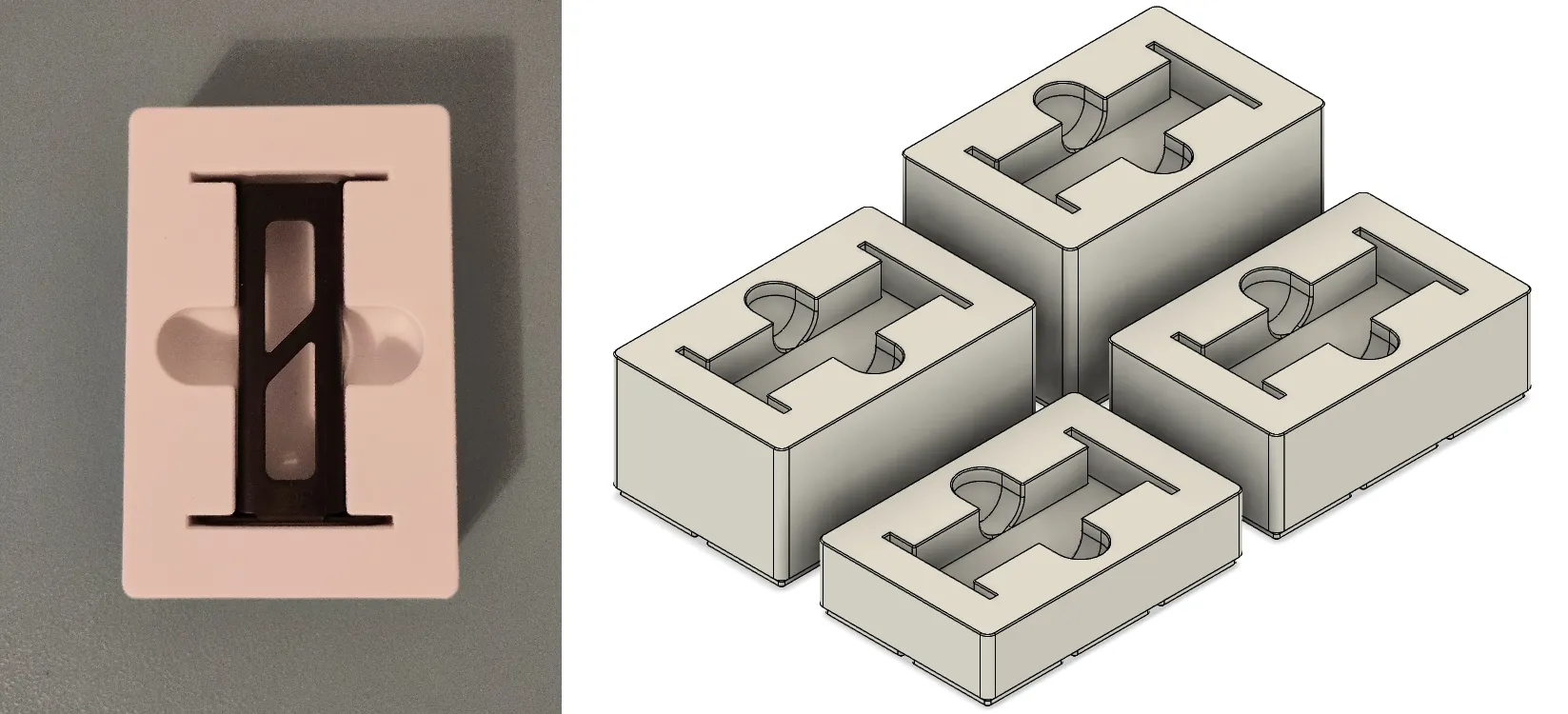

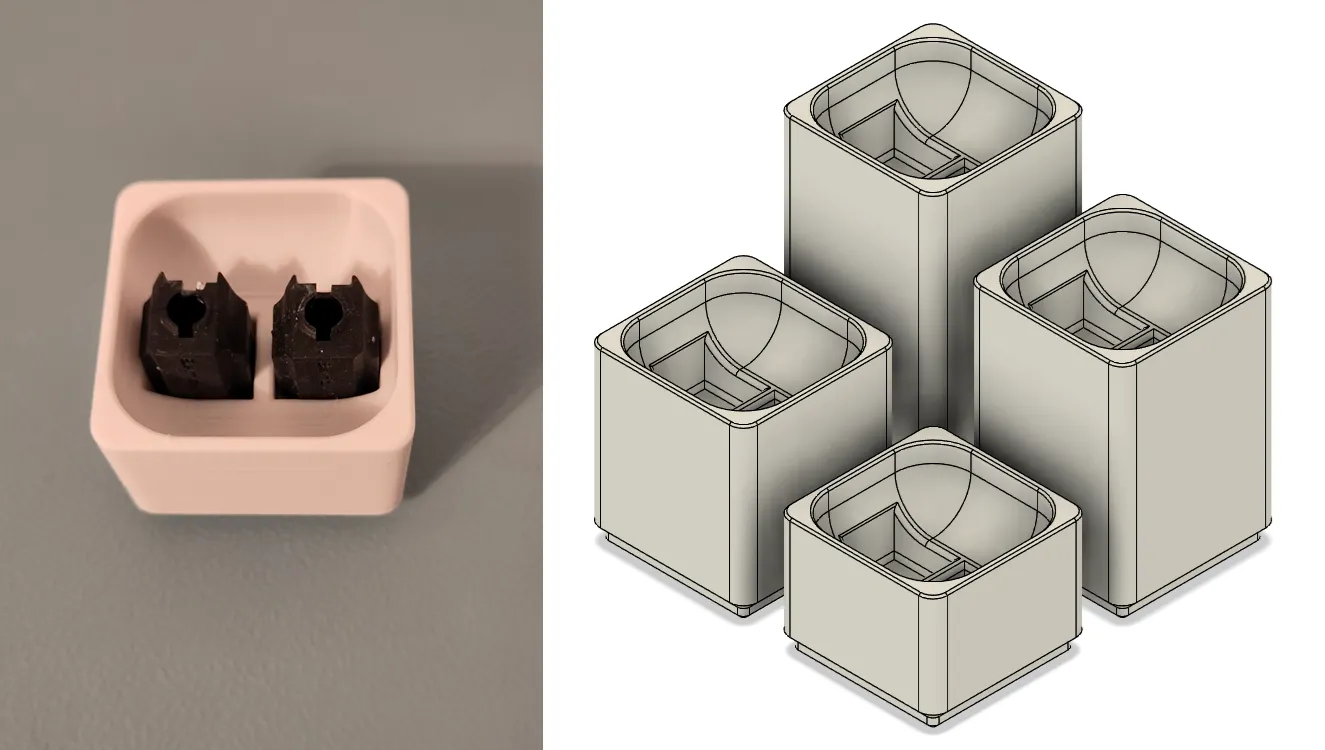

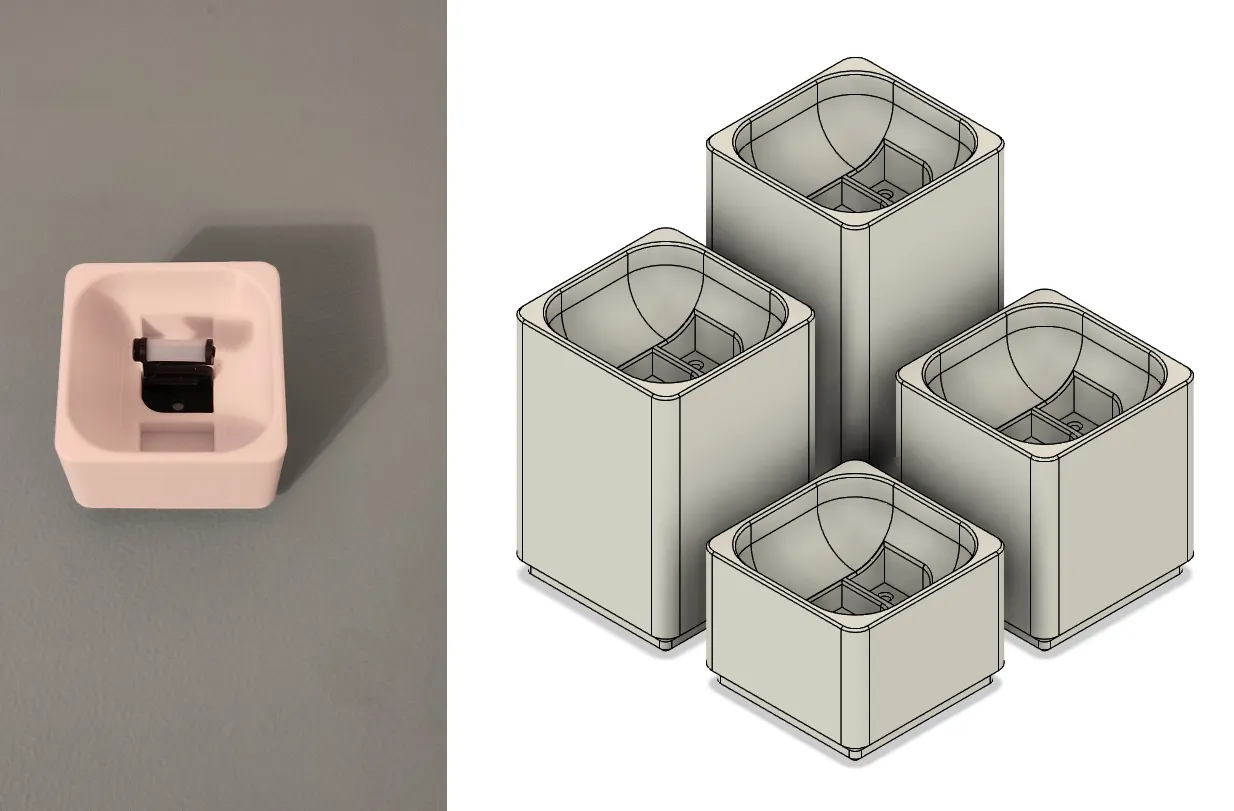

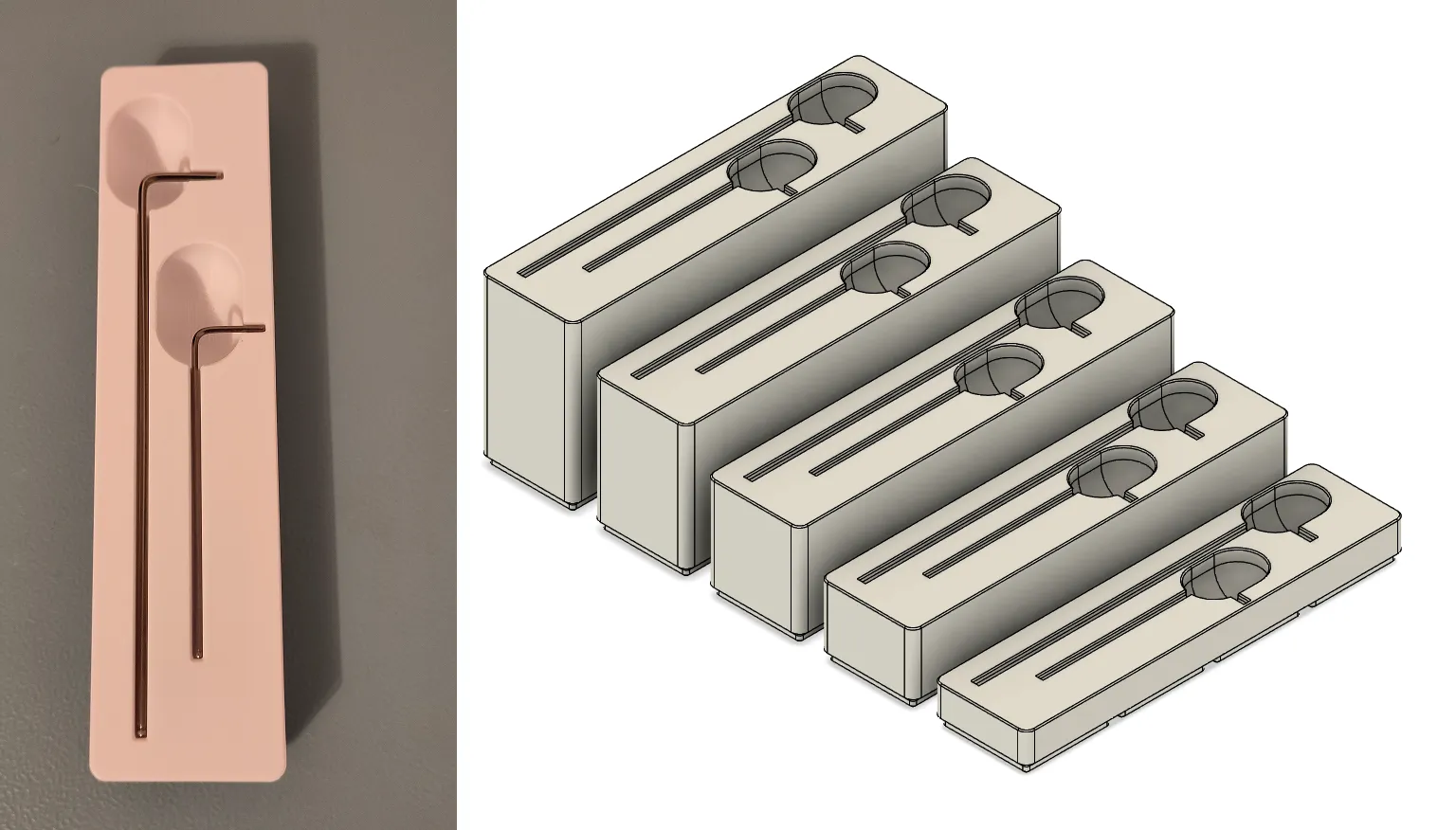

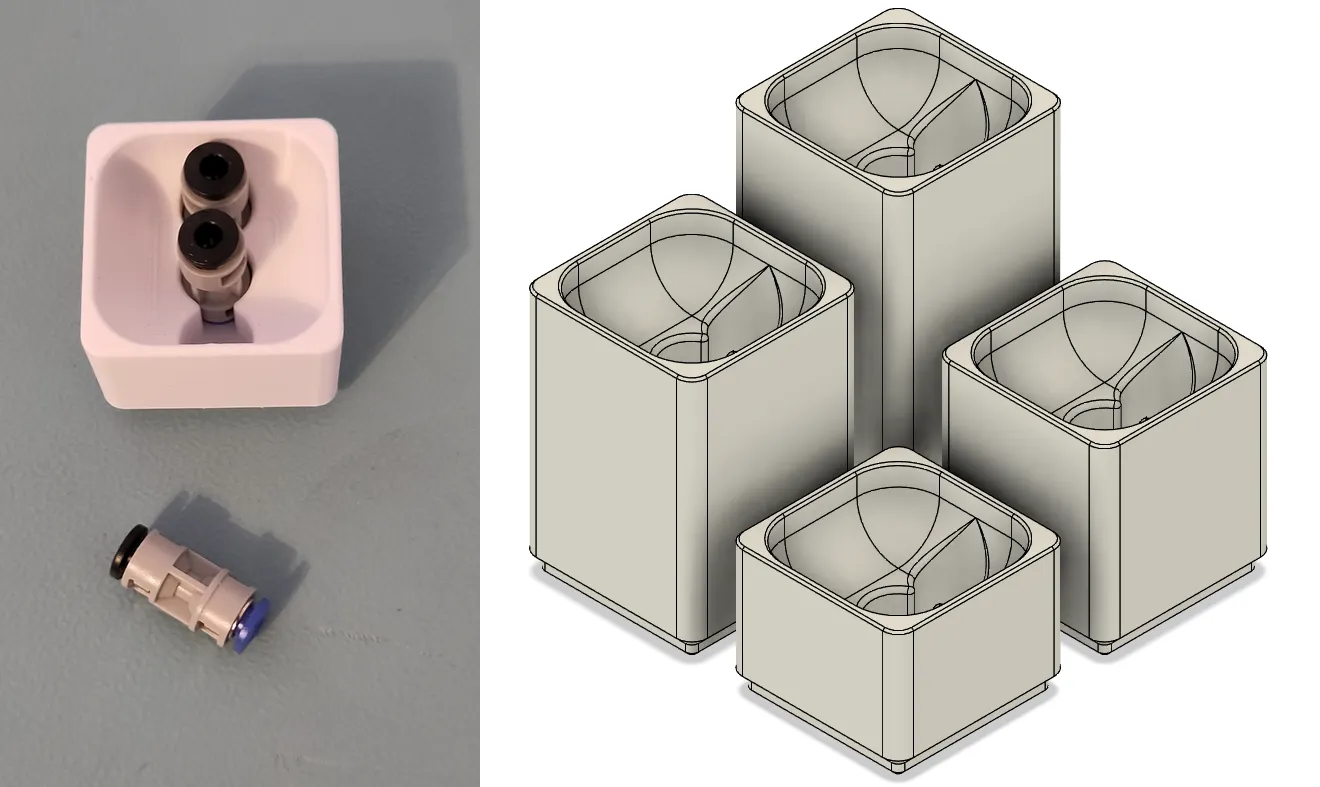

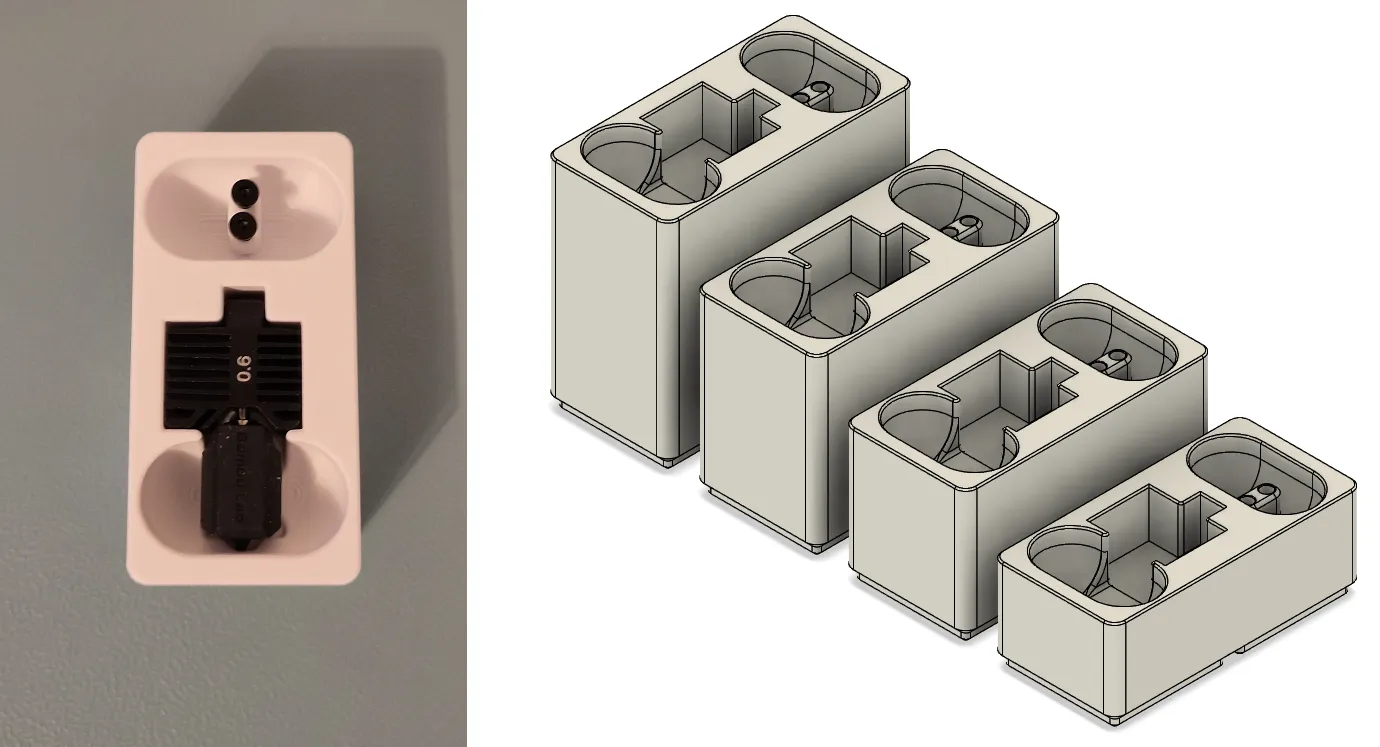

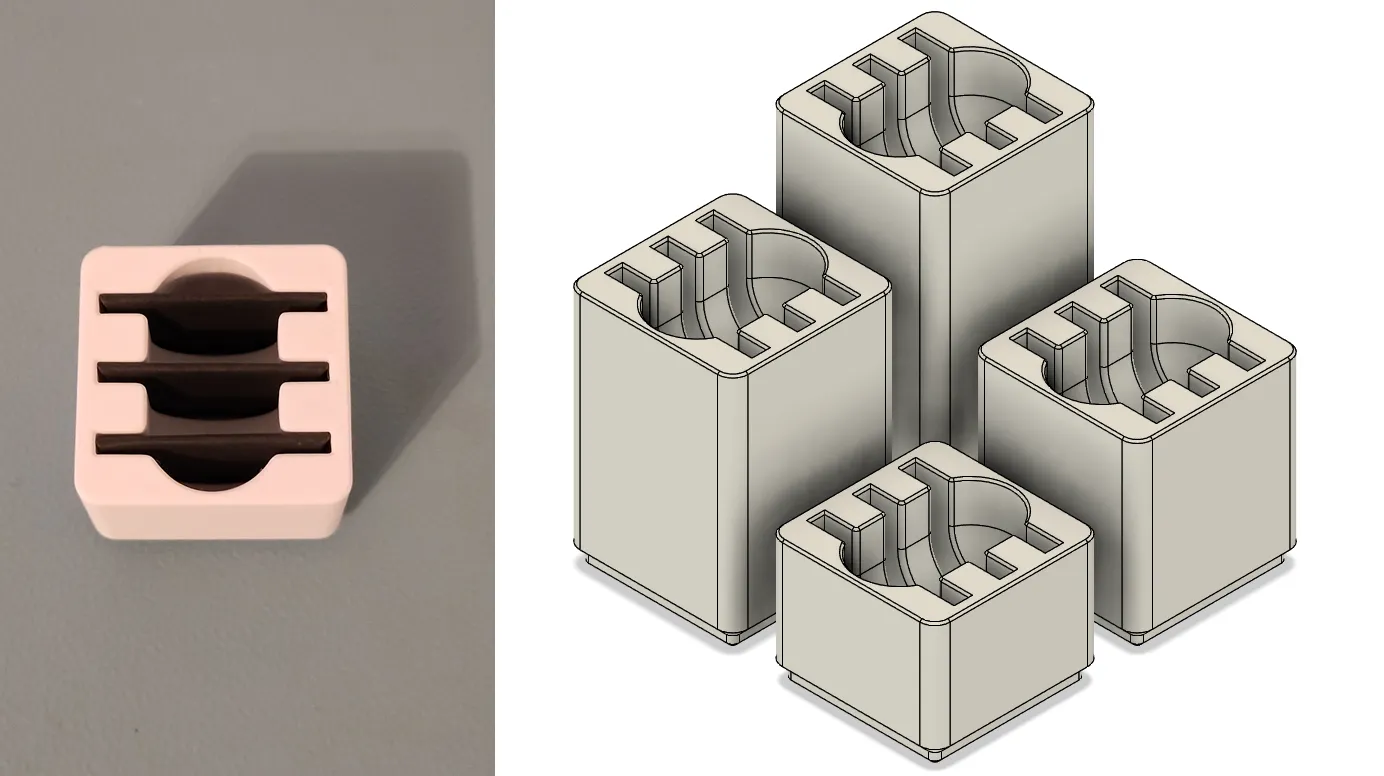

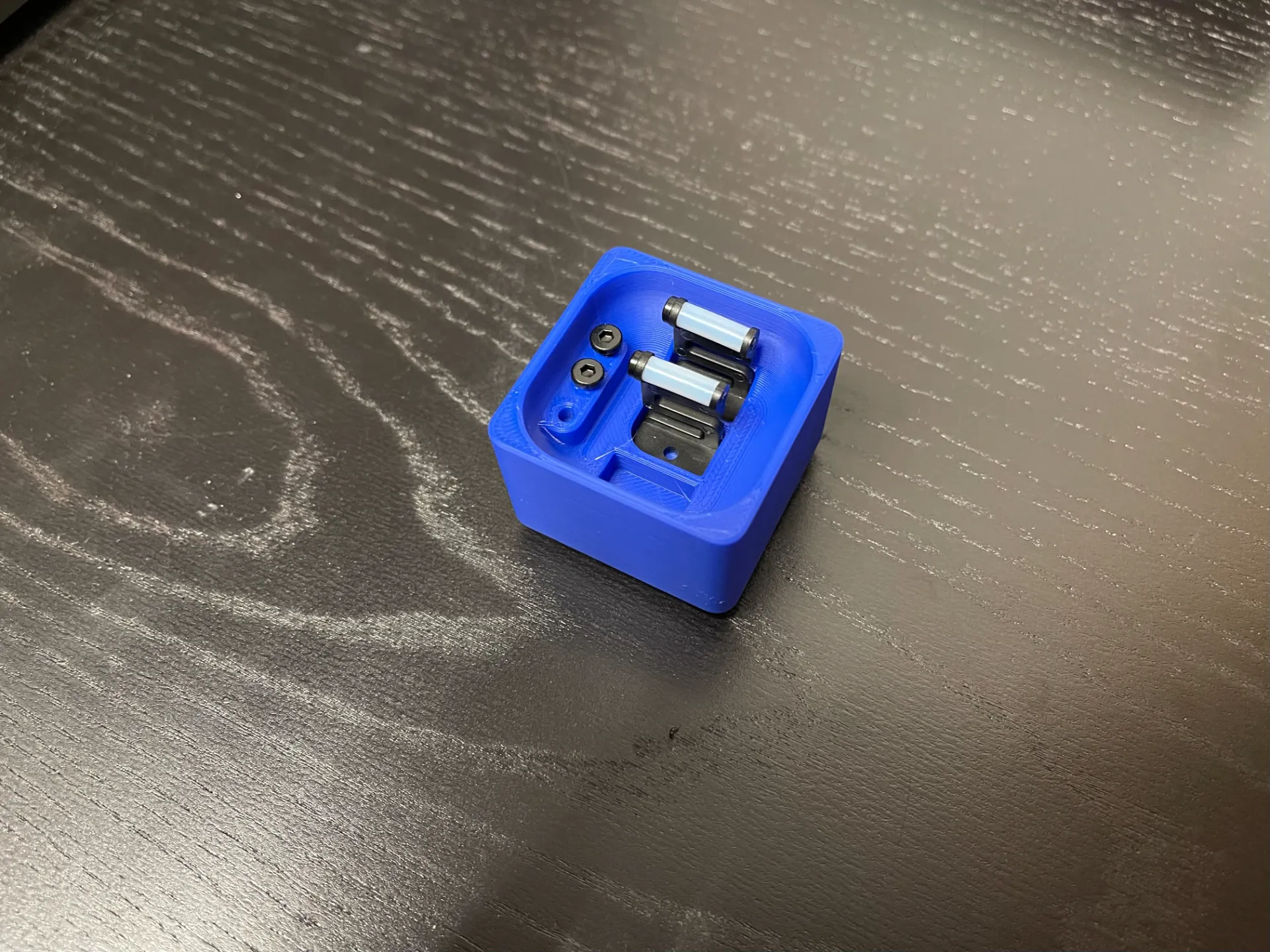

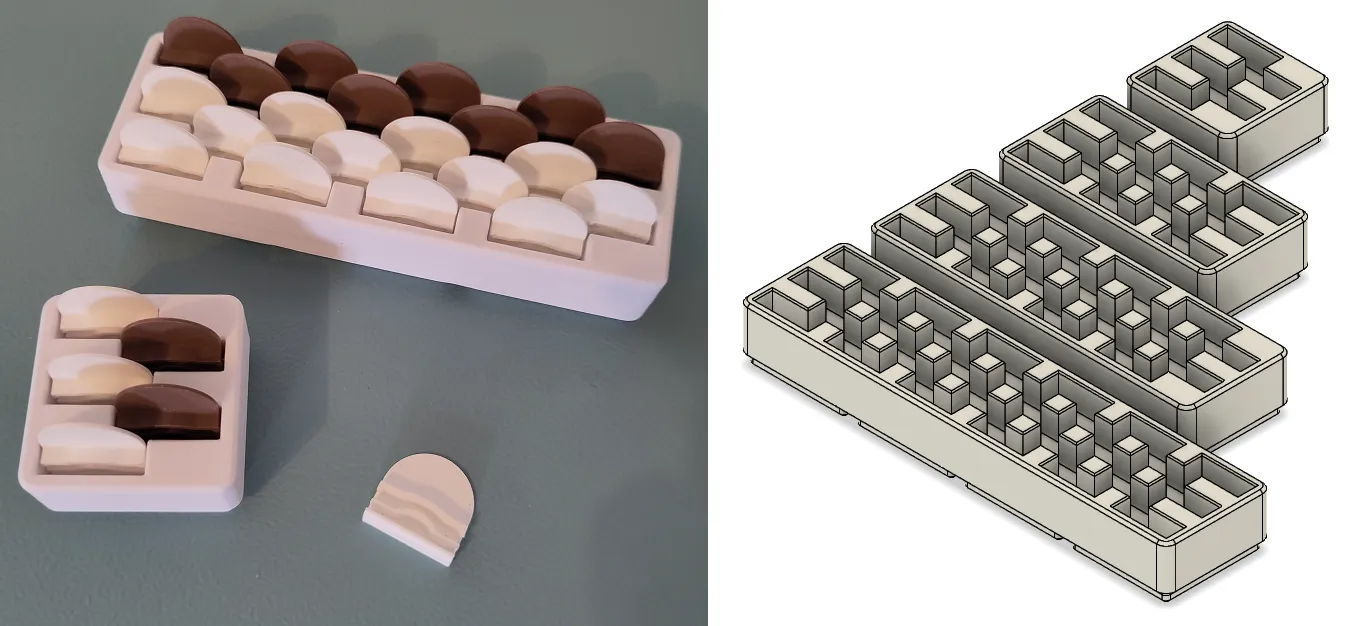

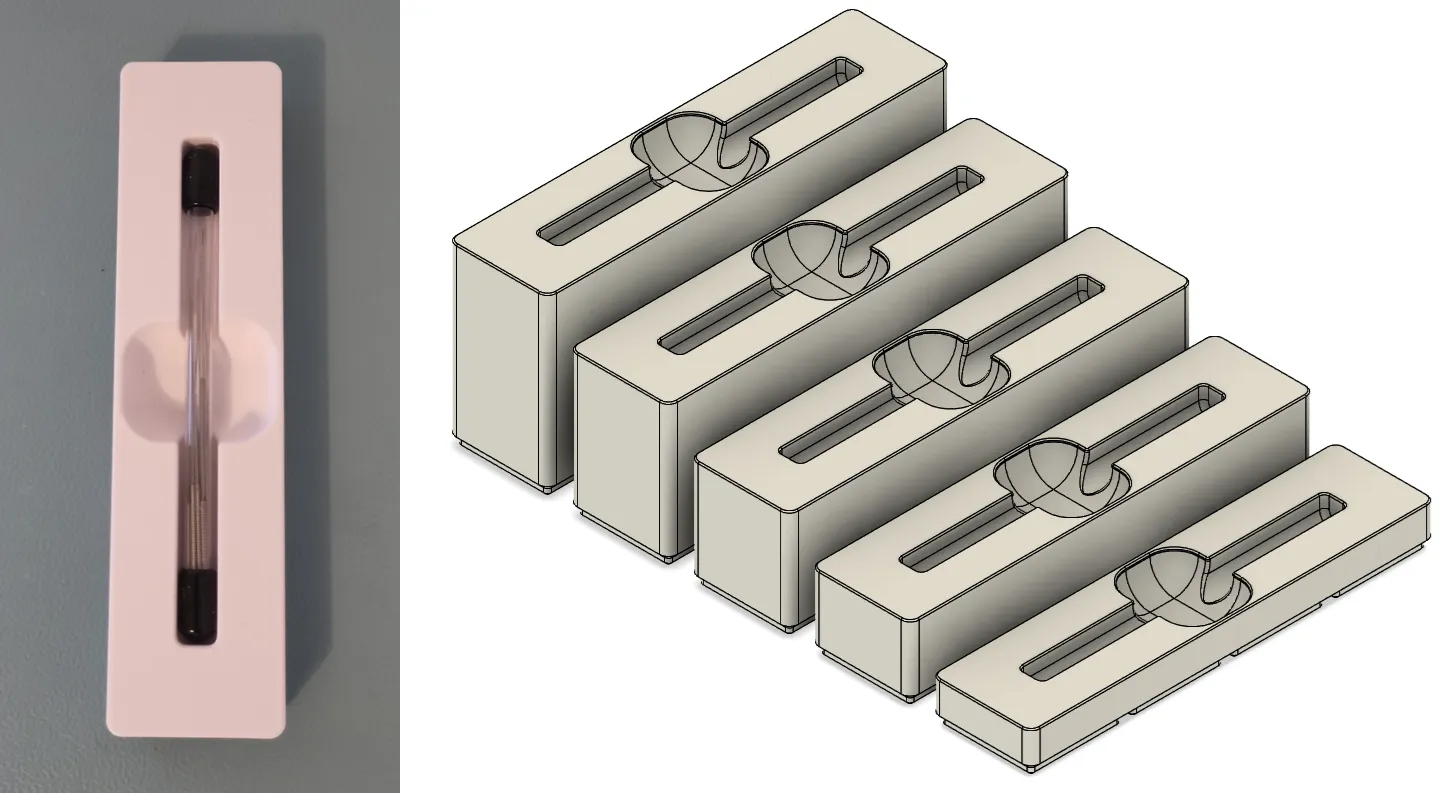

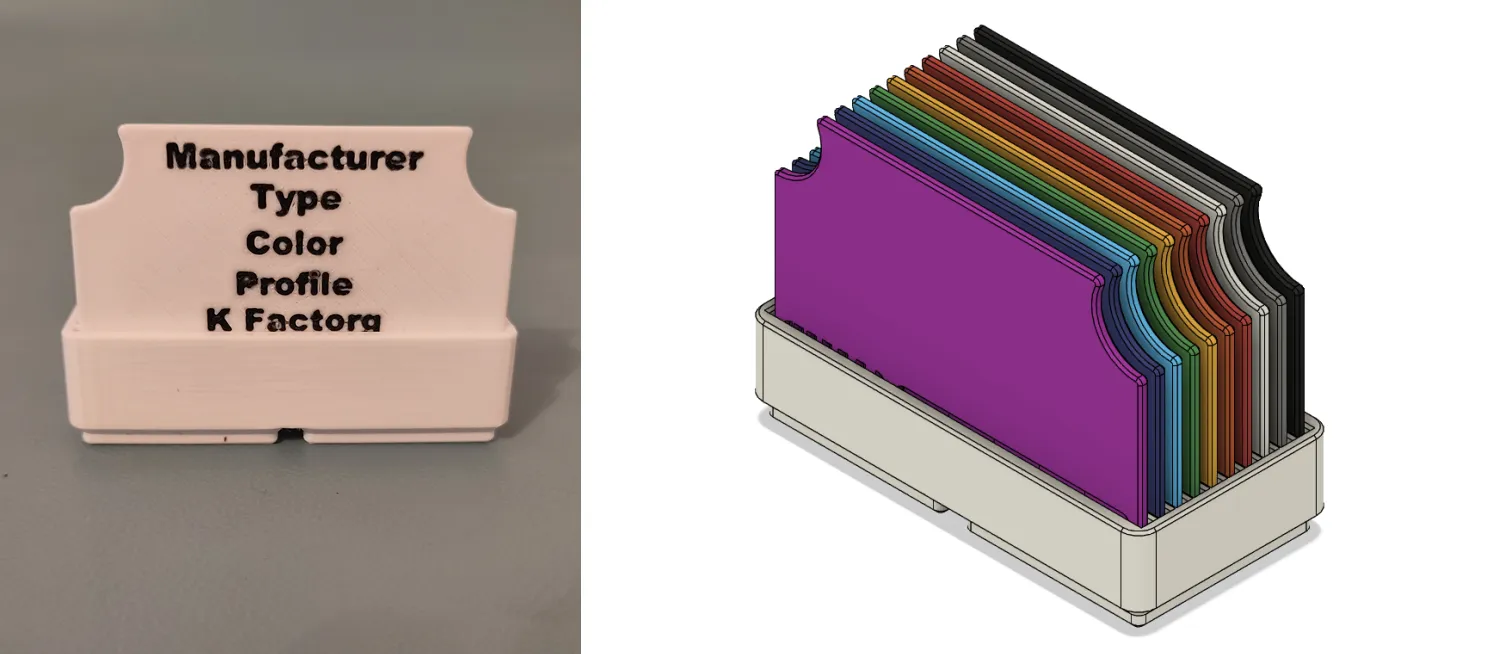

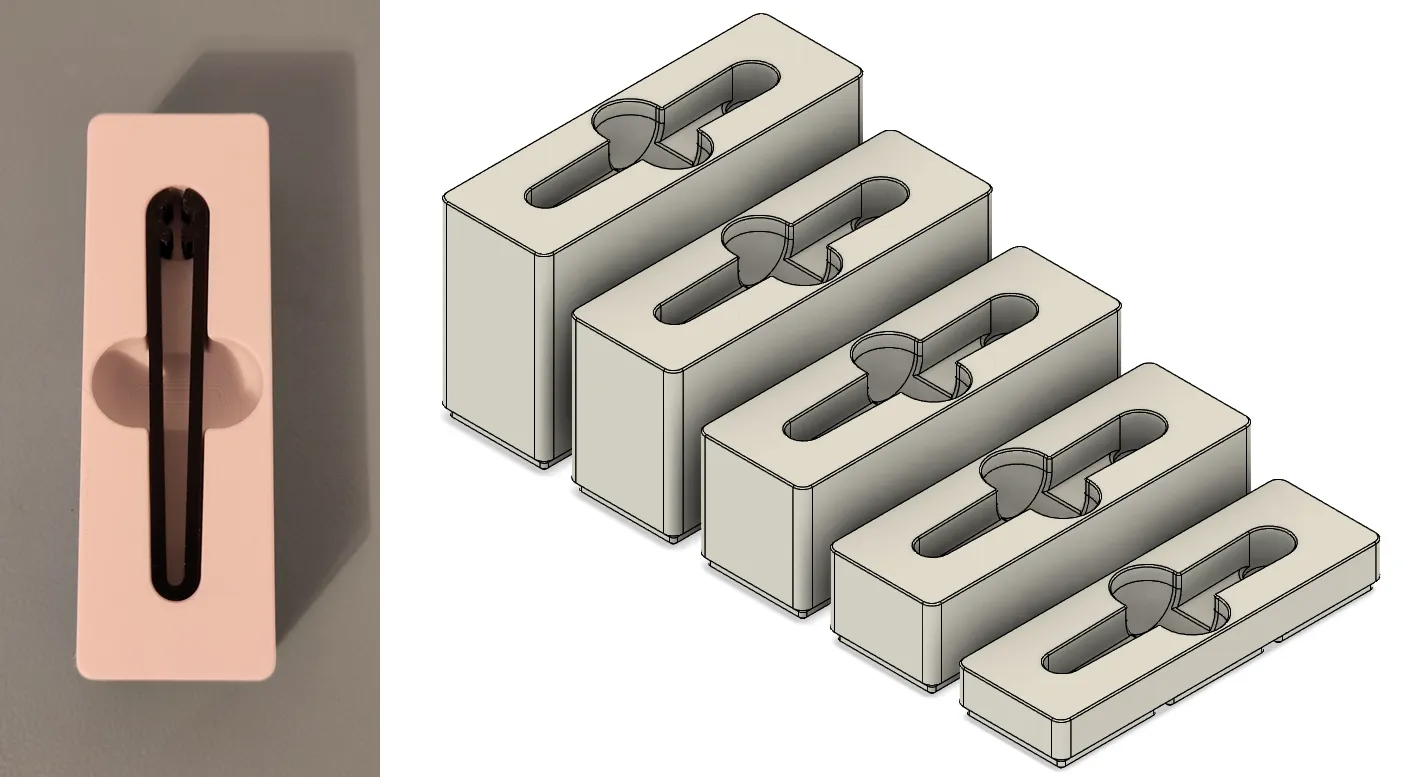

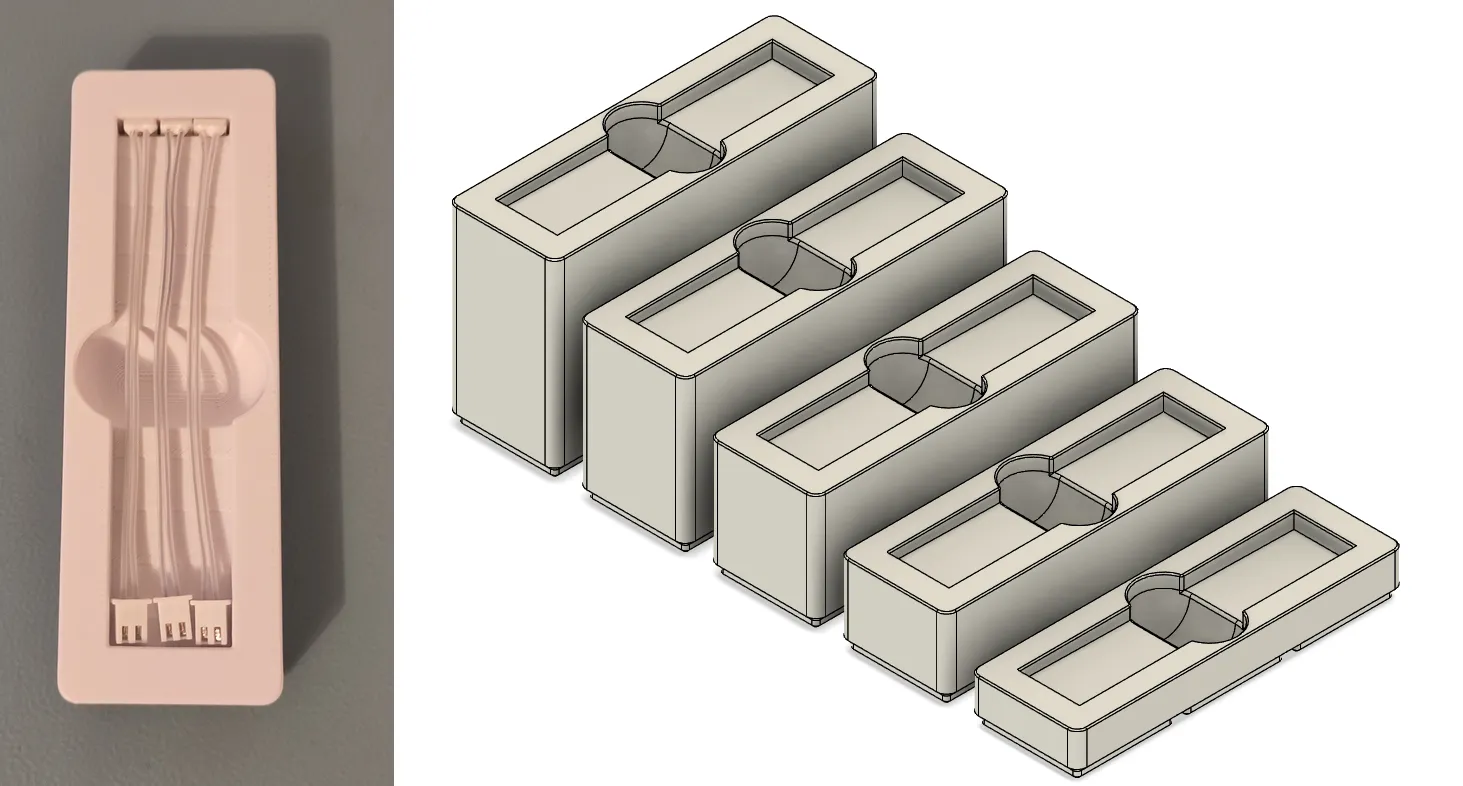

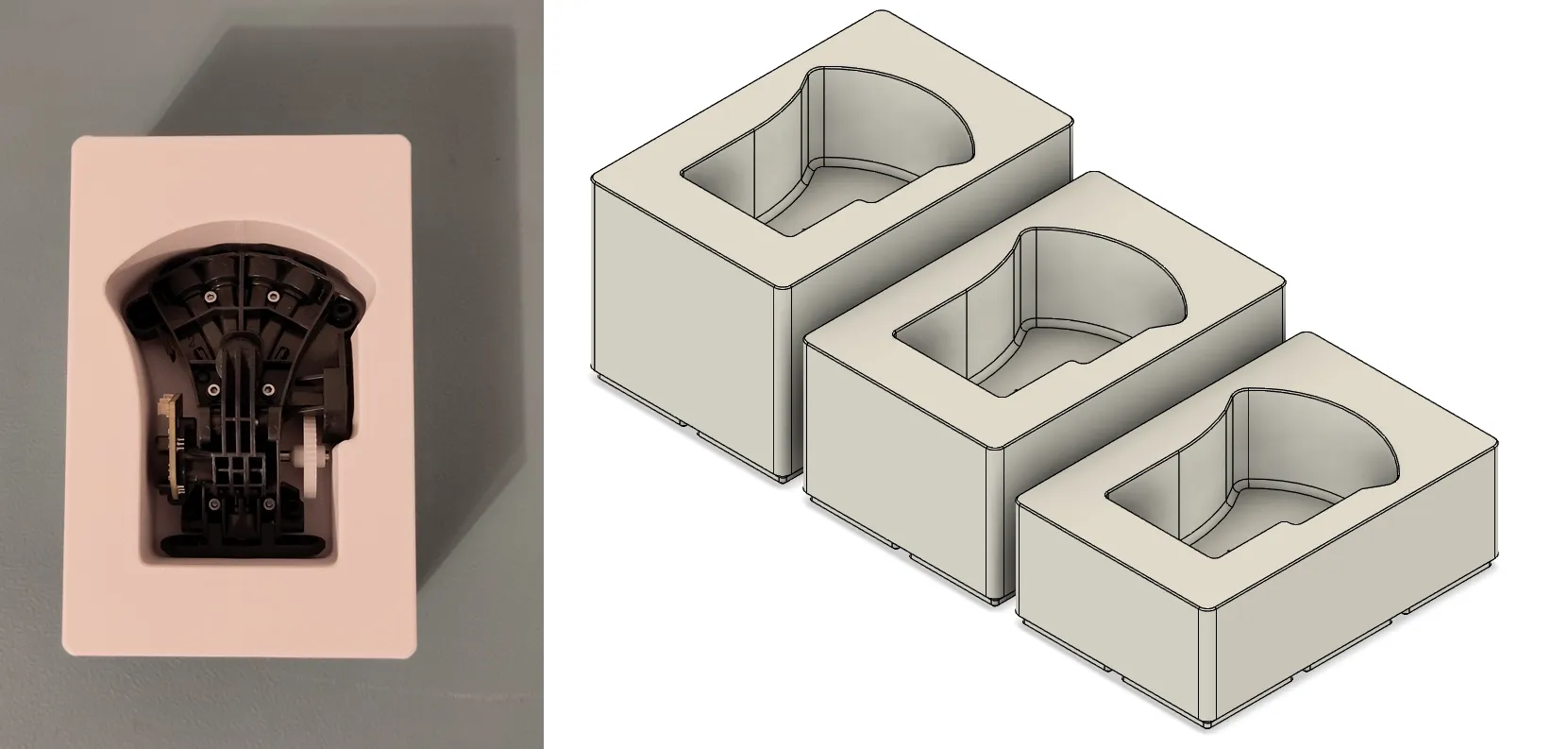

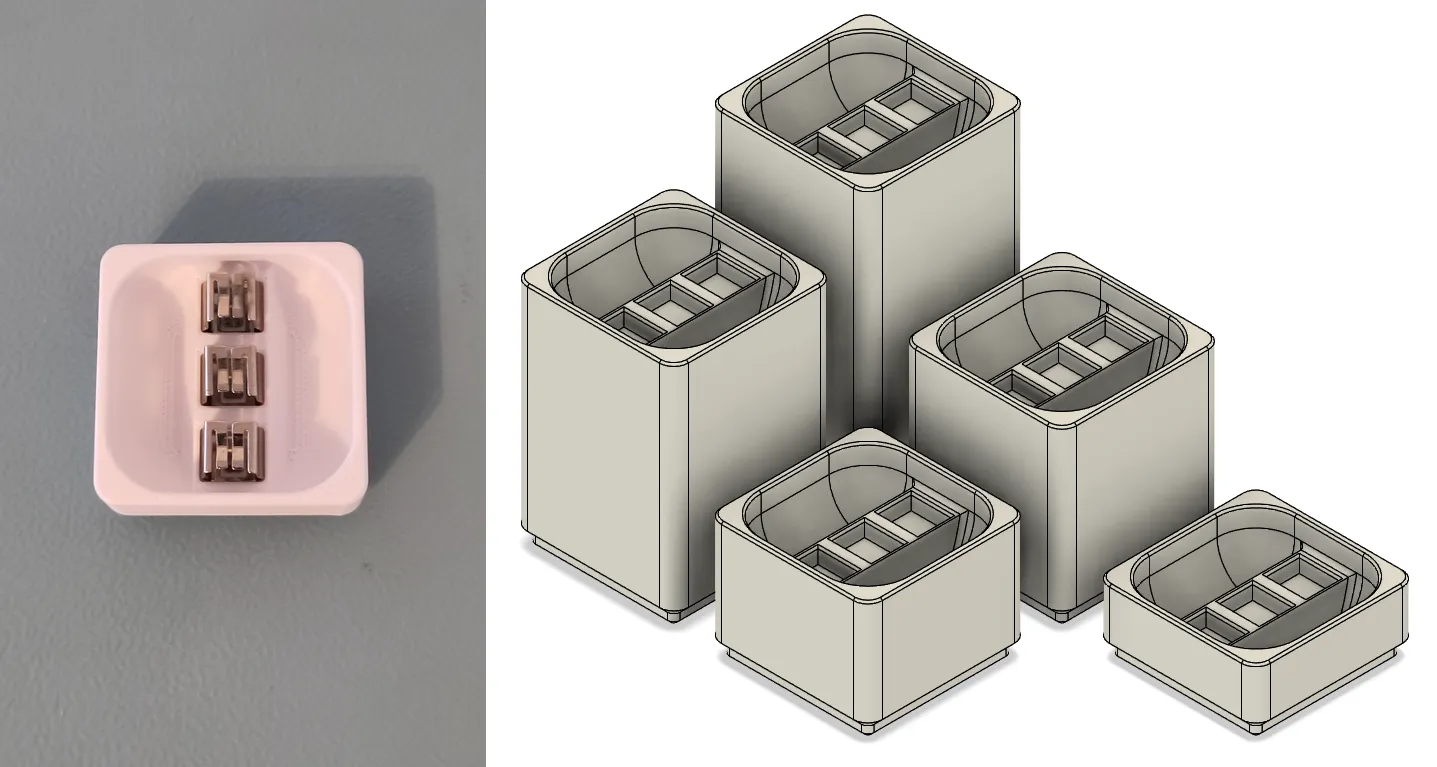

Due to me needing an organizational system ASAP and not currently owning every tool and item you would want to organize there is a chance your item do not yet have a bin to store it in. If you make a bin for your item please share it with the rest of us. I will keep the list updated with all new bins I make. If you do not have the knowledge to make a bin, please comment and I will try to prioritize that bin for you. If I do not have the item I can not take measurements and test it, in that case please check out my other models, if you find something you like please download and print it so I can get a gift card and buy said item to make a bin for it.
The organization system needs no extra hardware besides super gluing the drawers and the lid. The rack are all press fit and do not have to be glued, I would suggest gluing them together as well, a lot easier to lift/move the entire system if its stuck together.

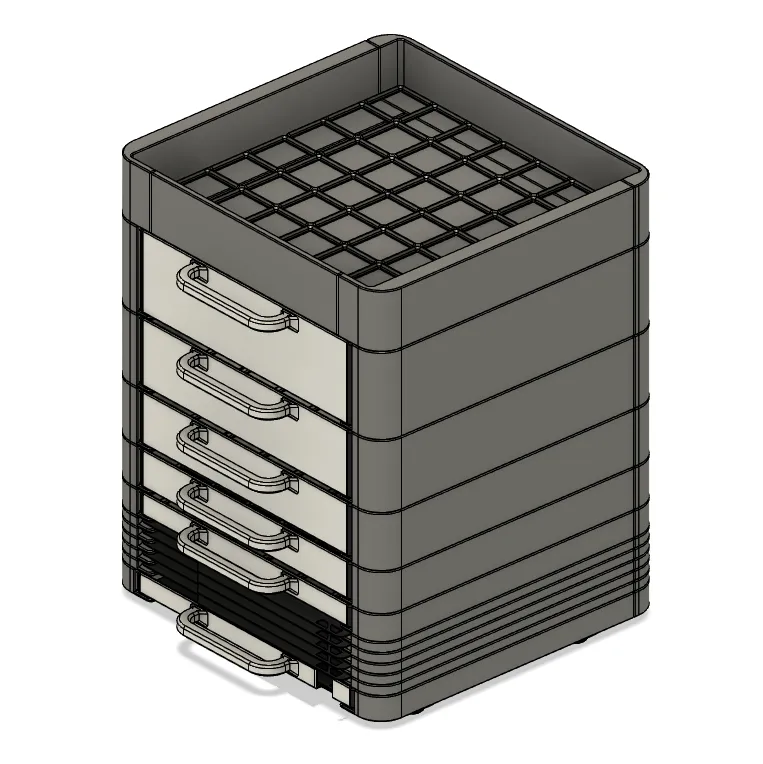

The system is fully customizable, use the drawers you need. You can build a system with only a single drawers, multiple of others, 2 bed plate holders or 15, you get the point, it does not matter, every drawers stacks the same. I suggest first making the bins to then figure out what drawer heights you need to store it all.
Rack | |
---|---|

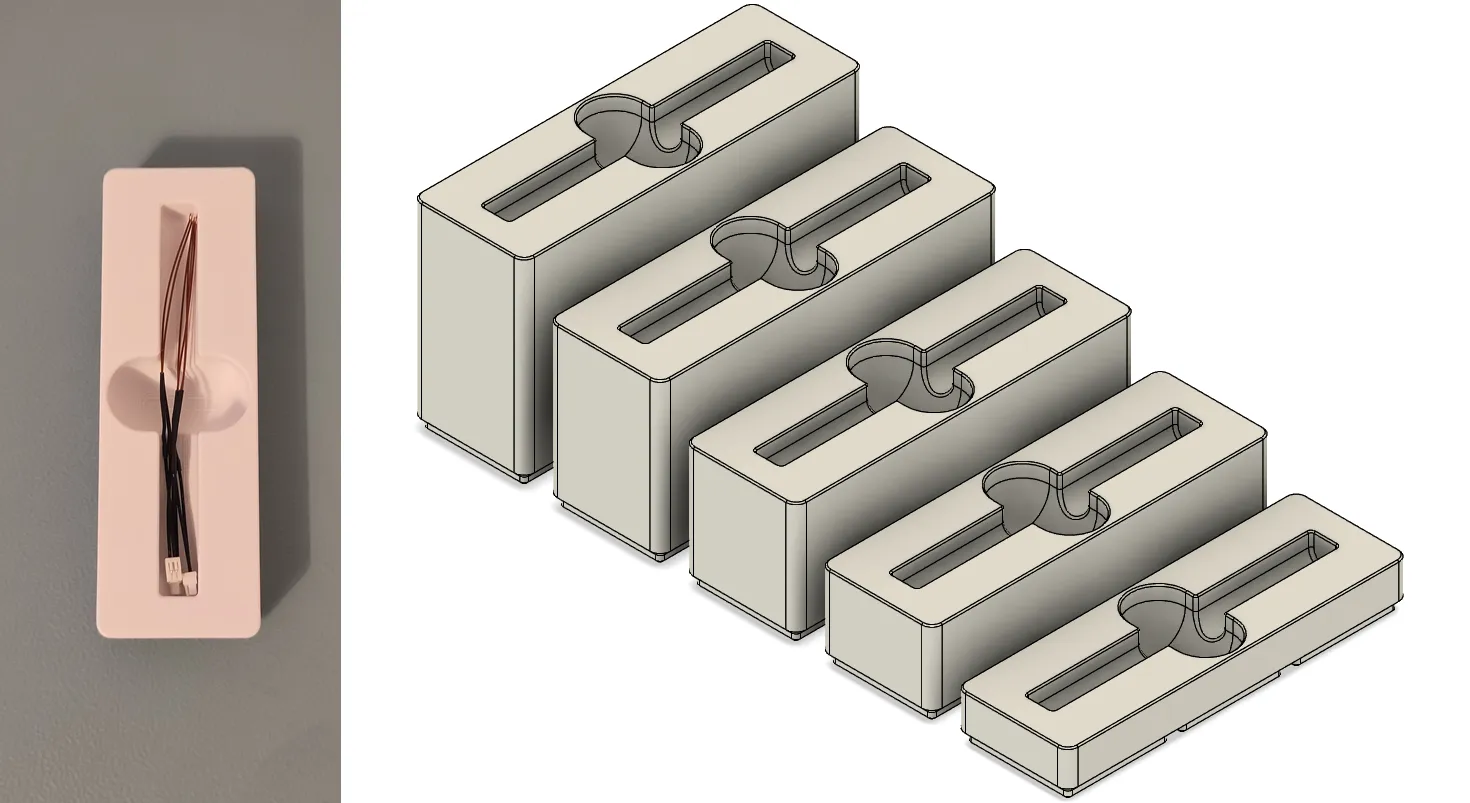

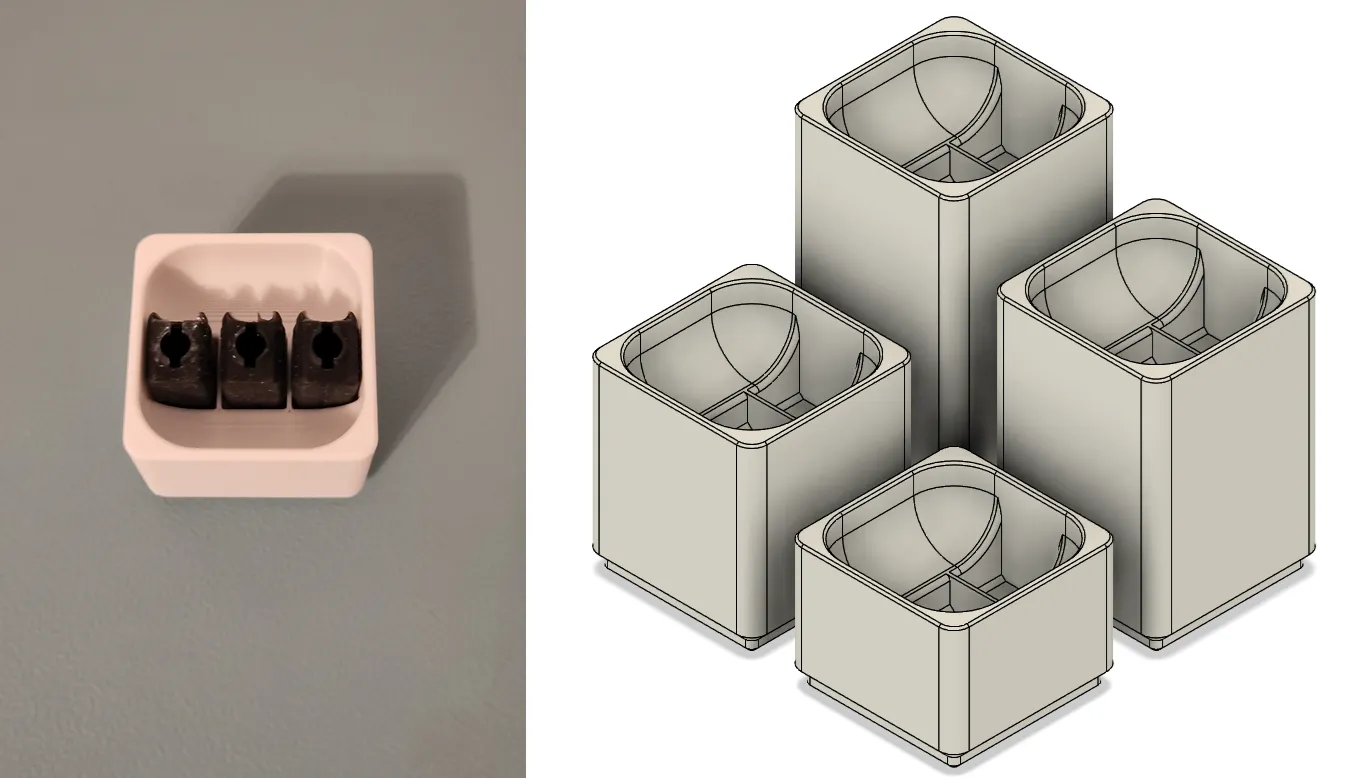

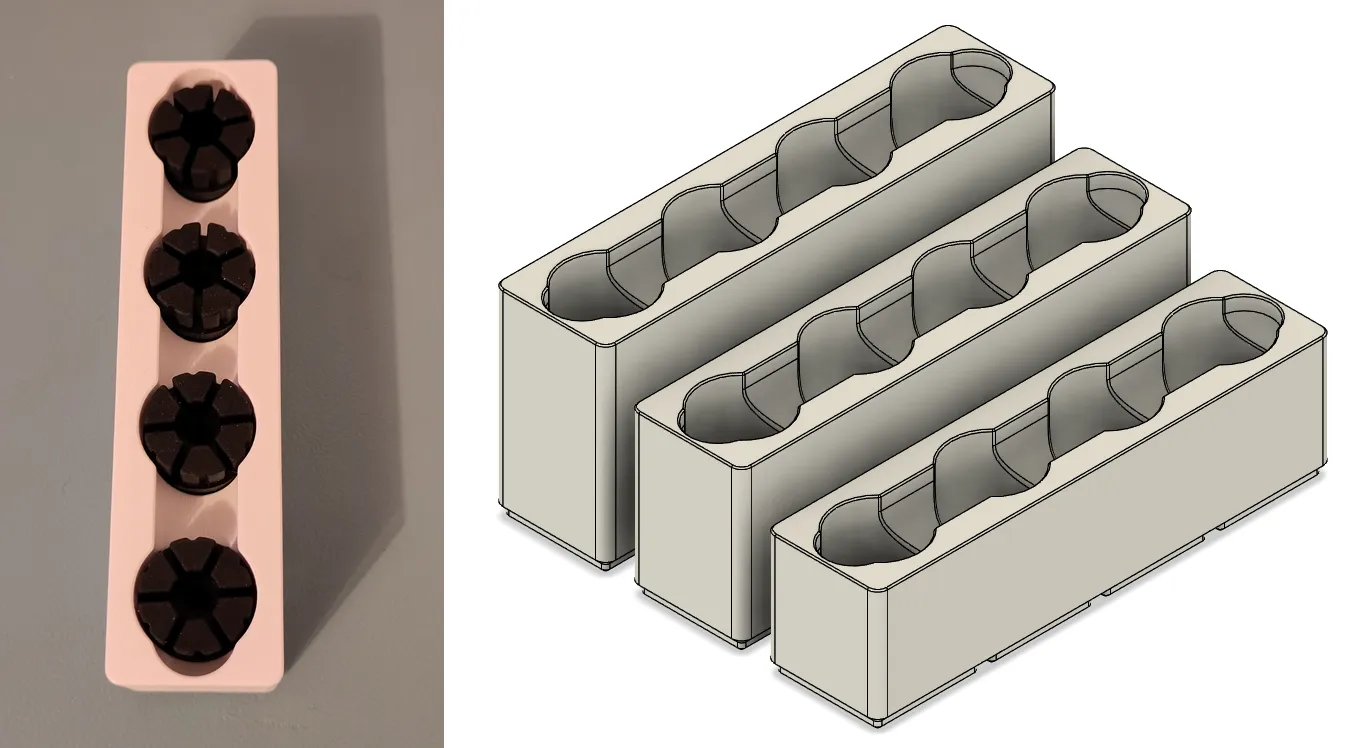

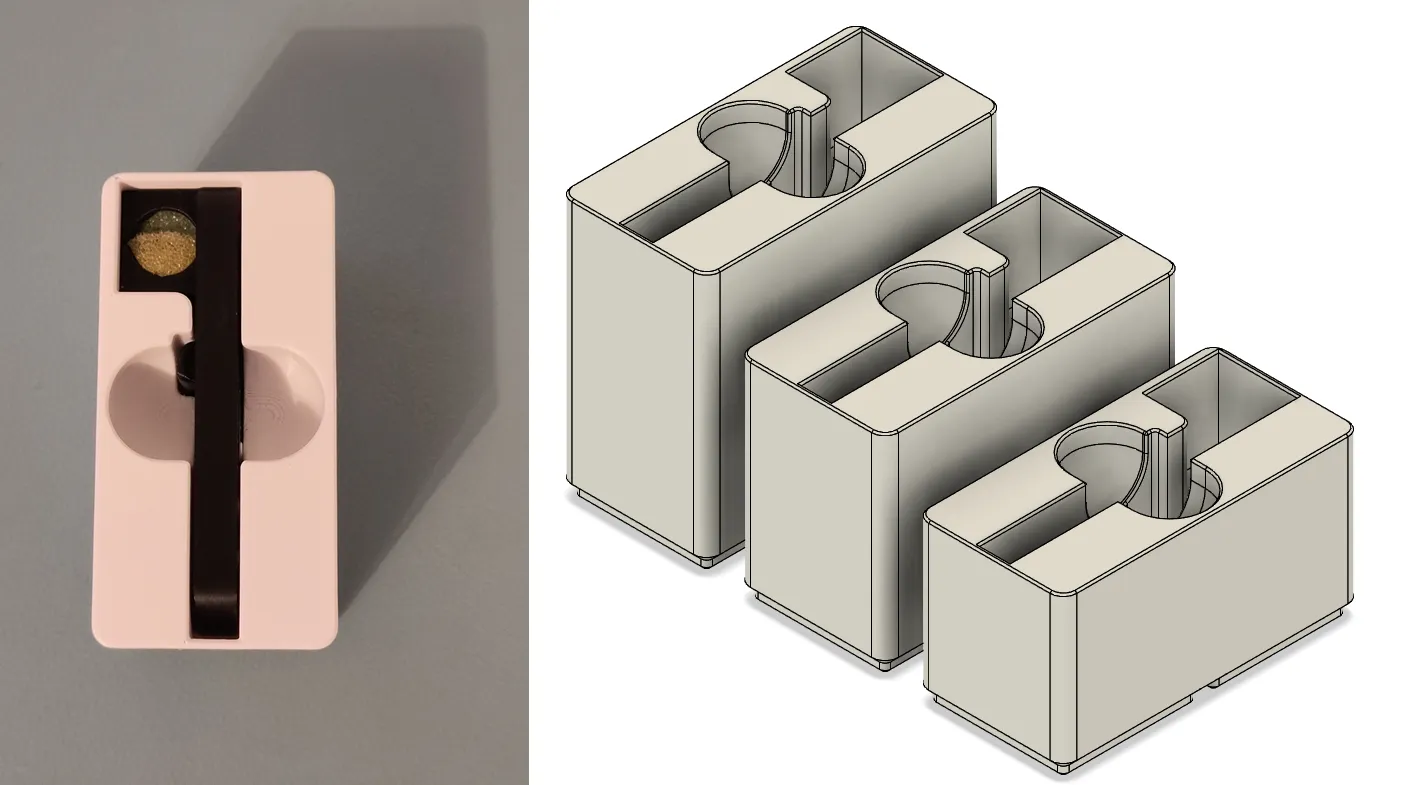

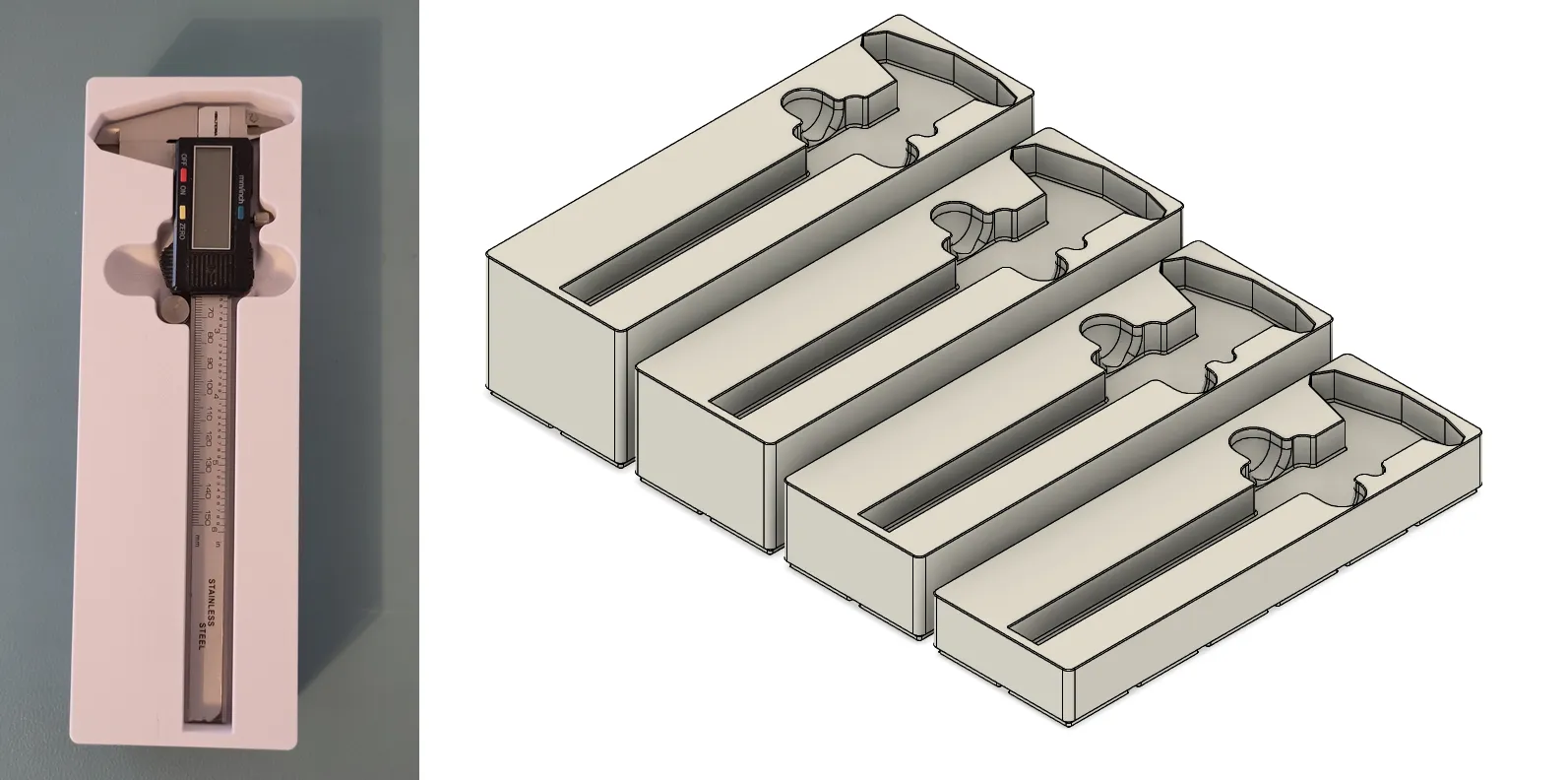

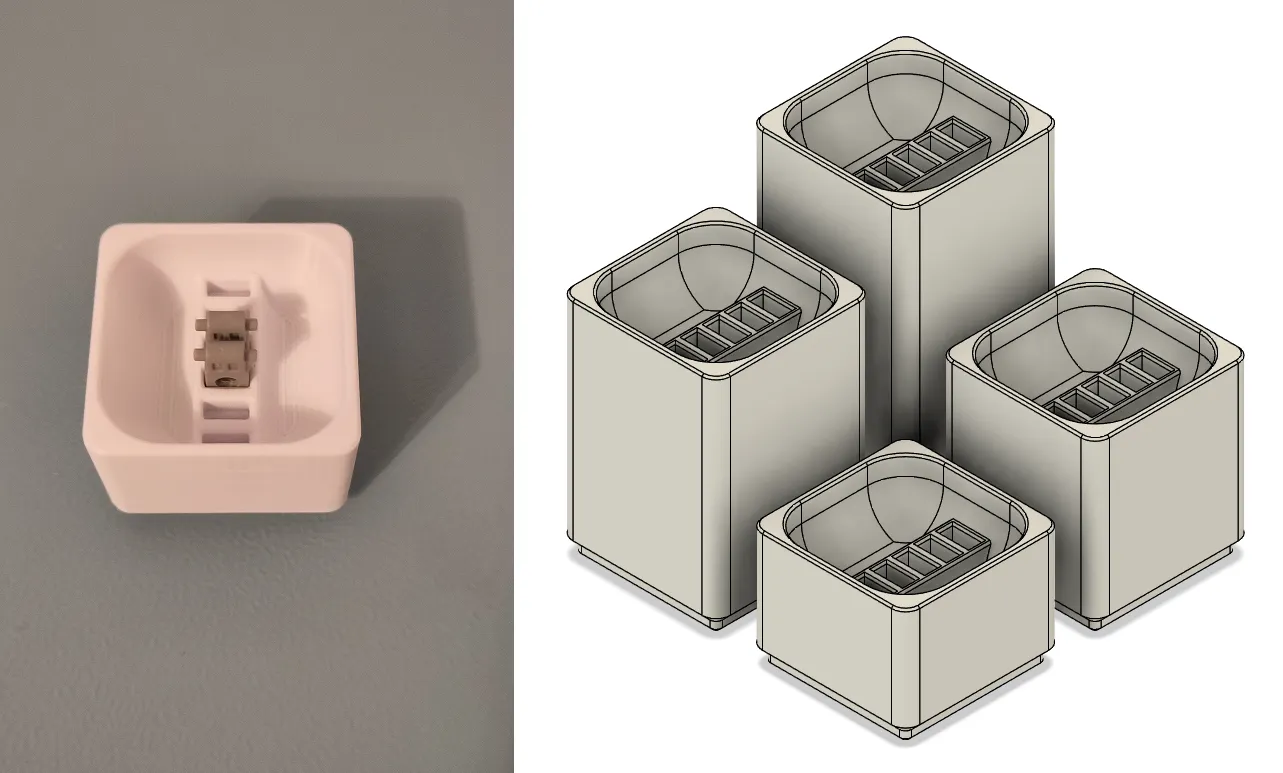

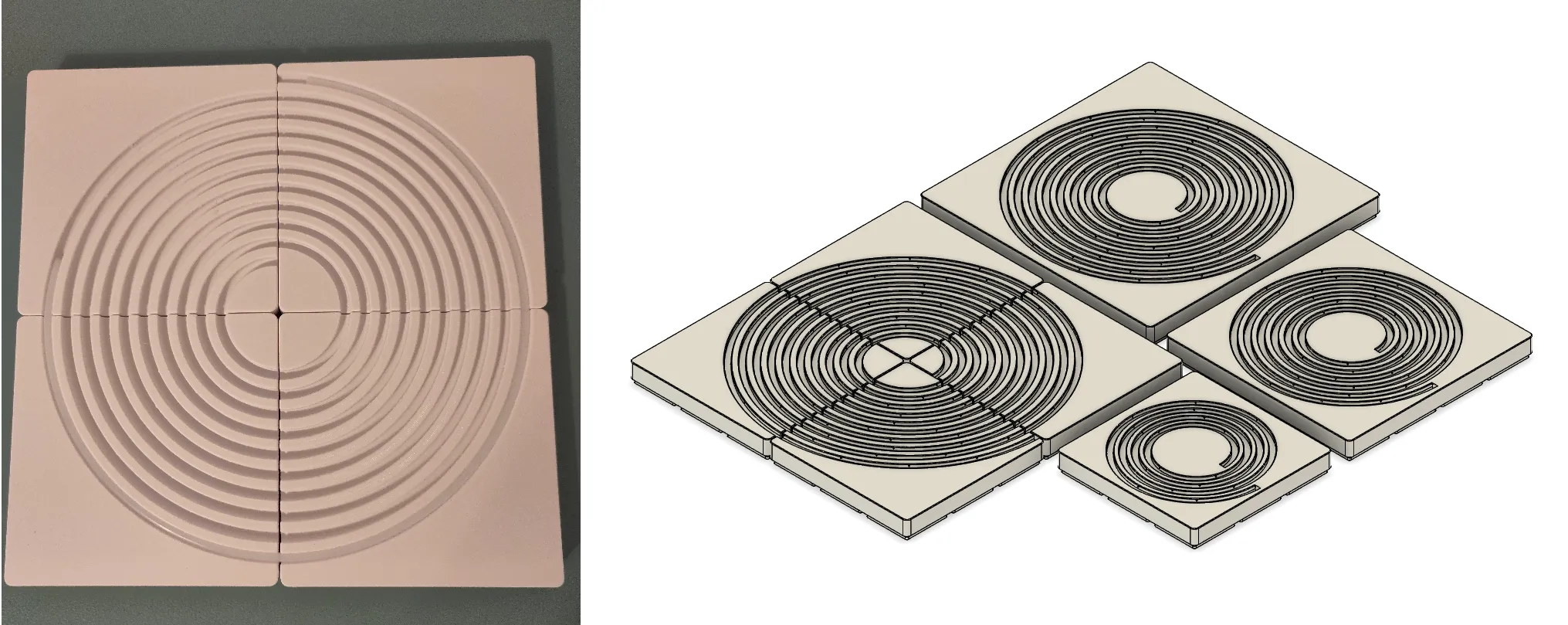

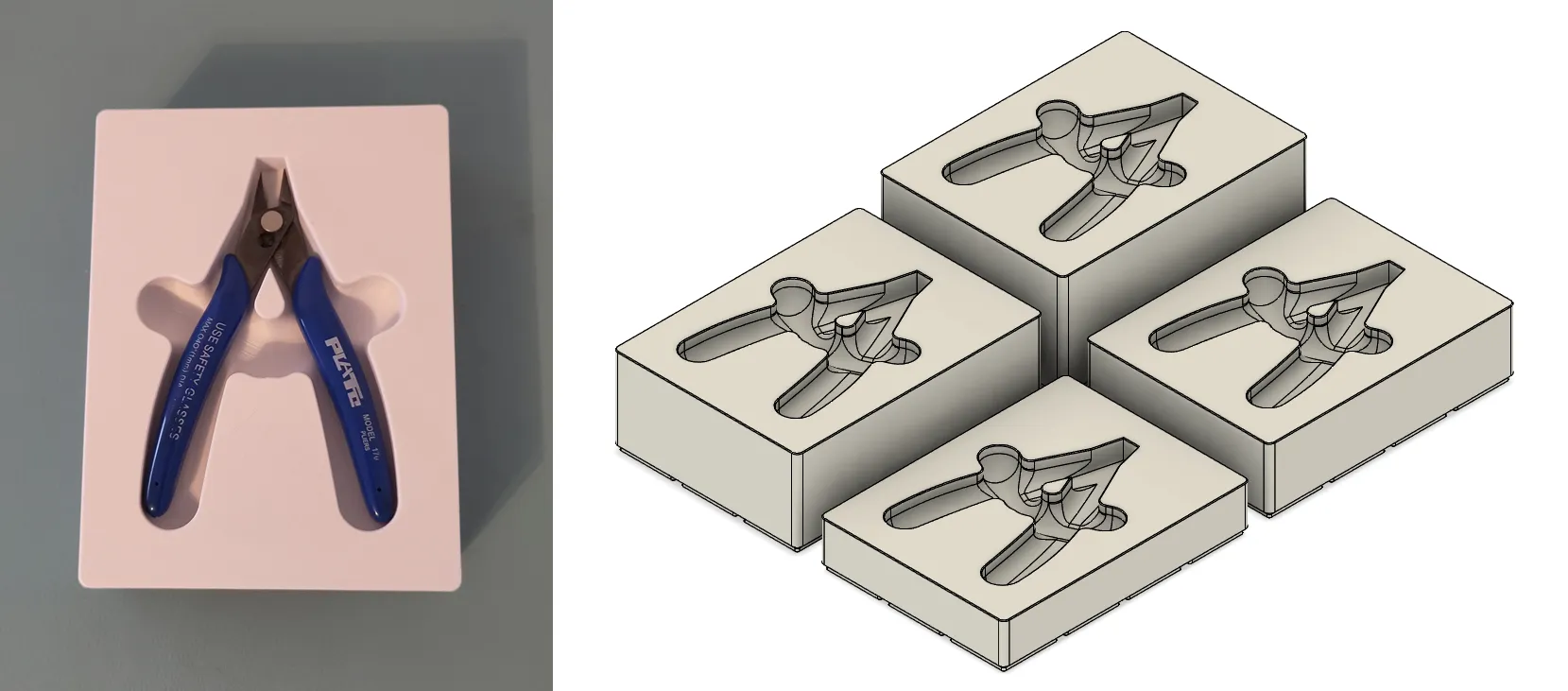

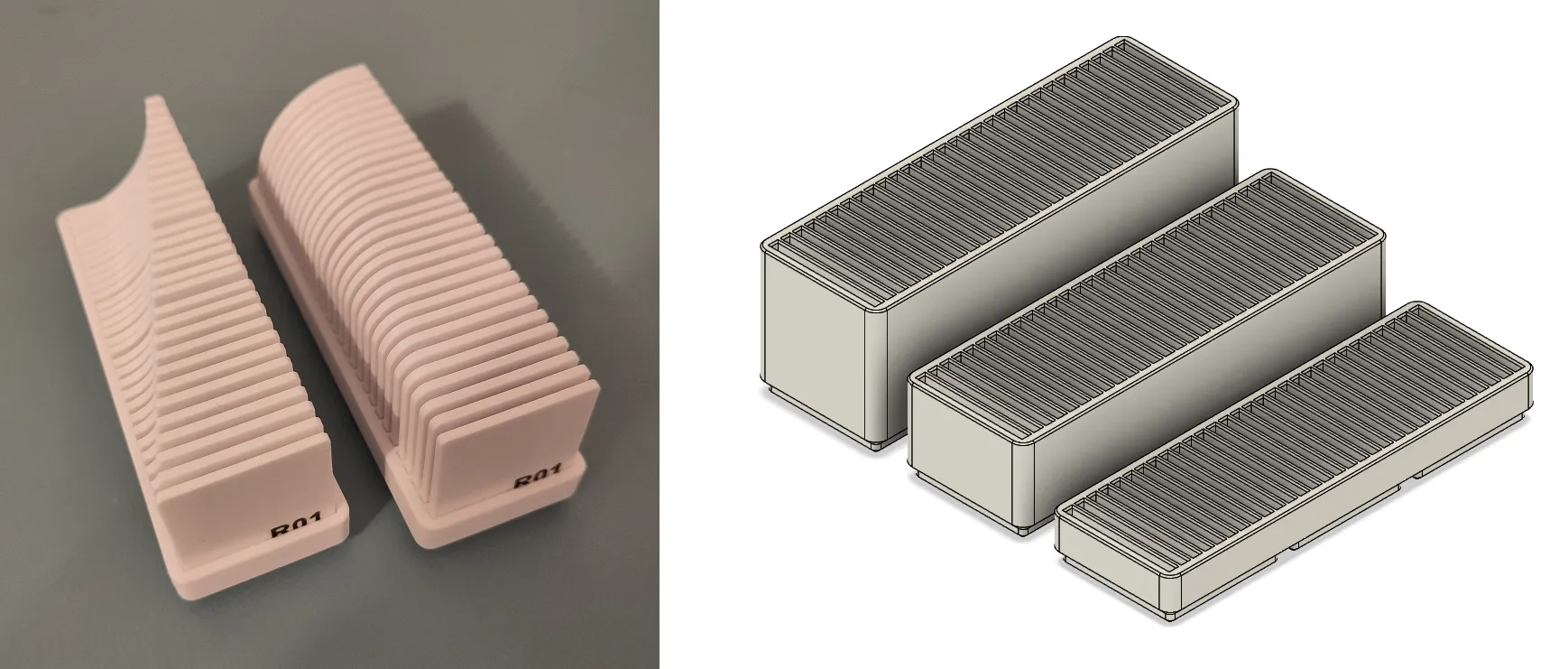

Bins | |||
---|---|---|---|

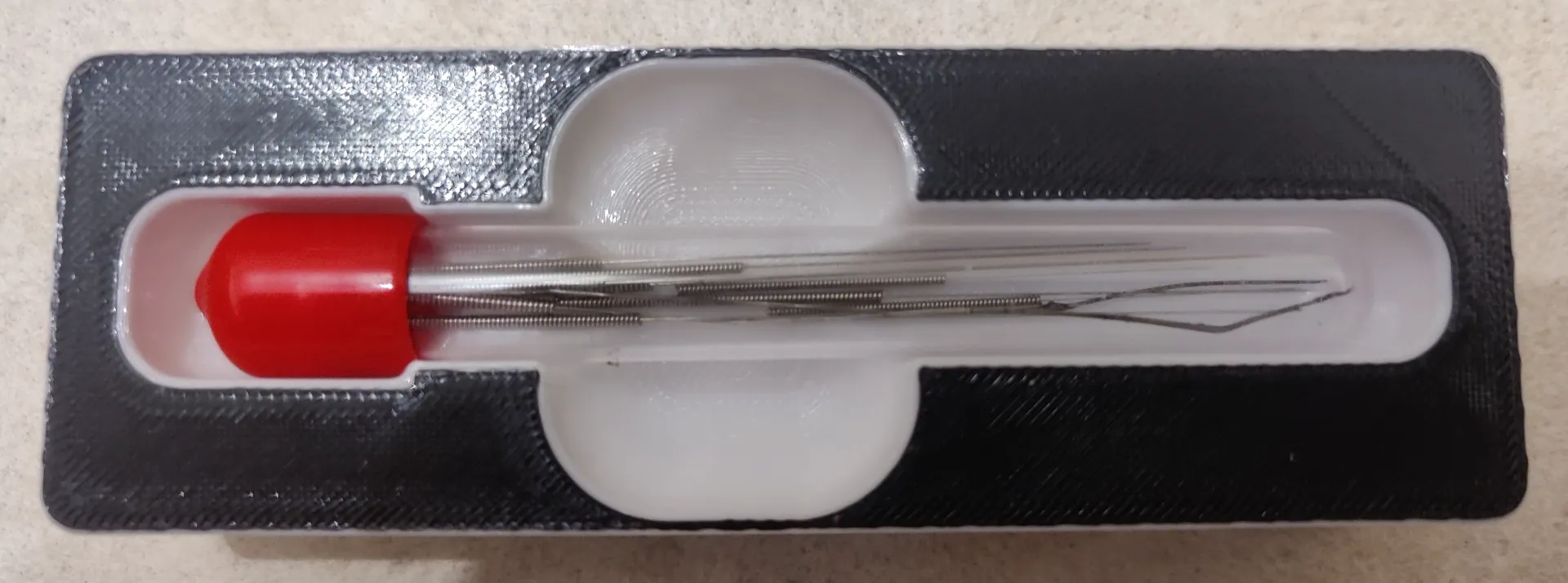

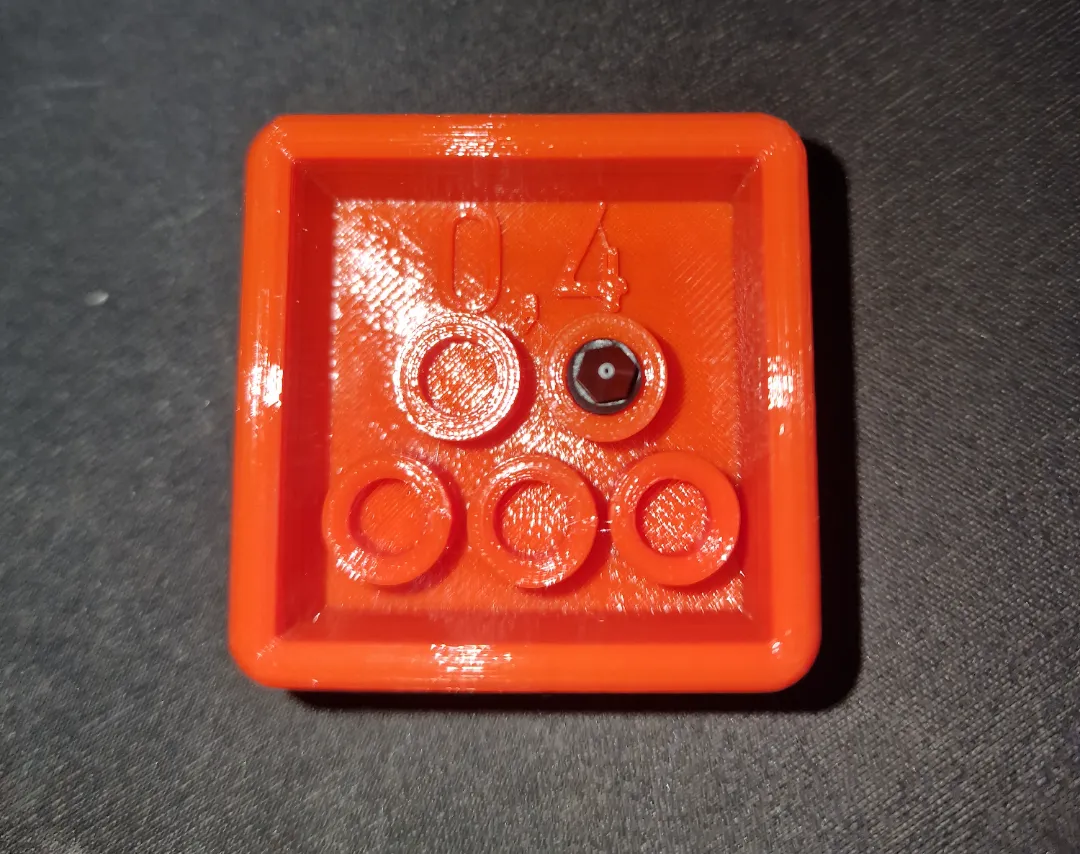

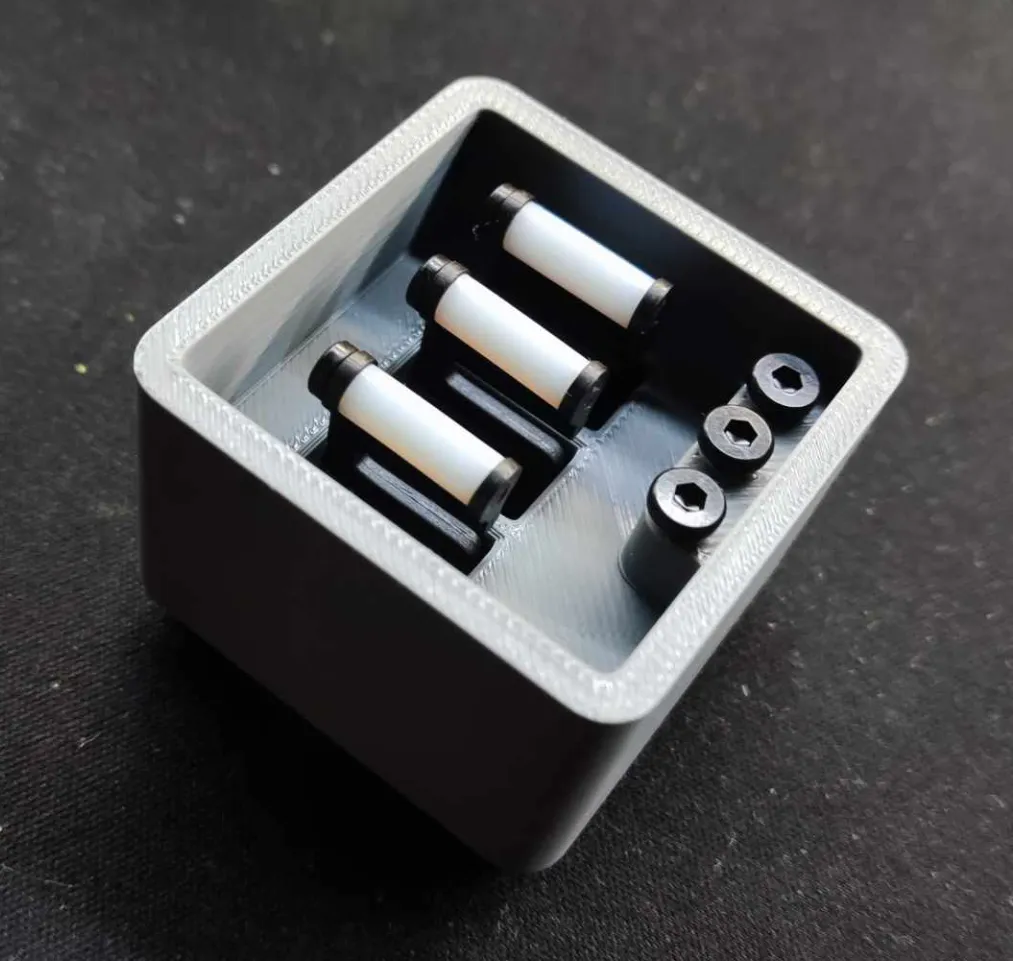

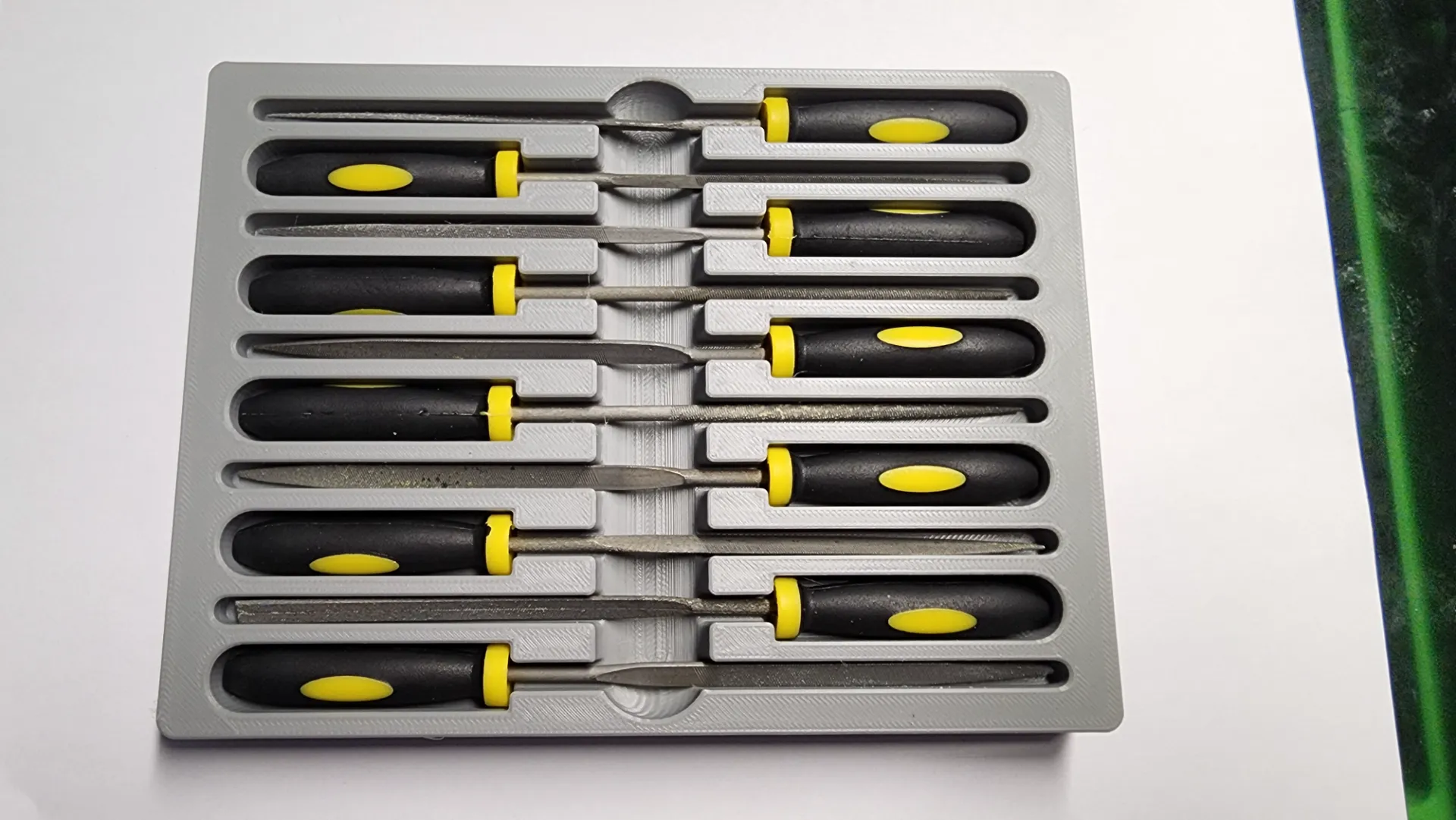

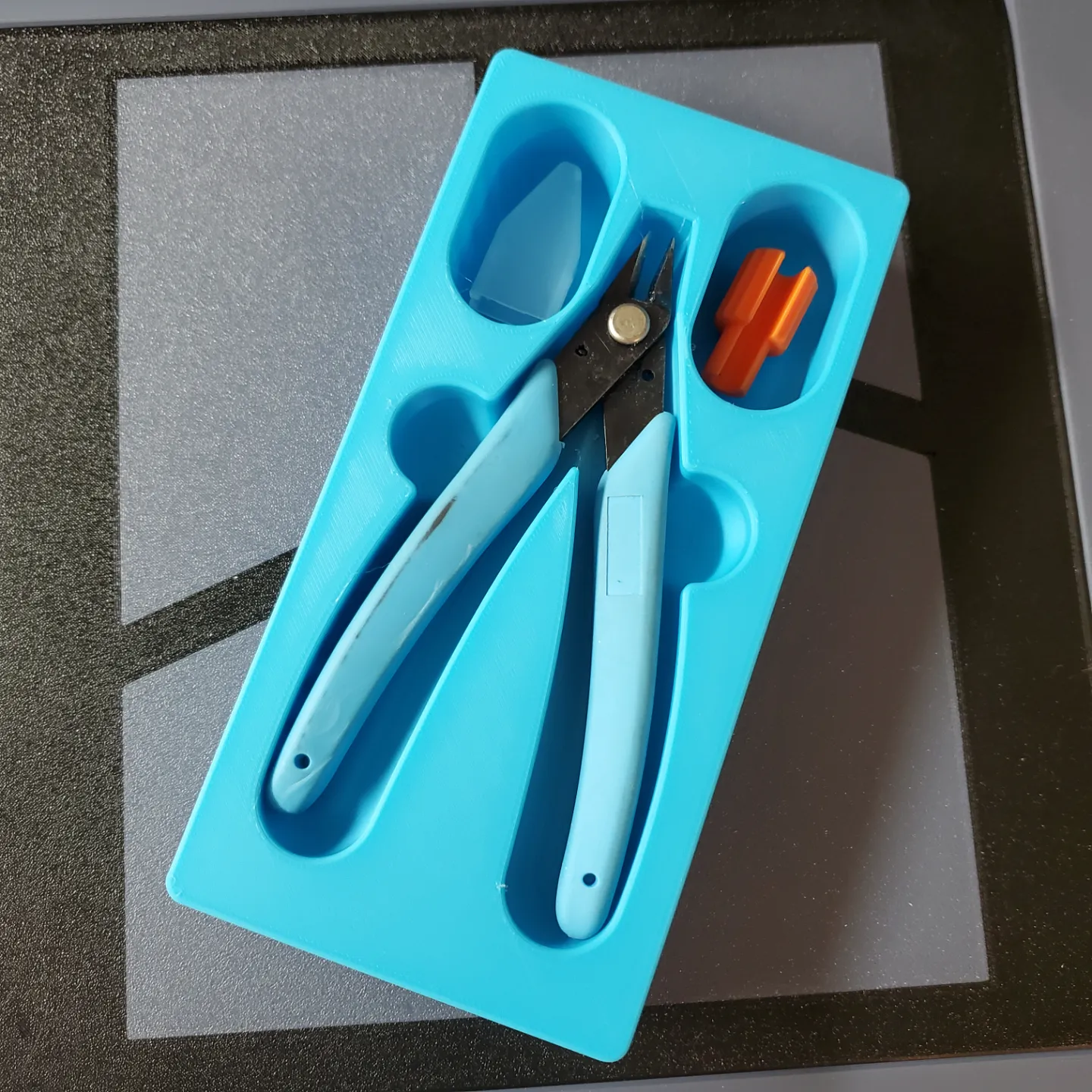

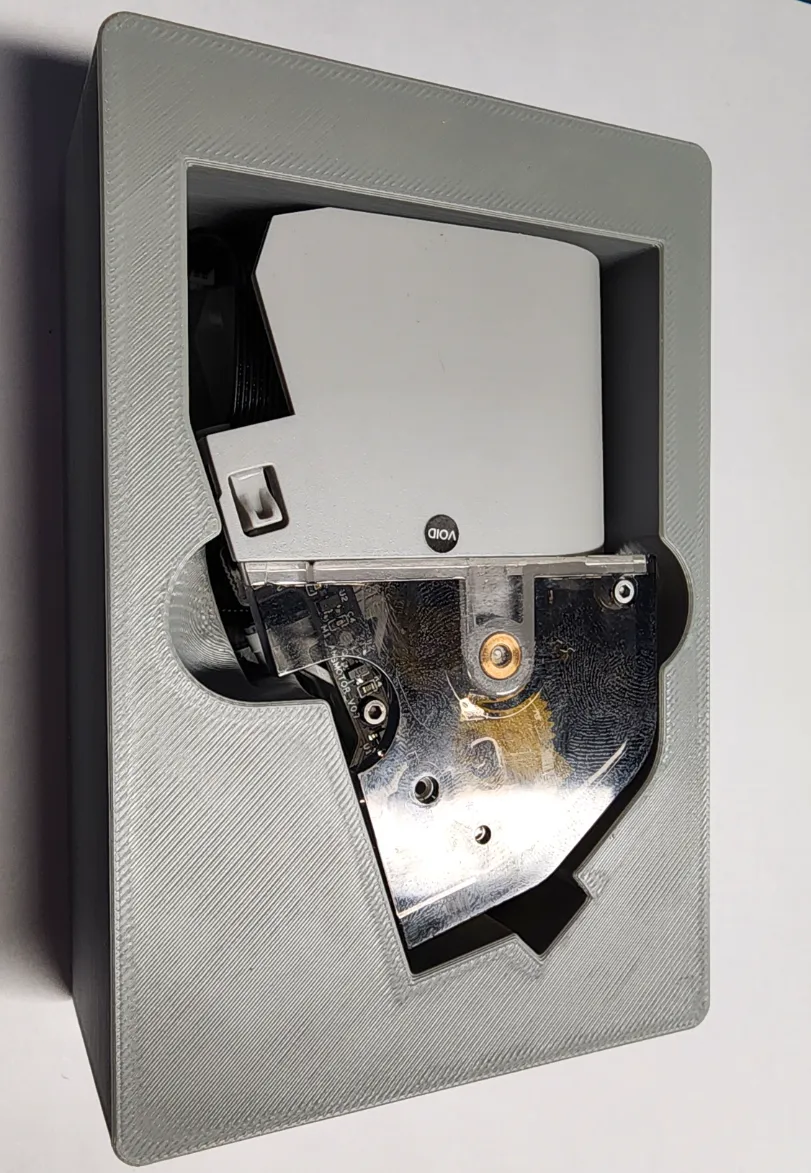

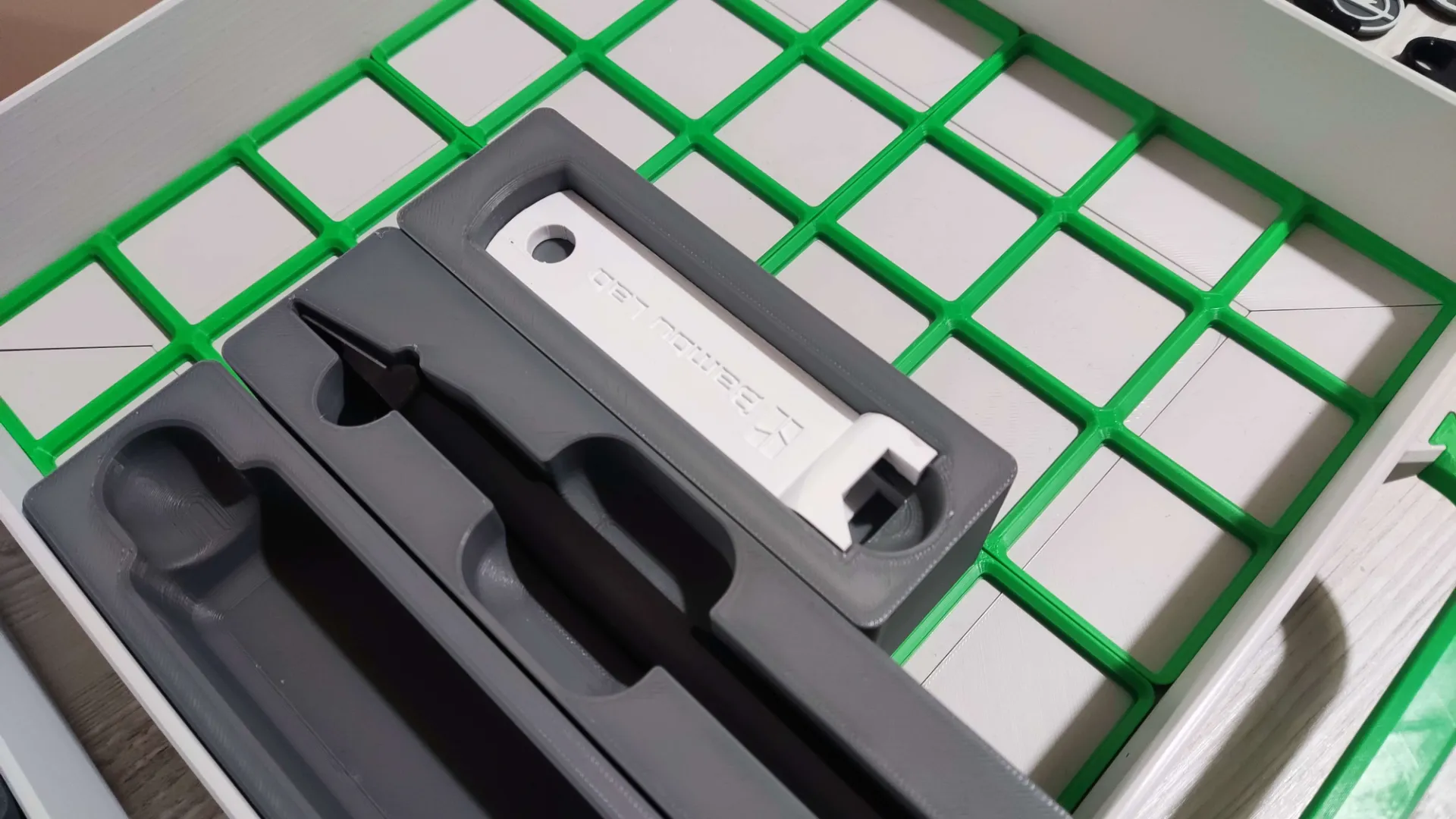

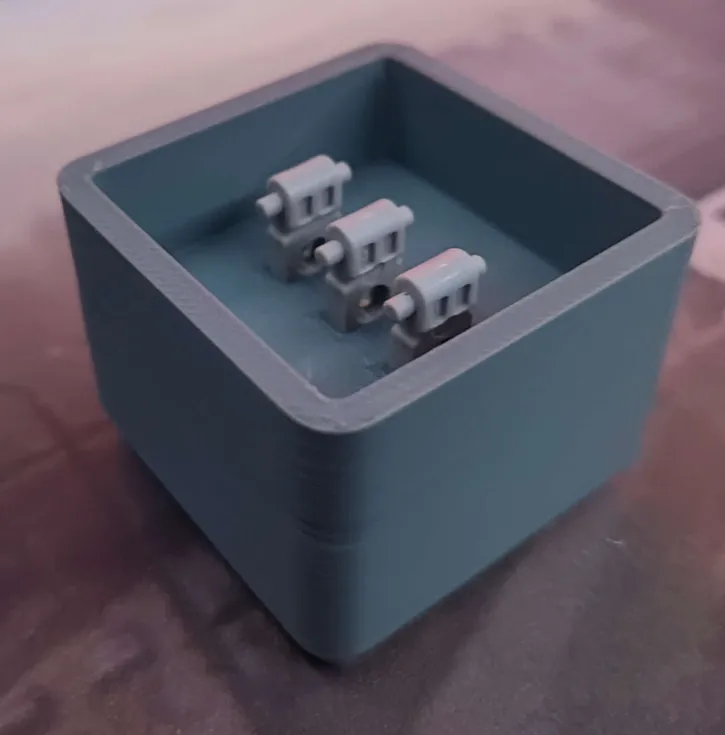

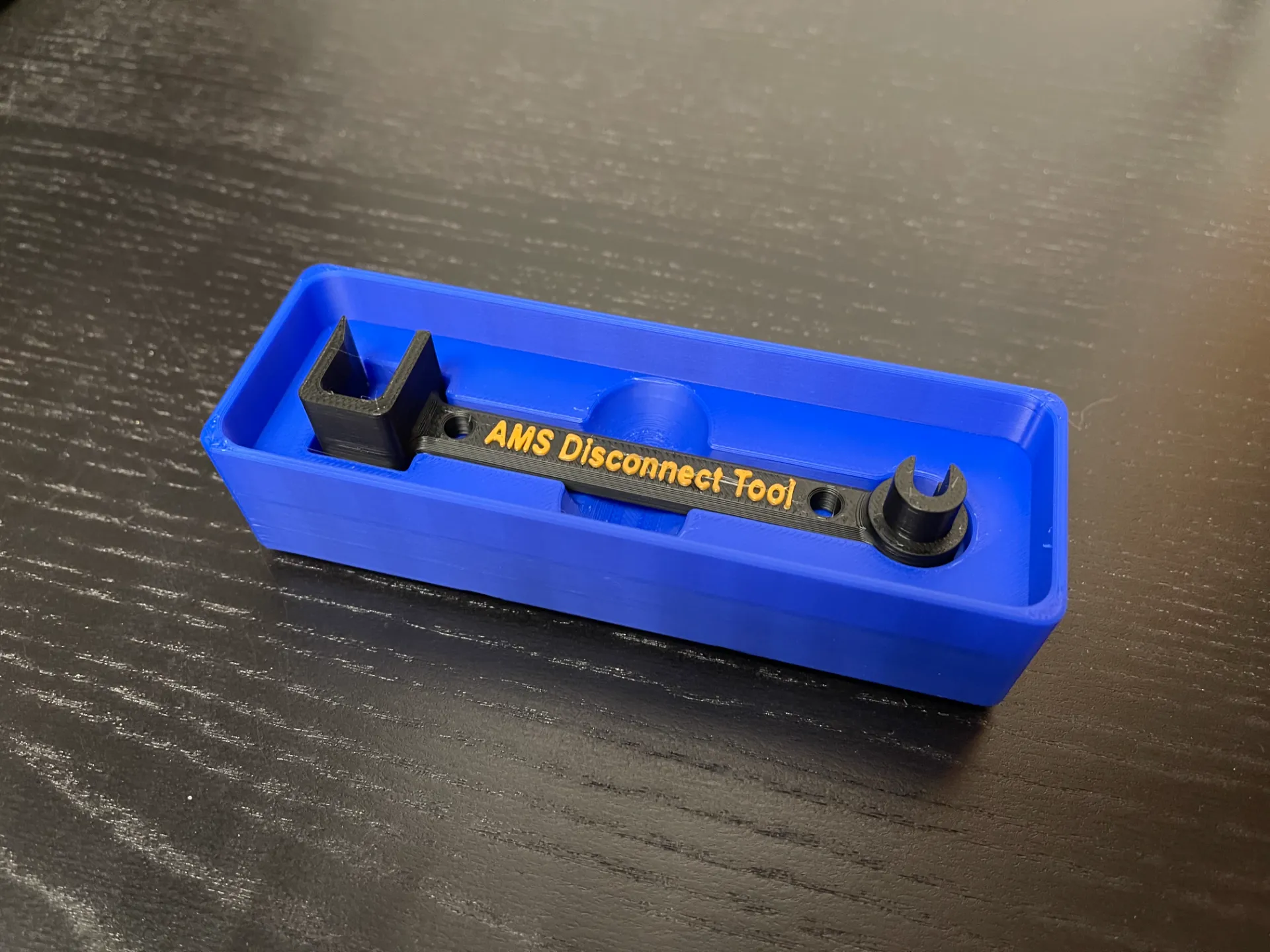

Community Made Bins | |||
---|---|---|---|
