Description

Click here for FULL ASSEMBLY version

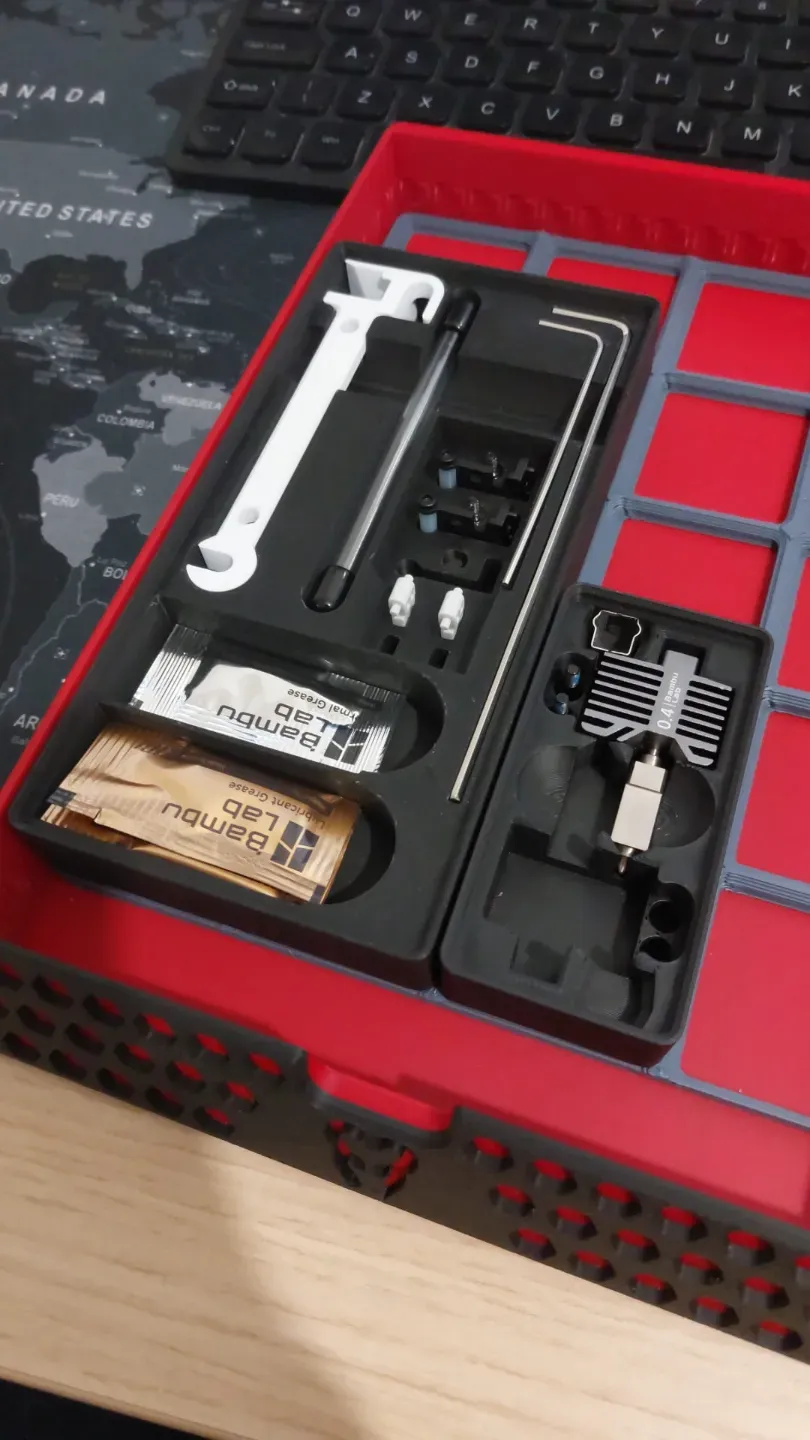

Fits 2 sets of extruders for P1S, P1P or X1 printers
space for:

2x Hotends
2x Heater collets
4x Hotend screws

It is a 1x2x0.5 tile size

which means if you stack two of them or one of these plus another 0.5 tile height block you get a normal-sized Gridfinity box

I made this specifically to fit the drawers in the AMS Riser V2 model

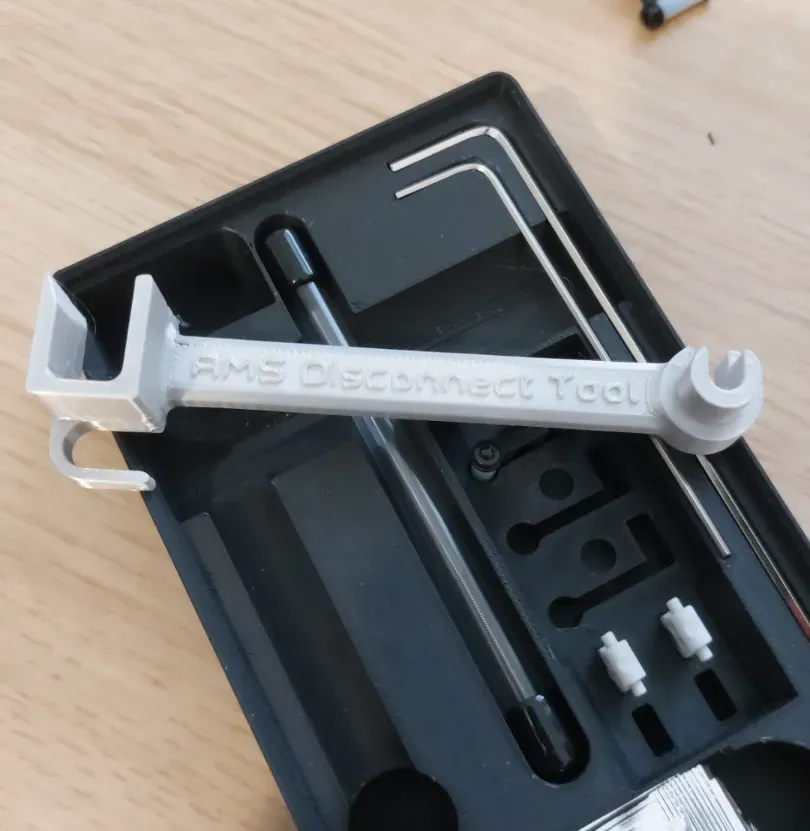

Check out this 2x4x0.5 tile to store all the other extra bits that come with the printer like the lubricants, thermal grease, nozzle cleaner etc.

*Expansion tile for void start labs Gridfinity organizer

STACKABLE!!

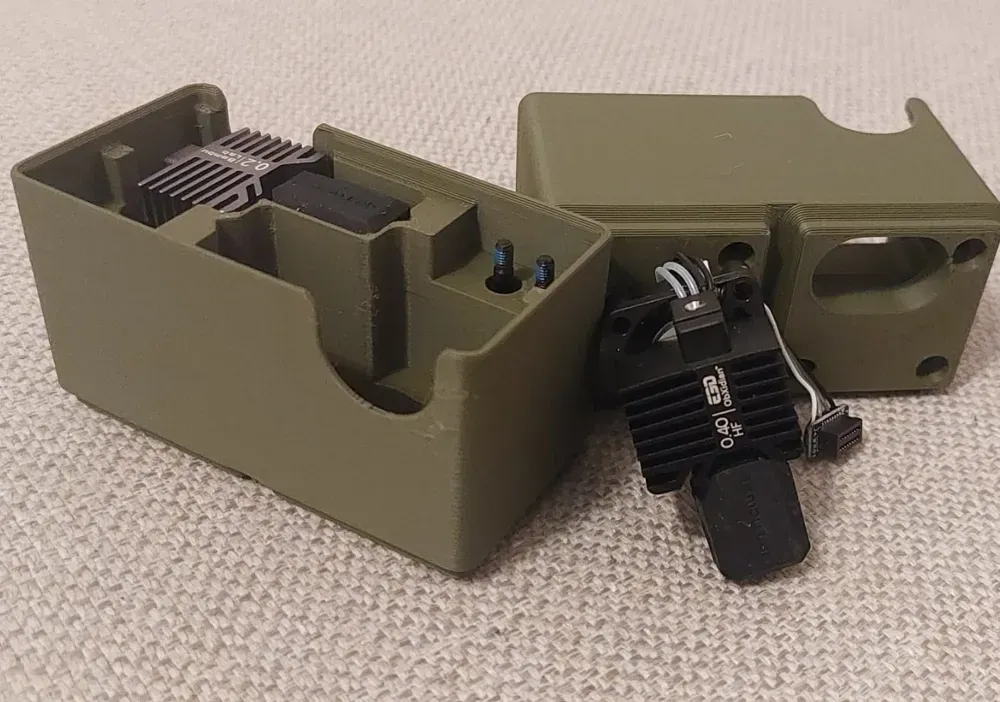

For a full hotend assembly version including the fan and cables see
https://makerworld.com/en/models/923914

Did you like this? Check these other ones out as well
