Description

Hi there !

If you've got fat fingers, chances are, you cant find a way to bolt the CATIAV5FTW jet engine together, but fear not ! i have the solution for you.

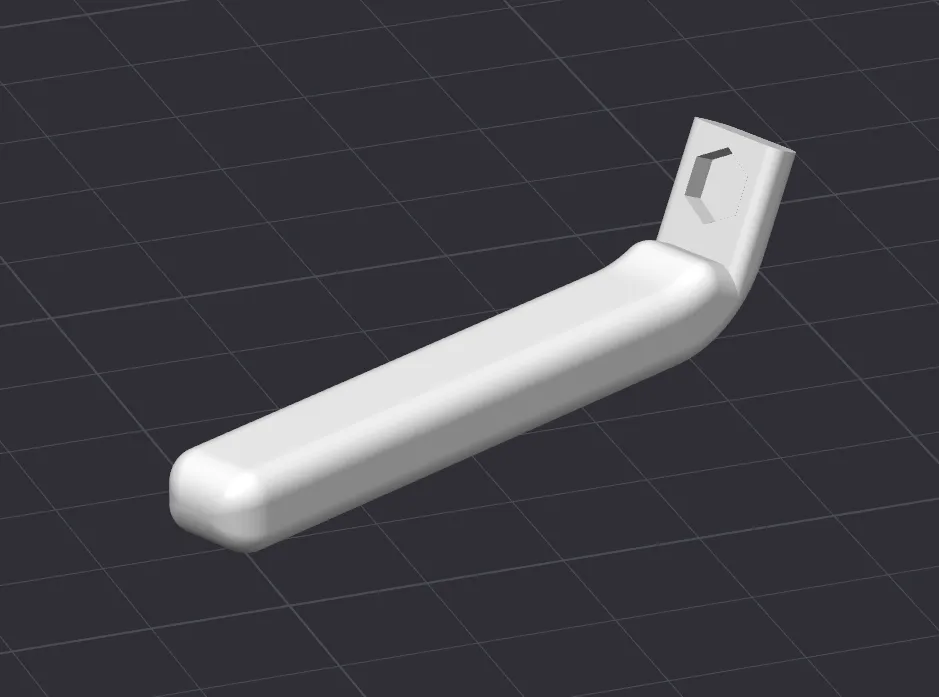

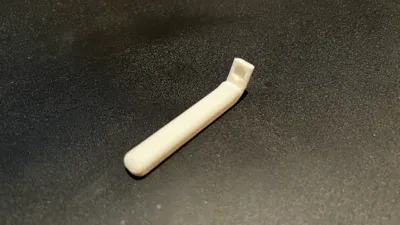

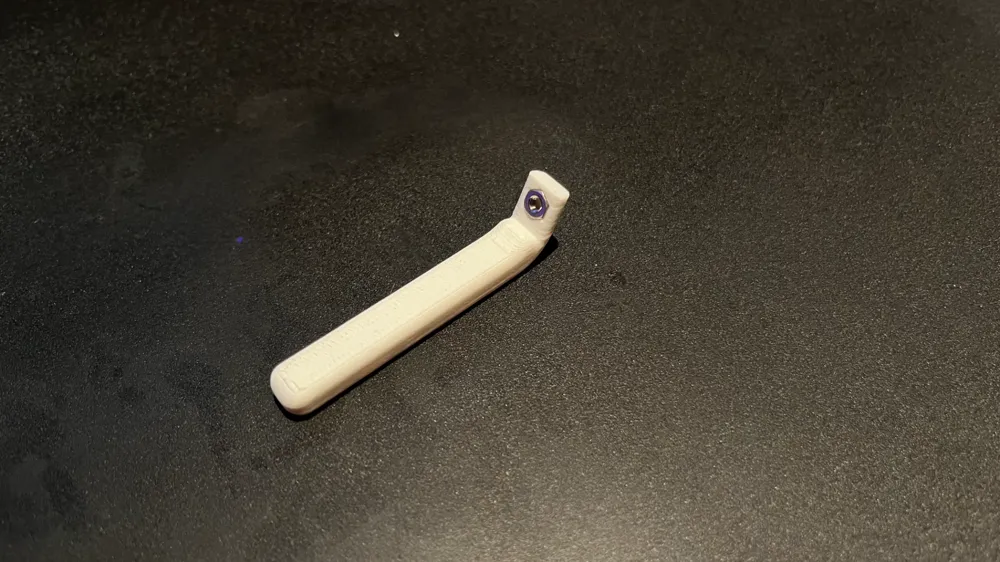

This is a very simple tool that prints in about 15 mins including the X1C prep time, it is extremely simple to use, just slide a nut in the slot, and it should automatically stop at the perfect height for you to screw in the screw with your free hand.

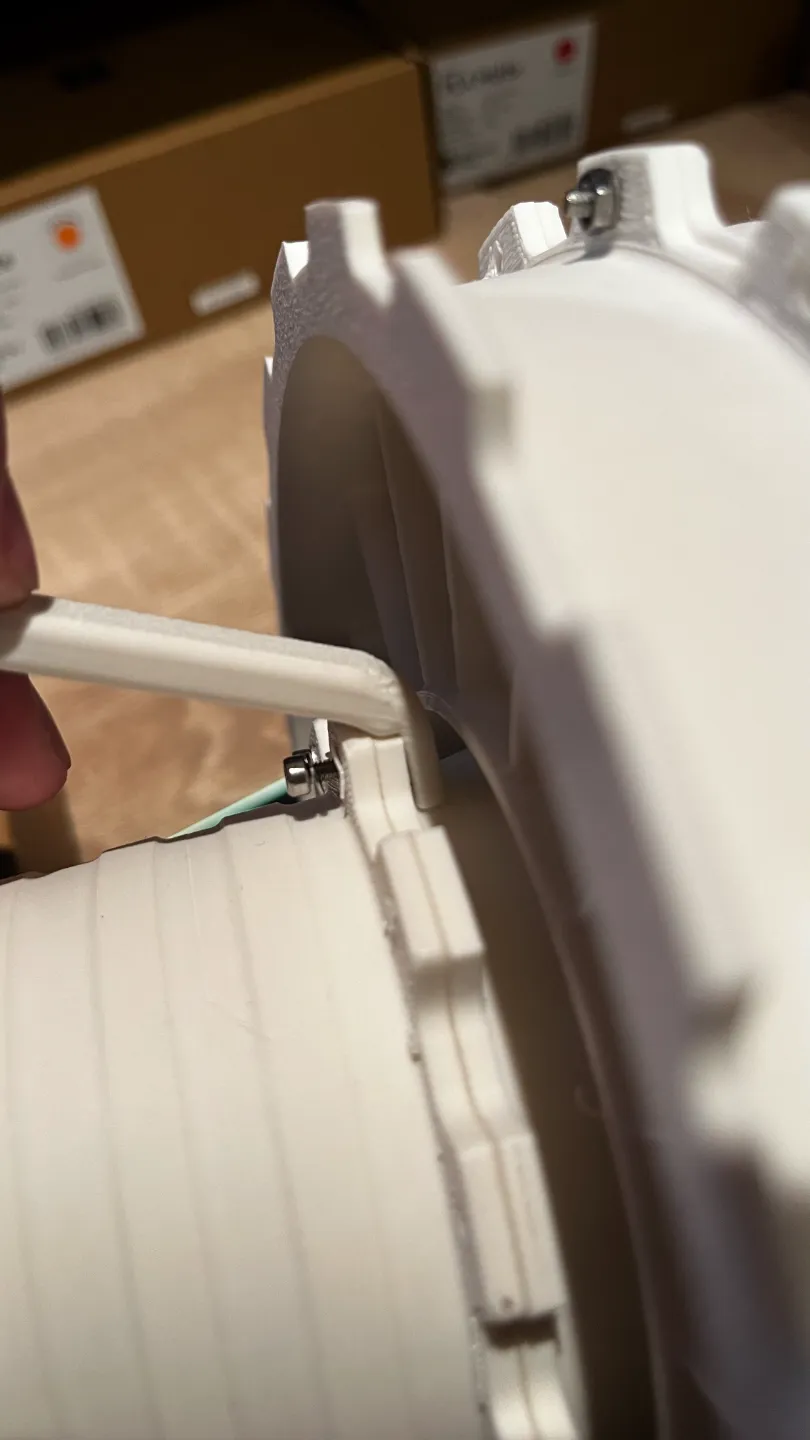

Here is a video to show how simple it is to use, especially compared to a pair of needle nose pliers :
