Automatic pill dispenser


Print Profile(5)

Parts A1 to A6 - 0.2mm layer, 2 walls, 15% infill [ORIGINAL]
Parts A1 to A6 - 0.2mm layer, 2 walls, 15% infill [ORIGINAL]
Designer
P1S, P1P, X1, X1 Carbon, X1E, A110.2 h
5.0
Parts A7+A14+A15 - 0.2mm layer, 2 walls, 15% infill [ORIG]
Parts A7+A14+A15 - 0.2mm layer, 2 walls, 15% infill [ORIG]
Designer
P1S, P1P, X1, X1 Carbon, X1E, A17.4 h
5.0
Parts A8 to 13 + A16 0.2mm layer, 2 walls, 15% infill [ORIG]
Parts A8 to 13 + A16 0.2mm layer, 2 walls, 15% infill [ORIG]
Designer
P1S, P1P, X1, X1 Carbon, X1E, A151 min
Part A17 - 0.16mm layer, 2 walls, 15% infill [ORIGINAL]
Part A17 - 0.16mm layer, 2 walls, 15% infill [ORIGINAL]
Designer
P1S, P1P, X1, X1 Carbon, X1E, A11.7 h
Click to see more

470
556
106
215
36
Released
Copyright Claim
Model
Comment & Rating
Remixes
Related Models

Description

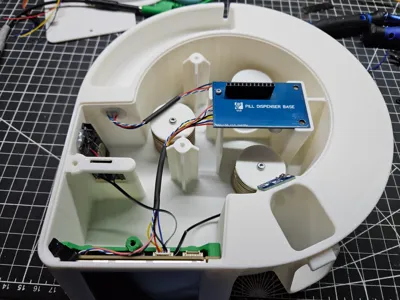

Complete open source project with cheap and easily available parts. All 3d printable parts are available, Gerber PCB are packed in zip for easy drag-drop in your prefered provider (JCLPCB, PCBWay, etc). Software are available in pre-compiled (bin files) for the ESP32, or all Arduino files are there so you can edit them. I've included all the library I used. The full LCD interface is in Squareline Studio. Just follow the guides in order to assemble it once you have all the parts.



Go see my github for all the files and guides needed



Features:
USB Powered (5V, 500mah)

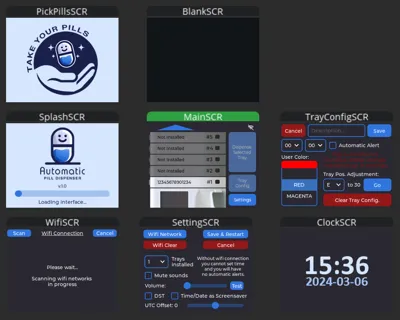

Wifi configuration directly on the screen
NPT automaticaly updated time (Need Wifi for the time to work)
UTC/DST configurable on the screen
Time/Date screensaver (can be disabled)
Full interface on the touch screen
Multiples users can be defined by colors
Audio/Visual Alarms for each tray/users (audio alarms are repeated every minute till dispensed)
Alarms are mp3 files on the SD card (so can be changed by the user)

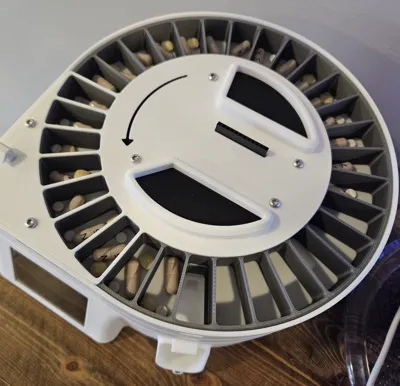

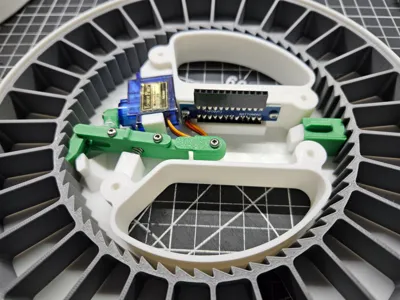

Can stack up to 10 trays
30 sections (can accomodate multiple/large pills) for each tray
Manual dispense of each tray
Visual indication of remaining pills (P-Touch label 30 to E)
Web interface for easy configuration with browser
Telegram integration (v1.2+)
