这款经典造型支架创意来源已不可考,如果原创作者看到的话请联系我,我会添加原版权信息再发。
在淘宝找到了大小适合R3D 3KG料盘的塑料桶,价格亲民。但因为尺寸比较严丝合缝,对支架有较高要求,所以精修了这个支架可以完美使用。
If you are going to put 3KG filament spool in a dry box, then you will need a spool holder that is compact enough.
大概参数就是适配250mm料盘直径,厚度小于105mm,都可以完美适用。
So, I modified the dimensions to maximize space, it adapted the filament spool with diameter 250mm and thickness <100mm.

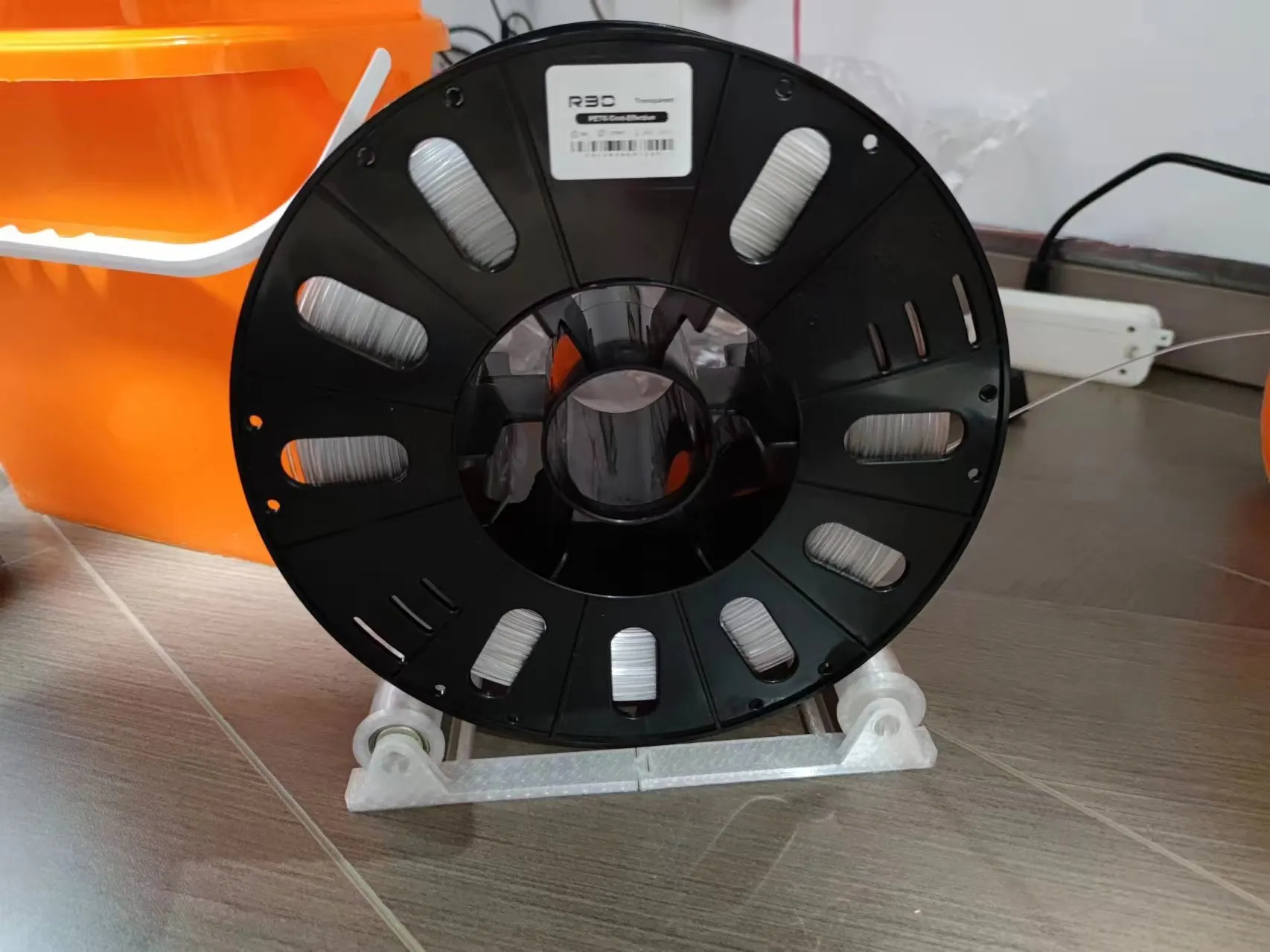

完美的意思是料盘可以几乎贴地,最大化利用桶内纵向空间,如图:
the spool can almost touch the floor:

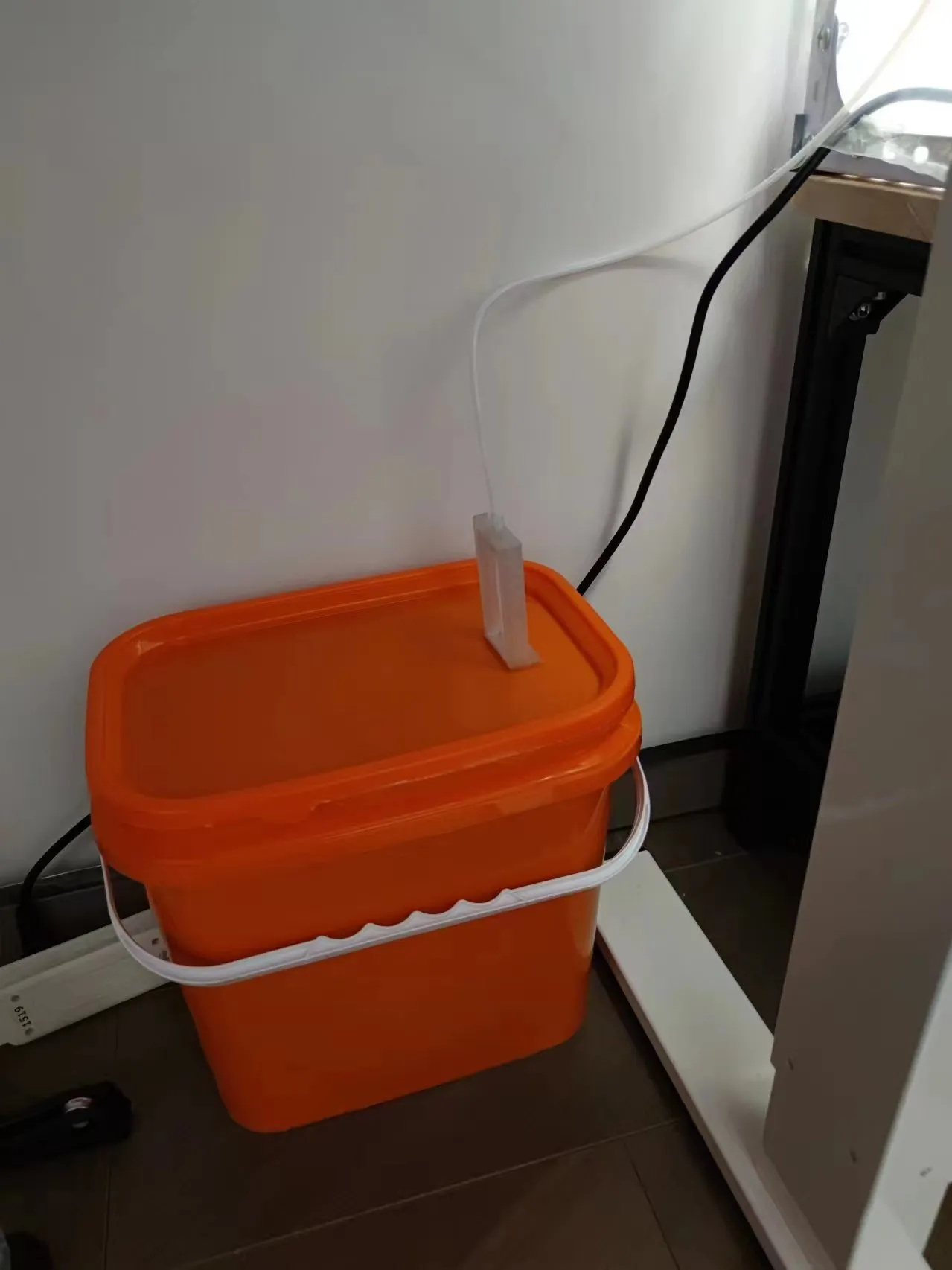

安装完成后可以正常盖上桶盖,并且运行丝滑,如图:
You can easily put it in the dry box:
打印配置有两款,大机器直接打一体的,如果你和我一样只有A1mini,那就打切过的就行。
文件里附带了打印轴承,上油之后够用,没有608铁轴承的可以用这个凑合没啥问题。
桶身淘宝链接:加厚食品级方形塑料桶10斤5L升密封油漆桶方形带盖洗车水桶油桶-淘宝网 (taobao.com) 选择10L长方形桶
