Spool Drawers

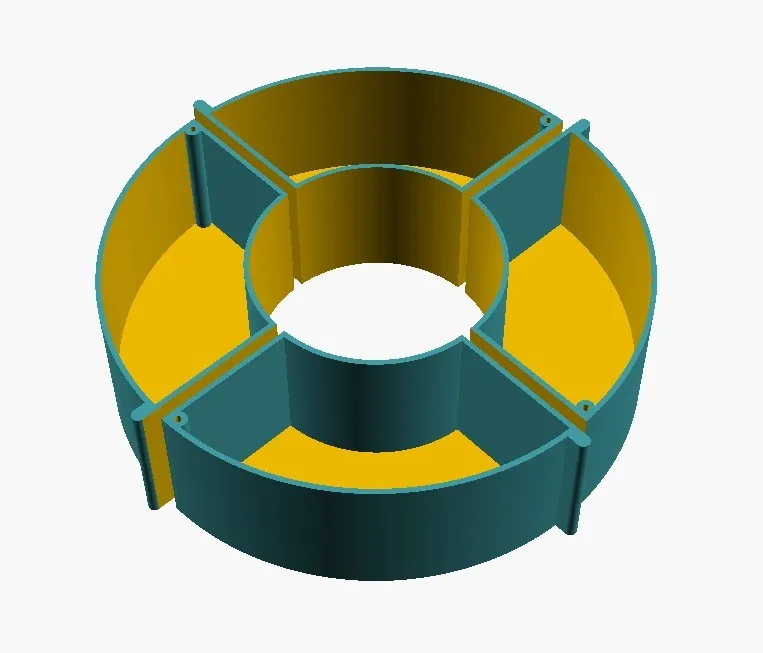

This is an OpenSCAD Spool drawer organizer, created to make it adjustable to different spool sizes. Includes a parameter where you choose to render one drawer or all of the drawers.

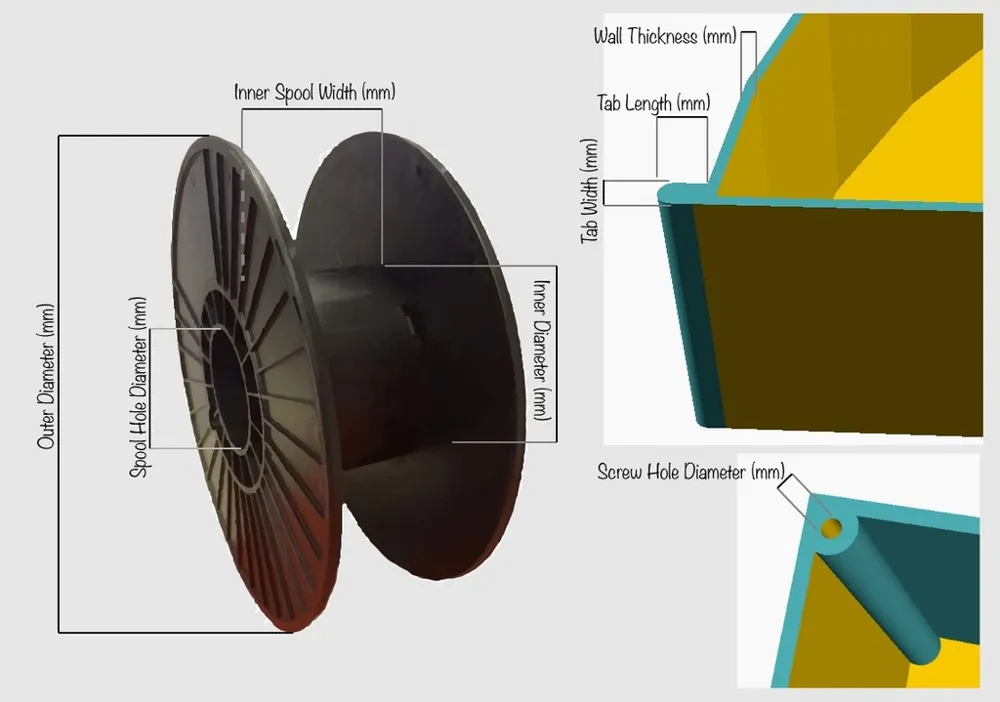

Go to OpenSCAD.org, download the app, open Spool_Drawers.scad file, and edit the paramters to match your spool (see pic for which dimension is which). Then click Render, and Export as STL for a printable file based on your choices.

Parameters and default values. Values in brackets are range available. eg. number_of_drawers can be from 2 to 6:

/* [Main] */
number_of_drawers = 4; //[2:6]
render_drawers = 1; //[1,All]
inner_diameter = 90; //[20:0.5:150]
outer_diameter = 200; //[40:0.5:500]
inner_spool_width = 56.5; //[10:0.5:200]
spool_hole_diameter = 30; //[20:0.5:200]
segments_per_circle = 360; //[18:0.5:360]

/* [General] */
wall_thickness = 2; //[2:0.5:5]
clearance_from_spool= 1; //[1:0.5:5]
screw_hole_diameter = 2.492; //[2:0.001:5]
tab_length = 9; //[2:0.5:25]
tab_width = 5; //[2:0.5:10]
