[V3] SnapStack - A Modular Storage Bin Organizer

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

[UPDATE V3]
• Redesigned the whole print profile which now has all the new features of the previous update

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

How to insert ????:

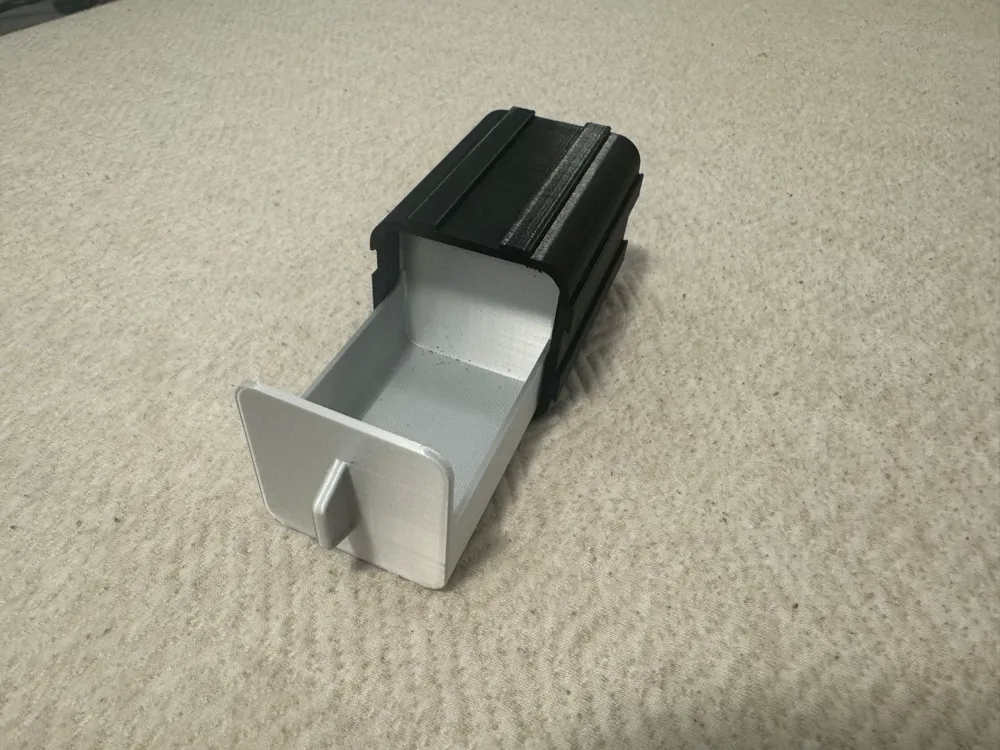

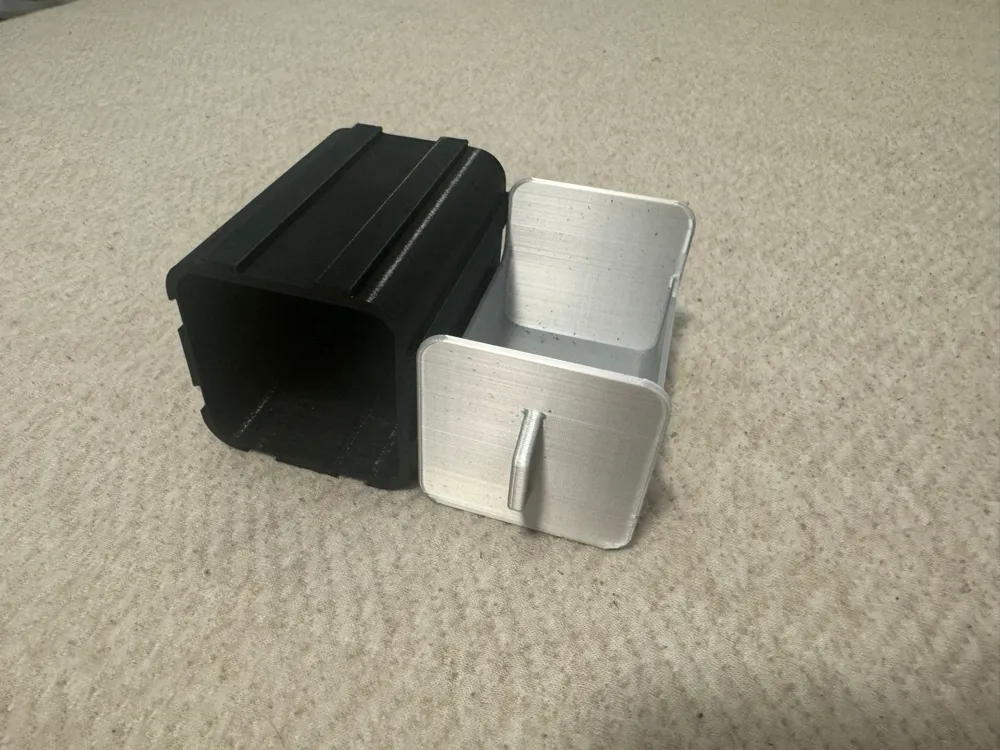

The lip is added to prevent the drawer from slipping out. Gently tilt the end of the drawer to slide it below the lip, then push while tilting the drawer back

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

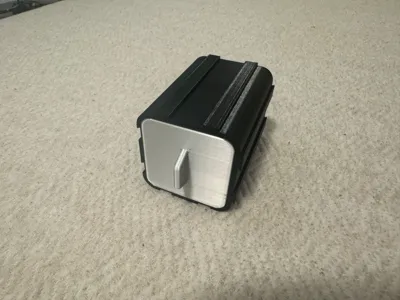

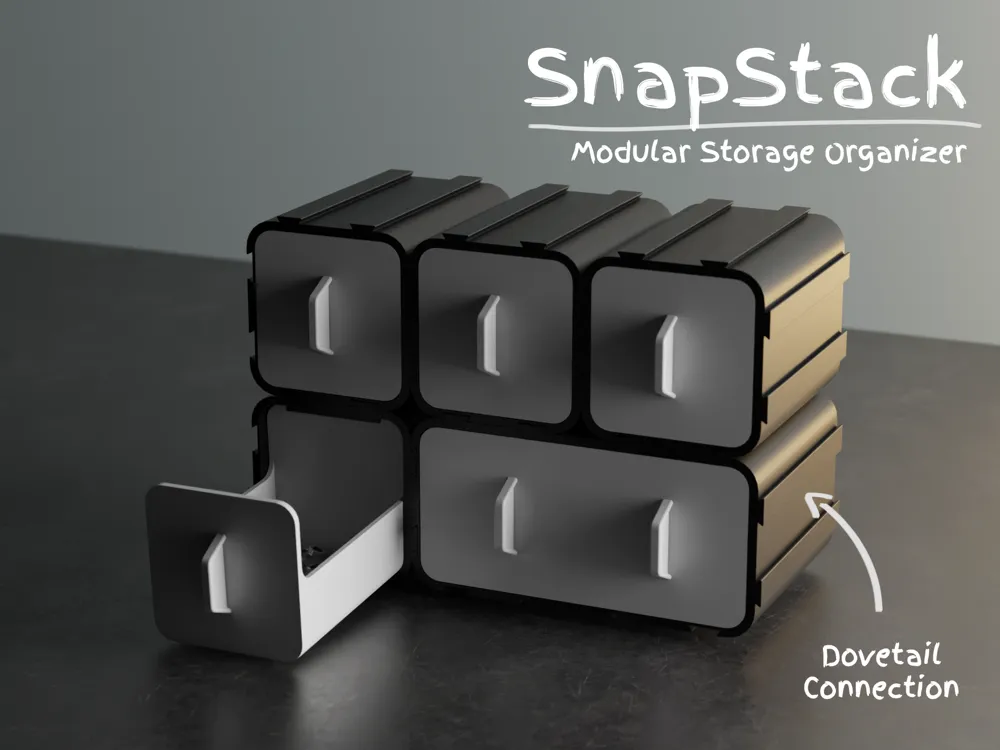

A model to store screws, nuts, nails and other small parts lying around your lab. The parts interlock using the dovetails.

PLEASE PRINT THE TEST FILE FIRST
The parts are supposed to have friction, but should slide in easily. If your test parts don't fit you can adjust this using XY compensation in the slicer.

Print settings:
Infill: 20%
Walls: 2/3
Speed: Slower speed is highly reccomended as the overhangs turn out nicer
Layer Height: Any up to .25

Support: Not needed

Clearances: Print the test part and adjust XY compensation until there is friction enough to keep the parts together. If you arent able to get good results check out https://makerworld.com/en/models/1102944#profileId-1098386 for some external holders. Great design work


━━━━━━━━━━━━━━━━━━━━
CHANGELOG

[V3.1]

• Fixed the incorrect placement of the stopper on the vertical box

OLD UPDATES

[UPDATE V2]
• Triple Containers added due to the requests of some people
• I also added a 4x4 container for large items for heavy duty usage.

[UPDATE V1.5]
• Better Clearances
