蜗杆版本手表支架,手表底座,可调节大小Worm version Watch stand, watch base, adjustable size

蜗杆版本手表支架,手表底座,可调节大小Worm version Watch stand, watch base, adjustable size

Boost
11
13
2
GIF

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1

PLA/PETG - 0.2mm layer, 2 walls, 20% infill
PLA/PETG - 0.2mm layer, 2 walls, 20% infill
3.4 h
1 plate

Boost
11
13
2
0
45
2
Released

Description

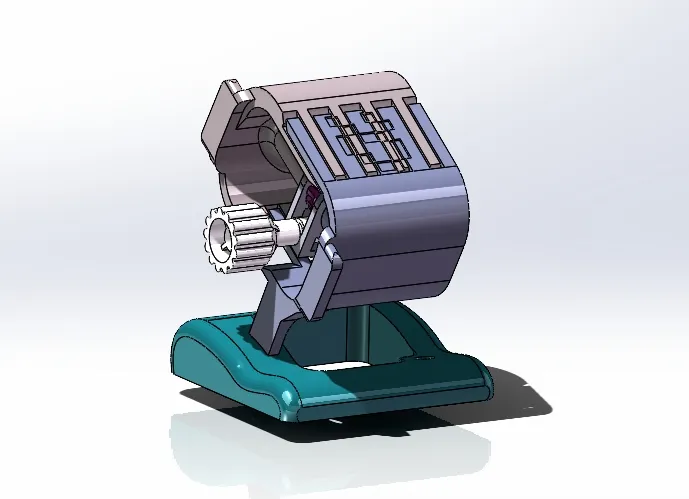

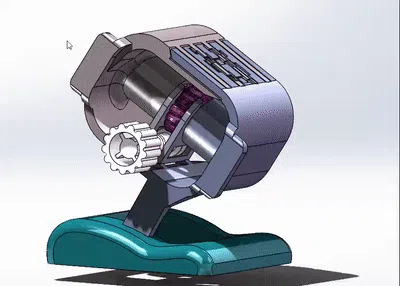

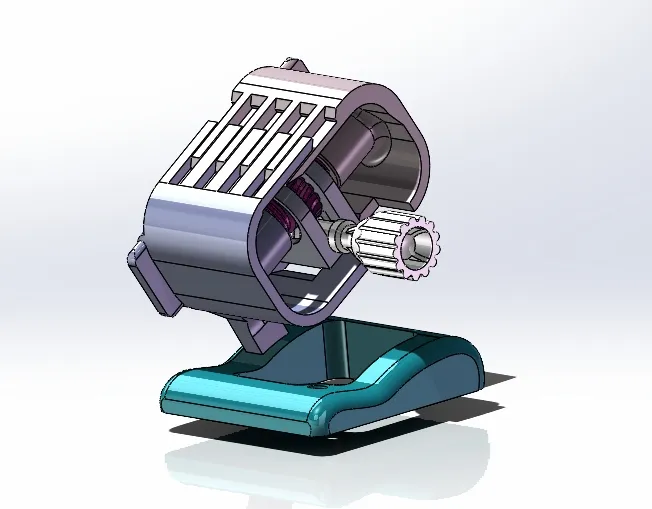

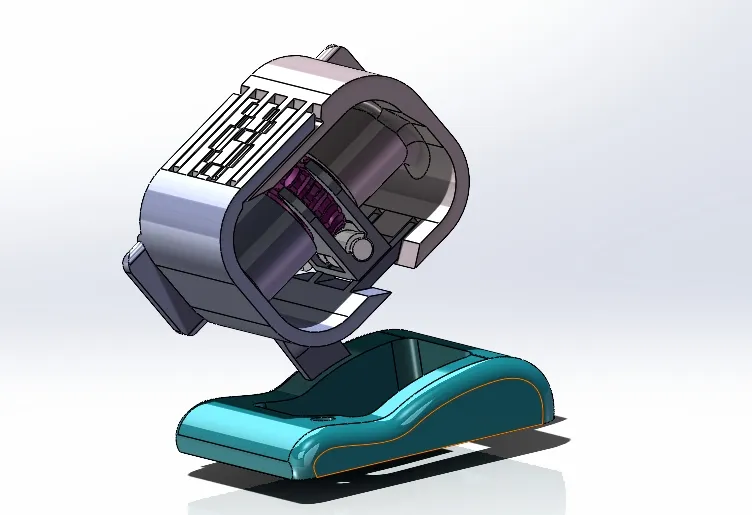

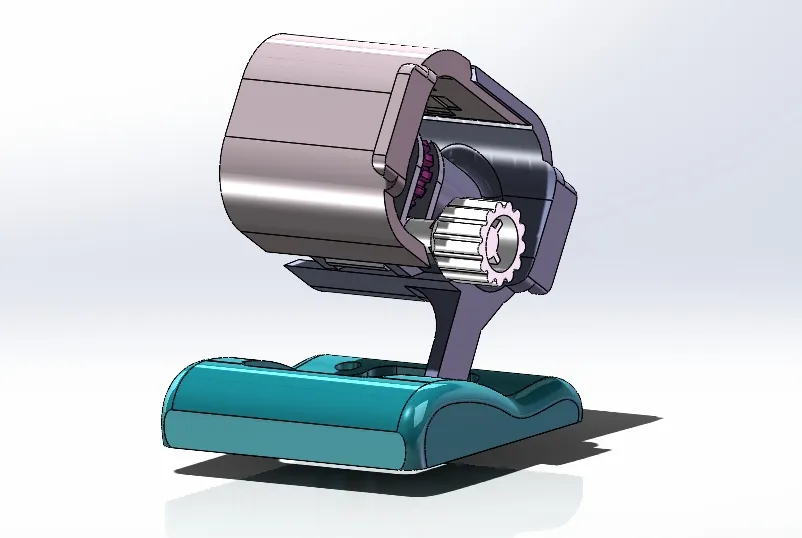

可以调解大小的手表底座,调解直径55-75mm,基本男女都覆盖了。螺杆两个版本花面加长版,注意打印方式,螺纹向上,新版本加上螺纹限位。现已增加蜗杆版本,螺杆需要根据设备缩小一点打印配合更加顺滑(站立摆Z轴不缩),组合简单。改动了一下,蜗杆旋钮放到了右边和图片相反,使用起来比较方便。第三版上线:加粗底座连接处,旋钮右置并加长螺杆花键旋钮,螺杆配合间隙调整,上置logo删除只保背部logo。



Can adjust the size of the watch base, mediation diameter 55-75mm, basic men and women are covered. Two versions of the screw face lengthened version, pay attention to the printing method, thread up, the new version plus thread limit. The worm version has been increased, and the screw needs to be reduced a little according to the equipment to print more smoothly (standing pendulum Z-axis does not shrink), and the combination is simple. The worm knob is placed on the right and opposite to the picture, which is more convenient to use. The third version of the line: bold base connection, knob right and lengthened screw spline knob, screw with clearance adjustment, the logo deleted only to protect the back logo.
