M556V3 | Rifle Prop
Print Profile(6)
Bill of Materials
- 2x16mm Cotter Pin - Bolt Carrier x 1:
- M2x8mm Self-Tapping SHCS - Mag Release Button x 1:
- M3 Circlip - Ejection Port Cover x 1:
- M4x8mm Self-Tapping SHCS - Buttstock Pad x 3:
- M4x25mm SHCS - Handgrip x 1:
- M4 Nyloc Nut - Handgrip x 1:
- M5x40mm SHCS - Handguard x 2:
- M5 Nylock Nut - Handguard x 2:
- 1.5x6mm Dowel - Charging Handle/Forward Assist Pawl x 2:
- 2x8mm Plunger - Takedown/Buffer Retainer x 3:
- 2x10mm Dowel - Ejector/Extractor/Gas Block Piston x 3:
- 2x18mm Dowel - Bolt Release/Forward Assist/Trigger Guard x 4:
- 3x6mm Plunger - Safety Selector x 1:
- 3x16mm Dowel - Buffer/Gas Block x 3:
- 3x20mm Dowel - Buttstock Locking Pin x 1:
- 4x6mm Plunger - Bolt Catch Lever x 1:
- 4x20mm Dowel - Buttstock Lever x 1:
- 4x23mm Dowel - Trigger x 1:
- 3x100mm Grooved Shaft - Ejection Port Cover x 1:
- 2x10x0.3mm Spring - Forward Assist Pawl x 1:
- 2x30x0.3mm Spring - Takedown Pins/Ejector x 3:
- 3x5x0.5mm Spring - Gas Adjustment Valve Detent/Ejection Port Cover Plunger x 2:
- 3x20x0.6mm Spring - Safety Selector x 1:
- 4x5x0.6mm Spring - Extractor x 1:
- 4x10x0.6mm Spring - Bolt Catch Lever x 1:
- 4x15x0.6mm Spring - Buffer Retainer/Charging Handle x 2:
- 5x5.4x0.6mm 180 deg. Torsion Spring - Ejection Port Cover x 1:
- 6x50x0.8mm Spring - Gas Piston x 1:
- 7x20x0.6mm Spring - Magazine Catch/Buttstock Lockng Pin x 2:
- 9x10x0.6mm Spring- Forward Assist Plunger x 1:
- 11x12.2x0.9mm 180deg. Trigger Spring x 1:
- 22x250x1.6/1.2mm Spring - Action x 1:
- 41x17x280x1.5mm Spring - Magazine x 1:
Description

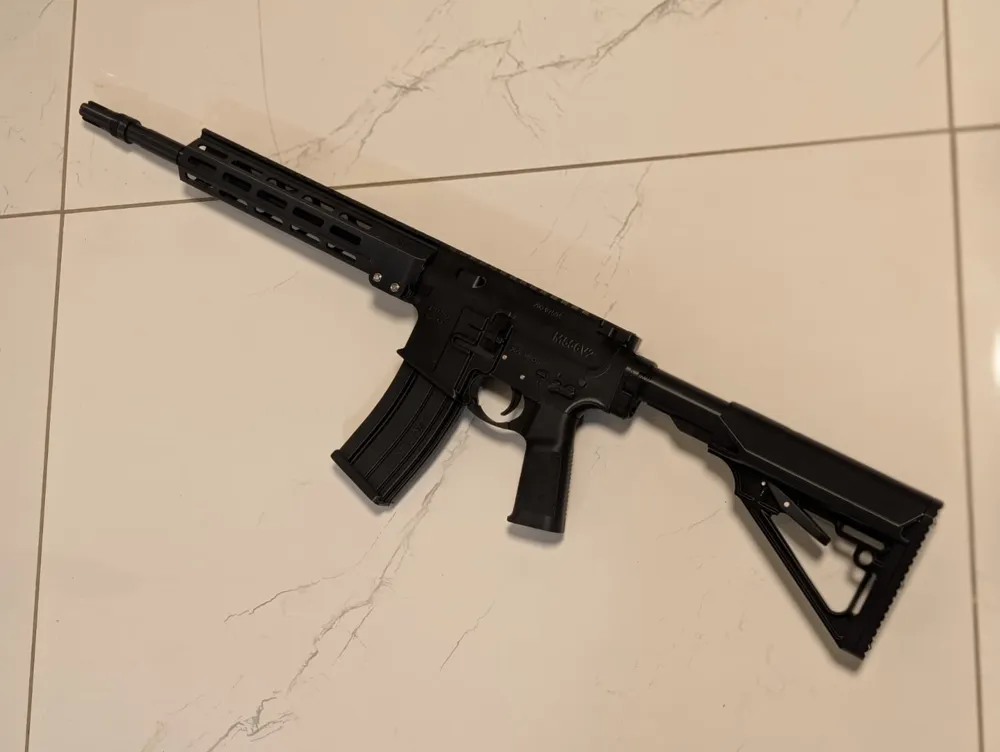

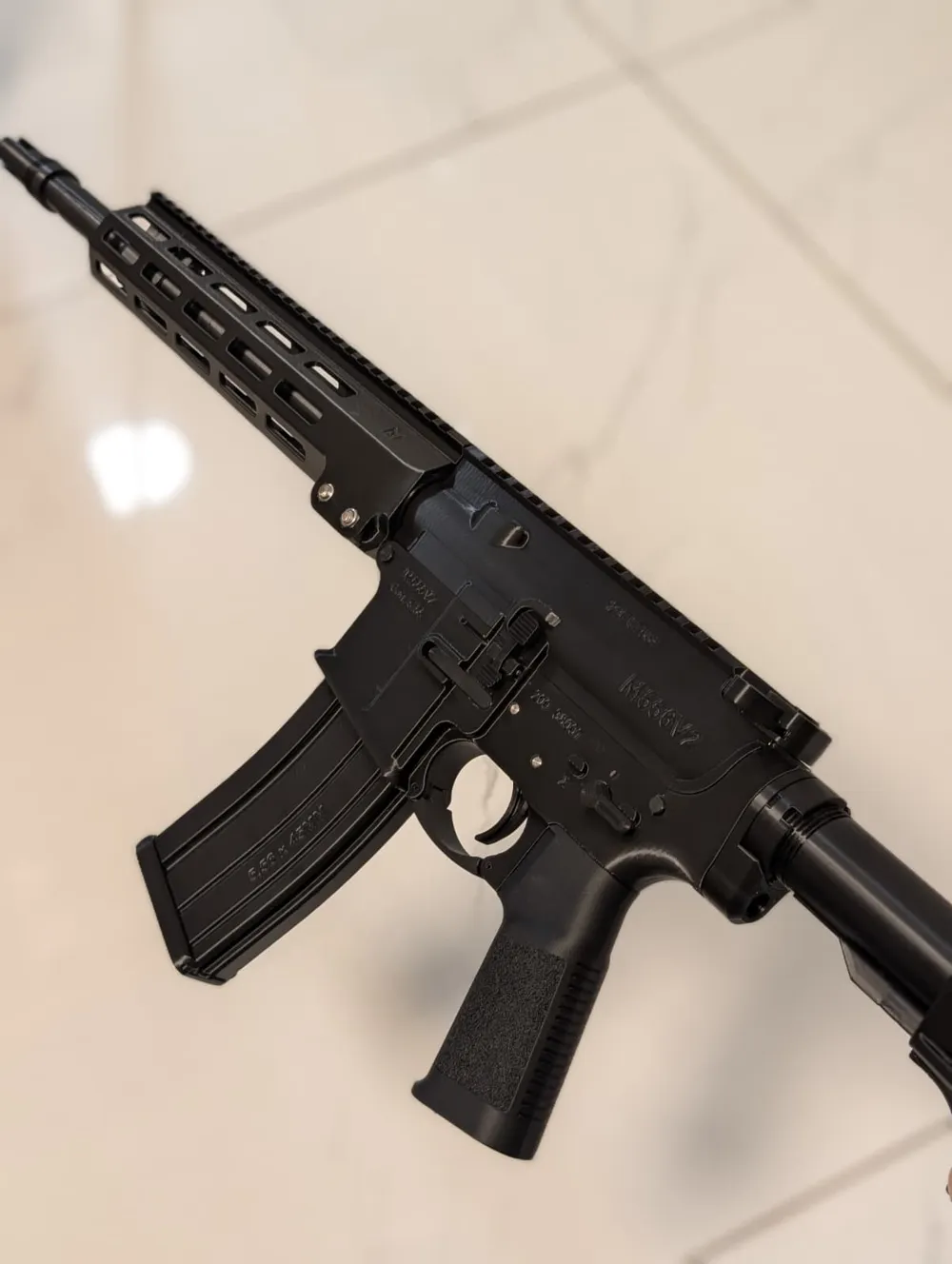

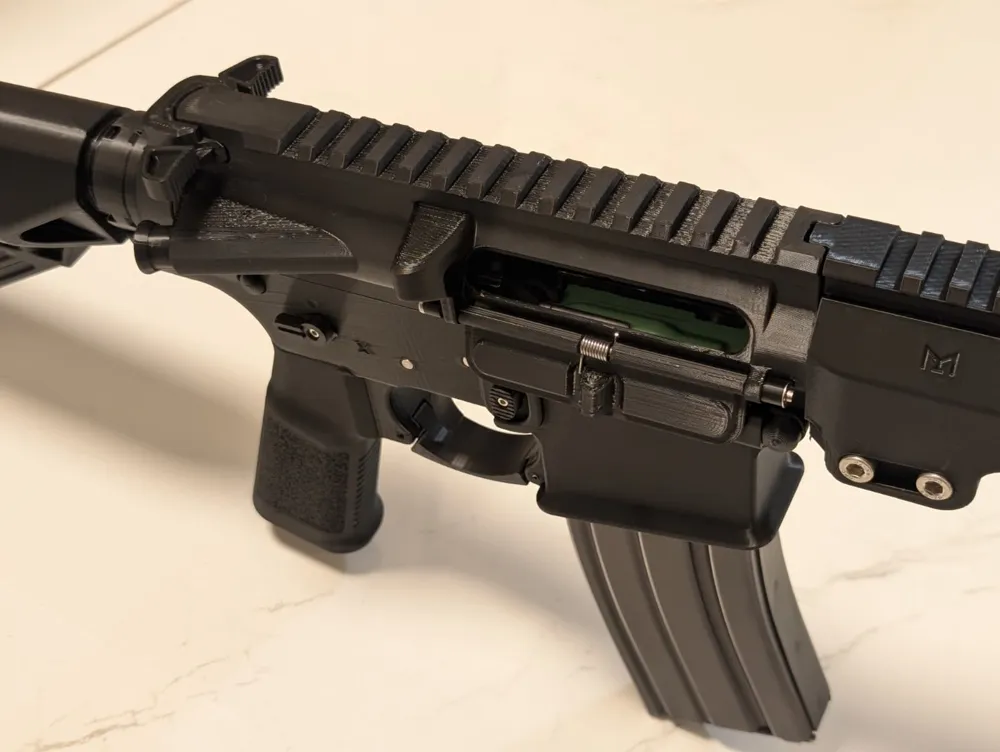

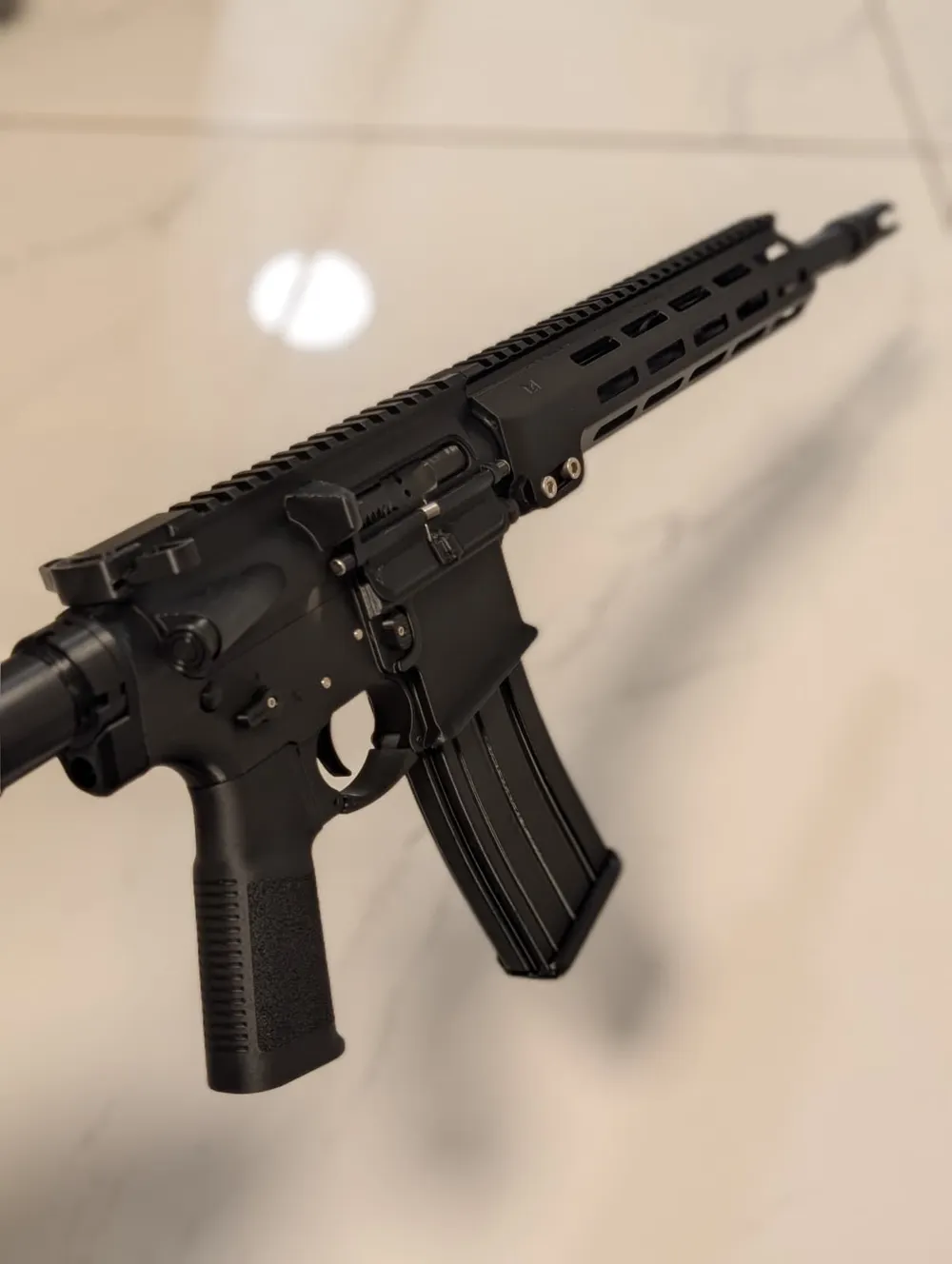

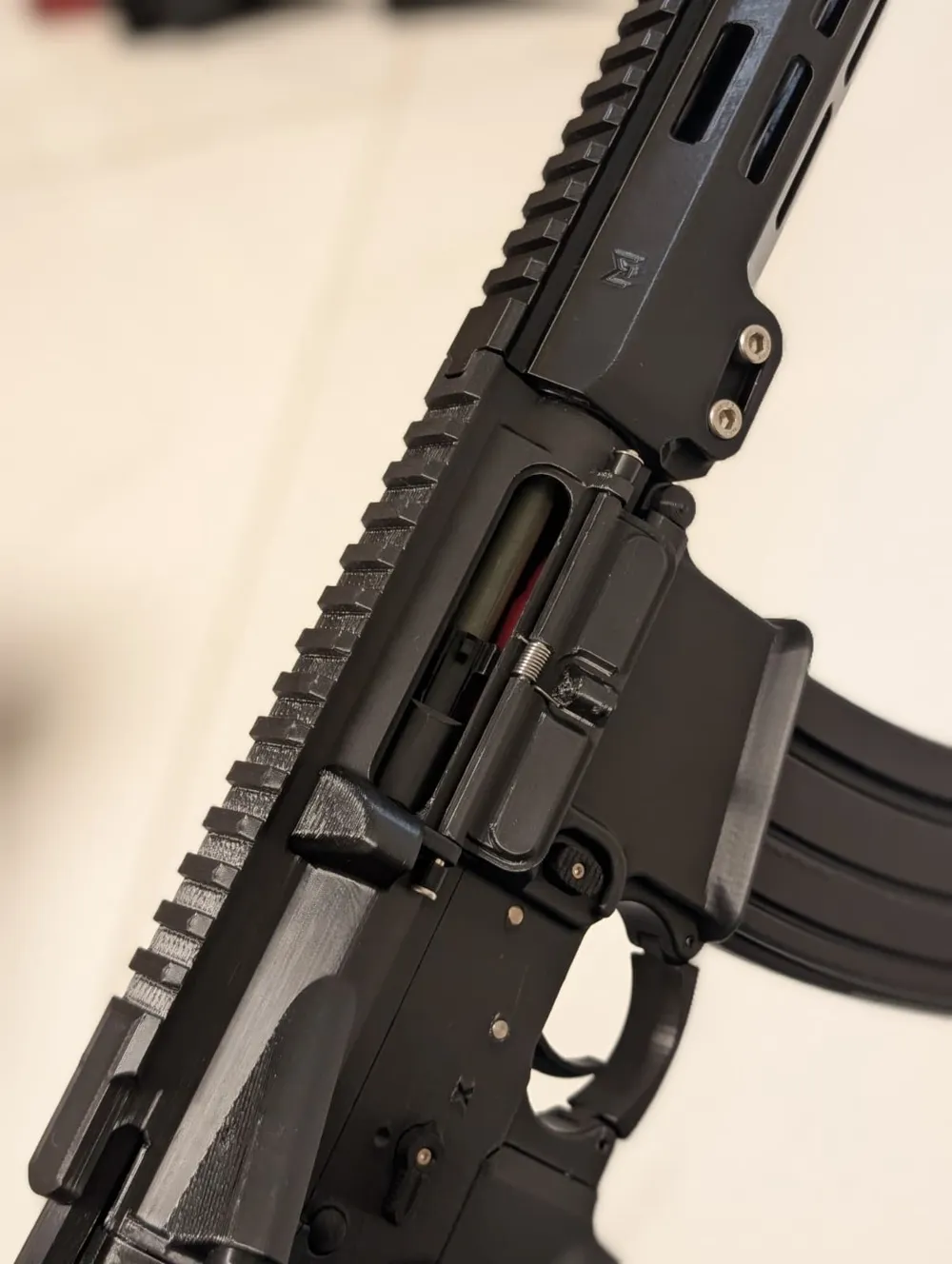

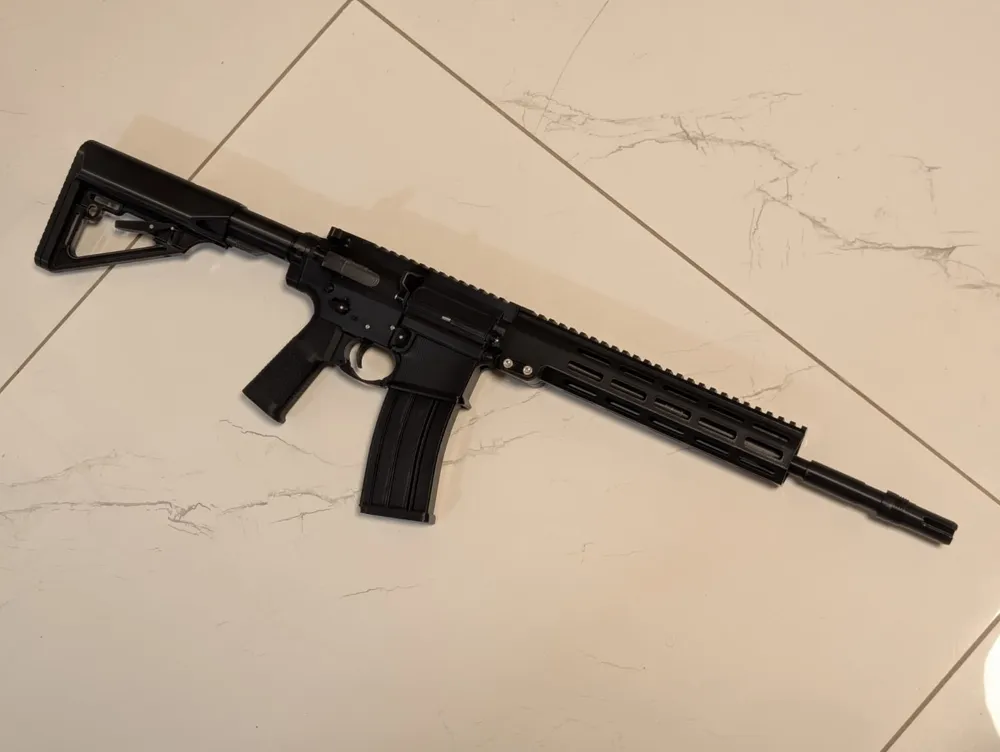

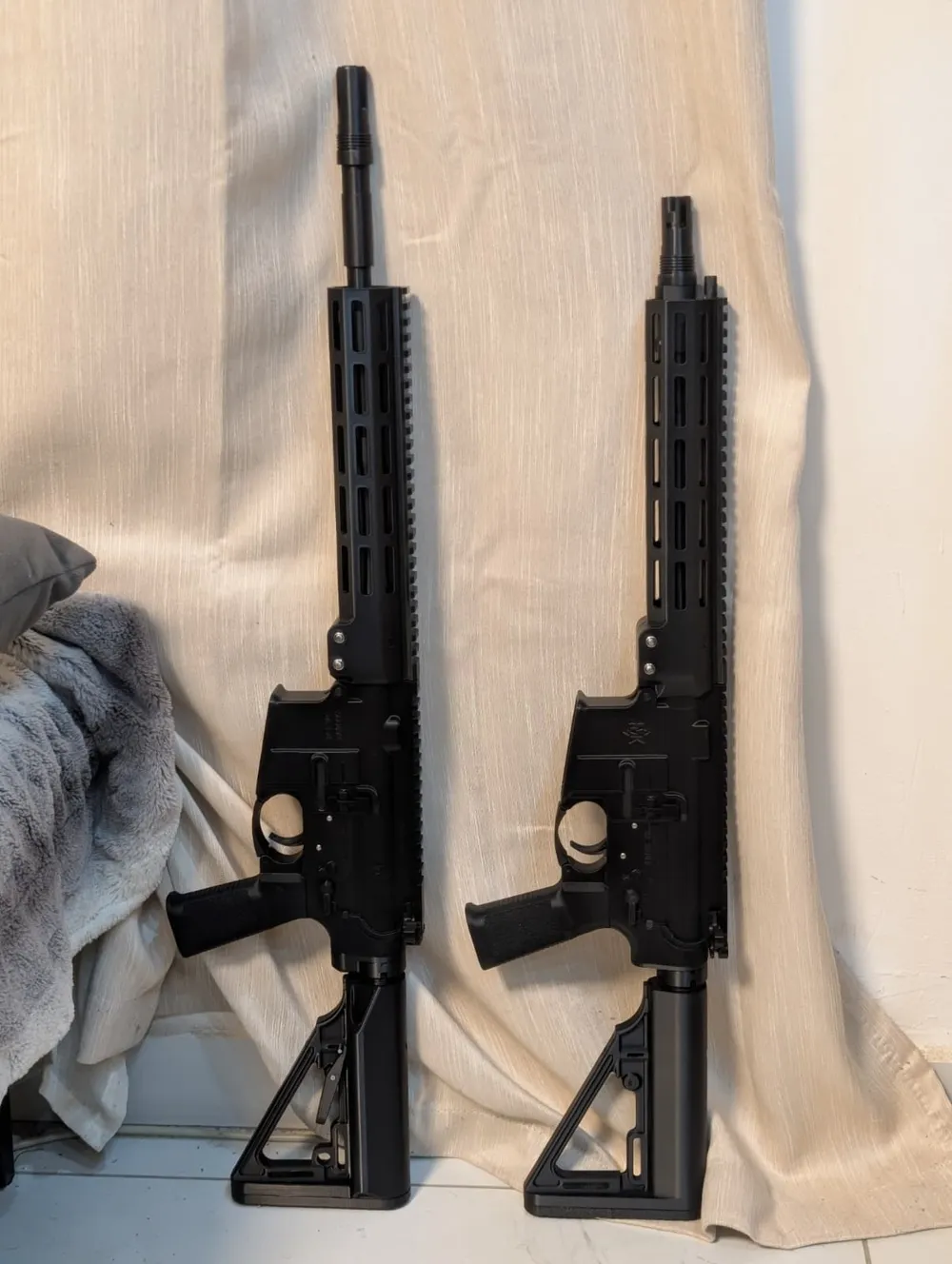

Introducing the M556V3: a new, fully modular AR-15 pattern rifle. This is a modified replica providing hyper realistic experience with handling an AR-15 rifle. Check out THIS VIDEO for a quick demonstration of all the features.
Note: this video depicts the V2 version with the hammer, which is unavailable with V3
Note: some images depict the V2 version with the hammer present, which is unavailable with V3
This model consists of ~100 individual components, providing realistic detail and rewarding assembly process. Be it for cosplay, a prop collection, or just funsies, the M556V3 offers an authentic and well built system.
Boost Me (for free)
A token of appreciation if you like this model 🎖️🏆
Membership
This is a way to support my work, to help me continue creating more models, and allow you to make adaptations of your own Your support is a tremendous push to keep doing what I enjoy most and share my efforts with you.
– Features –
Modular design: Fully modular design, lower and upper receiver, handguard, barrel, buttstock and grip all separate parts
Functional Mechanisms:
- Functional trigger, disconnector and safety lever switch
- Functional magazine release, ambidextrous charging handle
- Fully replaceable receiver parts, handguard, handgrip, BCG, trigger, etc.
- Compatibility with standard AR15 magazines
- Full length, four position buttstock
- Swappable buttstock pads
- M-LOK and picatinny compatible handguard rail
Safety Features:
- Plugged solid barrel
- No striking hammer/pin bore
- No firing pin channel
- Modified receiver trigger housing
- Modified bolt carrier pin channel
Customization:
The model is highly customizable with all parts replaceable, including the frame, slide, handgrip, barrel, sights, striking hammer, trigger shoe and more, to truly allow you to make this pistol your own.

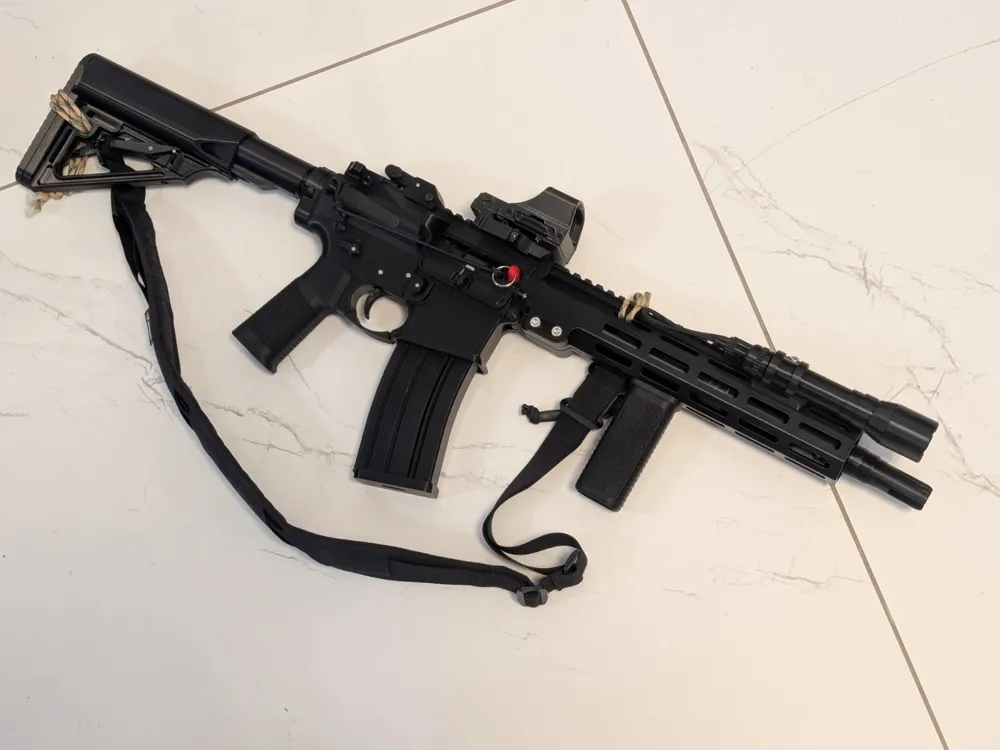

Attachments and upgrades, such as dummy red dot sights, flashlights and more are available HERE
– Instructions –
Assembly and Fitting:
Included step-by-step instruction for all modules, including the magazine. Easy to follow, full of visual ques and text instructions.
Fitting and fit-test instructions are included together with bills of materials and partlist.
– Compatibility –
Compatible with provided inert ammunition according to CIP/SAAPI dimensional specifications
Compatbile with standard picatinny and M-LOK rail accessories
– Support –
Contact:
If you encounter any issues with printing, assembly, etc., please leave a comment below or email me at: vissidus@gmail.com
-or join my discord channel
I'll do my best to help you resolve any and all issues I can
If you've printed the model and enjoyed playing with it, a follow and a like would be greatly appreciated!
Disclaimer: the Author assumes no responsibility or liability for any misuse and damage caused by the contents of this publication. The model and individual parts contained in this publication are not intended to be used to perpetrate any illegal activity.
Under no circumstances shall the Author of this model and publication be liable for any alterations made to the contents of this publication by any party aimed to construct a firearm.
