3d printable model rocket
Print Profile(1)
Description

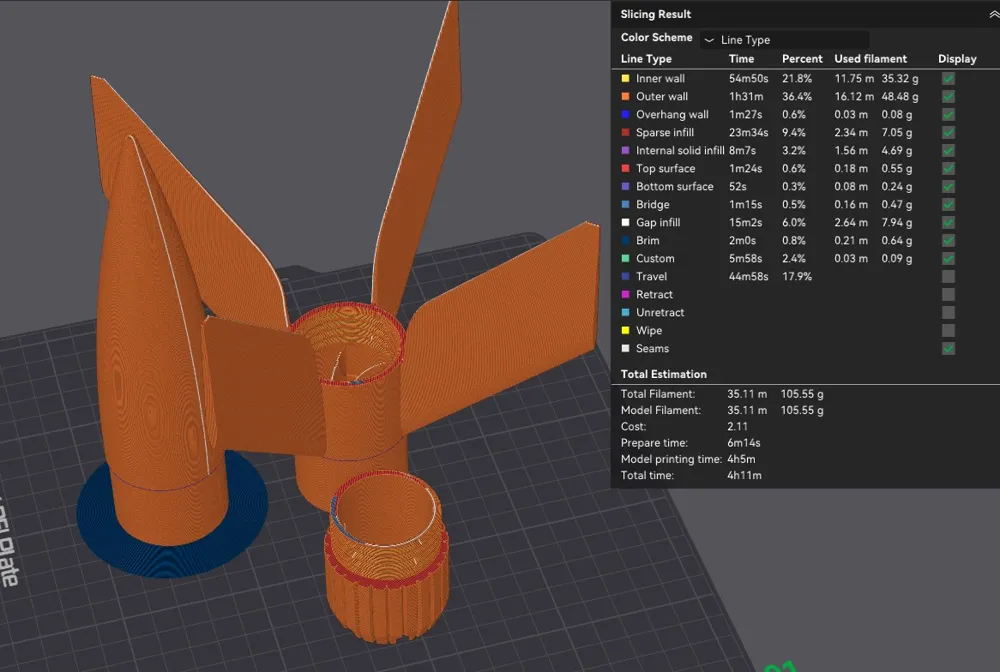

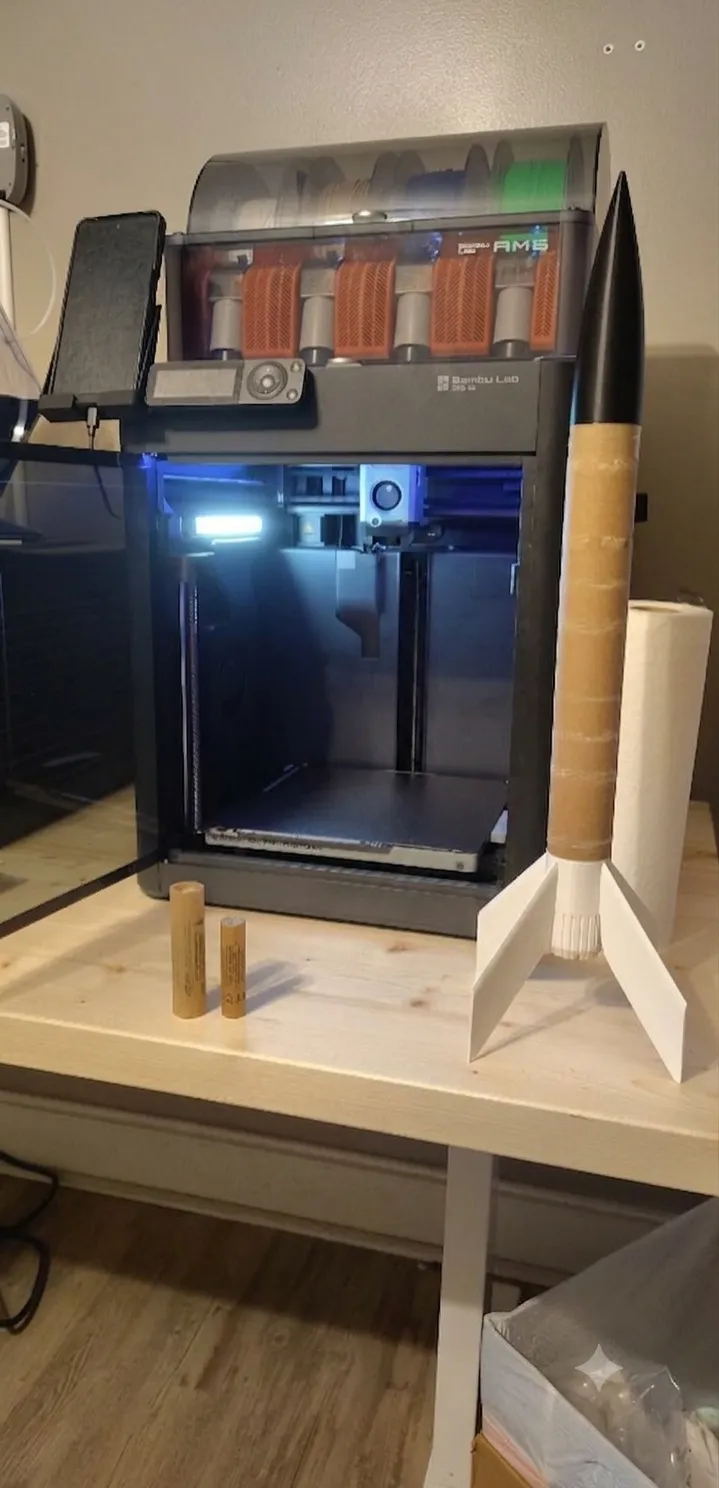

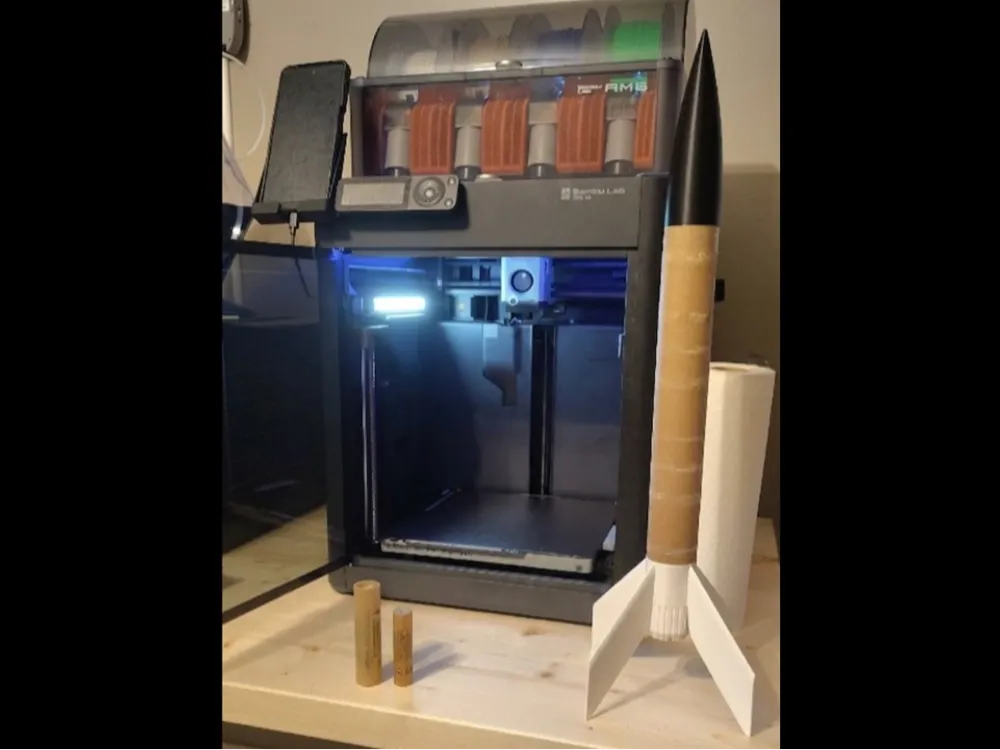

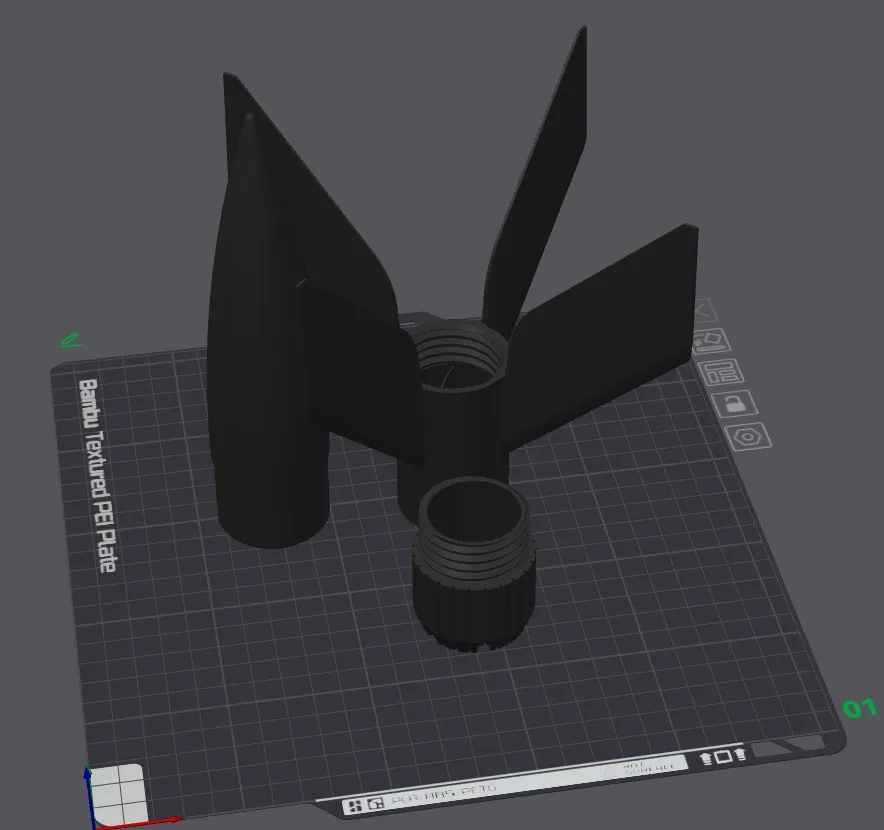

3D Printed Rocket, (Cone, Launch guide and Fines Only). Use with paper towel role for main body, some paper towel roles may vary in size. I used an 11-inch role with a 42.2mm inner diameter. Diameter of the fin and cone insert is 42.2mm. You will need to purchase a model rocket launch pad to launch safely, and a launch controller… The cone prints with 2 walls @ 35% cubic infill, and the Stabilizing fins print with 2 walls with 0% infill. This is so that the rocket will have the Center of gravity ahead of center of pressure to fly correctly. altering this can change flight pattern.
Some instructions.
- Tape the fins to the paper towel role
- Tape the launch pad guide to the middle of the paper towel role.
- If you plan to use a parachute due not tape the cone. That way it cone may be ejected to deploy the chute.
- Use in clear areas away from people, vehicles and buildings.
