USB-C Battery Charge/Discharge Board Holder
Print Profile(1)
Description

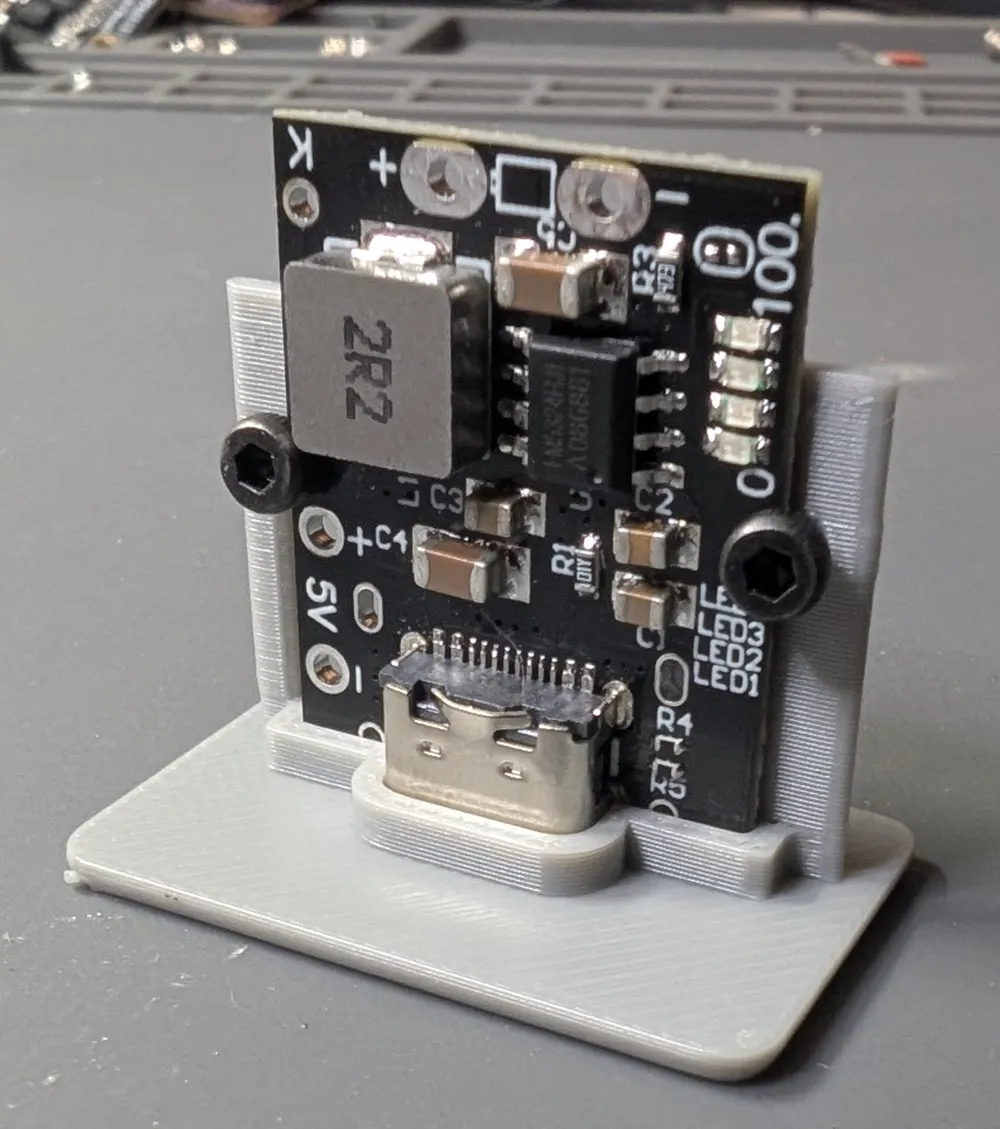

This is a panel-mount holder for the common type-c usb 5v 2a boost/charging modules that are commonly found on AliExpress and Amazon. Here is an (affiliate) link to the pictured module.
You can use glue and/or 2x M2 bolts, but please make sure they have really small heads!

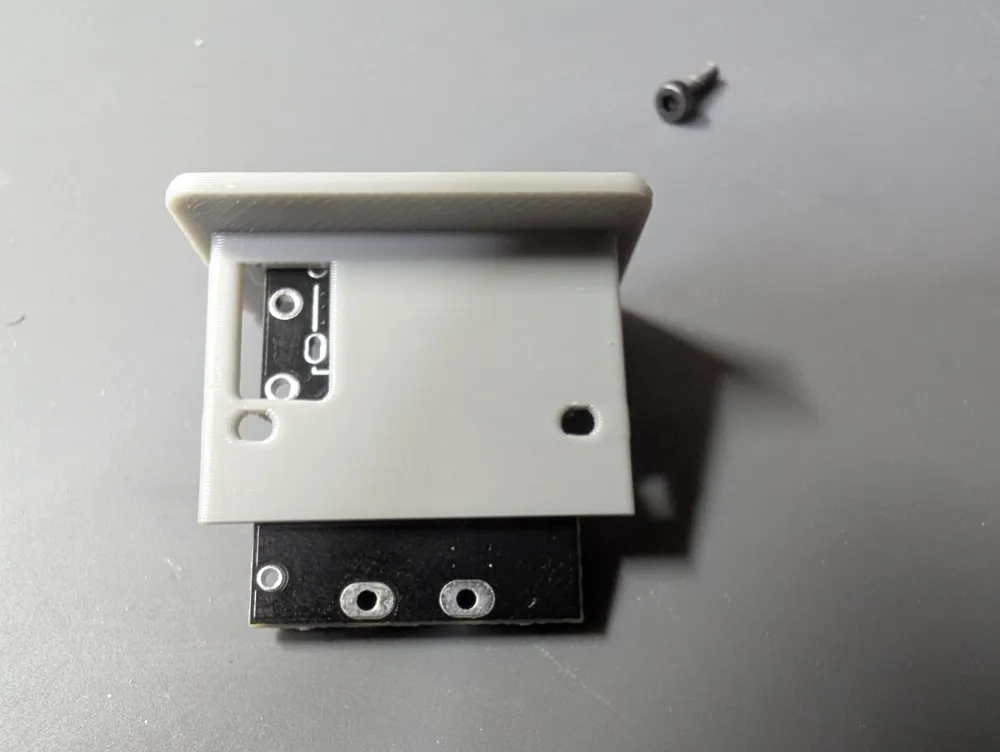

There are cutouts to be able to access all of the solder points.

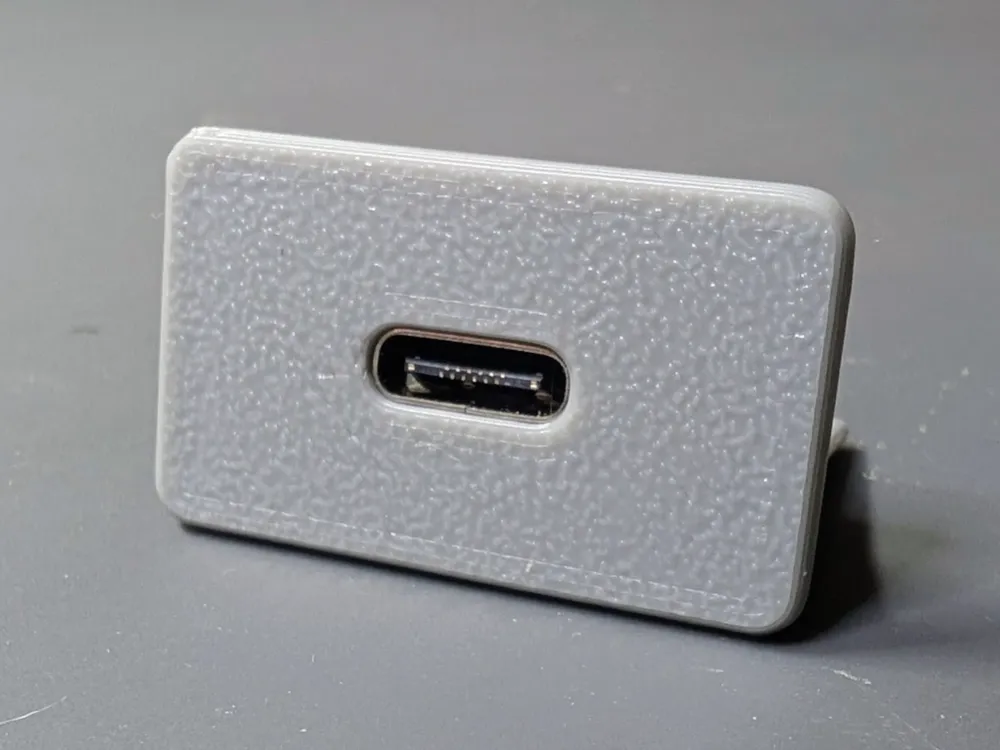

If anyone needs the measurements, 9.2mm X 3.4mm rectangle with 1.4mm radius corners. 0.5mm radius fillet around the opening.
0.4 nozzle, generic filament, printed face down.
NOTE: these charging circuits turn off when using < ~50ma, so that's something to be aware of before using it for microcontroller projects. This is the same charger i use in my tape mp3 player project.
