Drip Coffee Kit

Drip Coffee Kit

A compact 3D printed storage kit for drip coffee packs and coffee beans.

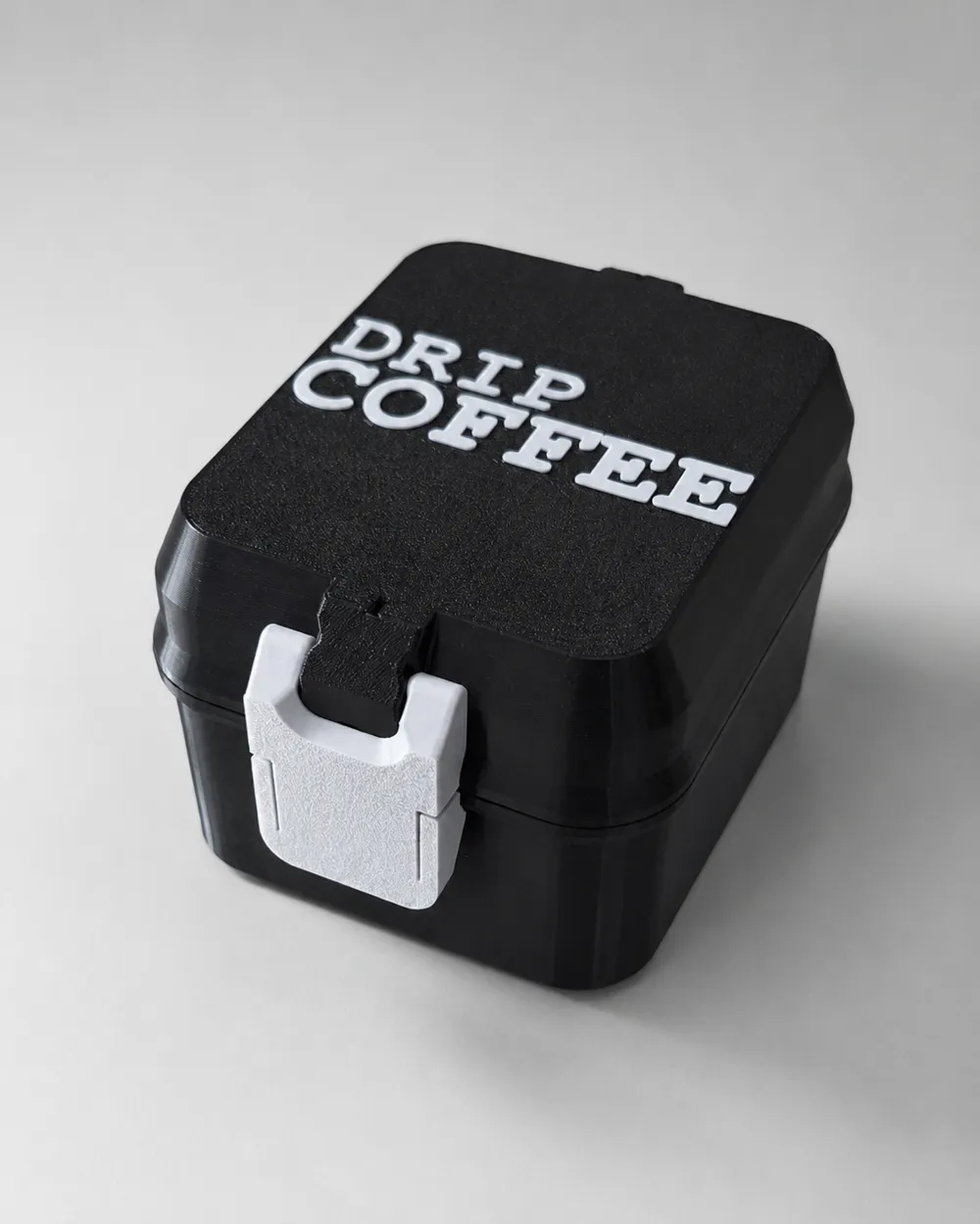

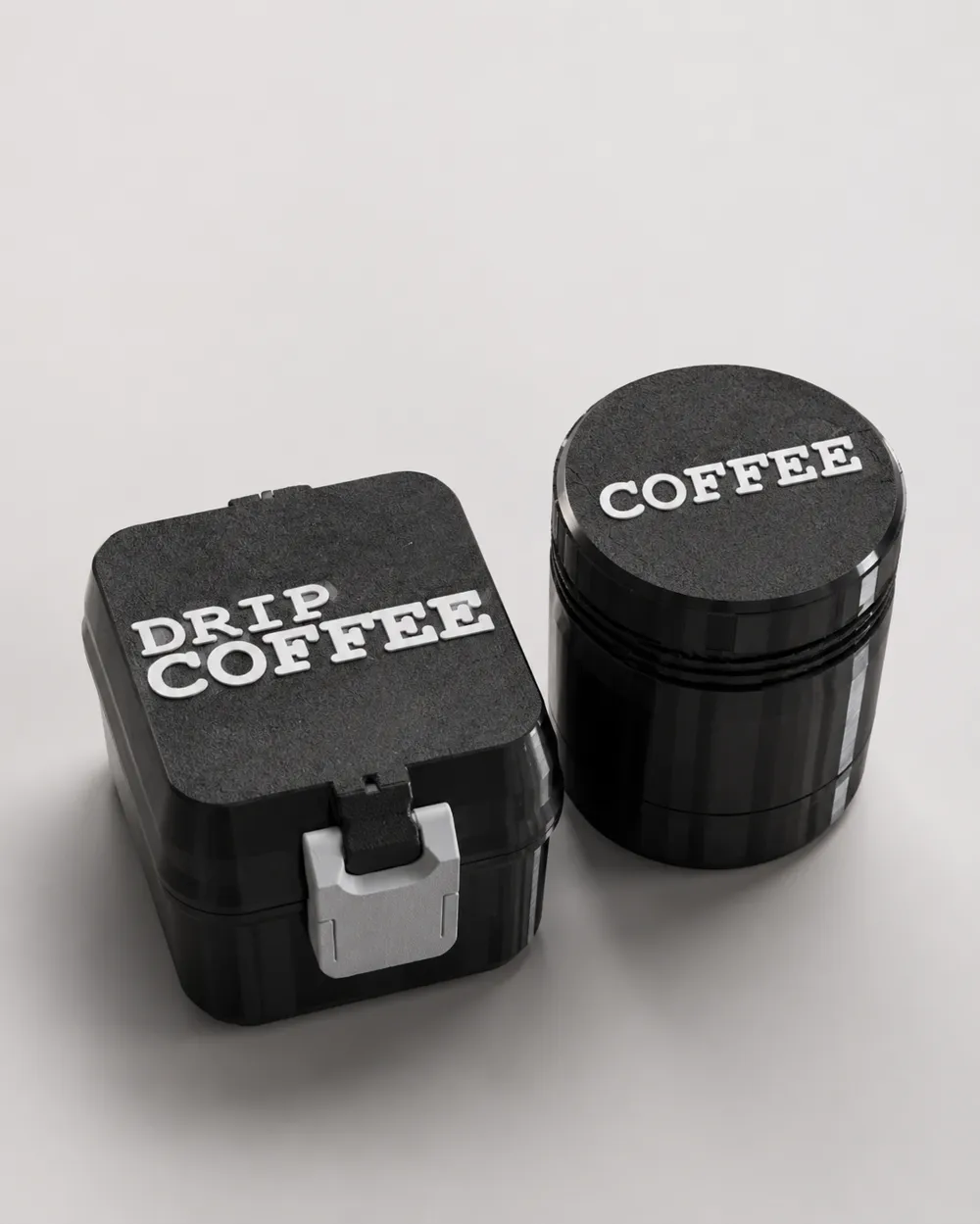

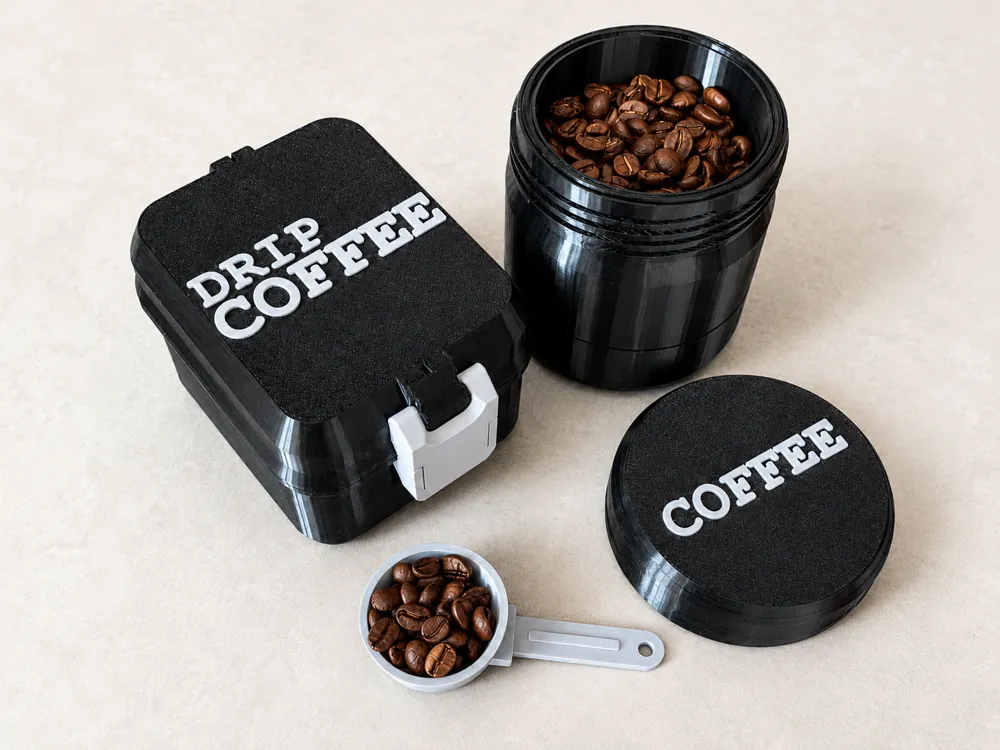

The set includes a drip coffee storage box, a screw-top coffee bean jar, a TPU gasket, and a small measuring scoop. The design uses a matching black/gray style with raised lettering and chamfered edges, so all parts look like one complete coffee station set.

Included parts

• Drip coffee storage box
• Hinged lid with latch
• Coffee bean jar
• Screw-on jar lid
• TPU gasket ring
• Measuring scoop

Features

• Compact countertop storage set
• Matching design for drip bags and coffee beans
• Screw-top jar for coffee beans
• TPU gasket for better sealing
• Small measuring scoop included
• Designed for Bambu Lab A1
• Multicolor details can be printed with AMS/AMS Lite
• No glue required for the main parts

Recommended materials

• PETG for the box, jar, lid, latch, and scoop
• TPU 95A for the gasket ring

The TPU gasket is optional, but it improves the seal between the jar and lid. If TPU is difficult to print with your setup, print the gasket separately and install it after printing.

Print notes

Recommended settings:

• 0.4 mm nozzle
• 0.20 mm layer height
• PETG for main parts
• TPU 95A for gasket
• Textured PEI plate recommended
• Supports only where required by your slicer profile

The raised text can be printed with AMS/AMS Lite or added manually in the slicer as separate color objects.

Assembly

1. Print all parts.
2. Insert the TPU gasket into the groove.
3. Install the latch parts on the drip coffee box.
4. Screw the lid onto the coffee jar and check the fit.
5. Use the scoop for coffee beans or ground coffee.

Notes

This is a 3D printed kitchen accessory. For direct food contact, use suitable filament and keep the parts clean. Not recommended for dishwasher use.
