100 Vial Freezer Storage Case - Staggered Vials
Print Profile(1)
Bill of Materials
Description
Boost Me (for free)
If you like this case, please consider boosting it. It really helps me to spend time designing and adding new models to Maker World.
Compact 100-Vial Storage Case
This compact storage case is designed to hold up to 100 individual 3 mL vials while using space as efficiently as possible. The staggered vial layout allows the insert to fit more vials into a smaller footprint than a traditional straight-row arrangement.

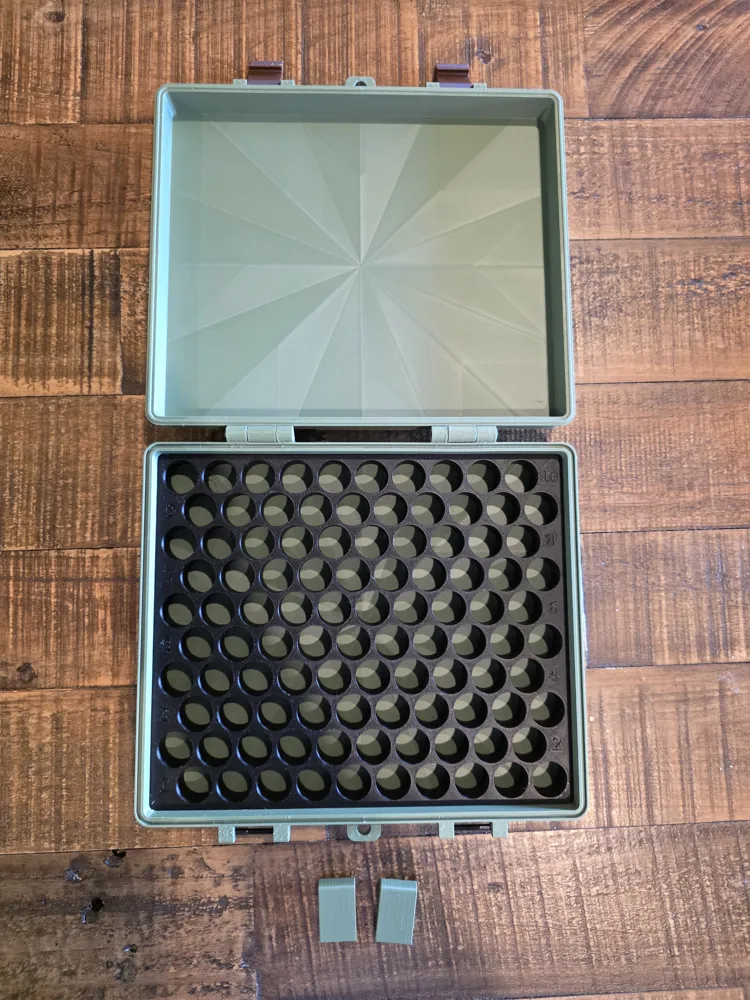

The case includes a removable insert with numbered rows, secure latches, and a dedicated lock point to help discourage unauthorized access or prying eyes. It is well suited for organized long-term storage, including freezer use.
Features
- Holds up to 100 individual 3 mL vials
- Space-efficient staggered vial arrangement
- TPU perimeter gasket helps reduce air and moisture exchange

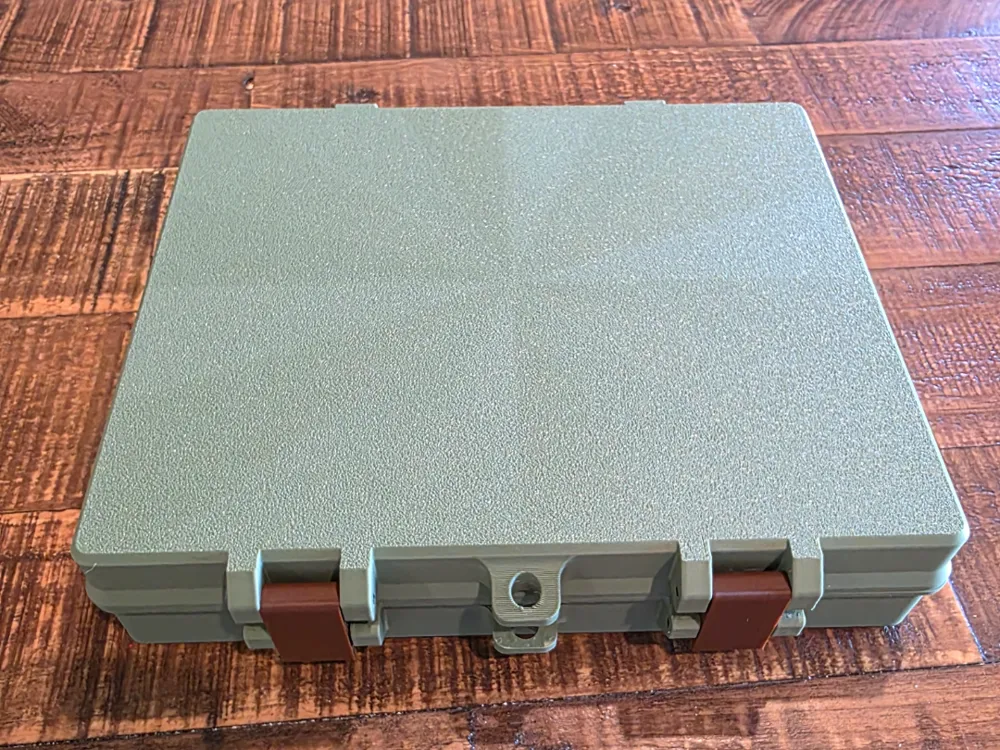

- Two front latches keep the lid securely closed
- Integrated lock point for adding a small padlock or tamper-evident seal
- Designed with long-term freezer storage and organization in mind
Required Hardware
- 3 mm × 30 mm bolts for the hinges and latches
- Optional small padlock or tamper-evident seal
Storage Note
The TPU gasket helps reduce air and moisture exchange, but a 3D-printed enclosure should not be considered laboratory-certified airtight, waterproof, or security-rated. The lock point is intended to discourage casual access rather than provide high-security protection.
When removing the case from a freezer, allowing it to warm toward room temperature before opening may help reduce condensation on the contents.
Recommended to add some 3mL vial loose desiccant holders for extra moisture protection.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
